ARS220-AEZRZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )

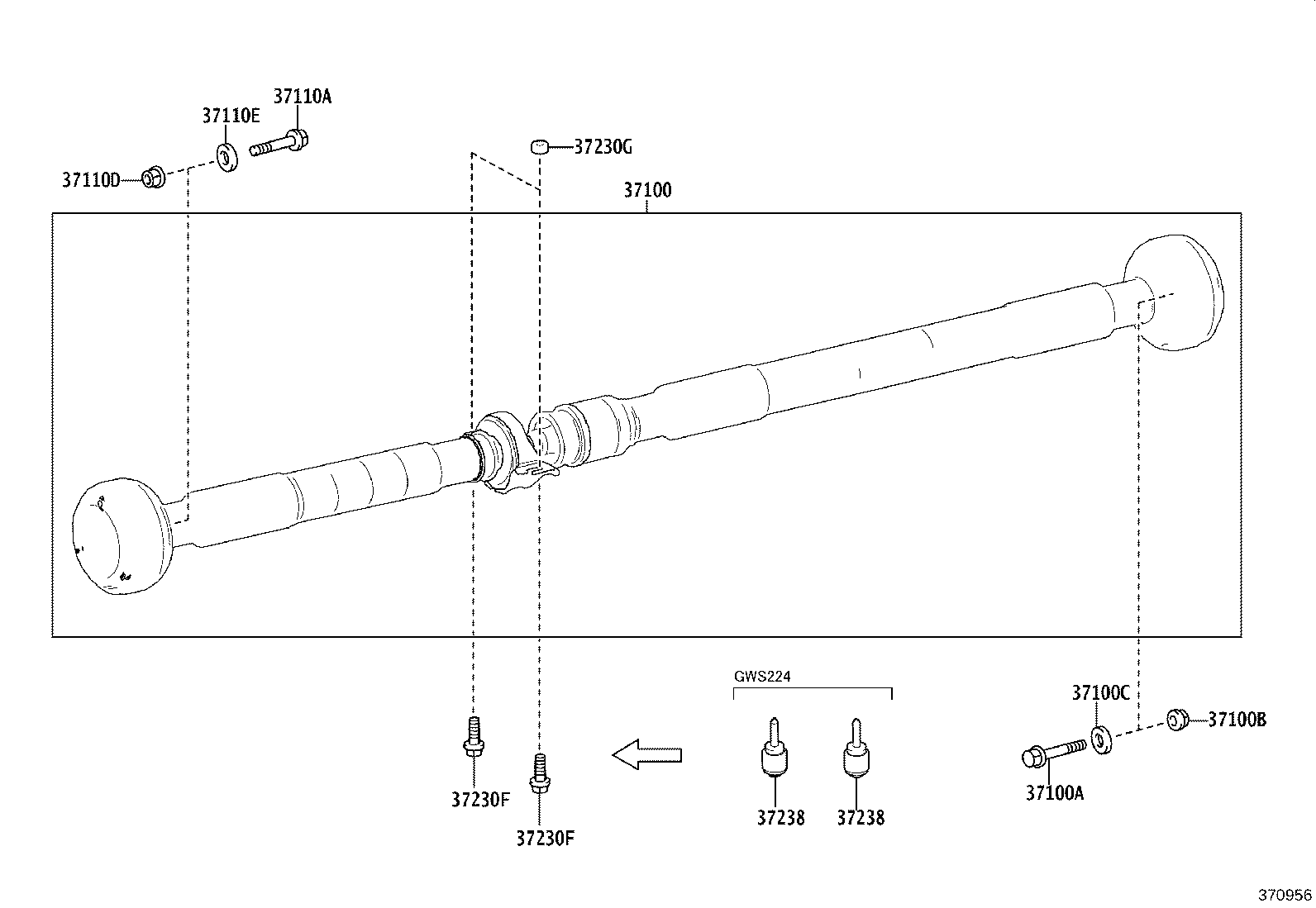

Click highlighted areas on diagram

REAR

diagram 37100 37100A 37100B 37100C 37110A 37110D 37110E 37230F 37230F 37230G 37238 37238
Part # Description Qty Price
37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING
37100-30B50

ARS220

 1
37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90105-12265

ARS220,AZSH2#,GWS224

 3
37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING)
90179-12128

ARS220,AZSH2#,GWS224

 3
37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN
90560-12059

ARS220,AZSH2#,GWS224

 3
37110A - BOLT (FOR PROPELLER SHAFT)
90105-12265

ARS220,AZSH2#,GWS224

*12X1.25PX59.5−20

 3
37110D - NUT (FOR PROPELLER SHAFT)
90179-12128

ARS220,AZSH2#,GWS224

 3
37110E - WASHER (FOR PROPELLER SHAFT)
90560-12059

ARS220,AZSH2#,GWS224

 3
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10902

ARS220,AZSH2#

長さ=33

 2
37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING)
90119-10902

ARS220,AZSH2#

長さ=33

 2
37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING)
90201-10033

ARS220,AZSH2#,GWS224

厚さ=6.5

 2
90201-10034

ARS220,AZSH2#,GWS224

厚さ=11.0

 2
90201-10017

ARS220,AZSH2#,GWS224

厚さ=9.0

 2
90201-10106

ARS220,AZSH2#,GWS224

厚さ=2.0

 2
90201-10008

ARS220,AZSH2#,GWS224

厚さ=4.5

 2
