ARS220-AEZRZ (2018)
Toyota Crown/Hybrid

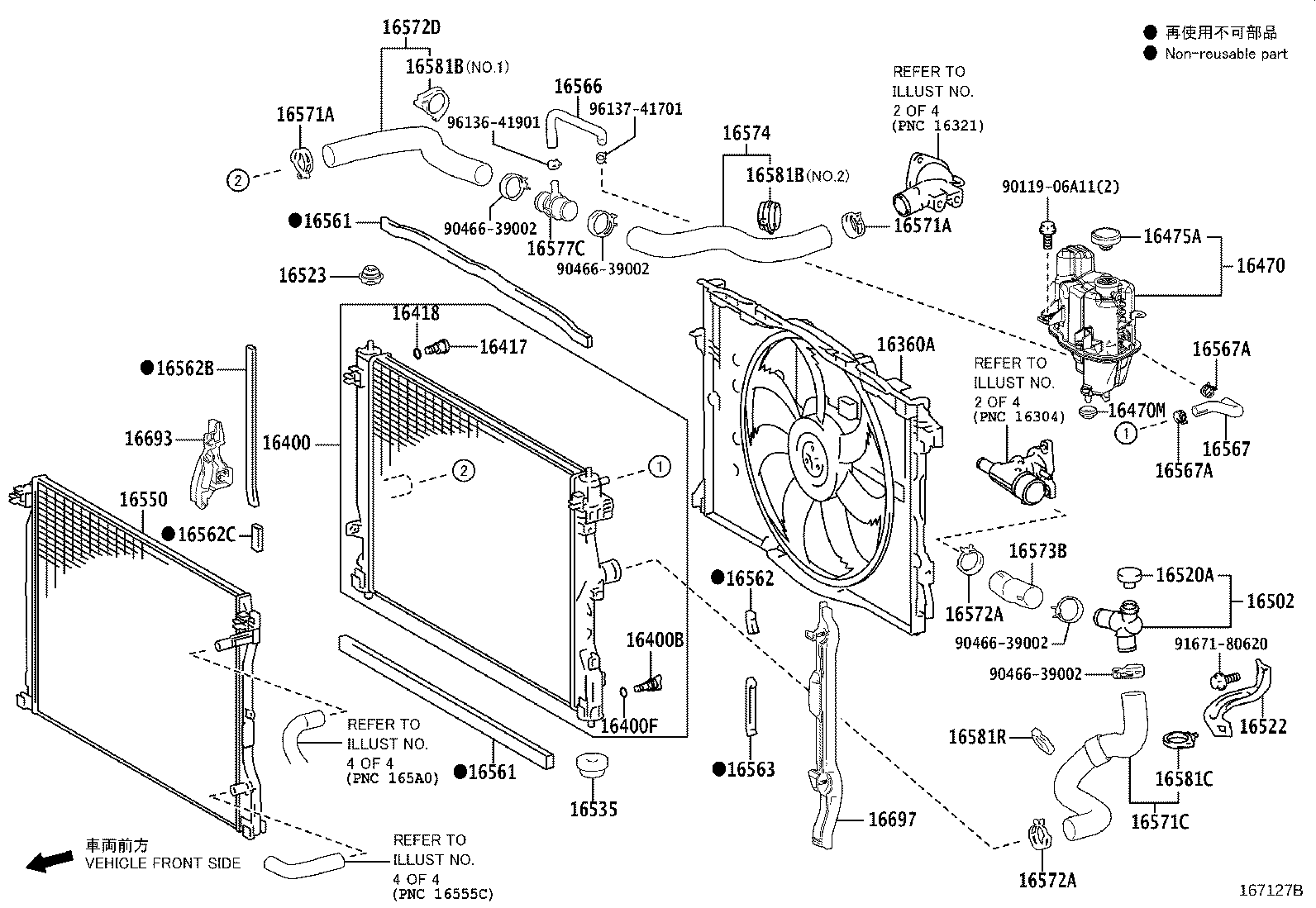

ILLUST NO. 1 OF 4(1806- )8ARFTS
ﾗｼﾞｴｰﾀｶﾞﾜ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16360A - FAN ASSY, W/MOTOR | ||||
| 16360-31530 |
8ARFTS..ARS220 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-36330 |
8ARFTS..ARS220 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-21280 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16417 - COCK | ||||
| 16417-28530 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16418 - PACKING | ||||
| 16418-20291 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-31200 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16470M - GROMMET | ||||
| 90480-18010 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16475A - CAP, RESERVE TANK | ||||
| 16475-28140 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16502 - FILLER SUB-ASSY, WATER | ||||
| 16502-36010 |
8ARFTS..ARS220 |
1 | ||
| 16520A - CAP SUB-ASSY, WATER FILLER | ||||
| 16501-36013 |
8ARFTS..ARS220 |
1 | ||
| 16522 - BRACKET, WATER FILLER | ||||
| 16522-36010 |
8ARFTS..ARS220 |
1 | ||
| 16523 - CUSHION, SUB-RADIATOR SUPPORT | ||||
| 16523-38010 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40022 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
2 | ||
| 16550 - RADIATOR ASSY, INTERCOOLER COOLING | ||||
| 16550-36050 |
8ARFTS..ARS220 |
1 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31170 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
2 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-31170 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
2 | ||
| 16562 - SEAL, RADIATOR TO SUPPORT, NO.2 | ||||
| 16561-31180 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16562B - SEAL, RADIATOR TO SUPPORT, NO.4 | ||||
| 16561-31200 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16562C - SEAL, RADIATOR TO SUPPORT, NO.5 | ||||
| 16561-31210 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16563 - SEAL, RADIATOR TO SUPPORT, NO.3 | ||||
| 16561-31190 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16566 - HOSE, RESERVE TANK OUTLET | ||||
| 16566-36020 |
8ARFTS..ARS220 |
1 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-31050 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 96136-41901 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 96136-41901 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-39002 |
8ARFTS..ARS220 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90466-39002 |
8ARFTS..ARS220 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-36300 |
8ARFTS..ARS220 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 |
8ARFTS..ARS220 |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90466-39002 |
8ARFTS..ARS220 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-36250 |
8ARFTS..ARS220 |
1 | ||
| 16573B - HOSE, RADIATOR, NO.3 | ||||
| 16573-36050 |
8ARFTS..ARS220 |
1 | ||
| 16574 - HOSE, RADIATOR, NO.4 | ||||
| 16574-36060 |
8ARFTS..ARS220 |
1 | ||
| 16577C - PIPE, RADIATOR | ||||
| 16577-36050 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-36120 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16581-31160 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16581B - CLAMP, HOSE(FOR RADIATOR HOSE) | ||||
| 16581-36120 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16581-31160 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16581C - CLAMP, HOSE(FOR RADIATOR HOSE NO.2) | ||||
| 16581-25090 |
8ARFTS..ARS220 |
1 | ||
| 16581R - CLAMP, HOSE(FOR RADIATOR HOSE NO.3) | ||||
| 16581-36130 |
8ARFTS..ARS220 |
1 | ||
| 16693 - PLATE, RADIATOR SIDE AIR GUIDE, RR RH | ||||
| 16693-31030 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| 16697 - PLATE, RADIATOR SIDE AIR GUIDE, RR LH | ||||
| 16697-31030 |
A25AFXS,8ARFTS..ARS220,AZSH2# |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90466-39002 | ||||
| 91671-80620 | ||||
| 96136-41901 | ||||
| 96137-41701 | ||||

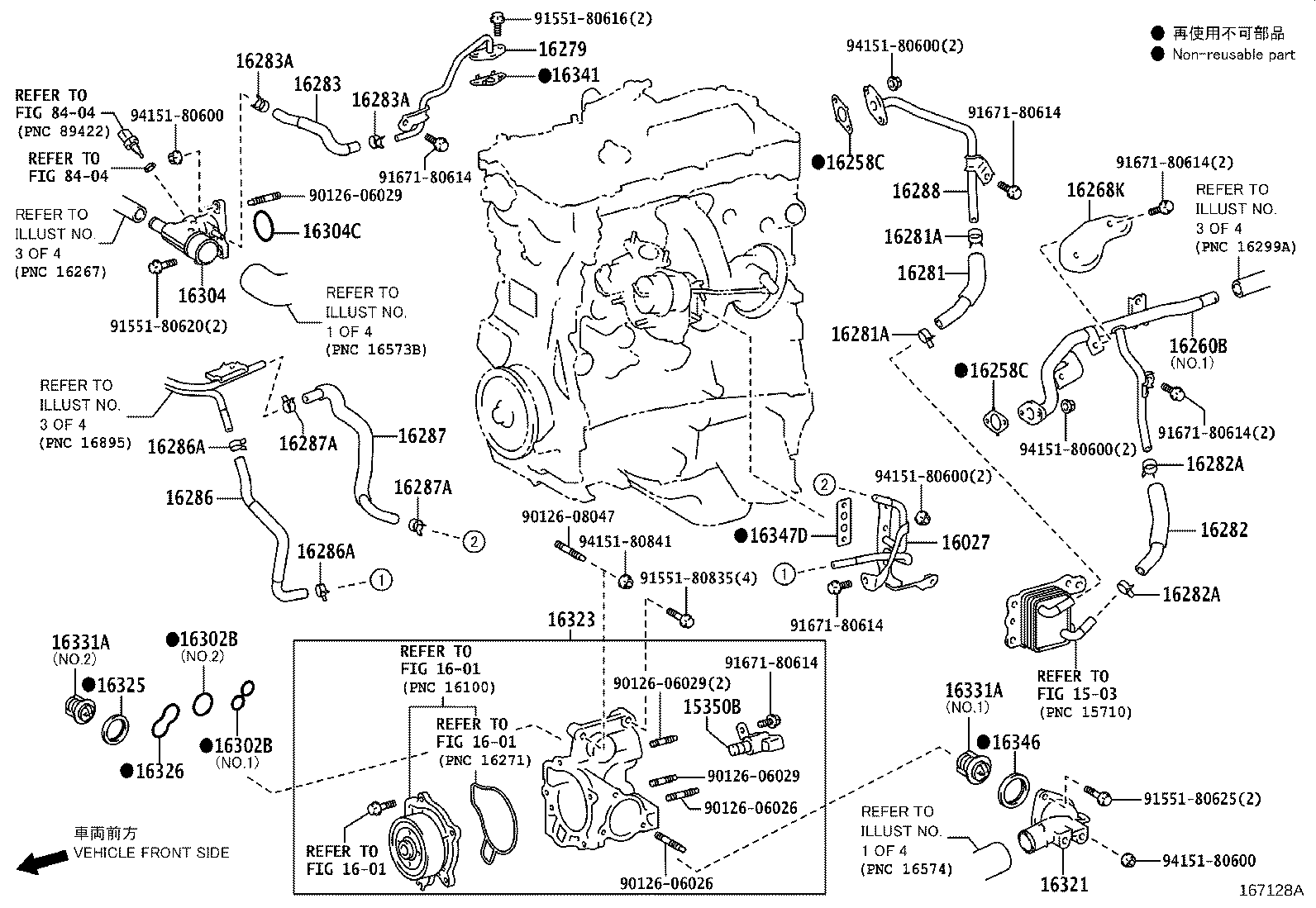

ILLUST NO. 2 OF 4(1806- )8ARFTS
ｴﾝｼﾞﾝﾖｳﾊｲｶﾝ(1/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15350B - VALVE ASSY, OIL PRESSURE SWITCHING | ||||
| 15350-33012 |
8ARFTS..ARS220 |
1 | ||
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16027-36030 |
8ARFTS..ARS220 |
1 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36040 |
8ARFTS..ARS220 |
2 | ||
| 16258C - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 16258-36040 |
8ARFTS..ARS220 |
2 | ||
| 16260B - PIPE ASSY, WATER BY-PASS | ||||
| 1628A-36020 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16268-36250 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16268K - INSULATOR, EXHAUST MANIFOLD HEAT, NO.3 | ||||
| 17169-36030 |
8ARFTS..ARS220 |
1 | ||
| 16279 - PIPE, WATER BY-PASS, NO.3 | ||||
| 16279-36011 |
8ARFTS..ARS220 |
1 | ||
| 16281 - HOSE, WATER BY-PASS, NO.4 | ||||
| 16281-36120 |
8ARFTS..ARS220 |
1 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
8ARFTS..ARS220 |
2 | ||
| 16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4) | ||||
| 96136-42101 |
8ARFTS..ARS220 |
2 | ||
| 16282 - HOSE, WATER BY-PASS, NO.5 | ||||
| 16282-36140 |
8ARFTS..ARS220 |
1 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
8ARFTS..ARS220 |
2 | ||
| 16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5) | ||||
| 96136-42101 |
8ARFTS..ARS220 |
2 | ||
| 16283 - HOSE, WATER BY-PASS, NO.6 | ||||
| 16283-36090 |
8ARFTS..ARS220 |
1 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
8ARFTS..ARS220 |
2 | ||
| 16283A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6) | ||||
| 96136-41501 |
8ARFTS..ARS220 |
2 | ||
| 16286 - HOSE, TURBO WATER, NO.3 | ||||
| 16286-36010 |
8ARFTS..ARS220 |
1 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41701 |
8ARFTS..ARS220 |
2 | ||
| 16286A - CLIP(FOR TURBO WATER HOSE NO.3) | ||||
| 96137-41701 |
8ARFTS..ARS220 |
2 | ||
| 16287 - HOSE, TURBO WATER, NO.4 | ||||
| 16287-36010 |
8ARFTS..ARS220 |
1 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41701 |
8ARFTS..ARS220 |
2 | ||
| 16287A - CLIP(FOR TURBO WATER HOSE NO.4) | ||||
| 96137-41701 |
8ARFTS..ARS220 |
2 | ||
| 16288 - PIPE, WATER BY-PASS, NO.4 | ||||
| 16288-36050 |
8ARFTS..ARS220 |
1 | ||
| 16302B - GASKET(FOR WATER INLET HOUSING) | ||||
| 16258-36050 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16258-36060 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16302B - GASKET(FOR WATER INLET HOUSING) | ||||
| 16258-36050 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16258-36060 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16304 - OUTLET SUB-ASSY, WATER | ||||
| 16304-36020 |
8ARFTS..ARS220 |
1 | ||
| 16304C - RING, O(FOR WATER OUTLET) | ||||
| 96762-35040 |
8ARFTS..ARS220 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-36030 |
8ARFTS..ARS220 |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-36060 |
8ARFTS..ARS220 |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-36051 |
8ARFTS..ARS220 |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-36030 |
8ARFTS..ARS220 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03154 |
8ARFTS..ARS220 *WAX 78−91,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90916-03156 |
8ARFTS..ARS220 *WAX 82−95,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03154 |
8ARFTS..ARS220 *WAX 78−91,NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 90916-03156 |
8ARFTS..ARS220 *WAX 82−95,NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-36020 |
8ARFTS..ARS220 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-36011 |
8ARFTS..ARS220 |
1 | ||
| 16347D - GASKET, WATER BY-PASS | ||||
| 16347-36020 |
8ARFTS..ARS220 |
1 | ||
| Common parts | ||||
| 90126-06026 | ||||
| 90126-06029 | ||||
| 90126-08047 | ||||
| 91551-80616 | ||||
| 91551-80620 | ||||
| 91551-80625 | ||||
| 91551-80835 | ||||
| 91671-80614 | ||||
| 94151-80600 | ||||
| 94151-80841 | ||||
| Linked diagrams | ||||
| 1503 | ||||
| 1601 | ||||
| 8404 | ||||

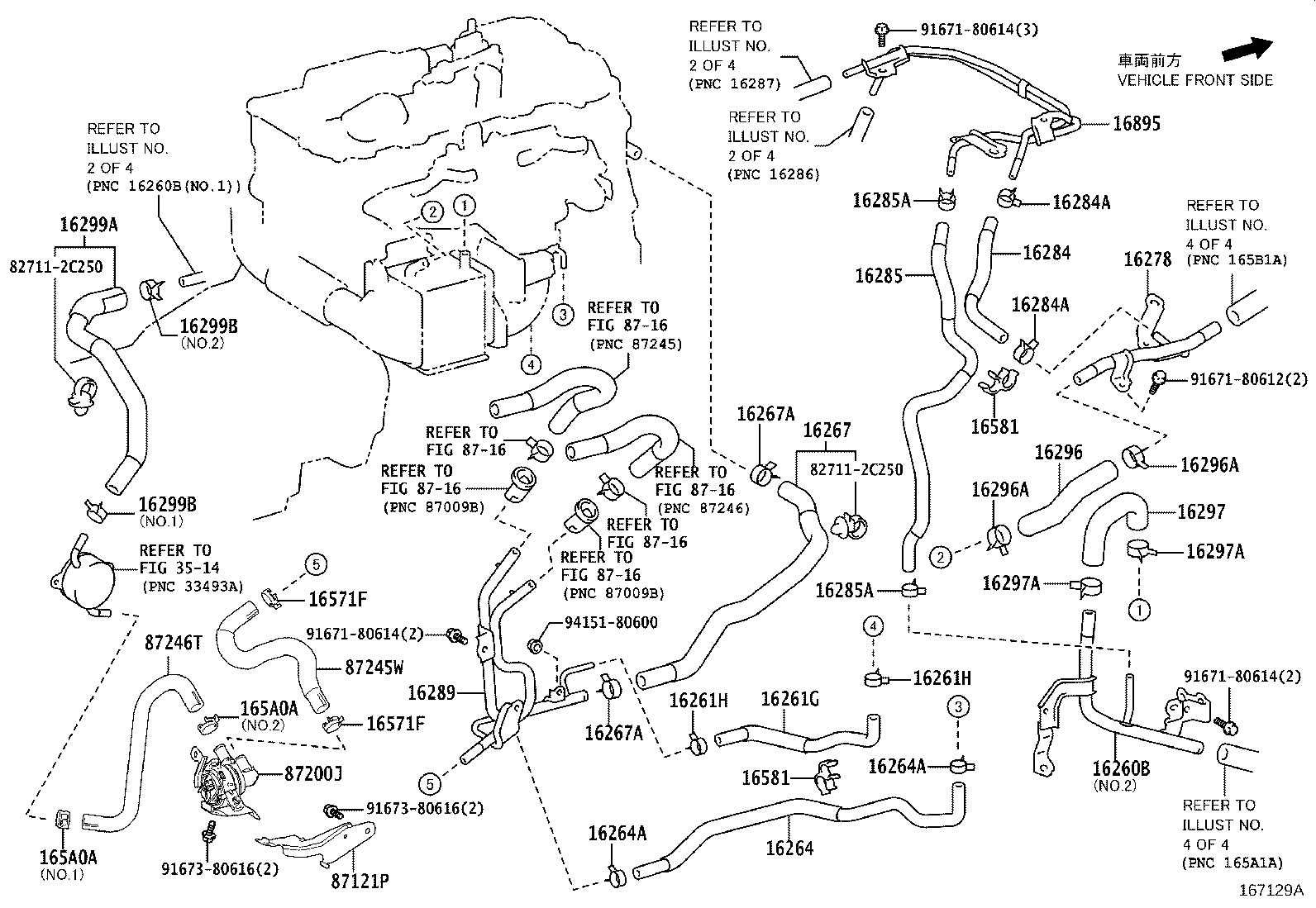

ILLUST NO. 3 OF 4(1806- )8ARFTS
ｴﾝｼﾞﾝﾖｳﾊｲｶﾝ(2/2)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16260B - PIPE ASSY, WATER BY-PASS | ||||
| 1628A-36020 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16268-36250 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-36180 |
8ARFTS..ARS220 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
8ARFTS..ARS220 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| 96136-41501 |
8ARFTS..ARS220 |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-36160 |
8ARFTS..ARS220 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
8ARFTS..ARS220 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 96136-41501 |
8ARFTS..ARS220 |
2 | ||
| 16267 - HOSE, WATER BY-PASS, NO.3 | ||||
| 16267-36120 |
8ARFTS..ARS220 |
1 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
8ARFTS..ARS220 |
2 | ||
| 16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3) | ||||
| 96136-42501 |
8ARFTS..ARS220 |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-36040 |
8ARFTS..ARS220 |
1 | ||
| 16284 - HOSE, TURBO WATER, NO.1 | ||||
| 16284-36030 |
8ARFTS..ARS220 |
1 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41701 |
8ARFTS..ARS220 |
2 | ||
| 16284A - CLIP(FOR TURBO WATER HOSE NO.1) | ||||
| 96137-41701 |
8ARFTS..ARS220 |
2 | ||
| 16285 - HOSE, TURBO WATER, NO.2 | ||||
| 16285-36030 |
8ARFTS..ARS220 |
1 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96137-41701 |
8ARFTS..ARS220 |
2 | ||
| 16285A - CLIP(FOR TURBO WATER HOSE NO.2) | ||||
| 96137-41701 |
8ARFTS..ARS220 |
2 | ||
| 16289 - PIPE, WATER BY-PASS, NO.5 | ||||
| 16289-36030 |
8ARFTS..ARS220 |
1 | ||
| 16296 - HOSE, WATER BY-PASS, NO.8 | ||||
| 16296-36060 |
8ARFTS..ARS220 |
1 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42501 |
8ARFTS..ARS220 |
2 | ||
| 16296A - CLIP(FOR WATER BY-PASS HOSE NO.8) | ||||
| 96136-42501 |
8ARFTS..ARS220 |
2 | ||
| 16297 - HOSE, WATER BY-PASS, NO.9 | ||||
| 16297-36050 |
8ARFTS..ARS220 |
1 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42501 |
8ARFTS..ARS220 |
2 | ||
| 16297A - CLIP(FOR WATER BY-PASS HOSE NO.9) | ||||
| 96136-42501 |
8ARFTS..ARS220 |
2 | ||
| 16299A - HOSE, WATER BY-PASS, NO.13 | ||||
| 16299-36020 |
8ARFTS..ARS220 |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96136-42501 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16299B - CLIP(FOR WATER BY-PASS HOSE NO.13) | ||||
| 96136-42501 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96138-42501 |
8ARFTS..ARS220 |
2 | ||
| 16571F - CLAMP OR CLIP(FOR WATER HOSE) | ||||
| 96138-42501 |
8ARFTS..ARS220 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-33080 |
8ARFTS..ARS220 |
2 | ||
| 16581 - CLAMP, HOSE(FOR WATER HOSE) | ||||
| 16581-33080 |
8ARFTS..ARS220 |
2 | ||
| 165A0A - CLIP, HOSE | ||||
| 96138-42501 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 165A0A - CLIP, HOSE | ||||
| 96138-42501 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96136-42101 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16895 - PIPE, TURBO WATER, NO.1 | ||||
| 16895-36010 |
8ARFTS..ARS220 |
1 | ||
| 87121P - BRACKET, WATER PUMP | ||||
| 87121-30200 |
ARS220 |
1 | ||
| 87200J - ACCESSORY ASSY, HEATER | ||||
| 87200-30280 |
ARS220 |
1 | ||
| 87245W - HOSE, WATER | ||||
| 87245-30D60 |
ARS220 |
1 | ||
| 87246T - HOSE, WATER, NO.2 | ||||
| 87245-30D90 |
ARS220 |
1 | ||
| Common parts | ||||
| 82711-2C250 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91673-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 3514 | ||||
| 8716 | ||||

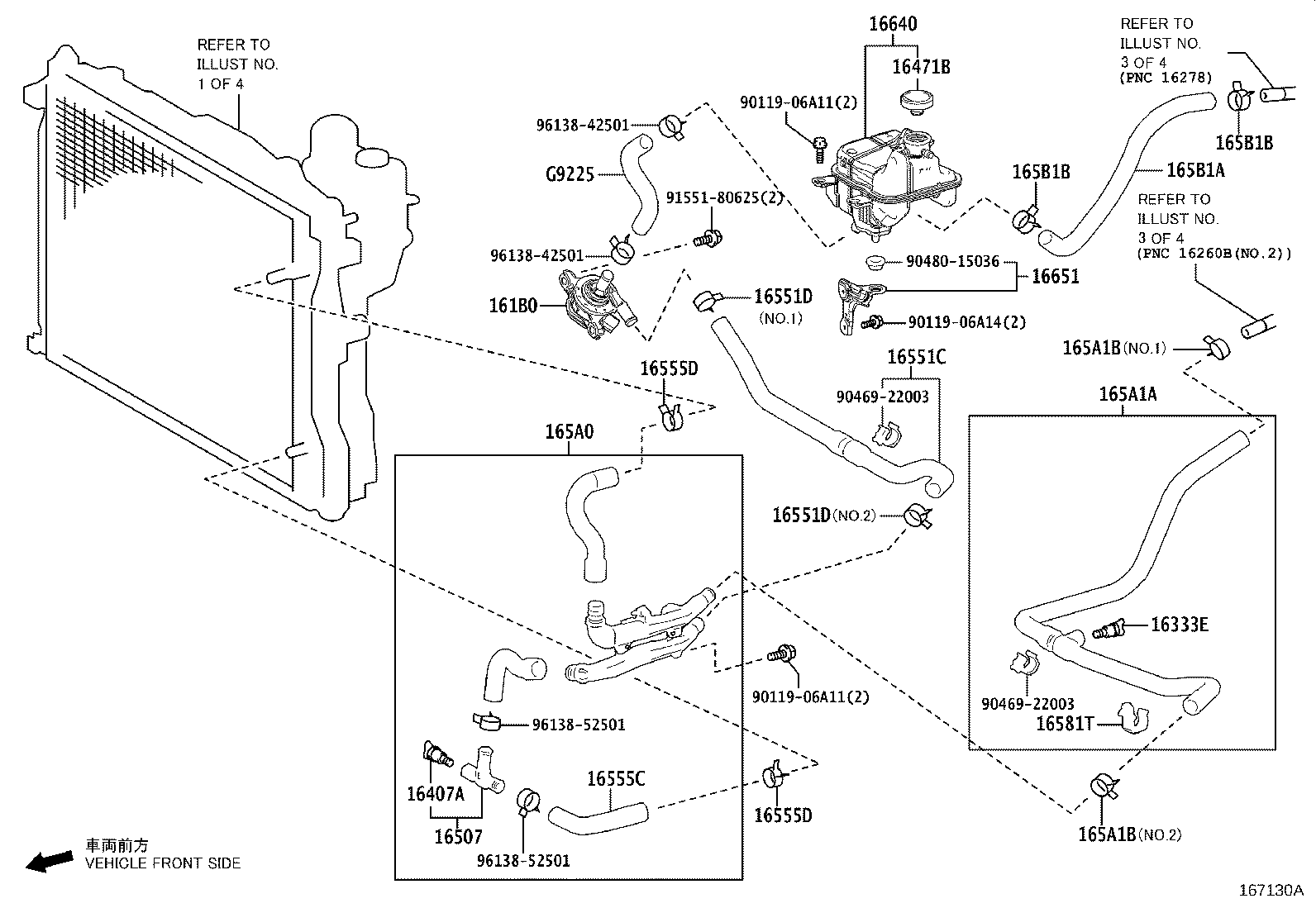

ILLUST NO. 4 OF 4(1806- )8ARFTS
ｲﾝﾀｸｰﾗﾖｳﾊｲｶﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 161B0 - PUMP ASSY, ELECTRIC WATER | ||||
| 161B0-47010 |
8ARFTS..ARS220 |
1 | ||
| 16333E - PLUG, DRAIN COCK | ||||
| 16407-64010 |
8ARFTS..ARS220 |
1 | ||
| 16407A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| 16407-36160 |
8ARFTS..ARS220 |
1 | ||
| 16471B - CAP, RESERVE TANK | ||||
| 16475-28140 |
8ARFTS..ARS220 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16570-36020 |
8ARFTS..ARS220 |
1 | ||
| 16551C - HOSE, INTERCOOLER COOLING WATER, NO.1 | ||||
| 16551-36070 |
8ARFTS..ARS220 |
1 | ||
| 16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 96138-42501 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96138-42701 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16551D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.1) | ||||
| 96138-42501 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 96138-42701 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 16555C - HOSE, INTERCOOLER COOLING WATER, NO.5 | ||||
| 16555-36040 |
8ARFTS..ARS220 |
1 | ||
| 16555D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) | ||||
| 96138-52701 |
8ARFTS..ARS220 |
2 | ||
| 16555D - CLAMP OR CLIP(FOR INTERCOOLER COOLING WATER HOSE NO.5) | ||||
| 96138-52701 |
8ARFTS..ARS220 |
2 | ||
| 16581T - CLAMP(FOR INTERCOOLER COOLING WATER HOSE) | ||||
| 16581-31170 |
8ARFTS..ARS220 |
1 | ||
| 165A0 - HOSE ASSY, INTERCOOLER COOLING WATER, NO.1 | ||||
| 165A0-36030 |
8ARFTS..ARS220 |
1 | ||
| 165A1A - HOSE, INTERCOOLER COOLING WATER INLET | ||||
| 165A1-36010 |
8ARFTS..ARS220 |
1 | ||
| 165A1B - CLIP(FOR INTERCOOLER COOLING WATER INLET HOSE) | ||||
| 96138-42701 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96138-42501 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 165A1B - CLIP(FOR INTERCOOLER COOLING WATER INLET HOSE) | ||||
| 96138-42701 |
8ARFTS..ARS220 NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 96138-42501 |
8ARFTS..ARS220 NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 165B1A - HOSE, INTERCOOLER COOLING WATER OUTLET | ||||
| 165B1-36010 |
8ARFTS..ARS220 |
1 | ||
| 165B1B - CLIP(FOR INTERCOOLER COOLING WATER OUTLET HOSE) | ||||
| 96138-42501 |
8ARFTS..ARS220 |
2 | ||
| 165B1B - CLIP(FOR INTERCOOLER COOLING WATER OUTLET HOSE) | ||||
| 96138-42501 |
8ARFTS..ARS220 |
2 | ||
| 16640 - TANK ASSY, INTERCOOLER RESERVE | ||||
| G91H0-30020 |
8ARFTS..ARS220 |
1 | ||
| 16651 - BRACKET, INTERCOOLER RESERVE TANK | ||||
| G91H2-30020 |
8ARFTS..ARS220 |
1 | ||
| G9225 - HOSE, INVERTER COOLING, NO.1 | ||||
| G9225-30220 |
ARS220 |
1 | ||
| Common parts | ||||
| 90119-06A11 | ||||
| 90119-06A14 | ||||
| 90469-22003 | ||||
| 90480-15036 | ||||
| 91551-80625 | ||||
| 96138-42501 | ||||
| 96138-52501 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
