ARS220-AEZGZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )ARS220

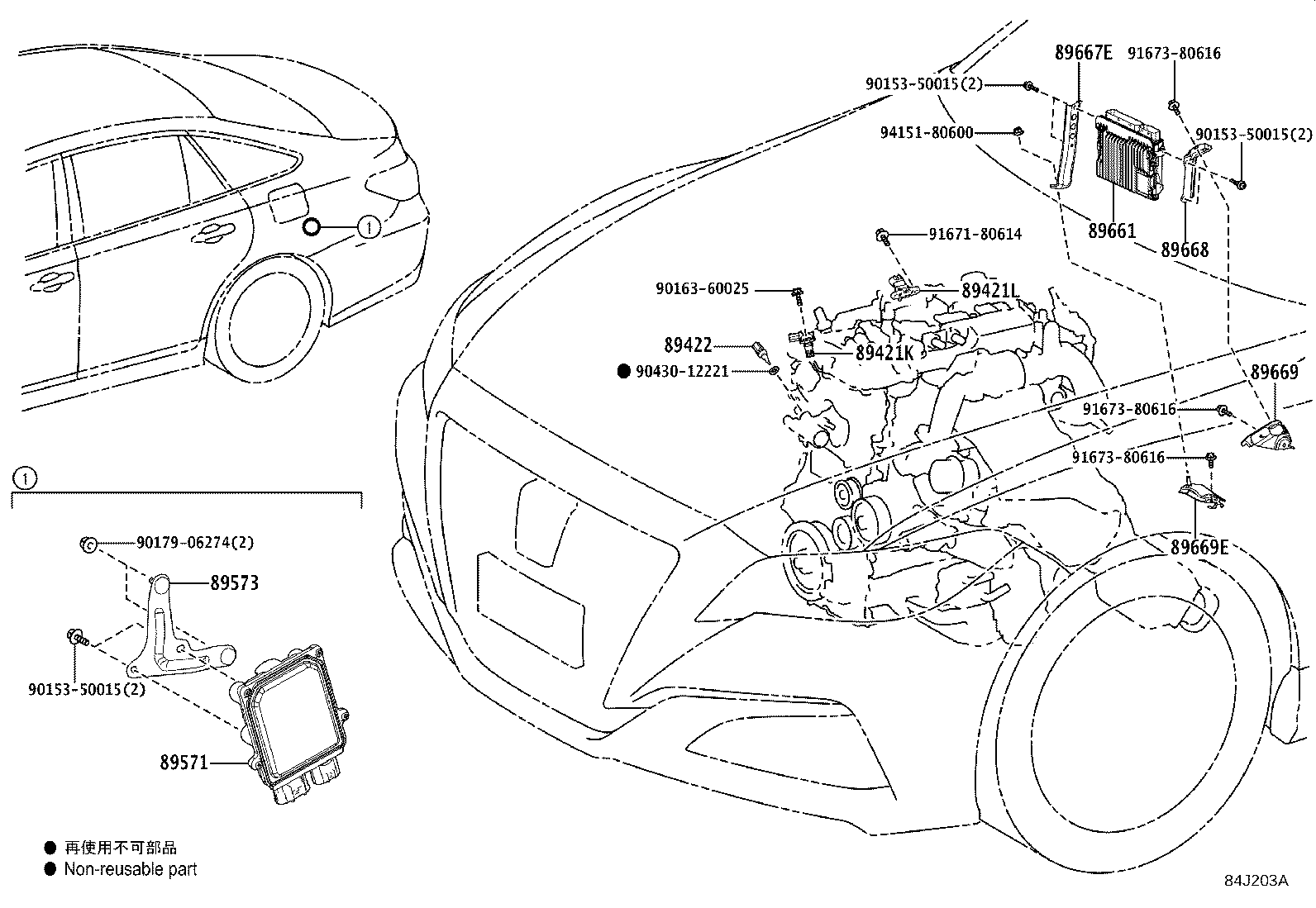

Click highlighted areas on diagram

diagram 89421K 89421L 89422 89571 89573 89661 89667E 89668 89669 89669E 9015350015 9015350015 9015350015 9016360025 9017906274 9043012221 9167180614 9167380616 9167380616 9167380616 9415180600
Part # Description Qty Price
89421K - SENSOR, TURBO PRESSURE, NO.1
89421-78010

ARS220

 1
89421L - SENSOR, TURBO PRESSURE, NO.2
89421-78020

ARS220

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-33030

ARS220

 1
89571 - COMPUTER, FUEL PUMP CONTROL
89571-58010

ARS220,GWS224

 1
89571-58010

ARS220

 1
89571-58020

ARS220

 1
89571-58020

ARS220

 1
89573 - BRACKET, FUEL PUMP CONTROL COMPUTER
89573-30130

ARS220,AZSH2#,GWS224

 1
89661 - COMPUTER, ENGINE CONTROL
89661-3AF40

ARS220

DENSO

 1
89661-3AF41

ARS220

DENSO

 1
89661-3AF42

ARS220

DENSO

 1
89667E - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-11020

ARS220

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-11020

ARS220

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-11020

ARS220

 1
89669E - BRACKET, ENGINE CONTROL COMPUTER, NO.4
89669-11050

ARS220

 1
Common parts
90153-50015
90163-60025
90179-06274
90430-12221
91671-80614
91673-80616
94151-80600
