ARS220-AEZGZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1806- )8ARFTS

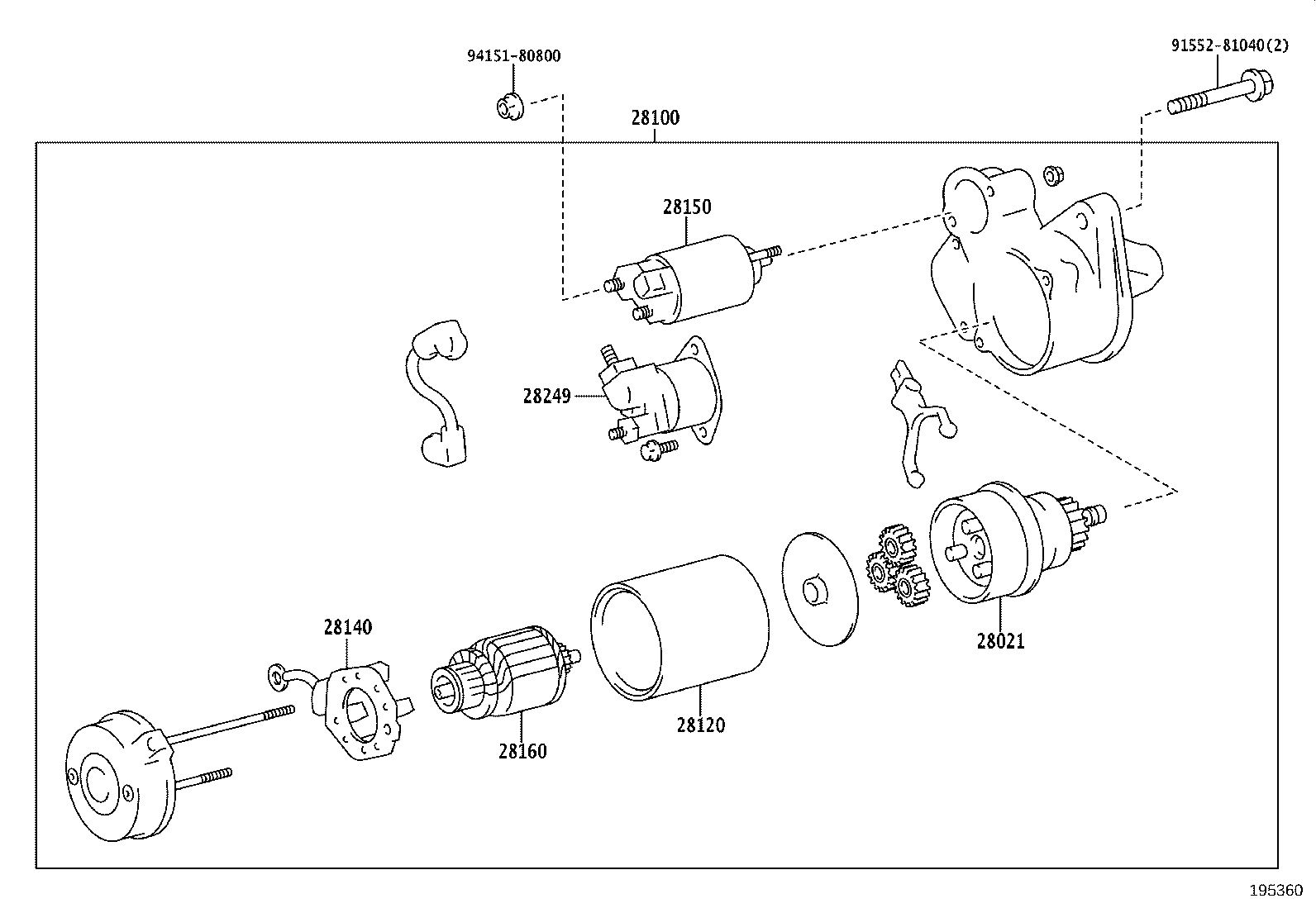

Click highlighted areas on diagram

12V 1.7KW

diagram 28021 28100 28120 28140 28150 28160 28249 9155281040 9415180800
Part # Description Qty Price
28021 - CLUTCH SUB-ASSY, STARTER CENTER BEARING
28021-36140

8ARFTS..ARS220

 1
28100 - STARTER ASSY
28100-36201

8ARFTS..ARS220

12V 1.7KW

 1
28100-36200

8ARFTS..ARS220

12V 1.7KW

 1
28120 - YOKE ASSY, STARTER
28120-36200

8ARFTS..ARS220

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-21100

8ARFTS..ARS220

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-26190

8ARFTS..ARS220

 1
28160 - ARMATURE ASSY, STARTER
28160-36110

8ARFTS..ARS220

 1
28249 - RELAY, STARTER INRUSH CURRENT REDUCTION
28249-36200

8ARFTS..ARS220

 1
Common parts
91552-81040
94151-80800
