ARS220-AEZBZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

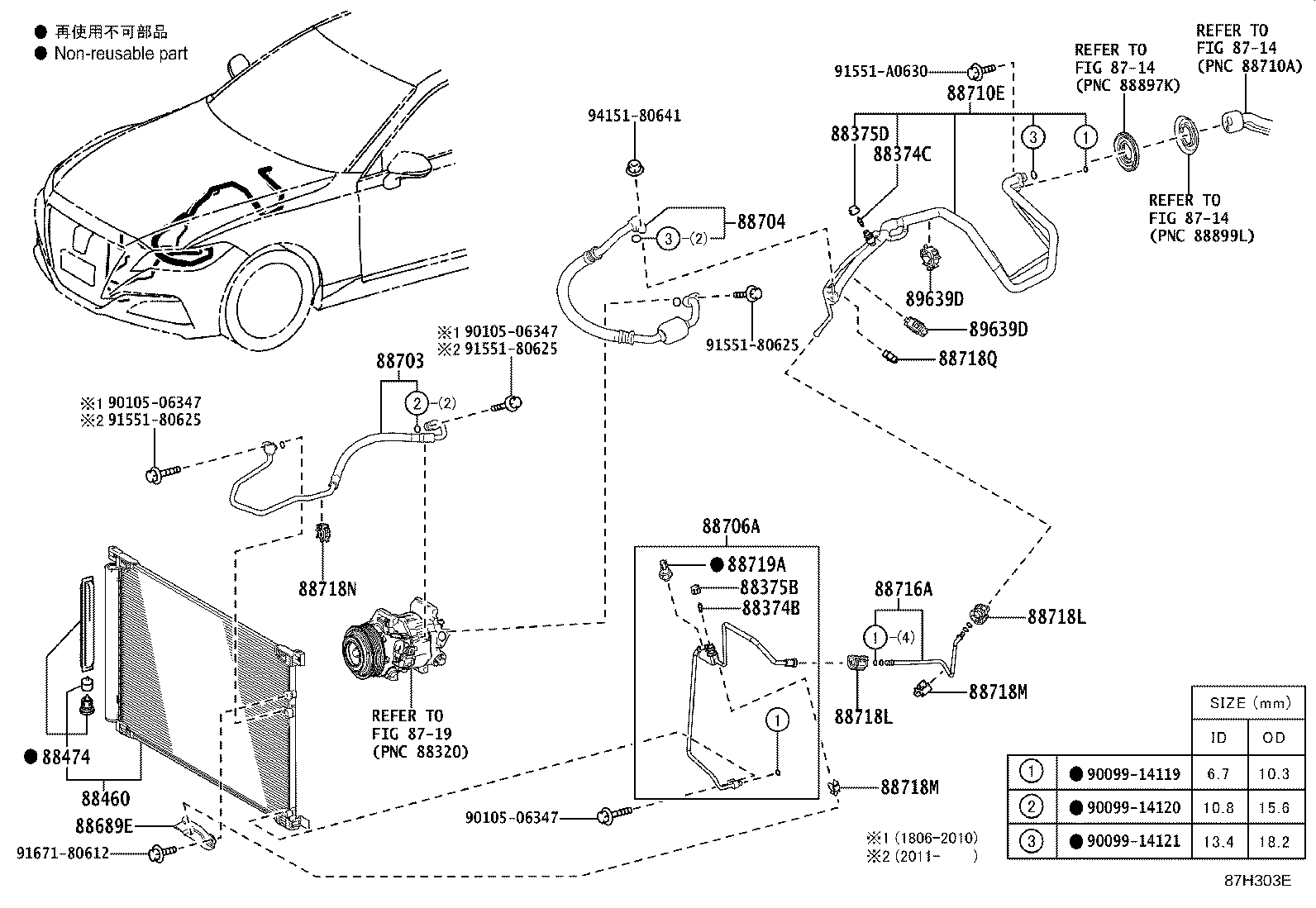

ILLUST NO. 1 OF 2(1806-2010)ARS220 ; (2011- )ARS220

Click highlighted areas on diagram

ﾌﾛﾝﾄ

diagram 8714 8714 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88689E 88703 88704 88706A 88710E 88716A 88718L 88718L 88718M 88718M 88718N 88718Q 88719A 89639D 89639D 9009914119 9009914120 9009914121 9010506347 9010506347 9010506347 9155180625 9155180625 9155180625 91551A0630 9167180612 9415180641
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

ARS220,AZSH2#,GWS224

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

ARS220,AZSH2#,GWS224

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30320

ARS220,AZSH2#,GWS224

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30310

ARS220,AZSH2#,GWS224

 1
88460 - CONDENSER ASSY, COOLER
884A0-30010

ARS220

 1
88474 - DRYER, COOLER
88474-12010

ARS220

 1
88689E - BRACKET, COOLER, NO.1
88688-50330

ARS220

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-30880

ARS220

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-30880

ARS220

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-30A80

ARS220

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-30A10

ARS220

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-30B90

ARS220

 1
88718L - CLAMP, PIPING
88718-2D150

ARS220

 2
88718L - CLAMP, PIPING
88718-2D150

ARS220

 2
88718M - CLAMP, PIPING
88718-32220

ARS220

 2
88718M - CLAMP, PIPING
88718-32220

ARS220

 2
88718N - CLAMP, PIPING
88718-47090

ARS220,AZSH2#,GWS224

 1
88718Q - CLAMP, PIPING
88718-32220

ARS220

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-11010

ARS220,AZSH2#,GWS224

 1
89639D - CLAMP, AIRCONDITIONER TUBE
89639-58020

ARS220,AZSH2#,GWS224

 2
89639D - CLAMP, AIRCONDITIONER TUBE
89639-58020

ARS220,AZSH2#,GWS224

 2
Common parts
90099-14119
90099-14120
90099-14121
90105-06347
91551-80625
91551-A0630
91671-80612
94151-80641
Linked diagrams
8714
8719
