ARS220-AEZBZ (2018)
Toyota Crown/Hybrid

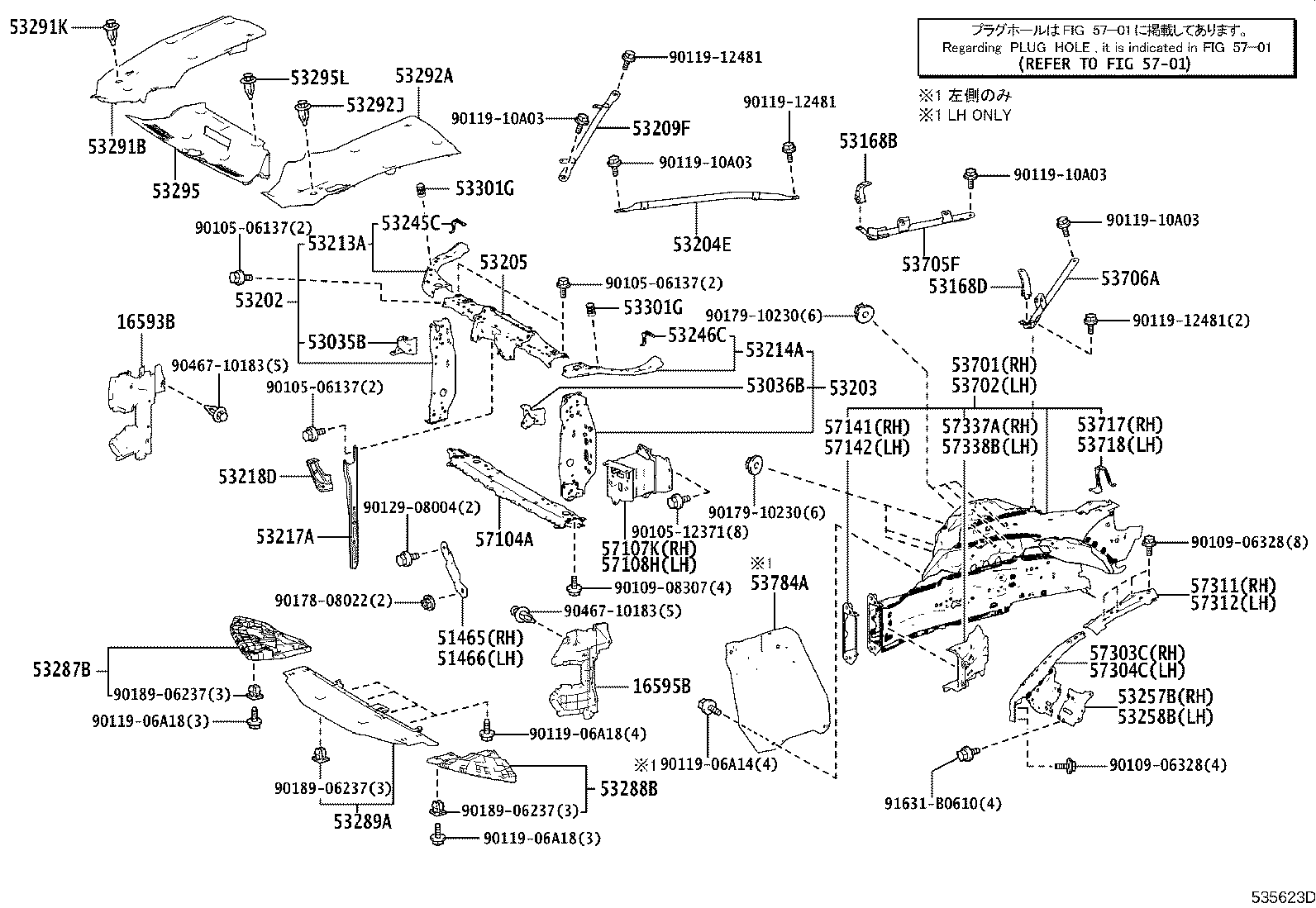

ILLUST NO. 1 OF 2(1806- )ARS220
ﾗｼﾞｴｰﾀｻﾎﾟｰﾄ&ﾌｪﾝﾀﾞｴﾌﾟﾛﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16593B - GUIDE, RADIATOR AIR, NO.1 RH | ||||
| 16593-31040 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
1 | ||
| 16595B - GUIDE, RADIATOR AIR, NO.1 LH | ||||
| 16595-31030 |
A25AFXS,8ARFTS,8GRFXS..ARS220,AZSH2#,GWS224 |
1 | ||
| 51465 - BRACE, RADIATOR SUPPORT, UPPER RH | ||||
| 51465-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 51503-30040 |
ARS220 |
1 | ||
| 51465-30010 |
ARS220 |
1 | ||
| 51466 - BRACE, RADIATOR SUPPORT, UPPER LH | ||||
| 51465-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53035B - BRACKET SUB-ASSY, HEADLAMP MOUNTING, RH | ||||
| 53035-30070 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53036B - BRACKET SUB-ASSY, HEADLAMP MOUNTING, LH | ||||
| 53036-30070 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53168B - BRACKET, RADIATOR BRACE ROD | ||||
| 53168-50010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53168D - BRACKET, RADIATOR BRACE ROD | ||||
| 53168-50010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53202 - SUPPORT SUB-ASSY, RADIATOR, RH | ||||
| 53202-30907 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53203 - SUPPORT SUB-ASSY, RADIATOR, LH | ||||
| 53203-30907 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53204E - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, LH | ||||
| 53204-30040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53205 - SUPPORT SUB-ASSY, RADIATOR, UPPER | ||||
| 53205-30110 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53205-30111 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53209F - BRACE SUB-ASSY, RADIATOR SUPPORT TO CROSS MEMBER, RH | ||||
| 53209-30390 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53213A - SUPPORT, RADIATOR, UPPER RH | ||||
| 53213-30905 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53214A - SUPPORT, RADIATOR, UPPER LH | ||||
| 53214-30906 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53217A - BRACE, HOOD LOCK SUPPORT | ||||
| 53217-30330 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53218D - EXTENSION, HOOD LOCK BRACE | ||||
| 53218-30190 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53245C - BRACKET, HEADLAMP MOUNTING, UPPER RH | ||||
| 53245-30040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53246C - BRACKET, HEADLAMP MOUNTING, UPPER LH | ||||
| 53246-30030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53257B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER | ||||
| 53257-30130 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53258B - BRACKET, RADIATOR SUPPORT TO FRONT FENDER, LH | ||||
| 53258-30090 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53287B - EXTENSION, RADIATOR SUPPORT, RH | ||||
| 53287-30160 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53288B - EXTENSION, RADIATOR SUPPORT, LH | ||||
| 53288-30160 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53289A - COVER, RADIATOR SUPPORT OPENING | ||||
| 53289-30260 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSB,RSF |
1 | ||
| 53289-30230 |
ARS220,AZSH2#,GWS224..B,G,GEXEC,GEXEF,GF,S,SF |
1 | ||
| 53291B - PLATE, RADIATOR COVER | ||||
| 53291-30200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53291K - CLIP, RADIATOR COVER PLATE | ||||
| 90467-07217 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 53292A - SEAL, RADIATOR SUPPORT, UPPER | ||||
| 53292-30100 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53292J - CLIP, RADIATOR SUPPORT SEAL | ||||
| 90467-07217 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 53295 - DEFLECTOR, RADIATOR LOWER AIR | ||||
| 53295-30280 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53295L - CLIP, RADIATOR LOWER AIR DEFLECTOR | ||||
| 90467-07217 |
ARS220,AZSH2#,GWS224 |
6 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 53384-50010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 90541-15033 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 53301G - CUSHION, HOOD BUMPER | ||||
| 53384-50010 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 90541-15033 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-30C10 |
ARS220,AZSH20,GWS224 |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-30A60 |
ARS220,AZSH20,GWS224 |
1 | ||
| 53705F - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-50070 |
ARS220 |
1 | ||
| 53706A - BRACE SUB-ASSY, FENDER APRON, LH | ||||
| 53706-50070 |
ARS220 |
1 | ||
| 53717 - PLATE, FENDER APRON, RH | ||||
| 53717-30120 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53718 - PLATE, FENDER APRON, LH | ||||
| 53718-30080 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 53784A - INSULATOR, APRON FRONT FENDER, LH | ||||
| 53784-30030 |
ARS220 |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-11010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57107K - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, RH | ||||
| 57107-30140 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57108H - REINFORCE SUB-ASSY, FRONT BUMPER MOUNTING, LH | ||||
| 57108-30170 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57141 - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57141-11010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57142 - SUPPORT, FRONT BUMPER ARM, RH | ||||
| 57142-11010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57303C - OUTRIGGER SUB-ASSY, NO.2 RH | ||||
| 57303-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57304C - OUTRIGGER SUB-ASSY, NO.2 LH | ||||
| 57304-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57311 - OUTRIGGER, NO.1 RH | ||||
| 57311-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57312 - OUTRIGGER, NO.1 LH | ||||
| 57312-30010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57337A - GUSSET, OUTRIGGER, NO.1 RH | ||||
| 57337-11010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 57338B - GUSSET, OUTRIGGER, NO.1 LH | ||||
| 57338-11010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90105-06137 | ||||
| 90105-12371 | ||||
| 90109-06328 | ||||
| 90109-08307 | ||||
| 90119-06A14 | ||||
| 90119-06A18 | ||||
| 90119-10A03 | ||||
| 90119-12481 | ||||
| 90129-08004 | ||||
| 90178-08022 | ||||
| 90179-10230 | ||||
| 90189-06237 | ||||
| 90467-10183 | ||||
| 91631-B0610 | ||||
| Linked diagrams | ||||
| 5701 | ||||
ILLUST NO. 2 OF 2(1806- )
ﾀﾞｯｼｭﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55111 - PANEL, DASH | ||||
| 55111-30760 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55210 - INSULATOR ASSY, DASH PANEL | ||||
| 55210-30510 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55210-62040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55210A - CLIP | ||||
| 90467-11122 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 55223A - INSULATOR, DASH PANEL, OUTER | ||||
| 55223-30270 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55223C - CLIP | ||||
| 90467-06206C0 |
ARS220,AZSH2#,GWS224 BLACK |
1 | ||
| 55241 - SILENCER, FRONT PANEL SIDE, NO.1 RH | ||||
| 55241-30030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55241B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 55242 - SILENCER, FRONT PANEL SIDE, NO.1 LH | ||||
| 55242-30050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 55242B - CLIP, FRONT PANEL SIDE SILENCER | ||||
| 90467-13079 |
ARS220,AZSH2#,GWS224 |
2 | ||
| Common parts | ||||
| 90561-11003 | ||||
| 90561-13001 | ||||
| Linked diagrams | ||||
| 5701 | ||||
