ARS220-AEZBZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

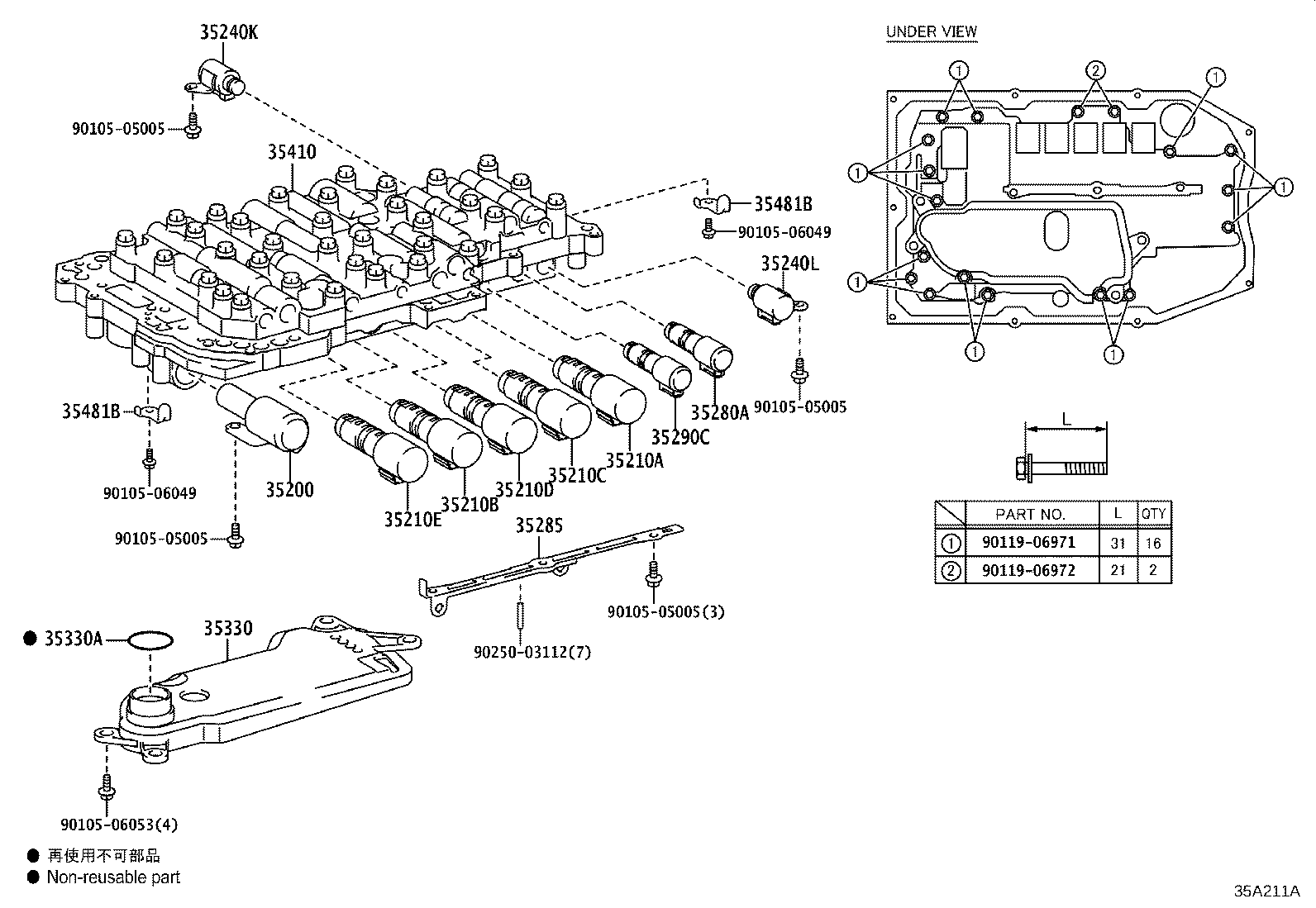

ILLUST NO. 1 OF 2(1806- )ARS220

Click highlighted areas on diagram

AA81E

diagram 35200 35210A 35210B 35210C 35210D 35210E 35240K 35240L 35280A 35285 35290C 35330 35330A 35410 35481B 35481B 9010505005 9010505005 9010505005 9010505005 9010506049 9010506049 9010506053 9011906971 9011906972 9025003112
Part # Description Qty Price
35200 - PUMP ASSY, OIL, W/SOLENOID
35200-71010

ARS220

 1
35210A - VALVE, SOLENOID(SL1)
35210-71010

ARS220

 1
35210B - VALVE, SOLENOID(SL3)
35210-71010

ARS220

 1
35210C - VALVE, SOLENOID(SL2)
35210-71010

ARS220

 1
35210D - VALVE, SOLENOID(SL4)
35210-71010

ARS220

 1
35210E - VALVE, SOLENOID(SL5)
35210-71010

ARS220

 1
35240K - SOLENOID ASSY, TRANSMISSION 3WAY(SC1)
35240-53010

ARS220

 1
35240L - SOLENOID ASSY, TRANSMISSION 3WAY(SC2)
35240-53010

ARS220

 1
35280A - VALVE, SOLENOID(SLU)
35280-71010

ARS220

 1
35285 - PLATE, SOLENOID LOCK
35285-53010

ARS220

 1
35290C - VALVE, SOLENOID(SLT)
35290-71020

ARS220

 1
35330 - STRAINER ASSY, VALVE BODY OIL
35330-53020

ARS220

 1
35330A - RING, O (FOR OIL STRAINER)
90301-31014

ARS220

 1
35410 - BODY ASSY, TRANSMISSION VALVE
35410-53071

ARS220

 1
35481B - CLAMP, VALVE BODY WIRE HARNESS
35481-50050

ARS220

 2
35481-50050

ARS220

 1
35481B - CLAMP, VALVE BODY WIRE HARNESS
35481-50050

ARS220

 2
35481-50050

ARS220

 1
Common parts
90105-05005
90105-06049
90105-06053
90119-06971
90119-06972
90250-03112

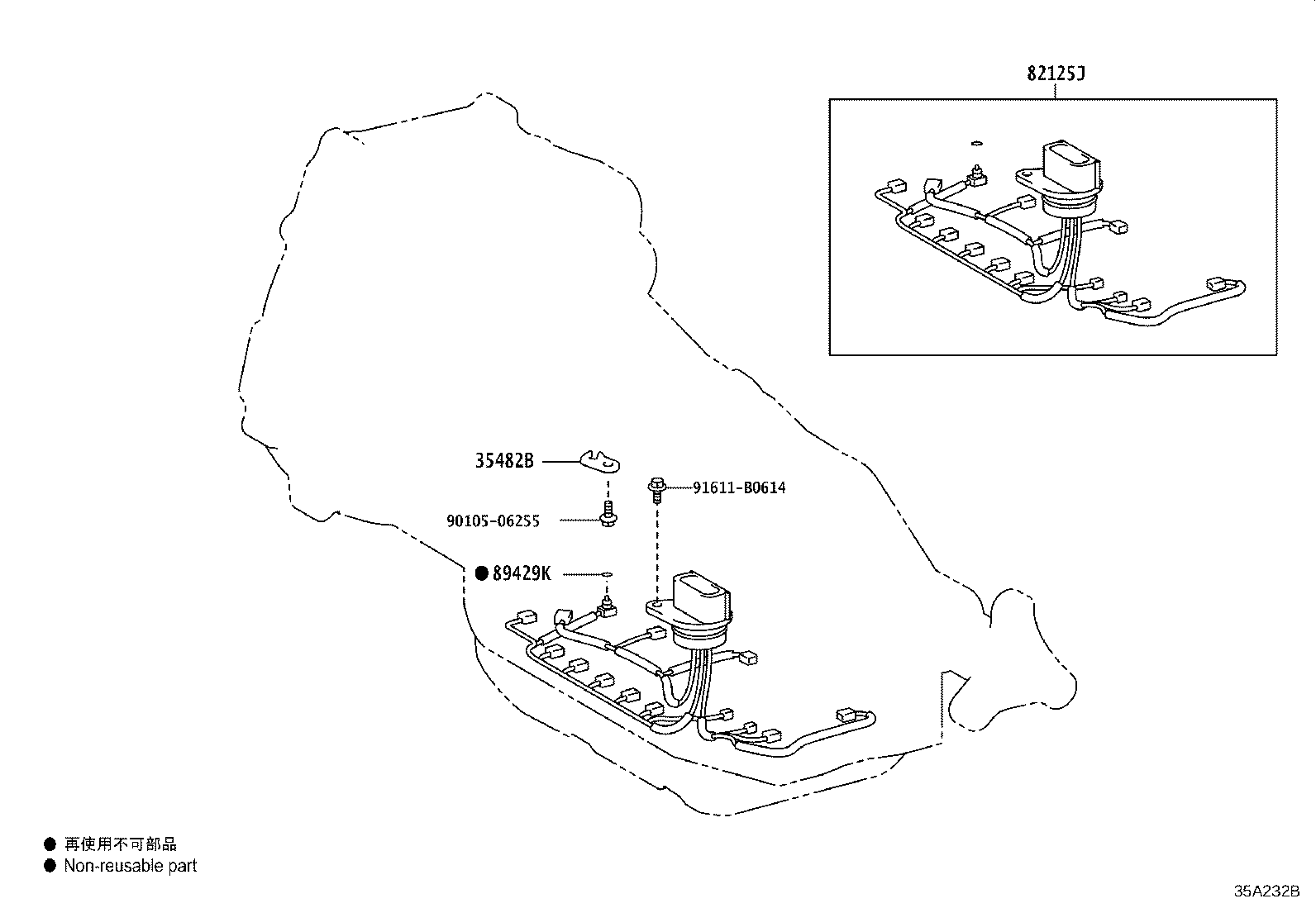

ILLUST NO. 2 OF 2(1806- )ARS220

Click highlighted areas on diagram

AA81E

diagram 35482B 82125J 89429K 9010506255 91611B0614
Part # Description Qty Price
35482B - CLAMP, TEMPERATURE SENSOR
35482-50020

ARS220

 1
82125J - WIRE, TRANSMISSION
82125-30581

ARS220

 1
82125-30580

ARS220

 1
89429K - RING, O(FOR OIL TEMPERATURE SENSOR)
90301-06004

ARS220

 1
Common parts
90105-06255
91611-B0614
