ARS220-AEZAZ (2018)
Toyota Crown/Hybrid

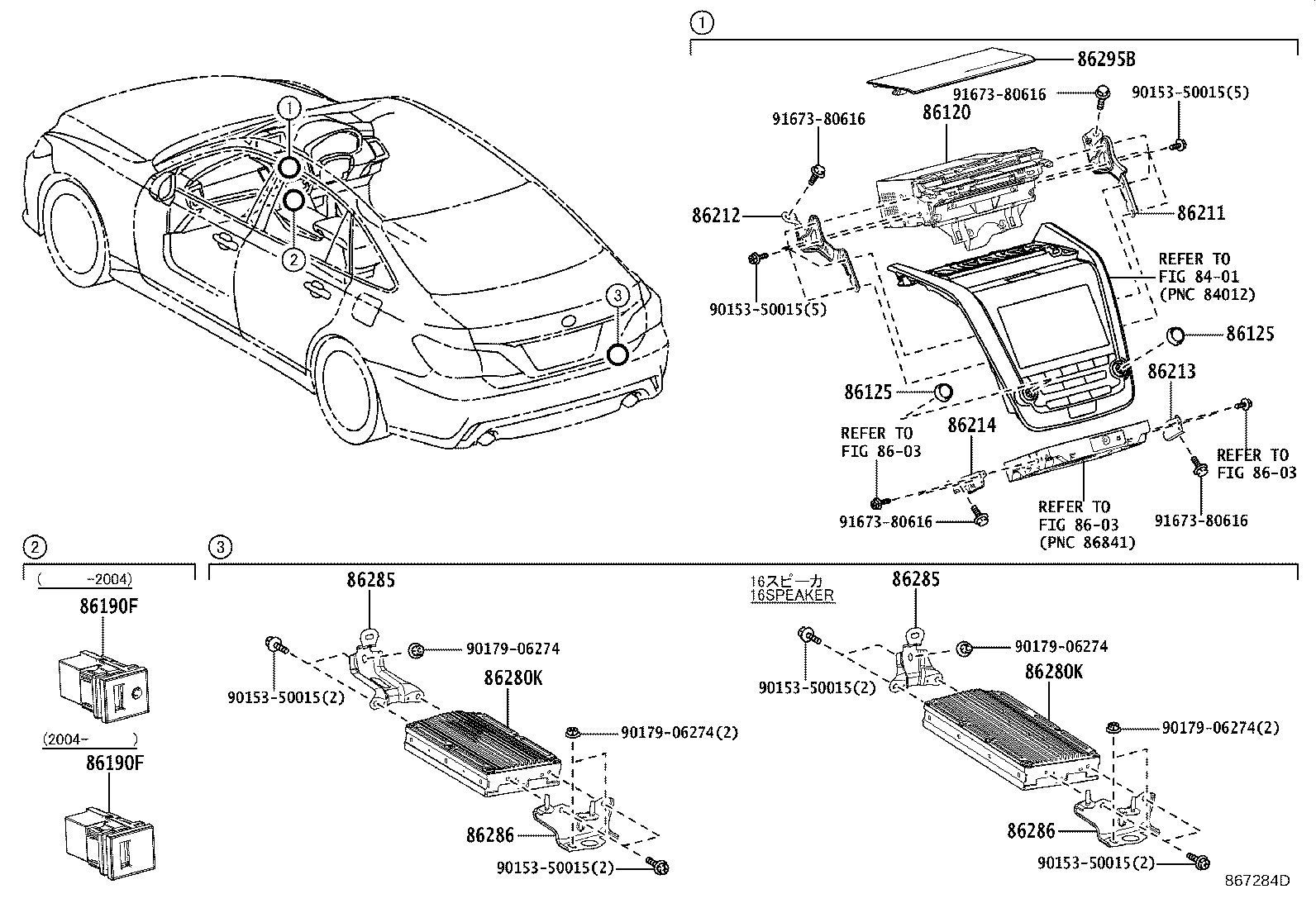

ILLUST NO. 1 OF 2(1806-2010)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-30P00 |
ARS220,AZSH2#,GWS224 PANASONIC |
1 | ||
| 86120-30P20 |
ARS220,AZSH2#,GWS224 PANASONIC |
1 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-30090 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 86125 - KNOB, RADIO RECEIVER SWITCH | ||||
| 86125-30090 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 86190F - ADAPTER ASSY, STEREO JACK | ||||
| 86190-33060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86190-12070 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86190F - ADAPTER ASSY, STEREO JACK | ||||
| 86190-33060 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86190-12070 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-30420 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-30380 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86213 - BRACKET, RADIO, NO.3 | ||||
| 86211-30440 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86214 - BRACKET, RADIO, NO.4 | ||||
| 86212-30400 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30780 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86280-30880 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86280-30790 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 86280-30890 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 86280K - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-30780 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86280-30880 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86280-30790 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 86280-30890 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30410 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 86285-30400 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86285-30410 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-30410 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 86285-30400 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86285-30410 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF,S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30150 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-30150 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86295B - BASE, TELEVISION | ||||
| 86295-30030 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90153-50015 | ||||
| 90179-06274 | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||

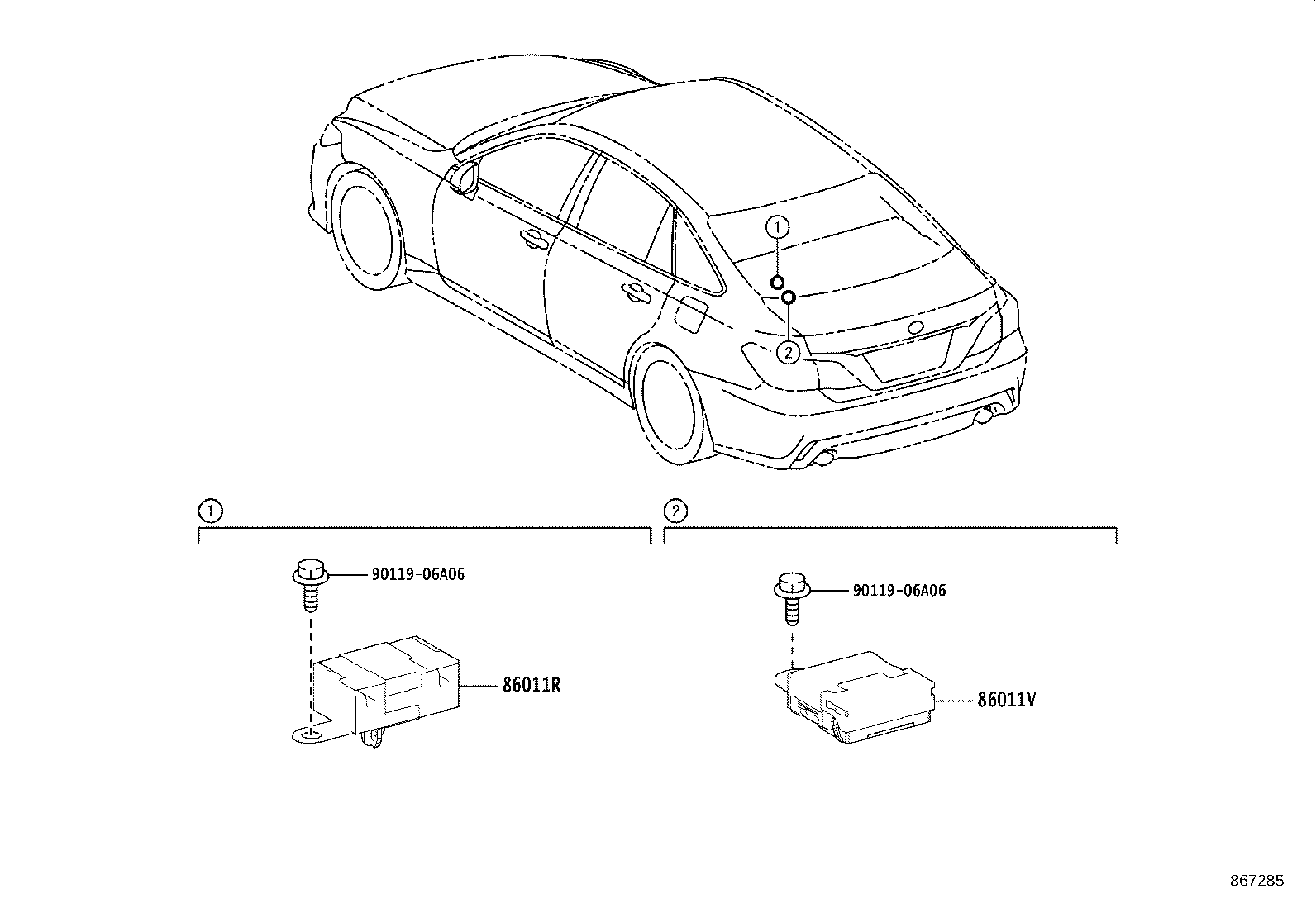

ILLUST NO. 2 OF 2(1806- )
ｺﾝﾃﾞﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04204 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 90980-04189 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 90119-06A06 | ||||
