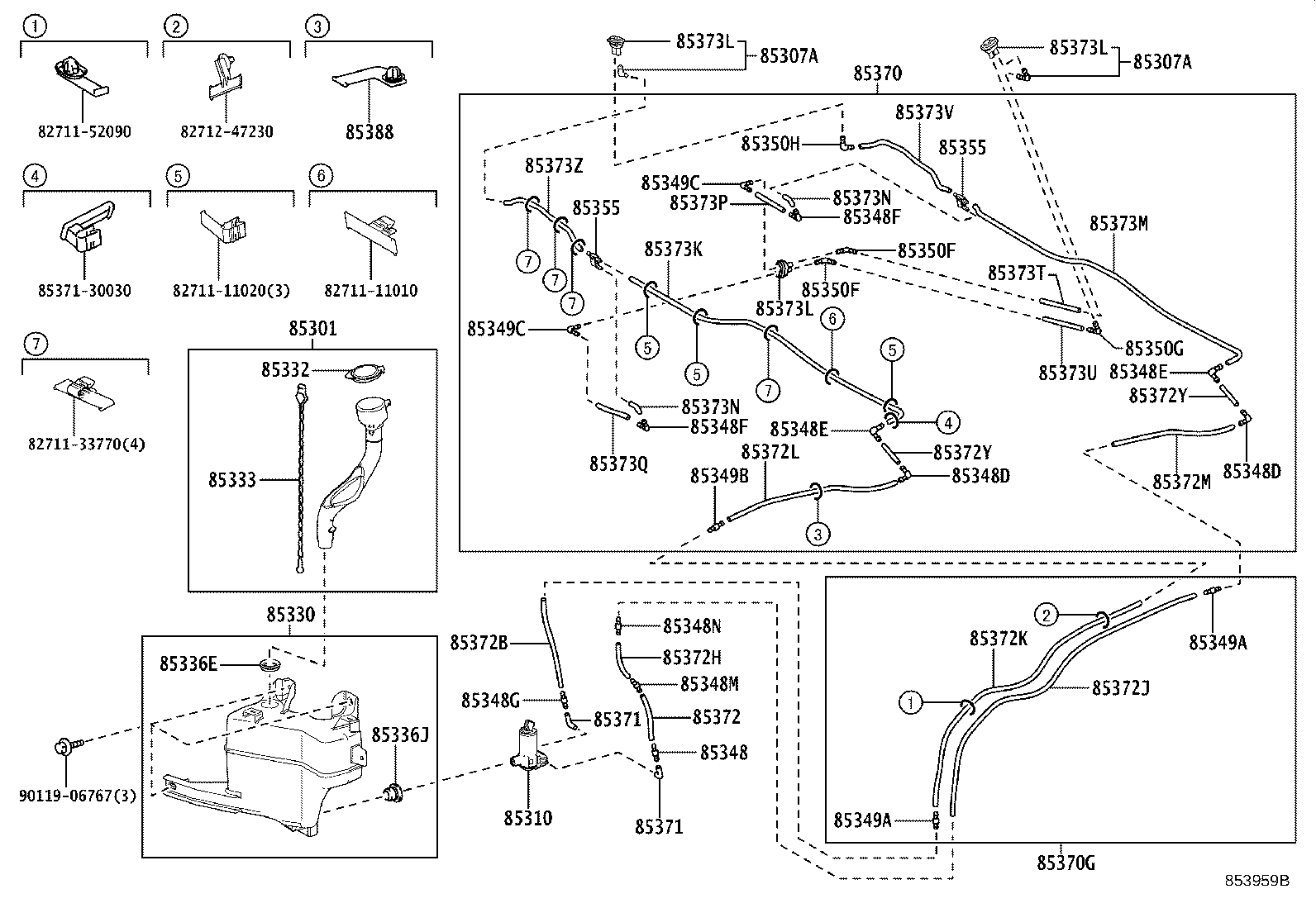

ARS220-AEZAZ (2018)
Toyota Crown/Hybrid
(1806-2010)G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF ;(2011- )G,GEXEC,GEXEF,GF,RS,RSA
ｱﾘ(ﾍｯﾄﾞﾗﾝﾌﾟｸﾘｰﾅ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-30080 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85307A - GROMMET SUB-ASSY, WASHER, NO.1 | ||||
| 85307-50020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85307A - GROMMET SUB-ASSY, WASHER, NO.1 | ||||
| 85307-50020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-11040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30500 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF 寒冷地仕様 |
1 | ||
| 85315-30490 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF |
1 | ||
| 85355-30120 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-75010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-48010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-14560 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85349-89122 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-10260 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50170 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50170 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85350G - JOINT, WINDSHIELD WASHER ELBOW, NO.6 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85350H - JOINT, WINDSHIELD WASHER ELBOW, NO.7 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-30450 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85370G - HOSE ASSY, WINDSHIELD WASHER, NO.2 | ||||
| 85370-30460 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85336-12230 |
ARS220,AZSH2#,GWS224 長さ=15 |
2 | ||
| 85336-12230 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF 長さ=15,寒冷地仕様 |
2 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85336-12230 |
ARS220,AZSH2#,GWS224 長さ=15 |
2 | ||
| 85336-12230 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF 長さ=15,寒冷地仕様 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=100 |
1 | ||
| 90099-33080 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF *H,L=100,寒冷地仕様 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=165 |
1 | ||
| 90099-33080 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF *H,L=165,寒冷地仕様 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF *H,L=75,寒冷地仕様 |
1 | ||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=75 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=770 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=716 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=355 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=325 |
1 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85373K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 長さ=1030 |
1 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 85373M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10 | ||||
| 90099-33382 |
ARS220,AZSH2#,GWS224 *H,L=1080 |
1 | ||
| 85373N - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11 | ||||
| 85336-12230 |
ARS220,AZSH2#,GWS224 長さ=15 |
2 | ||
| 85373N - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11 | ||||
| 85336-12230 |
ARS220,AZSH2#,GWS224 長さ=15 |
2 | ||
| 85373P - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=65 |
1 | ||
| 85373Q - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=85 |
1 | ||
| 85373T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=85 |
1 | ||
| 85373U - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=95 |
1 | ||
| 85373V - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16 | ||||
| 90099-33299 |
ARS220,AZSH2#,GWS224 *H,L=370 |
1 | ||
| 85373Z - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.18 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=355 |
1 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 82711-2C170 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 82711-11010 | ||||
| 82711-11020 | ||||
| 82711-33770 | ||||
| 82711-52090 | ||||
| 82712-47230 | ||||
| 85371-30030 | ||||
| 90119-06767 | ||||
| Linked diagrams | ||||
| 8505 | ||||

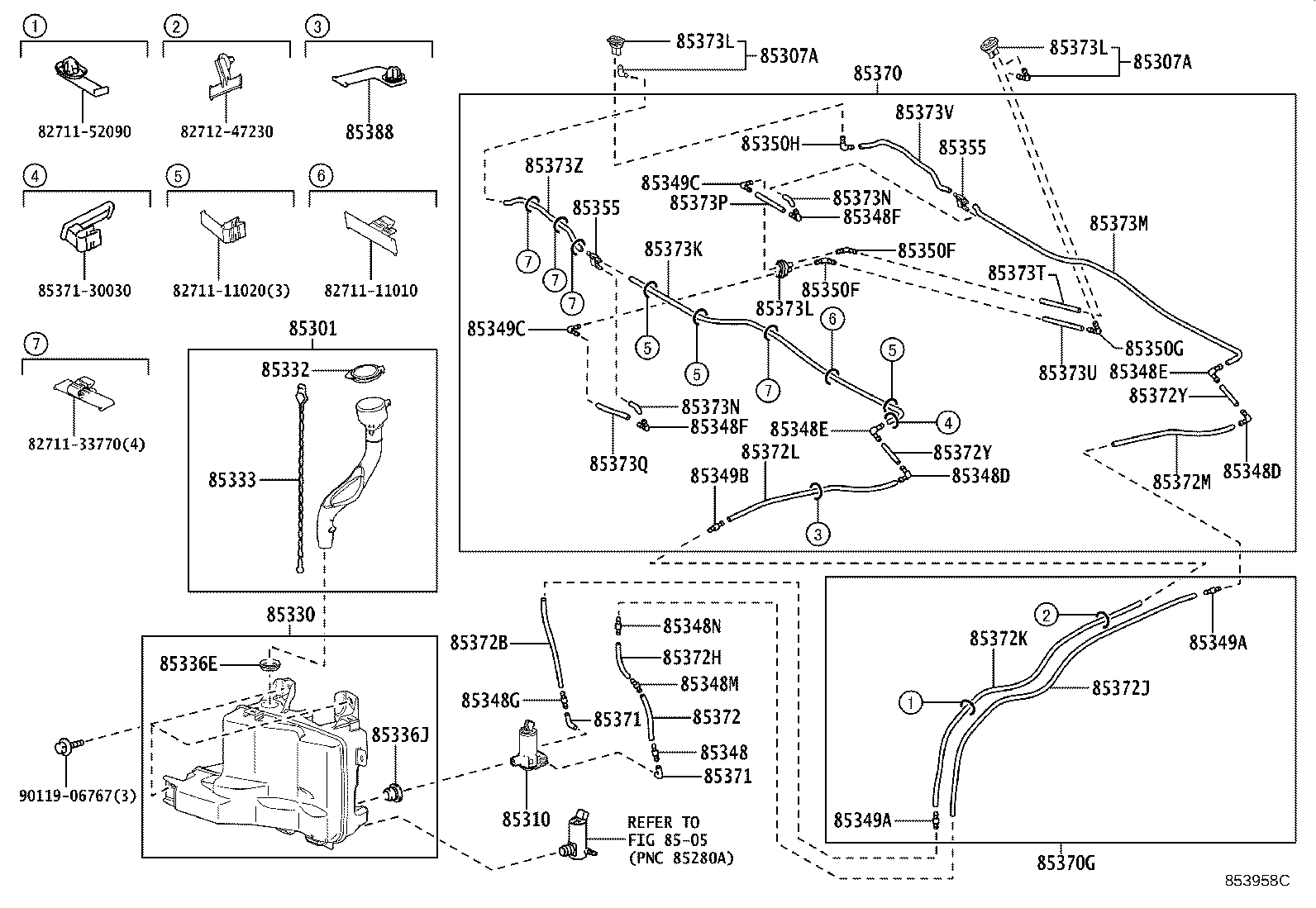

(1806-2010)B,RSB,S,SF ; (2011- )B,RS,RSB,RSF,S,SF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85301 - INLET SUB-ASSY, WASHER | ||||
| 85301-30080 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85307A - GROMMET SUB-ASSY, WASHER, NO.1 | ||||
| 85307-50020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85307A - GROMMET SUB-ASSY, WASHER, NO.1 | ||||
| 85307-50020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85330-11040 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85315-30500 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF 寒冷地仕様 |
1 | ||
| 85315-30490 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF |
1 | ||
| 85355-30120 |
ARS220,AZSH2#,GWS224..G,GEXEC,GEXEF,GF,RS,RSADF,RSADV,RSF |
1 | ||
| 85332 - CAP, WINDSHIELD WASHER JAR | ||||
| 85316-75010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85312-48010 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85336E - PACKING, WINDSHIELD WASHER INLET HOSE | ||||
| 85336-30160 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85336J - PROTECTOR, WASHER JAR | ||||
| 90099-32089 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85349-89122 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-14560 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4 | ||||
| 85349-89122 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85349A - JOINT, WINDSHIELD WASHER HOSE, NO.2 | ||||
| 85375-10260 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85349B - JOINT, WINDSHIELD WASHER HOSE, NO.3 | ||||
| 85375-10260 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50170 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85349C - JOINT, WINDSHIELD WASHER ELBOW, NO.4 | ||||
| 85377-50170 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85350F - JOINT, WINDSHIELD WASHER ELBOW, NO.5 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85350G - JOINT, WINDSHIELD WASHER ELBOW, NO.6 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85350H - JOINT, WINDSHIELD WASHER ELBOW, NO.7 | ||||
| 85355-20200 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85321-28020 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85370 - HOSE ASSY, WINDSHIELD WASHER | ||||
| 85370-30450 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85370G - HOSE ASSY, WINDSHIELD WASHER, NO.2 | ||||
| 85370-30460 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85336-12230 |
ARS220,AZSH2#,GWS224 長さ=15 |
2 | ||
| 85336-12230 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF 長さ=15,寒冷地仕様 |
2 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 85336-12230 |
ARS220,AZSH2#,GWS224 長さ=15 |
2 | ||
| 85336-12230 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF 長さ=15,寒冷地仕様 |
2 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=100 |
1 | ||
| 90099-33080 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF *H,L=100,寒冷地仕様 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=165 |
1 | ||
| 90099-33080 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF *H,L=165,寒冷地仕様 |
1 | ||
| 85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224..B,RSB,S,SF *H,L=75,寒冷地仕様 |
1 | ||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=75 |
1 | ||
| 85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=770 |
1 | ||
| 85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=716 |
1 | ||
| 85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=355 |
1 | ||
| 85372M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.7 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=325 |
1 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85372Y - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.8 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 |
2 | ||
| 85373K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.9 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 長さ=1030 |
1 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 85373L - GROMMET, WASHER | ||||
| 85373-11020 |
ARS220,AZSH2#,GWS224 |
3 | ||
| 85373M - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.10 | ||||
| 90099-33382 |
ARS220,AZSH2#,GWS224 *H,L=1080 |
1 | ||
| 85373N - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11 | ||||
| 85336-12230 |
ARS220,AZSH2#,GWS224 長さ=15 |
2 | ||
| 85373N - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.11 | ||||
| 85336-12230 |
ARS220,AZSH2#,GWS224 長さ=15 |
2 | ||
| 85373P - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.12 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=65 |
1 | ||
| 85373Q - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.13 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=85 |
1 | ||
| 85373T - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.14 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=85 |
1 | ||
| 85373U - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.15 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=95 |
1 | ||
| 85373V - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.16 | ||||
| 90099-33299 |
ARS220,AZSH2#,GWS224 *H,L=370 |
1 | ||
| 85373Z - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.18 | ||||
| 90099-33080 |
ARS220,AZSH2#,GWS224 *H,L=355 |
1 | ||
| 85388 - CLAMP NO.2 (FOR WINDSEIELD WASHER) | ||||
| 82711-2C170 |
ARS220,AZSH2#,GWS224 |
1 | ||
| Common parts | ||||
| 82711-11010 | ||||
| 82711-11020 | ||||
| 82711-33770 | ||||
| 82711-52090 | ||||
| 82712-47230 | ||||
| 85371-30030 | ||||
| 90119-06767 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
