ARS220-AEZAZ (2018)
Toyota Crown/Hybrid

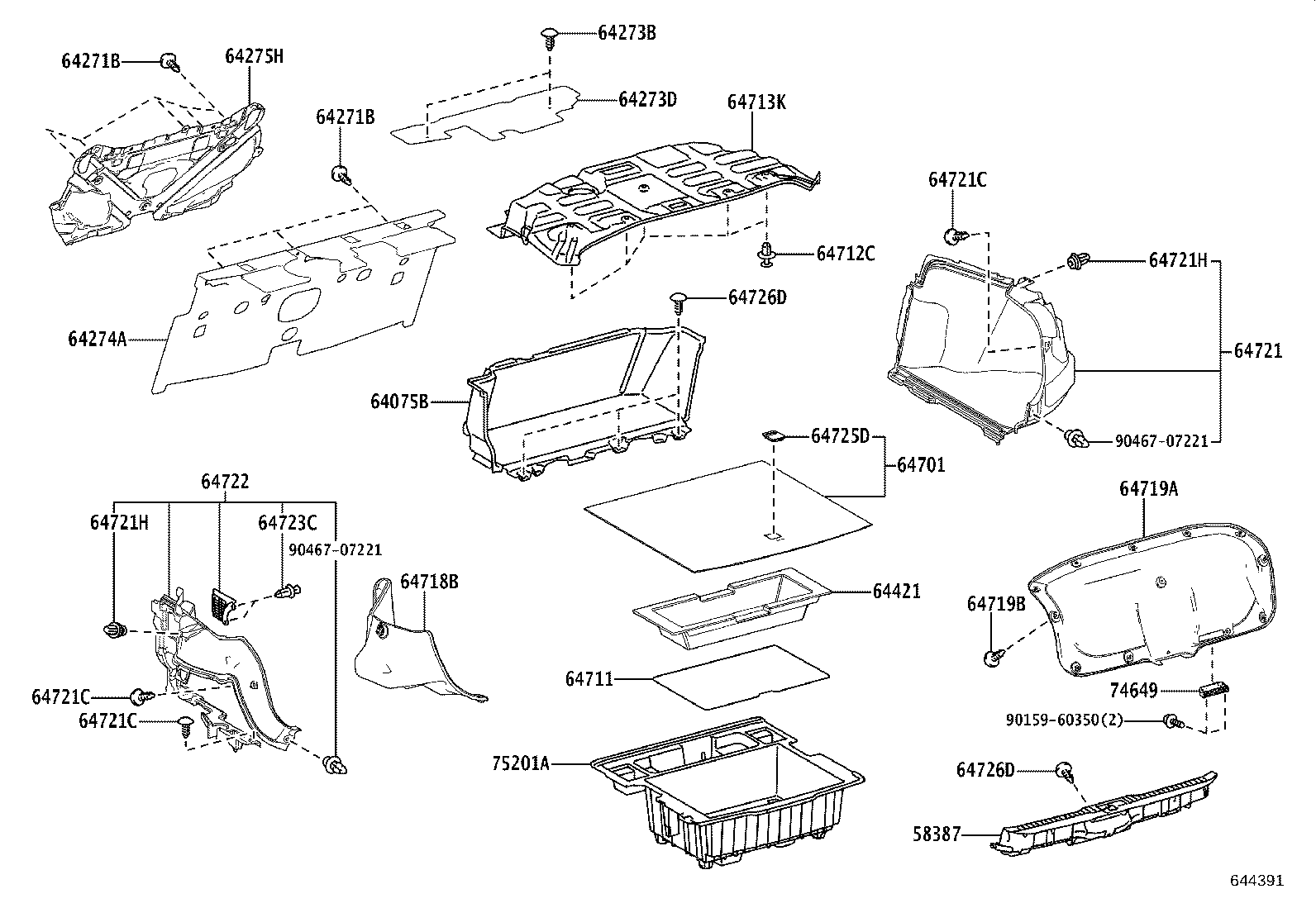

ILLUST NO. 1 OF 2(1806- )ARS220
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58387 - PLATE, REAR FLOOR FINISH | ||||
| 58387-30250C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 58387-30250C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 58387-30250C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64075B - COVER, LUGGAGE COMPARTMENT TRIM, FRONT | ||||
| 64075-30360C0 |
ARS220,AZSH2#..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64075-30360C0 |
ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 64075-30360C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-05164B8 |
ARS220,AZSH2#,GWS224 LT.GRAY |
8 | ||
| 64271B - CLIP(FOR ROOM PARTITION BOARD) | ||||
| 90467-05164B8 |
ARS220,AZSH2#,GWS224 LT.GRAY |
8 | ||
| 64273B - CLIP | ||||
| 90467-08186C3 |
ARS220,AZSH2#,GWS224 BLACK |
2 | ||
| 64273D - PAD, ROOM PARTITION, NO.1 | ||||
| 64273-30250 |
ARS220,AZSH2#,GWS224..B,G,GF,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 64274A - PAD, ROOM PARTITION, NO.2 | ||||
| 64274-30200 |
ARS220,AZSH2#,GWS224..B,RS,RSADF,RSADV,RSB,RSF,S,SF |
1 | ||
| 64275H - COVER, ROOM PARTITION, NO.1 | ||||
| 64275-30050 |
ARS220,AZSH2#,GWS224 |
1 | ||
| 64421 - TRAY SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64421-30140 |
ARS220 |
1 | ||
| 64701 - MAT SUB-ASSY, LUGGAGE COMPARTMENT | ||||
| 64701-30110C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64701-30110C0 |
ARS220,AZSH2#..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64701-30110C0 |
ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 64711 - MAT, LUGGAGE COMPARTMENT FLOOR | ||||
| 64701-30120 |
ARS220,GWS224 |
1 | ||
| 64712C - CLIP(FOR LUGGAGE COMPARTMENT TRIM COVER) | ||||
| 90467-07214 |
ARS220,AZSH2#,GWS224 |
5 | ||
| 64713K - COVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER | ||||
| 64713-30150C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64713-30150C0 |
ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 64713-30150C0 |
ARS220,AZSH2#..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64718B - COVER, LUGGAGE TRIM SERVICE HOLE | ||||
| 64718-30140C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64718-30140C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64718-30140C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 64719A - COVER, LUGGAGE COMPARTMENT DOOR | ||||
| 64719-30470C0 |
ARS220,AZSH2#,GWS224..RSADF,RSADV BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64719-30470C0 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64719-30470C0 |
ARS220,AZSH2#..RS,RSF “C package”2005ﾏﾙｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64719-30470C0 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64719-30470C0 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64719-30480C0 |
ARS220,AZSH2#..RS,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64719-30480C0 |
ARS220,AZSH2#..B,S,SF BLACK,TRIM2#,3#,4# |
1 | ||
| 64719-30470C0 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64719B - CLIP(FOR LUGGAGE COMPARTMENT DOOR) | ||||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,4# |
13 | ||
| 90467-08186C3 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
13 | ||
| 90467-08186C3 |
ARS220,AZSH2#,GWS224..B,G,GF,S,SF BLACK,TRIM2#,3#,4# |
13 | ||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ,BLACK,TRIM1#,2#,3#,4# |
13 | ||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,4# |
13 | ||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,4# |
13 | ||
| 64721 - COVER, LUGGAGE COMPARTMENT TRIM, INNER RH | ||||
| 64721-30340C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64721-30340C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64721-30340C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
3 | ||
| 90467-08186C3 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
3 | ||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
3 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
3 | ||
| 90467-08186C3 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
3 | ||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
3 | ||
| 64721C - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-08186C3 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
3 | ||
| 90467-08186C3 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
3 | ||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
3 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-09240 |
ARS220,AZSH2#,GWS224 ｶﾗｰ:赤 |
2 | ||
| 64721H - CLIP(LUGGAGE COMPARTMENT) | ||||
| 90467-09240 |
ARS220,AZSH2#,GWS224 ｶﾗｰ:赤 |
2 | ||
| 64722 - COVER, LUGGAGE COMPARTMENT TRIM, INNER LH | ||||
| 64722-30310C0 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64722-30310C0 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64722-30310C0 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
1 | ||
| 64723C - CLIP, LUGGAGE COMPARTMENT TRIM COVER | ||||
| 90467-07071C1 |
ARS220,AZSH2#,GWS224 BLACK |
2 | ||
| 64725D - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1 | ||||
| 64725-50071 |
ARS220,AZSH2# |
1 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 90467-08186C3 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
4 | ||
| 90467-08186C3 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
4 | ||
| 64726D - CLIP, LUGGAGE TRIM, REAR | ||||
| 90467-08186C3 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
4 | ||
| 90467-08186C3 |
GWS224..S;ARS220,AZSH2#..B,G,GF BLACK,TRIM2#,3#,4# |
4 | ||
| 90467-08186C3 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
4 | ||
| 74649 - GRIP, LUGGAGE COMPARTMENT DOOR ASSIST | ||||
| 74649-51010C3 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 74649-51010C3 |
ARS220,AZSH2#..S,SF “Sport Style”*(S)or*(T),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 74649-51010C3 |
ARS220,AZSH2#,GWS224..B,G,GF,S,SF BLACK,TRIM2#,3#,4# |
1 | ||
| 74649-51010C3 |
ARS220,AZSH2#..S,SF “Elegance Style”*(E)or*(F),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 74649-51010C3 |
ARS220,AZSH2#..S,SF “C package”*(C)or*(D),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 74649-51010C3 |
ARS220,AZSH2#..S,SF “C package”2005ﾏﾙｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 75201A - BOX, TOOL | ||||
| 75201-30150 |
ARS220,GWS224 |
1 | ||
| Common parts | ||||
| 90159-60350 | ||||
| 90467-07221 | ||||

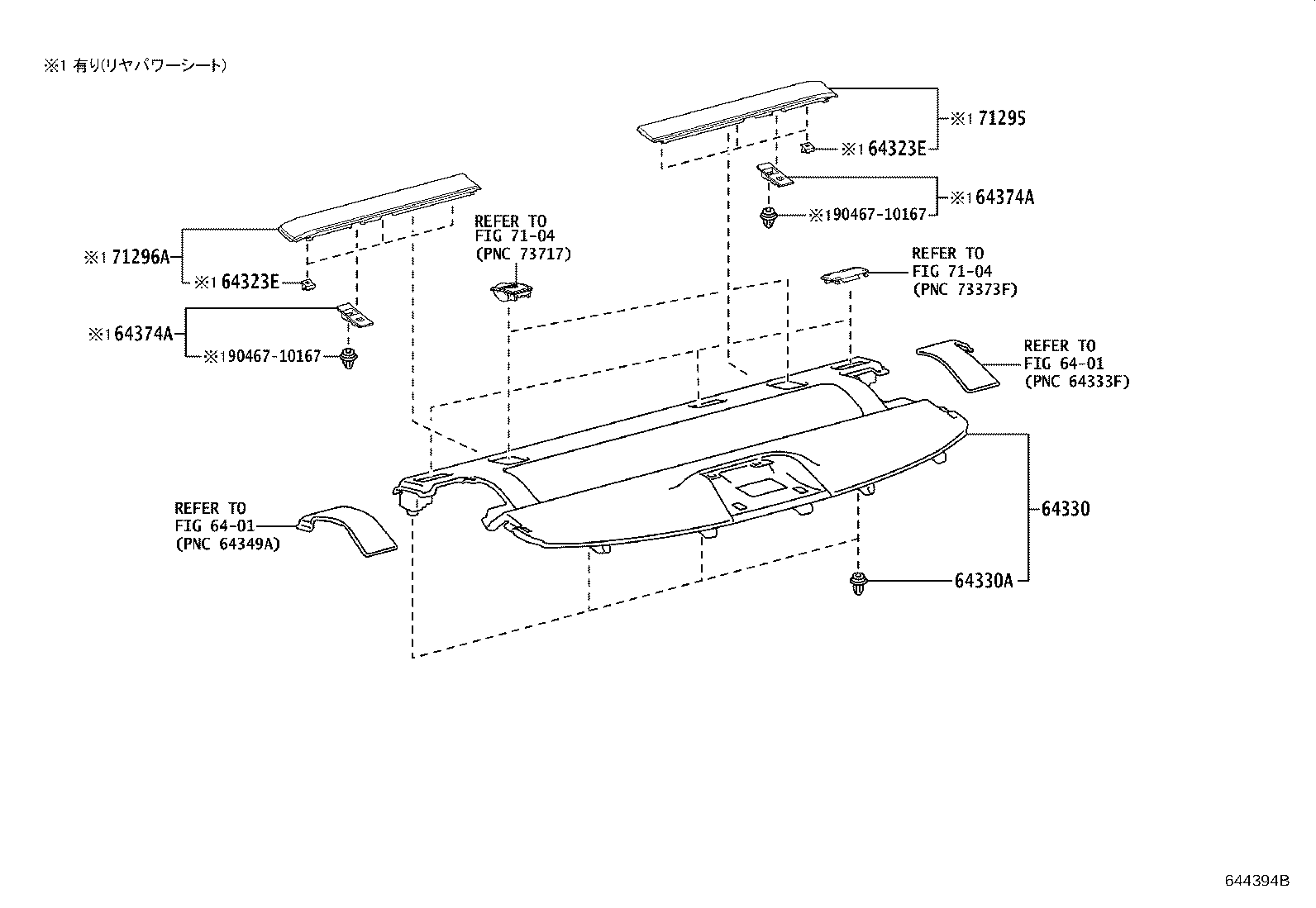

ILLUST NO. 2 OF 2(1806- )
ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ:ﾅｼ(ｻﾝｼｪｰﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30G50C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G40C1 |
ARS220..B;GWS224..S BLACK,TRIM2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G40C1 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G40C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G50C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G50C1 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G50C1 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10161 |
ARS220,AZSH2#,GWS224 |
4 | ||
| Common parts | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 7104 | ||||

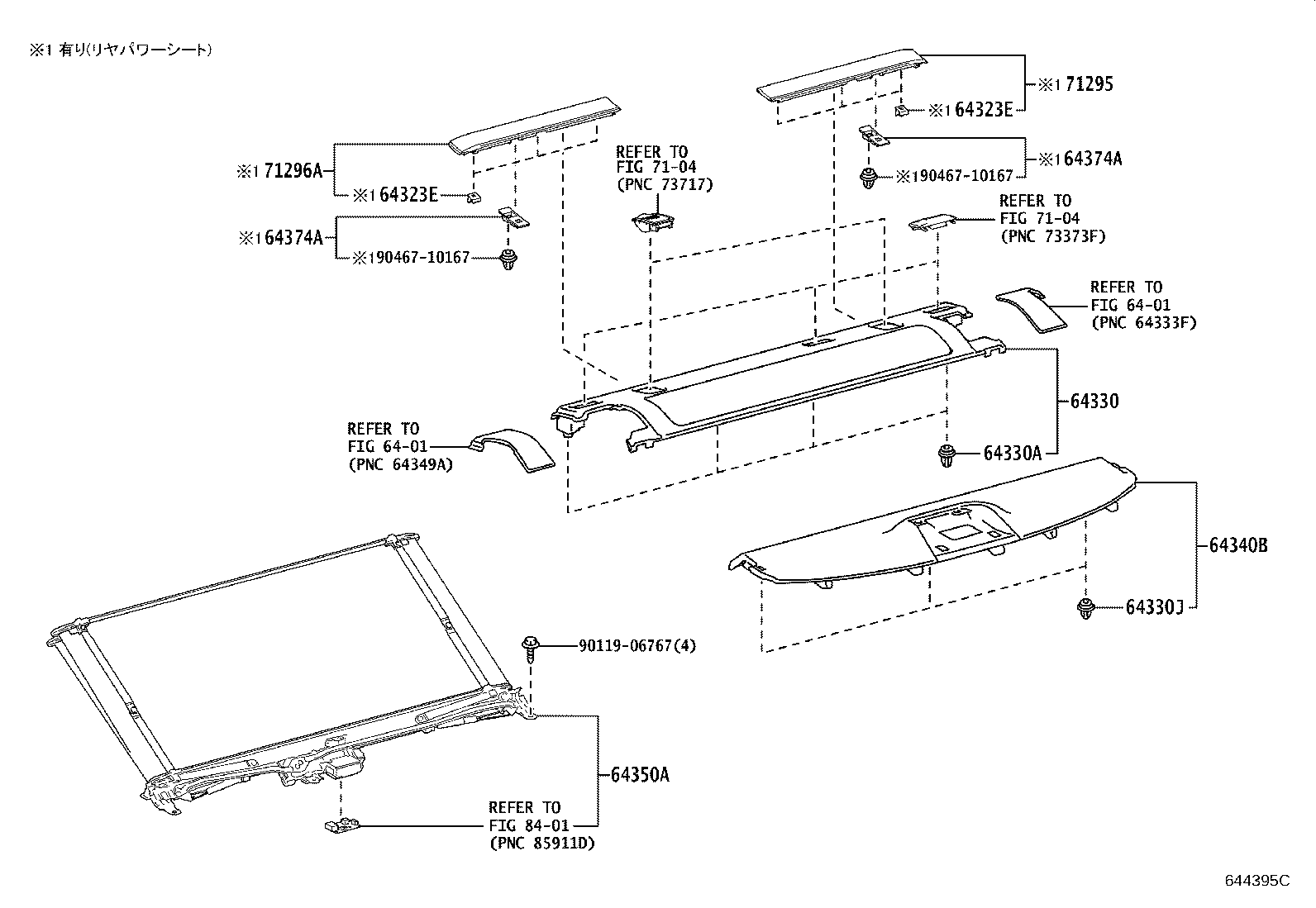

ILLUST NO. 2 OF 2(1806- )
ﾊﾟｯｹｰｼﾞﾄﾚｲﾄﾘﾑ:ｱﾘ(ｻﾝｼｪｰﾄﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64330 - PANEL ASSY, PACKAGE TRAY TRIM | ||||
| 64330-30G50C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G40C1 |
ARS220..B;GWS224..S BLACK,TRIM2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G40C1 |
ARS220,AZSH2#..S,SF BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G40C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G50C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G50C1 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64330-30G50C1 |
ARS220,AZSH2#..S,SF ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330-30G80C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64330A - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-10161 |
ARS220,AZSH2#,GWS224 |
4 | ||
| 64330J - CLIP(FOR PACKAGE TRAY TRIM PANEL) | ||||
| 90467-09240 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF,S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
3 | ||
| 90467-09240 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF,S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ) |
3 | ||
| 90467-09240 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF,S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
3 | ||
| 64340B - PANEL ASSY, PACKAGE TRAY TRIM, NO.2 | ||||
| 64340-30180C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64340-30180C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64340-30170C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64340-30180C1 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM0#,2#,3#,4#,8# |
1 | ||
| 64340-30170C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64340-30180C1 |
ARS220,AZSH2#..S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ,BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 64350A - SHADE ASSY, REAR WINDOW | ||||
| 64350-30140 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF,S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 64350-30141 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF,S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ) |
1 | ||
| 64350-30141 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF,S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| 64350-30140 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF,S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ) |
1 | ||
| 64350-30141 |
ARS220,AZSH2#,GWS224..RS,RSADF,RSADV,RSF,S,SF ｻﾝｼｪｰﾄﾞ−有り(ﾘﾔ)&ｵｰﾃﾞｨｵ−CD&DVD&*BD&DTV&SD&16ｽﾋﾟｰｶ |
1 | ||
| Common parts | ||||
| 90119-06767 | ||||
| 90467-10167 | ||||
| Linked diagrams | ||||
| 6401 | ||||
| 7104 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
