ARS220-AEZAZ (2018)

Toyota Crown/Hybrid

Production Jun 2018 - Oct 2020
Engine 8ARFTS
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

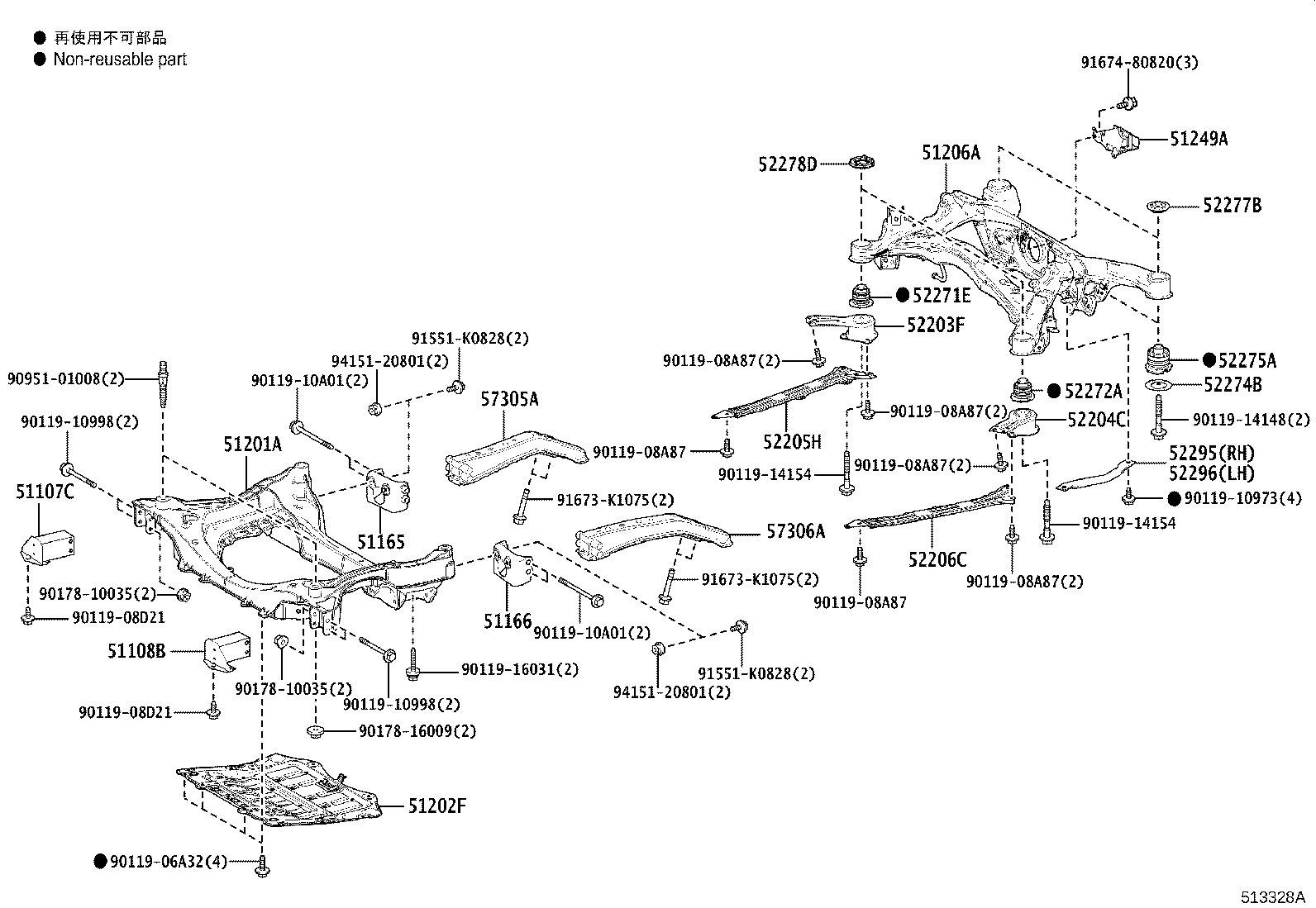

ILLUST NO. 1 OF 2(1806- )AZSH20 ; (1806- )ARS220..B,G,S ; (2004- )ARS220..RS,RSB

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼｮﾝｸﾛｽﾒﾝﾊﾞ

diagram 51107C 51108B 51165 51166 51201A 51202F 51206A 51249A 52203F 52204C 52205H 52206C 52271E 52272A 52274B 52275A 52277B 52278D 52295 52296 57305A 57306A 9011906A32 9011908A87 9011908A87 9011908A87 9011908A87 9011908A87 9011908A87 9011908D21 9011908D21 9011910973 9011910998 9011910998 9011910A01 9011910A01 9011914148 9011914154 9011914154 9011916031 9017810035 9017810035 9017816009 9095101008 91551K0828 91551K0828 91673K1075 91673K1075 9167480820 9415120801 9415120801
Part # Description Qty Price
51107C - RAIL SUB-ASSY, REAR FRAME, RH
51107-30040

ARS220,AZSH2#,GWS224

 1
51108B - RAIL SUB-ASSY, REAR FRAME, LH
51108-30030

ARS220,AZSH2#,GWS224

 1
51165 - REINFORCEMENT, SIDE RAIL, NO.2 RH
51165-30010

ARS220,AZSH20,GWS224

 1
51166 - REINFORCEMENT, SIDE RAIL, NO.2 LH
51166-30010

ARS220,AZSH20,GWS224

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-30150

ARS220,AZSH20,GWS224

 1
51202F - SUPPORT SUB-ASSY, STRUT BAR BRACKET
51202-11020

ARS220,AZSH20,GWS224

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-30142

ARS220,AZSH2#,GWS224

 1
51249A - DAMPER, REAR SUSPENSION MEMBER
51249-30040

ARS220,AZSH2#

 1
52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH
52203-30080

ARS220,AZSH2#,GWS224

 1
52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH
52204-30060

ARS220,AZSH2#,GWS224

 1
52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH
52205-30270

ARS220,AZSH2#,GWS224

 1
52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH
52206-30090

ARS220,AZSH2#,GWS224

 1
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-30170

ARS220,AZSH2#,GWS224

 1
52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52272-30030

ARS220,AZSH2#,GWS224

 1
52274B - STOPPER, REAR SUSPENSION MEMBER, REAR LOWER
52274-30010

AZSH20,GWS224;ARS220,AZSH21..B,G,GEXEF,GF,RSADF,RSF,S,SF

 2
52274-30010

ARS220..RS,RSB

 2
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30180

ARS220,AZSH2#,GWS224

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30100

ARS220,AZSH2#,GWS224

 2
52278D - STOPPER, REAR SUSPENSION MEMBER, FRONT UPPER
52278-30110

ARS220,AZSH2#,GWS224

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-30041

ARS220,AZSH2#,GWS224

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-30041

ARS220,AZSH2#,GWS224

 1
57305A - REINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH
57305-30060

ARS220,AZSH20,GWS224

 1
57306A - REINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH
57306-30080

ARS220,AZSH20,GWS224

 1
Common parts
90119-06A32
90119-08A87
90119-08D21
90119-10973
90119-10998
90119-10A01
90119-14148
90119-14154
90119-16031
90178-10035
90178-16009
90951-01008
91551-K0828
91673-K1075
91674-80820
94151-20801

ILLUST NO. 2 OF 2(1806- )ARS220,AZSH20,GWS224

Click highlighted areas on diagram

ｱﾝﾀﾞｶﾊﾞｰ

diagram 51410 51420 51442G 51442G 51445 51445 51451D 51451E 51453D 51454 51454 51454G 51467A 51468 51473C 51474B 51477E 51477E 51478B 51478B 5201 58169J 58169J 9011906A32 9015960477 9015960477 9015960477 9015960496 9015960496 9015960496 9018906066 9018906066 9018906066 9018906067 9018906067 9018906067 9046707220 9046707220 9046707220 9046707220 9046707220 9046707220
Part # Description Qty Price
51410 - COVER ASSY, ENGINE UNDER, NO.1
51410-30240

ARS220,AZSH20,GWS224

 1
51420 - COVER ASSY, ENGINE UNDER, NO.2
51420-30040

ARS220,AZSH20,GWS224

 1
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

ARS220,AZSH2#,GWS224

 2
51442G - CLIP, ENGINE UNDER COVER, NO.1
90467-07220

ARS220,AZSH2#,GWS224

 2
51445 - BRACKET, ENGINE UNDER COVER
51445-30050

ARS220,AZSH20,GWS224

 1
51445 - BRACKET, ENGINE UNDER COVER
51445-30050

ARS220,AZSH20,GWS224

 1
51451D - SCREW, NO.1
90159-60477

ARS220,AZSH2#,GWS224

 4
51451E - SCREW, NO.2
90159-60477

ARS220,AZSH2#,GWS224

 3
51453D - COVER, ENGINE ROOM UNDER, RH
51453-11010

ARS220,AZSH20,GWS224

 1
51454 - CLIP
90467-07220

ARS220,AZSH20,GWS224

 2
51454 - CLIP
90467-07220

ARS220,AZSH20,GWS224

 2
51454G - COVER, ENGINE ROOM UNDER, LH
51454-11020

ARS220,AZSH20,GWS224

 1
51467A - SILENCER, SIDE RAIL INNER, NO.2 RH
51467-11010

ARS220,AZSH20,GWS224

 1
51468 - SILENCER, SIDE RAIL INNER, NO.2 LH
51468-11010

ARS220,AZSH20,GWS224

 1
51473C - COVER, ENGINE SIDE, RH
51473-30010

ARS220,AZSH20,GWS224

 1
51474B - COVER, ENGINE SIDE, LH
51474-30010

ARS220,AZSH20,GWS224

 1
51477E - PLATE, ENGINE UNDER COVER SIDE, RH
51477-30050

ARS220,AZSH20,GWS224

 1
51477E - PLATE, ENGINE UNDER COVER SIDE, RH
51477-30050

ARS220,AZSH20,GWS224

 1
51478B - PLATE, ENGINE UNDER COVER SIDE, LH
51478-30060

ARS220,AZSH20,GWS224

 1
51478B - PLATE, ENGINE UNDER COVER SIDE, LH
51478-30060

ARS220,AZSH20,GWS224

 1
58169J - PATCH, FRONT FLOOR, REAR
58169-48010

ARS220,AZSH20,GWS224

 2
58169J - PATCH, FRONT FLOOR, REAR
58169-48010

ARS220,AZSH20,GWS224

 2
Common parts
90119-06A32
90159-60477
90159-60496
90189-06066
90189-06067
90467-07220
Linked diagrams
5201

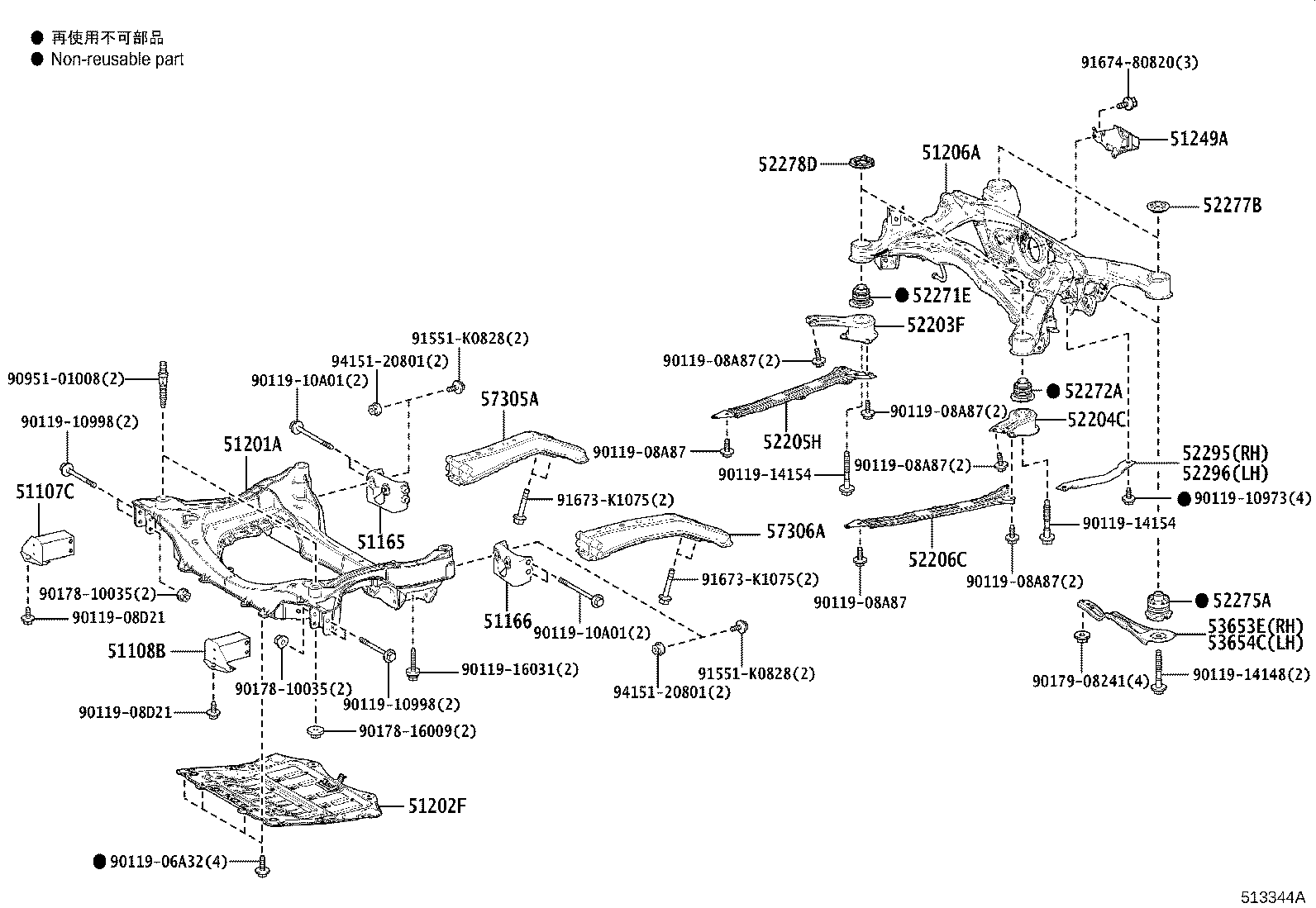

ILLUST NO. 1 OF 2(1806-2004)ARS220..RS,RSB ; (1806- )ARS220..RSADV

Click highlighted areas on diagram

ｻｽﾍﾟﾝｼｮﾝｸﾛｽﾒﾝﾊﾞ

diagram 51107C 51108B 51165 51166 51201A 51202F 51206A 51249A 52203F 52204C 52205H 52206C 52271E 52272A 52275A 52277B 52278D 52295 52296 53653E 53654C 57305A 57306A 9011906A32 9011908A87 9011908A87 9011908A87 9011908A87 9011908A87 9011908A87 9011908D21 9011908D21 9011910973 9011910998 9011910998 9011910A01 9011910A01 9011914148 9011914154 9011914154 9011916031 9017810035 9017810035 9017816009 9017908241 9095101008 91551K0828 91551K0828 91673K1075 91673K1075 9167480820 9415120801 9415120801
Part # Description Qty Price
51107C - RAIL SUB-ASSY, REAR FRAME, RH
51107-30040

ARS220,AZSH2#,GWS224

 1
51108B - RAIL SUB-ASSY, REAR FRAME, LH
51108-30030

ARS220,AZSH2#,GWS224

 1
51165 - REINFORCEMENT, SIDE RAIL, NO.2 RH
51165-30010

ARS220,AZSH20,GWS224

 1
51166 - REINFORCEMENT, SIDE RAIL, NO.2 LH
51166-30010

ARS220,AZSH20,GWS224

 1
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-30150

ARS220,AZSH20,GWS224

 1
51202F - SUPPORT SUB-ASSY, STRUT BAR BRACKET
51202-11020

ARS220,AZSH20,GWS224

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-30142

ARS220,AZSH2#,GWS224

 1
51249A - DAMPER, REAR SUSPENSION MEMBER
51249-30040

ARS220,AZSH2#

 1
52203F - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER RH
52203-30080

ARS220,AZSH2#,GWS224

 1
52204C - STOPPER SUB-ASSY, REAR SUSPENSION MEMBER, LOWER LH
52204-30060

ARS220,AZSH2#,GWS224

 1
52205H - CUSHION SUB-ASSY, BODY MOUNTING, REAR RH
52205-30270

ARS220,AZSH2#,GWS224

 1
52206C - CUSHION SUB-ASSY, BODY MOUNTING, REAR LH
52206-30090

ARS220,AZSH2#,GWS224

 1
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-30170

ARS220,AZSH2#,GWS224

 1
52272A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT LH
52272-30030

ARS220,AZSH2#,GWS224

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-30180

ARS220,AZSH2#,GWS224

 2
52277B - STOPPER, REAR SUSPENSION MEMBER, REAR UPPER
52277-30100

ARS220,AZSH2#,GWS224

 2
52278D - STOPPER, REAR SUSPENSION MEMBER, FRONT UPPER
52278-30110

ARS220,AZSH2#,GWS224

 2
52295 - BRACE, REAR SUSPENSION MEMBER, RH
52295-30041

ARS220,AZSH2#,GWS224

 1
52296 - BRACE, REAR SUSPENSION MEMBER, LH
52295-30041

ARS220,AZSH2#,GWS224

 1
53653E - BRACE, REAR SUSPENSION, LOWER RH
53653-30010

ARS220..RS,RSB

 1
53653-30010

ARS220..RSADV

 1
53654C - BRACE, REAR SUSPENSION, LOWER LH
53654-30010

ARS220..RSADV

 1
53654-30010

ARS220..RS,RSB

 1
57305A - REINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR RH
57305-30060

ARS220,AZSH20,GWS224

 1
57306A - REINFORCEMENT SUB-ASSY, LOWER ARM MOUNTING, REAR LH
57306-30080

ARS220,AZSH20,GWS224

 1
Common parts
90119-06A32
90119-08A87
90119-08D21
90119-10973
90119-10998
90119-10A01
90119-14148
90119-14154
90119-16031
90178-10035
90178-16009
90179-08241
90951-01008
91551-K0828
91673-K1075
91674-80820
94151-20801
