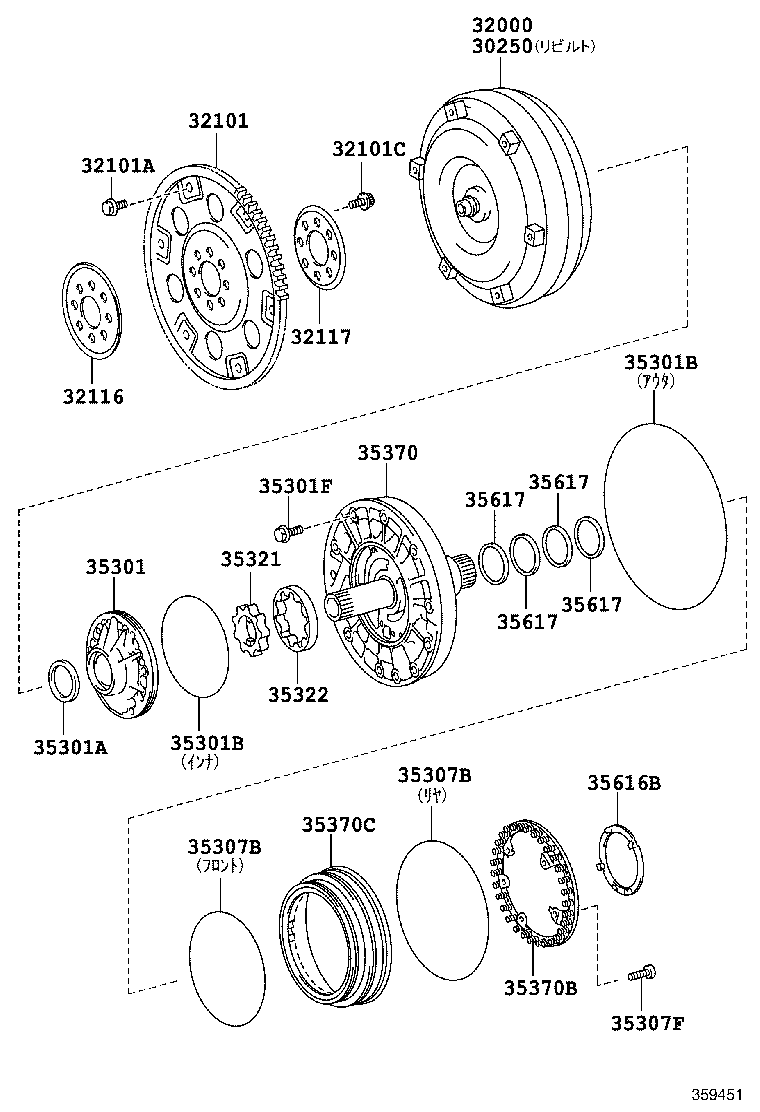

Toyota Crown/hybrid ARS210 TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Part #	Description	Period	Qty
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-53020	ARS210	09/2015 - 02/2018	1
30250-30470	ARS210	02/2018 - 04/2018	1
32000 - CONVERTER ASSY, TORQUE
32000-30470	ARS210	02/2018 - 04/2018	1
32000-53020	ARS210	09/2015 - 02/2018	1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-30100	ARS210	09/2015 - 04/2018	1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90105-09005	ARS210,GRS21# *9−1.25PX11−8,ﾌﾞﾗｯｸ	09/2015 - 04/2018	1
90105-09006	ARS210,GRS21# *9−1.25PX11−8.5,ｼﾙﾊﾞ− ﾎﾜｲﾄ	09/2015 - 04/2018	5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12384	ARS210 *12−1.25PX21−15	09/2015 - 04/2018	1
32116 - SPACER, DRIVE PLATE, FRONT
32116-20050	ARS210	09/2015 - 04/2018	1
32117 - SPACER, DRIVE PLATE, REAR
32117-20060	ARS210	09/2015 - 04/2018	1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-53010	ARS210	09/2015 - 04/2018	1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38083	ARS210,GRS210,211	09/2015 - 04/2018	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99087	ARS210,GRS214 内側	09/2015 - 04/2018	1
90301-99171	ARS210,GRS214 外側	09/2015 - 04/2018	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99087	ARS210,GRS214 内側	09/2015 - 04/2018	1
90301-99171	ARS210,GRS214 外側	09/2015 - 04/2018	1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08353	ARS210,GRS214 *8−1.25PX50−30	09/2015 - 04/2018	11
35307B - RING, SHAFT SNAP (FOR STATOR SHAFT)
90301-99170	ARS210,GRS214 ﾘﾔ	09/2015 - 04/2018	1
90301-99172	ARS210,GRS214 ﾌﾛﾝﾄ	09/2015 - 04/2018	1
35307B - RING, SHAFT SNAP (FOR STATOR SHAFT)
90301-99170	ARS210,GRS214 ﾘﾔ	09/2015 - 04/2018	1
90301-99172	ARS210,GRS214 ﾌﾛﾝﾄ	09/2015 - 04/2018	1
35307F - BOLT (FOR STATOR SHAFT)
90148-06001	ARS210,GRS214	09/2015 - 04/2018	7
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-53011	ARS210	09/2015 - 04/2018	1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-53011	ARS210	09/2015 - 04/2018	1
35370 - SHAFT ASSY, STATOR
35370-53010	ARS210	09/2015 - 10/2015	1
35370-53020	ARS210	10/2015 - 04/2018	1
35370B - SPRING SUB-ASSY, STATOR SHAFT
35608-50020	ARS210,GRS214	09/2015 - 04/2018	1
35370C - PISTON, STATOR SHAFT
35621-30060	ARS210,GRS214	09/2015 - 04/2018	1
35616B - WASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)
35616-50010	ARS210,GRS214	09/2015 - 04/2018	1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030	ARS210,GRS214	09/2015 - 04/2018	4
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030	ARS210,GRS214	09/2015 - 04/2018	4
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030	ARS210,GRS214	09/2015 - 04/2018	4
35617 - RING, CLUTCH DRUM OIL SEAL
35617-50030	ARS210,GRS214	09/2015 - 04/2018	4

ARS210-AEZWZ (2015)

(1509- )ARS210
