UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9909-0108)UZS173

Click highlighted areas on diagram

ﾌﾛﾝﾄ

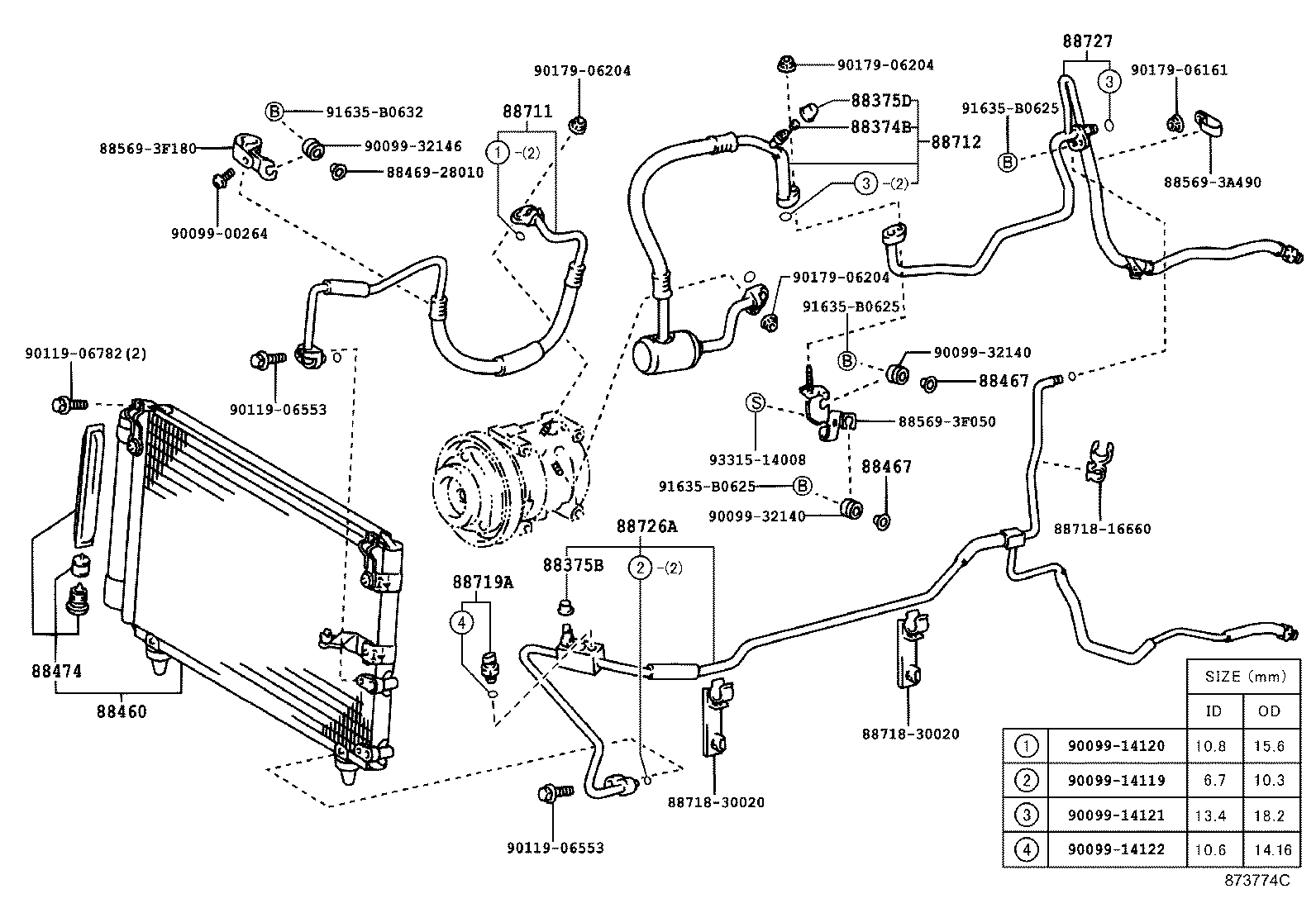

diagram 88374B 88375B 88375D 88460 88467 88467 8846928010 88474 885693A490 885693F050 885693F180 88711 88712 8871816660 8871830020 8871830020 88719A 88726A 88727 9009900264 9009914119 9009914120 9009914121 9009914122 9009932140 9009932140 9009932146 9011906553 9011906553 9011906782 9017906161 9017906204 9017906204 9017906204 91635B0625 91635B0625 91635B0625 91635B0632 9331514008
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

GS171,JZS17#,UZS17#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

GS171,JZS17#,UZS17#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

GS171,JZS17#,UZS17#

 1
88460 - CONDENSER ASSY, COOLER
88460-30830

GS171,JZS171,173,175,179

 1
88460-30820

JZS177,UZS17#

 1
88460-30820

JZS177,UZS17#

 1
88460-30830

GS171,JKS175,JZS171,173,175,179

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14070

UZS17#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-14070

UZS17#

 2
88474 - DRYER, COOLER
88474-47010

GS171,JKS175,JZS17#,UZS17#

 1
88474-47010

GS171,JZS17#,UZS17#

 1
88474-47010

JZS17#,UZS17#

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3A440

UZS173

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3A860

UZS173

 1
88712-3A860

UZS173

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020

UZS17#

 1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3K490

UZS173

 1
88727 - TUBE, SUCTION, NO.2
88727-3F180

UZS173

ｱﾘ(ﾘﾔ ｴｱｺﾝ)

 1
Common parts
88469-28010
88569-3A490
88569-3F050
88569-3F180
88718-16660
88718-30020
90099-00264
90099-14119
90099-14120
90099-14121
90099-14122
90099-32140
90099-32146
90119-06553
90119-06782
90179-06161
90179-06204
91635-B0625
91635-B0632
93315-14008

ILLUST NO. 2 OF 2(9909-0108)GS171,JZS171,173,175,179

Click highlighted areas on diagram

ﾘﾔ

diagram 8856916020 885693A450 885693A490 885693A490 885693A720 885693A730 885693A730 885693A730 885693F110 88726B 88726C 88727B 88727C 888993A060 888993A070 9009900259 9009914119 9009914120 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9165160640 9165160640
Part # Description Qty Price
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K570

UZS173

 1
88726-3K570

UZS173

 1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-3K600

GS171,JZS171,173,175,179..SED

 1
88726-3K600

GS171,JZS171,173,175,179..SED

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-3F120

UZS173

 1
88727-3F120

UZS173

 1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88727-3F150

GS171,JZS171,173,175,179..SED

 1
88727-3F150

GS171,JZS171,173,175,179..SED

 1
Common parts
88569-16020
88569-3A450
88569-3A490
88569-3A720
88569-3A730
88569-3F110
88899-3A060
88899-3A070
90099-00259
90099-14119
90099-14120
90179-06161
91651-60640

ILLUST NO. 2 OF 2(9909-0108)JZS177,UZS17#

Click highlighted areas on diagram

ﾘﾔ

diagram 8856916020 885693A490 885693A490 885693A490 8871850190 8871850280 88726B 88727B 888993A060 888993A070 9009900259 9009900259 9009914119 9009914120 9017906161 9017906161 9017906161 9017906161 91626A0620 9165160640 9165160640
Part # Description Qty Price
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K570

UZS173

 1
88726-3K570

UZS173

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-3F120

UZS173

 1
88727-3F120

UZS173

 1
Common parts
88569-16020
88569-3A490
88718-50190
88718-50280
88899-3A060
88899-3A070
90099-00259
90099-14119
90099-14120
90179-06161
91626-A0620
91651-60640

ILLUST NO. 1 OF 2(0108- )UZS173

Click highlighted areas on diagram

ﾌﾛﾝﾄ--ｱﾘ(ﾘﾔ ｴｱｺﾝ)

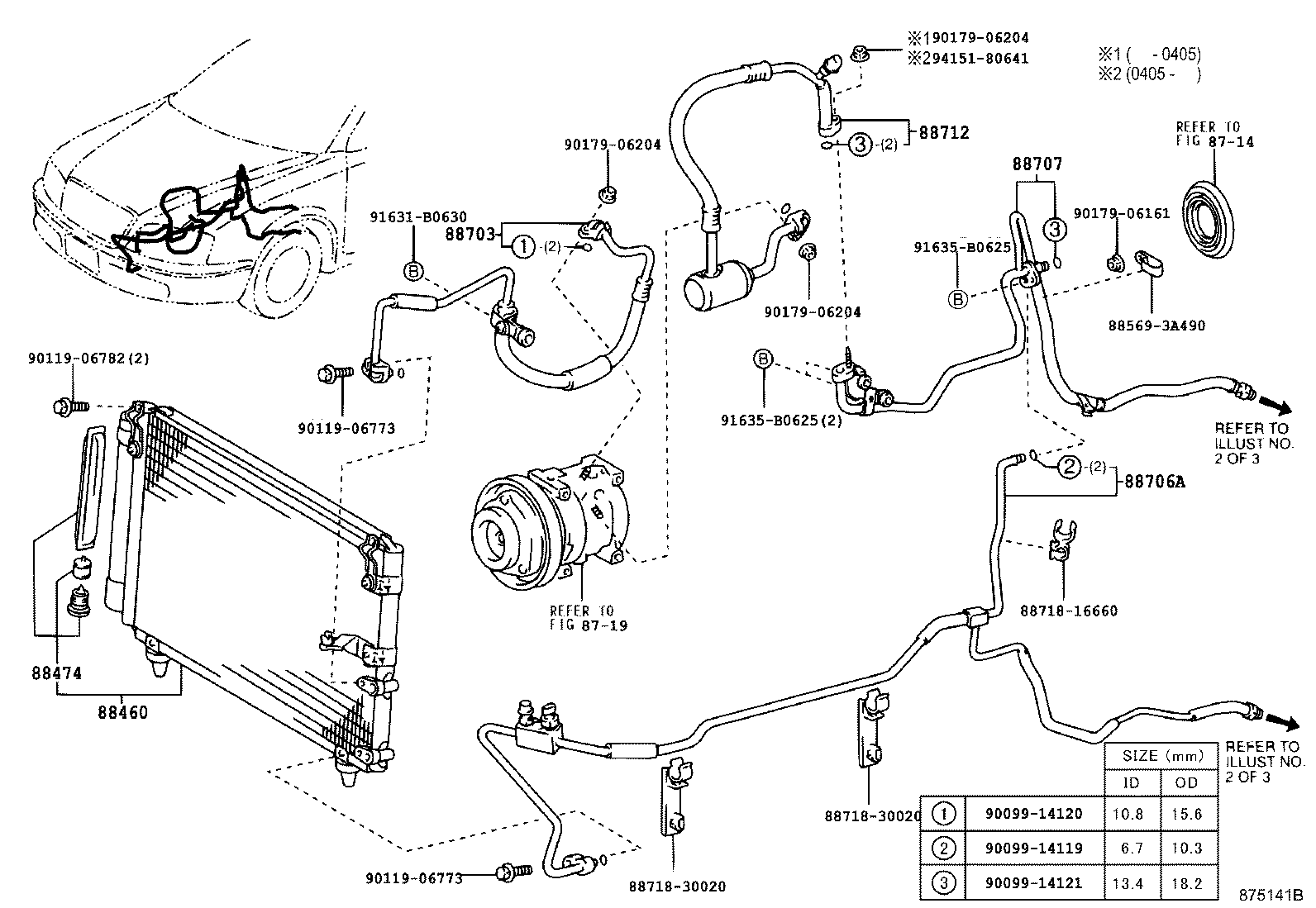

diagram 8714 8719 88460 88474 885693A490 88703 88706A 88707 88712 8871816660 8871830020 8871830020 9009914119 9009914120 9009914121 9011906773 9011906773 9011906782 9017906161 9017906204 9017906204 9017906204 91631B0630 91635B0625 91635B0625 9415180641
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-30830

GS171,JZS171,173,175,179

 1
88460-30820

JZS177,UZS17#

 1
88460-30820

JZS177,UZS17#

 1
88460-30830

GS171,JKS175,JZS171,173,175,179

 1
88474 - DRYER, COOLER
88474-47010

GS171,JZS17#,UZS17#

 1
88474-47010

JZS17#,UZS17#

 1
88474-47010

GS171,JKS175,JZS17#,UZS17#

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-30800

UZS173

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-3A270

UZS173

 1
88707 - PIPE SUB-ASSY, SUCTION
88707-30610

UZS173

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3A860

UZS173

 1
88712-3A860

UZS173

 1
Common parts
88569-3A490
88718-16660
88718-30020
90099-14119
90099-14120
90099-14121
90119-06773
90119-06782
90179-06161
90179-06204
91631-B0630
91635-B0625
94151-80641
Linked diagrams
8714
8719

ILLUST NO. 2 OF 2(0108- )JZS177,UZS17#

Click highlighted areas on diagram

ﾘﾔ

diagram 8714 8856916020 885693A490 885693A490 885693A490 8871850190 8871850280 88726B 88727B 888993A060 888993A070 9009900259 9009900259 9009914119 9009914120 9017906161 9017906161 9017906161 9017906161 91626A0620 91651B0640 91651B0640
Part # Description Qty Price
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K570

UZS173

 1
88726-3K570

UZS173

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-3F120

UZS173

 1
88727-3F120

UZS173

 1
Common parts
88569-16020
88569-3A490
88718-50190
88718-50280
88899-3A060
88899-3A070
90099-00259
90099-14119
90099-14120
90179-06161
91626-A0620
91651-B0640
Linked diagrams
8714

ILLUST NO. 2 OF 2(0108- )GS171,JZS171,173,175,179

Click highlighted areas on diagram

ﾘﾔ

diagram 8714 8856916020 885693A450 885693A490 885693A490 885693A720 885693A730 885693A730 885693A730 885693F110 88726B 88726C 88727B 88727C 888993A060 888993A070 9009900259 9009914119 9009914120 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9017906161 9165160640 9165160640
Part # Description Qty Price
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K570

UZS173

 1
88726-3K570

UZS173

 1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-3K600

GS171,JZS171,173,175,179..SED

 1
88726-3K600

GS171,JZS171,173,175,179..SED

 1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-3F120

UZS173

 1
88727-3F120

UZS173

 1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88727-3F150

GS171,JZS171,173,175,179..SED

 1
88727-3F150

GS171,JZS171,173,175,179..SED

 1
Common parts
88569-16020
88569-3A450
88569-3A490
88569-3A720
88569-3A730
88569-3F110
88899-3A060
88899-3A070
90099-00259
90099-14119
90099-14120
90179-06161
91651-60640
Linked diagrams
8714
