Toyota Crown/crown majesta UZS173 HEATING & AIR CONDITIONING - WATER PIPING

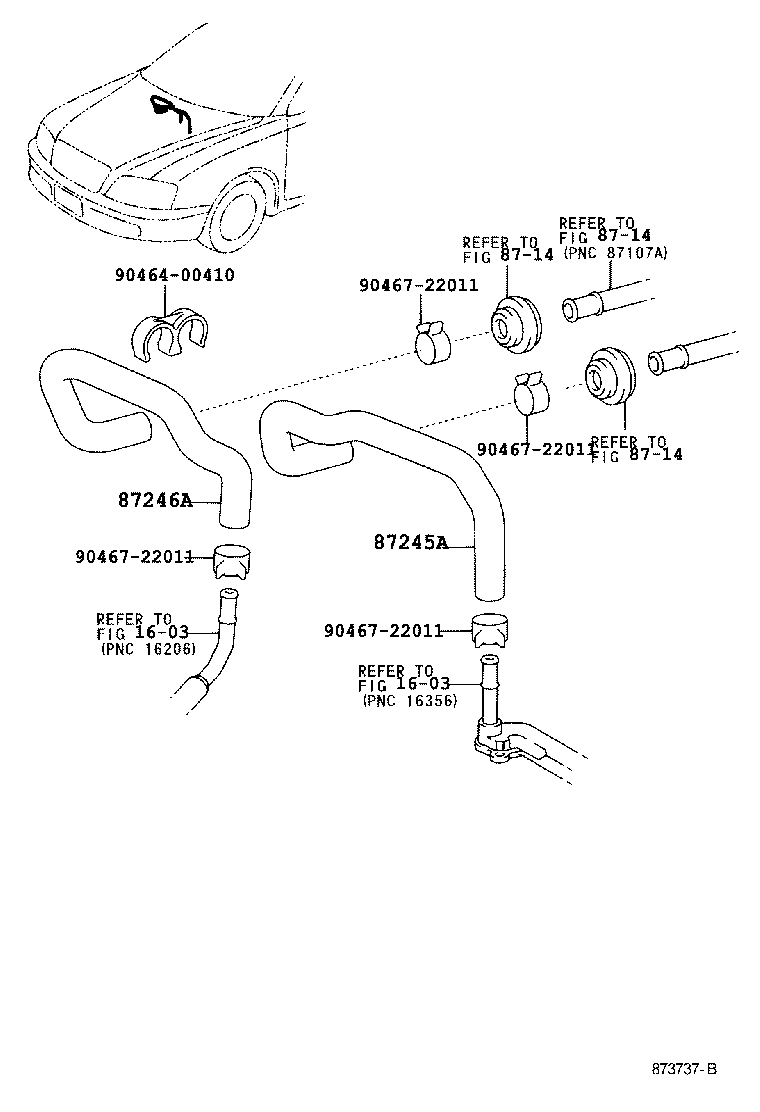

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3F670	UZS17# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-51010	JZS171,173,179..TWC	09/1999 - 08/2001	1
87245-3F430	UZS17#	09/1999 - 08/2001	1
87245-3F430	UZS17#	08/2001 - 06/2004	1
87245-3F670	UZS17# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/2001 - 06/2004	1
87245-51040	JZS171,173,179..TWC ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F680	UZS17# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-51060	JZS171,173,175,179..D4,TWC ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-3F510	UZS17#	09/1999 - 08/2001	1
87245-3F680	UZS17# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/2001 - 06/2004	1
87245-3F510	UZS17#	08/2001 - 06/2004	1
Common parts
90464-00410
90467-22011
Linked diagrams
1603
8714

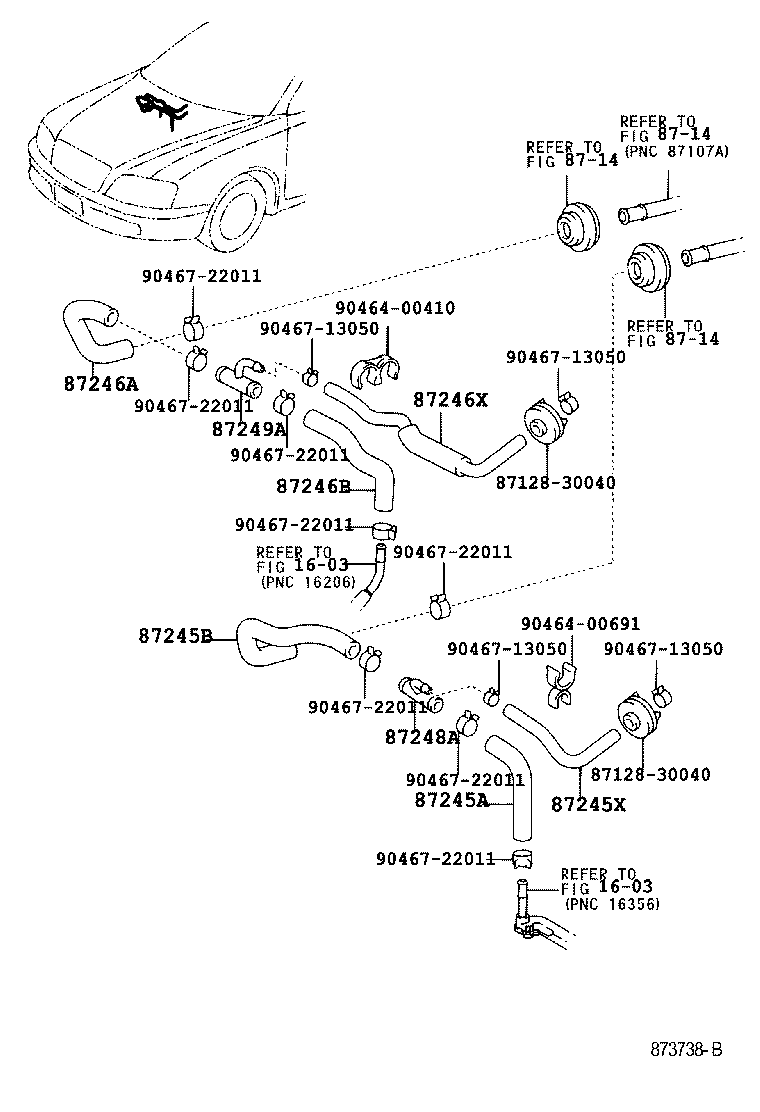

Part #	Description	Period	Qty
87245A - HOSE, HEATER WATER, INLET A
87245-3F670	UZS17# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-51010	JZS171,173,179..TWC	09/1999 - 08/2001	1
87245-3F430	UZS17#	09/1999 - 08/2001	1
87245-3F430	UZS17#	08/2001 - 06/2004	1
87245-3F670	UZS17# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/2001 - 06/2004	1
87245-51040	JZS171,173,179..TWC ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245B - HOSE, HEATER WATER, INLET B
87245-3F660	UZS17#	09/1999 - 08/2001	1
87245-51030	JZS171,173,179..TWC	09/1999 - 08/2001	1
87245-3F660	UZS17#	08/2001 - 06/2004	1
87245X - HOSE, HEATER WATER
87242-51010	JZS171,173,179	09/1999 - 08/2001	1
87242-30140	UZS17#	08/2001 - 06/2004	1
87242-30140	UZS17#	09/1999 - 08/2001	1
87242-51010	JZS171,173,179..TWC,TWT	08/2001 - 12/2999	1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F680	UZS17# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-51060	JZS171,173,175,179..D4,TWC ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	09/1999 - 08/2001	1
87245-3F510	UZS17#	09/1999 - 08/2001	1
87245-3F680	UZS17# ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)	08/2001 - 06/2004	1
87245-3F510	UZS17#	08/2001 - 06/2004	1
87246B - HOSE, HEATER WATER, OUTLET B
87245-3F690	UZS17#	09/1999 - 08/2001	1
87245-3F690	UZS17#	08/2001 - 06/2004	1
87246X - HOSE, HEATER WATER
87246-30360	JZS171,173	09/1999 - 10/1999	1
87246-51010	JZS171,173,179..TWC	10/1999 - 08/2001	1
87246-30370	UZS17#	08/2001 - 06/2004	1
87246-30370	UZS17#	09/1999 - 08/2001	1
87248A - PIPE, HEATER WATER INLET, A
87248-30390	JZS171,173,177,179,UZS17#	09/1999 - 08/2001	1
87248-30390	JZS177;JZS171,173,179,UZS17#..HTWC,TWC,TWT	08/2001 - 12/2999	1
87249A - PIPE, HEATER WATER OUTLET, A
87248-30390	UZS17#	08/2001 - 06/2004	1
87248-30390	UZS17#	09/1999 - 08/2001	1
Common parts
87128-30040
90464-00410
90464-00691
90467-13050
90467-22011
Linked diagrams
1603
8714

UZS173-CEPZK (1999)

(9909- )UZS17#

(9909- )UZS17#
