UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
Production
Sep 1999
-
Jun 2004
Engine
1UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9909- )UZS171,173

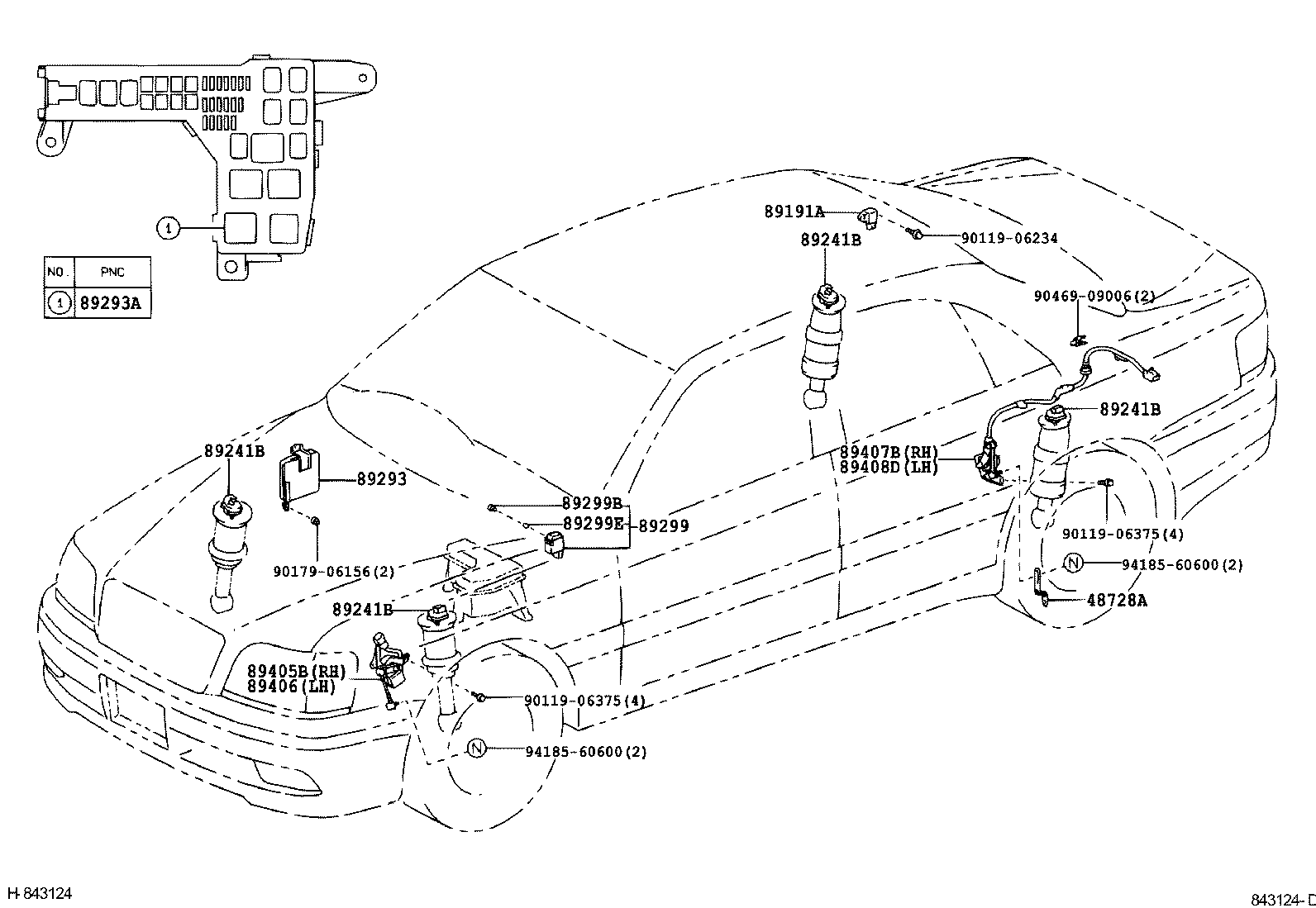

Click highlighted areas on diagram
ｴｱｻｽﾍﾟﾝｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48728A - BRACKET, LOAD SENSING VALVE SENSOR | ||||
| 48728-30030 |
UZS171,173 |
2 | ||
| 48728-30030 |
UZS171,173 |
2 | ||
| 89191A - SENSOR, ACCELERATION | ||||
| 89191-30020 |
UZS171,173 |
1 | ||
| 89191-30020 |
UZS171,173 |
1 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30040 |
UZS171,173 |
4 | ||
| 89241-30040 |
JZS175,UZS171,173..C,ROYG |
4 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30040 |
UZS171,173 |
4 | ||
| 89241-30040 |
JZS175,UZS171,173..C,ROYG |
4 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30040 |
UZS171,173 |
4 | ||
| 89241-30040 |
JZS175,UZS171,173..C,ROYG |
4 | ||
| 89241B - ACTUATOR, ABSORBER CONTROL | ||||
| 89241-30040 |
UZS171,173 |
4 | ||
| 89241-30040 |
JZS175,UZS171,173..C,ROYG |
4 | ||
| 89293 - COMPUTER, SUSPENSION CONTROL | ||||
| 89293-30180 |
UZS173 |
1 | ||
| 89293-30200 |
UZS173 |
1 | ||
| 89293A - RELAY, SUSPENSION CONTROL | ||||
| 90987-02006 |
UZS171,173 |
1 | ||
| 90987-02006 |
UZS171,173 |
1 | ||
| 89299 - SWITCH, SUSPENSION CONTROL | ||||
| 89276-30020 |
UZS171,173 |
1 | ||
| 89276-30020 |
UZS171,173 |
1 | ||
| 89299B - BULB(FOR SUSPENSION CONTROL SWITCH) | ||||
| 84999-10820 |
UZS171,173 |
1 | ||
| 84999-10820 |
UZS171,173 |
1 | ||
| 89299E - CAP, SUSPENSION CONTROL SWITCH BULB | ||||
| 84998-10670 |
UZS171,173 |
1 | ||
| 84998-10670 |
UZS171,173 |
1 | ||
| 89405B - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT RH | ||||
| 89405-30100 |
UZS173 |
1 | ||
| 89405-30100 |
UZS173 |
1 | ||
| 89406 - SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT LH | ||||
| 89406-30130 |
UZS173 |
1 | ||
| 89406-30130 |
UZS173 |
1 | ||
| 89407B - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR RH | ||||
| 89407-30061 |
UZS171,173 |
1 | ||
| 89407-30061 |
UZS171,173 |
1 | ||
| 89407-30060 |
UZS171,173 |
1 | ||
| 89408D - SENSOR SUB-ASSY, HEIGHT CONTROL, REAR LH | ||||
| 89408-30120 |
UZS171,173 |
1 | ||
| 89408-30121 |
UZS171,173 |
1 | ||
| 89408-30121 |
UZS171,173 |
1 | ||
| Common parts | ||||
| 90119-06234 | ||||
| 90119-06375 | ||||
| 90179-06156 | ||||
| 90469-09006 | ||||
| 94185-60600 | ||||
