Toyota Crown/crown majesta UZS173 ABS & VSC

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9909- )GS171,JKS175,JZS171,173,175,179

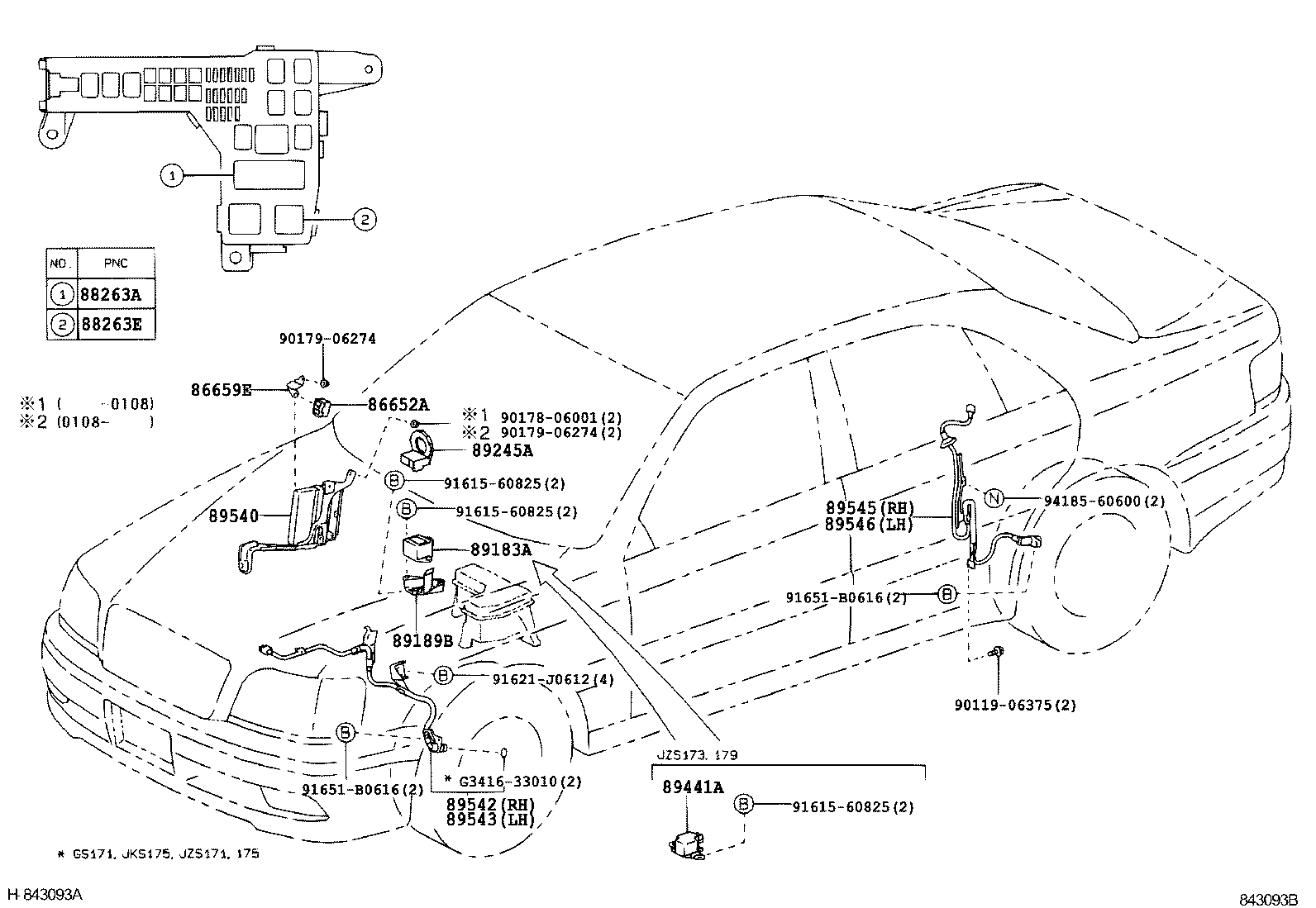

Click highlighted areas on diagram

Part #	Description	Period	Qty
86652A - BUZZER ASSY, SKID CONTROL
86652-51010	JZS171,175,177,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG	09/1999 - 08/2001	1
86652-51010	JZS177,UZS17#	08/2001 - 06/2004	1
88263A - RELAY, SKID CONTROL
88263-24020	JZS177,UZS17#	09/1999 - 08/2001	1
88263-24020	JZS177,UZS17#	08/2001 - 06/2004	1
88263-30150	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
88263E - RELAY, SKID CONTROL NO.2
88263-24030	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
88263-24030	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
89183A - SENSOR, YAWRATE
89183-30060	JZS171,175,177,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG	09/1999 - 08/2001	1
89183-30060	JZS177,UZS17#	08/2001 - 06/2004	1
89189B - BRACKET, YAWRATE SENSOR
89189-30050	JZS177,UZS17#	09/1999 - 08/2001	1
89189-30070	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
89189-30070	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
89189-30050	JZS177,UZS17#	08/2001 - 06/2004	1
89245A - SENSOR, STEERING
89245-30040	JZS175,177,UZS17#..A,C,ROYG	09/1999 - 08/2001	1
89245-30040	JZS177,UZS17#	08/2001 - 06/2004	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-30500	UZS173	09/1999 - 03/2001	1
89540-30501	UZS173	03/2001 - 08/2001	1
89540-30570	UZS173	08/2001 - 06/2004	1
89542 - SENSOR, SPEED, FRONT RH
89542-30251	UZS173	03/2001 - 08/2001	1
89542-30251	UZS173	08/2001 - 06/2004	1
89542-30250	UZS173	09/1999 - 03/2001	1
89543 - SENSOR, SPEED, FRONT LH
89543-30250	UZS173	09/1999 - 03/2001	1
89543-30251	UZS173	08/2001 - 06/2004	1
89543-30251	UZS173	03/2001 - 08/2001	1
89545 - SENSOR, SPEED, REAR RH
89545-30010	JZS177,UZS173,175	09/1999 - 08/2001	1
89545-30060	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
89545-30060	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
89545-30010	JZS177,UZS173,175	08/2001 - 06/2004	1
89546 - SENSOR, SPEED, REAR LH
89546-30010	JZS177,UZS173,175	08/2001 - 06/2004	1
89546-30010	JZS177,UZS173,175	09/1999 - 08/2001	1
89546-30060	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
89546-30060	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
Common parts
90119-06375
90178-06001
90179-06274
91615-60825
91621-J0612
91651-B0616
94185-60600
G3416-33010

(9909- )JZS177,UZS17#

Click highlighted areas on diagram

Part #	Description	Period	Qty
86652A - BUZZER ASSY, SKID CONTROL
86652-51010	JZS171,175,177,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG	09/1999 - 08/2001	1
86652-51010	JZS177,UZS17#	08/2001 - 06/2004	1
88263A - RELAY, SKID CONTROL
88263-24020	JZS177,UZS17#	09/1999 - 08/2001	1
88263-24020	JZS177,UZS17#	08/2001 - 06/2004	1
88263-30150	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
88263E - RELAY, SKID CONTROL NO.2
88263-24030	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
88263-24030	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
89183A - SENSOR, YAWRATE
89183-30060	JZS171,175,177,UZS17#..A,ATH,ATHG,ATHV,C,ROY,ROYEX,ROYG	09/1999 - 08/2001	1
89183-30060	JZS177,UZS17#	08/2001 - 06/2004	1
89189B - BRACKET, YAWRATE SENSOR
89189-30050	JZS177,UZS17#	09/1999 - 08/2001	1
89189-30070	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
89189-30070	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
89189-30050	JZS177,UZS17#	08/2001 - 06/2004	1
89245A - SENSOR, STEERING
89245-30040	JZS175,177,UZS17#..A,C,ROYG	09/1999 - 08/2001	1
89245-30040	JZS177,UZS17#	08/2001 - 06/2004	1
89540 - COMPUTER ASSY, SKID CONTROL
89540-30500	UZS173	09/1999 - 03/2001	1
89540-30501	UZS173	03/2001 - 08/2001	1
89540-30570	UZS173	08/2001 - 06/2004	1
89542 - SENSOR, SPEED, FRONT RH
89542-30251	UZS173	03/2001 - 08/2001	1
89542-30251	UZS173	08/2001 - 06/2004	1
89542-30250	UZS173	09/1999 - 03/2001	1
89543 - SENSOR, SPEED, FRONT LH
89543-30250	UZS173	09/1999 - 03/2001	1
89543-30251	UZS173	08/2001 - 06/2004	1
89543-30251	UZS173	03/2001 - 08/2001	1
89545 - SENSOR, SPEED, REAR RH
89545-30010	JZS177,UZS173,175	09/1999 - 08/2001	1
89545-30060	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
89545-30060	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
89545-30010	JZS177,UZS173,175	08/2001 - 06/2004	1
89546 - SENSOR, SPEED, REAR LH
89546-30010	JZS177,UZS173,175	08/2001 - 06/2004	1
89546-30010	JZS177,UZS173,175	09/1999 - 08/2001	1
89546-30060	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
89546-30060	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
89549 - BRACKET, SKID CONTROL COMPUTER
89549-30070	JZS177,UZS17#	09/1999 - 03/2001	1
89549-30071	JZS177,UZS17#	08/2001 - 06/2004	1
89549-30071	JZS177,UZS17#	03/2001 - 08/2001	1
89630A - COMPUTER ASSY, 4WD
89630-30100	UZS173	09/1999 - 08/2001	1
89630-30100	UZS173	08/2001 - 06/2004	1
89633A - RELAY, TRACTION CONTROL OR VSC
89633-24010	JZS177,UZS17#	09/1999 - 08/2001	1
89633-24010	JZS177,UZS17#	08/2001 - 06/2004	1
Common parts
90119-06375
90178-06001
90179-06009
90179-06161
90179-06274
90179-08246
91615-60825
91621-J0612
91651-B0616

UZS173-CEPZK (1999)

(9909- )GS171,JKS175,JZS171,173,175,179

(9909- )JZS177,UZS17#
