Toyota Crown/crown majesta UZS173 ELECTRONIC FUEL INJECTION SYSTEM

Manufacturers Home
Toyota
JP
CROWN/CROWN MAJESTA
UZS173-CEPZK (1999)
8404 - ELECTRONIC FUEL INJECTION SYSTEM

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

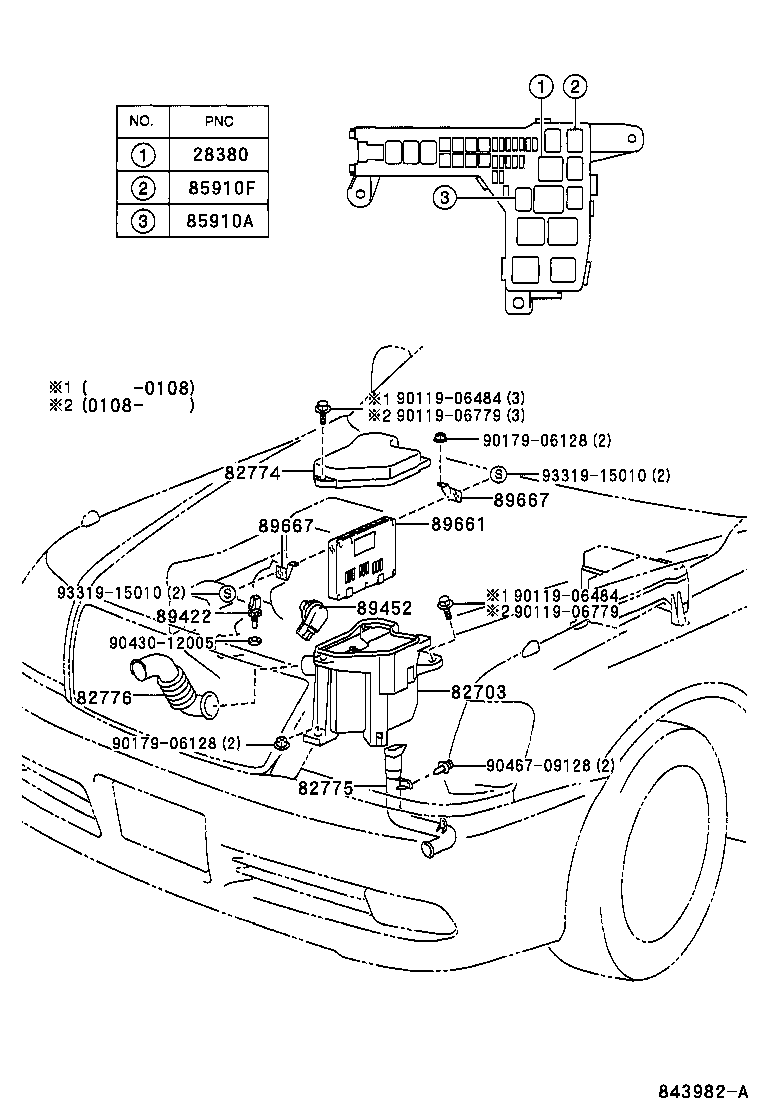

(9909- )UZS17#

Click highlighted areas on diagram

Part #	Description	Period	Qty
28380 - RELAY ASSY, FUEL PUMP
90987-03003	1JZGTE,2JZ#,1UZFE..JZS171,175,177,179,UZS17#	09/1999 - 08/2001	1
90987-03003	1JZGTE,2JZ#,1UZFE..JKS175,JZS171,175,177,179,UZS17#	08/2001 - 12/2999	1
82703 - BOX SUB-ASSY, ENGINE ROOM ECU
82703-30020	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
82703-30020	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
82703-30030	JZS177,UZS17#	09/1999 - 08/2001	1
82703-30030	JZS177,UZS17#	08/2001 - 06/2004	1
82774 - COVER, ENGINE ROOM ECU
82774-30030	JZS171,173,175,177,UZS17#..D4,HTWC,TWC	09/1999 - 08/2001	1
82774-30030	JKS175,JZS171,173,175,177,UZS17#..D4,HTWC,TWC	08/2001 - 12/2999	1
82775 - DUCT, ENGINE ROOM ECU INLET
82775-30020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
82775-30020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-30040	UZS17#	09/1999 - 08/2001	1
82776-30040	UZS17#	08/2001 - 06/2004	1
82776-30020	GS171,JZS171,173,175,179..D4,HTWC,TWC	09/1999 - 08/2001	1
82776-30020	GS171,JZS171,173,175,179..D4,HTWC,TWC	08/2001 - 12/2999	1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
90987-02012	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
90987-02012	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30030	JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
89422-30030	JZS17#,UZS17#	09/1999 - 08/2001	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-30140	JZS171,173,UZS17#	09/1999 - 08/2001	1
89661 - COMPUTER, ENGINE CONTROL
89661-3A600	UZS173 DENSO	09/1999 - 08/2001	1
89661-3F160	UZS173 DENSO	08/2001 - 06/2004	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30250	JZS179;JZS171,175,177,UZS17#..D4,HTWC,TWT	09/1999 - 08/2001	2
89667-30270	JZS171,173..TWC	09/1999 - 08/2001	2
89667-30270	JZS171,173..D4,TWC	08/2001 - 12/2999	2
89667-30250	JZS171..TWT;JKS175,JZS175,177,179,UZS17#..SED	08/2001 - 12/2999	2
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30250	JZS179;JZS171,175,177,UZS17#..D4,HTWC,TWT	09/1999 - 08/2001	2
89667-30270	JZS171,173..TWC	09/1999 - 08/2001	2
89667-30270	JZS171,173..D4,TWC	08/2001 - 12/2999	2
89667-30250	JZS171..TWT;JKS175,JZS175,177,179,UZS17#..SED	08/2001 - 12/2999	2
Common parts
90119-06484
90119-06779
90179-06128
90430-12005
90467-09128
93319-15010

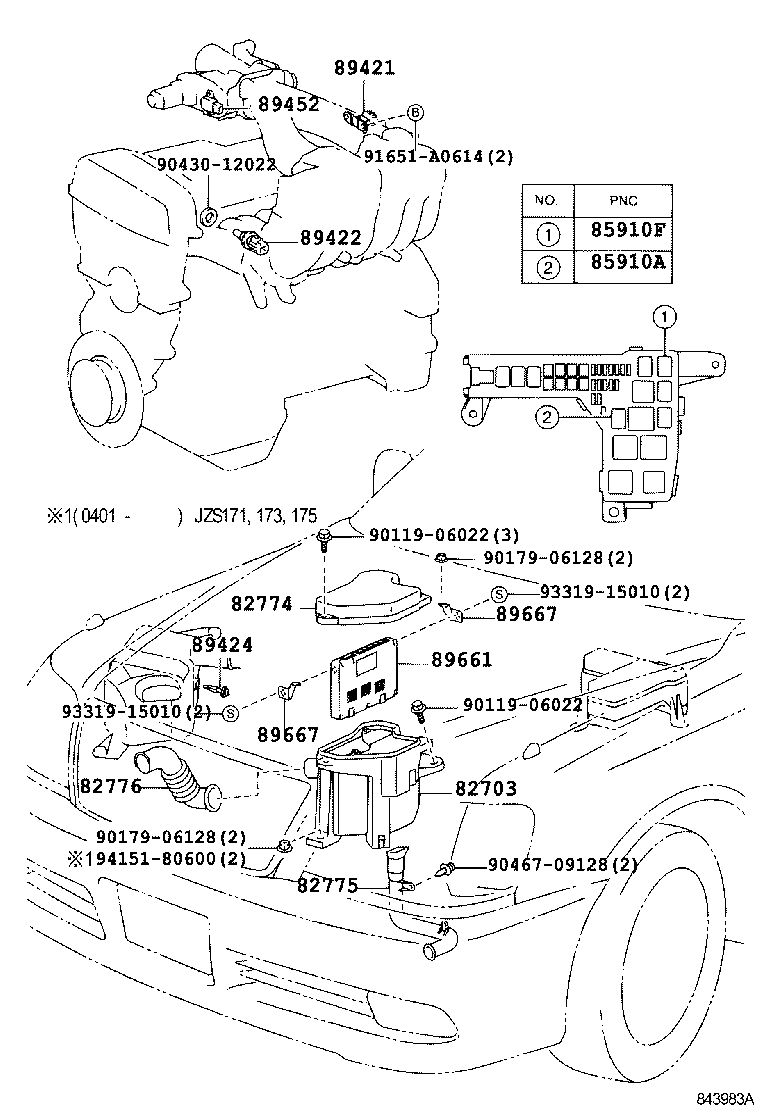

(9909- )JZS171,173..TWC

Click highlighted areas on diagram

Part #	Description	Period	Qty
82703 - BOX SUB-ASSY, ENGINE ROOM ECU
82703-30020	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
82703-30020	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
82703-30030	JZS177,UZS17#	09/1999 - 08/2001	1
82703-30030	JZS177,UZS17#	08/2001 - 06/2004	1
82774 - COVER, ENGINE ROOM ECU
82774-30030	JZS171,173,175,177,UZS17#..D4,HTWC,TWC	09/1999 - 08/2001	1
82774-30030	JKS175,JZS171,173,175,177,UZS17#..D4,HTWC,TWC	08/2001 - 12/2999	1
82775 - DUCT, ENGINE ROOM ECU INLET
82775-30020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
82775-30020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
82776 - DUCT, ENGINE ROOM ECU OUTLET
82776-30040	UZS17#	09/1999 - 08/2001	1
82776-30040	UZS17#	08/2001 - 06/2004	1
82776-30020	GS171,JZS171,173,175,179..D4,HTWC,TWC	09/1999 - 08/2001	1
82776-30020	GS171,JZS171,173,175,179..D4,HTWC,TWC	08/2001 - 12/2999	1
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90987-02012	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
90987-02012	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02012	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
90987-02012	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-20190	GS171,JKS175,JZS171,173,175,177..D4,HTWC,TWC	08/2001 - 12/2999	1
89421-20190	GS171,JZS171,173,175,177..D4,HTWC,TWC	09/1999 - 08/2001	1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-30030	JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
89422-30030	JZS17#,UZS17#	09/1999 - 08/2001	1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010	GS171,JKS175,JZS171,173,175,177..D4,HTWC,TWC	08/2001 - 12/2999	1
89424-12010	GS171,JZS171,173,175,177..D4,HTWC,TWC	09/1999 - 08/2001	1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-30140	JZS171,173,UZS17#	09/1999 - 08/2001	1
89661 - COMPUTER, ENGINE CONTROL
89661-3A600	UZS173 DENSO	09/1999 - 08/2001	1
89661-3F160	UZS173 DENSO	08/2001 - 06/2004	1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30250	JZS179;JZS171,175,177,UZS17#..D4,HTWC,TWT	09/1999 - 08/2001	2
89667-30270	JZS171,173..TWC	09/1999 - 08/2001	2
89667-30270	JZS171,173..D4,TWC	08/2001 - 12/2999	2
89667-30250	JZS171..TWT;JKS175,JZS175,177,179,UZS17#..SED	08/2001 - 12/2999	2
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-30250	JZS179;JZS171,175,177,UZS17#..D4,HTWC,TWT	09/1999 - 08/2001	2
89667-30270	JZS171,173..TWC	09/1999 - 08/2001	2
89667-30270	JZS171,173..D4,TWC	08/2001 - 12/2999	2
89667-30250	JZS171..TWT;JKS175,JZS175,177,179,UZS17#..SED	08/2001 - 12/2999	2
Common parts
90119-06022
90179-06128
90430-12022
90467-09128
91651-A0614
93319-15010
94151-80600
