Toyota Crown/crown majesta UZS173 REAR LICENSE PLATE LAMP

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

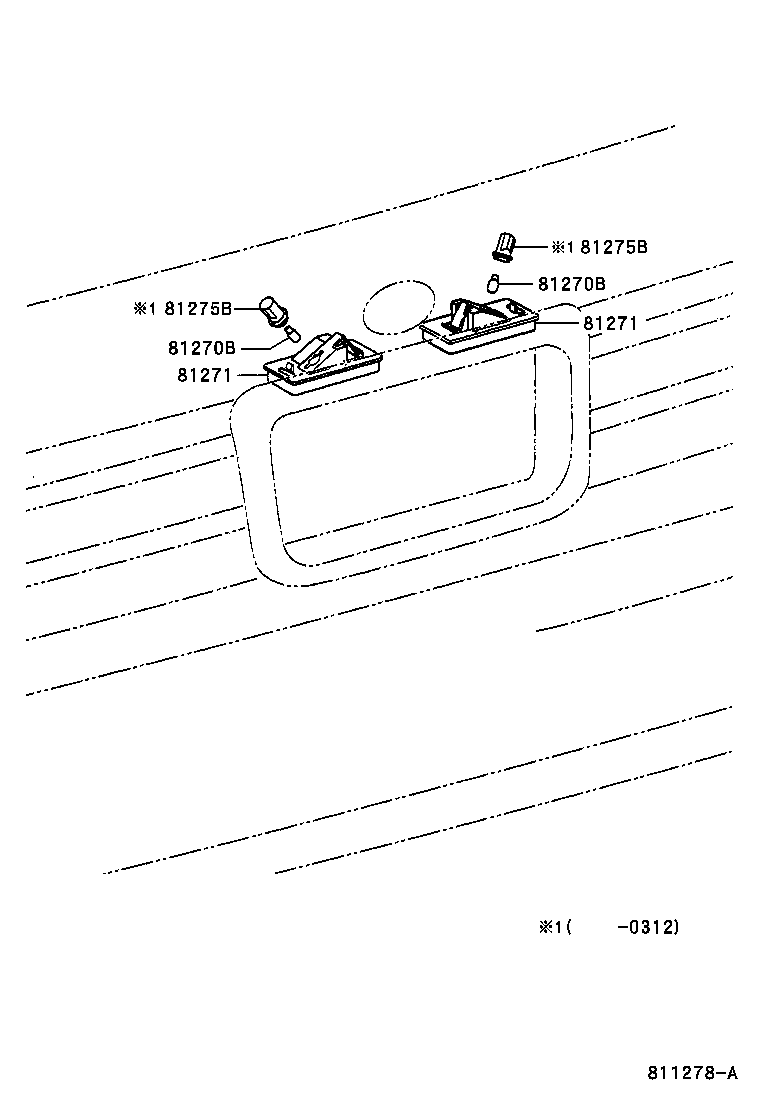

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	GS171,JZS17#,UZS17# 12V 5W	09/1999 - 08/2001	2
99132-12050	GS171,JKS175,JZS17#,UZS17# 12V 5W	08/2001 - 12/2999	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	GS171,JZS17#,UZS17# 12V 5W	09/1999 - 08/2001	2
99132-12050	GS171,JKS175,JZS17#,UZS17# 12V 5W	08/2001 - 12/2999	2
81271 - LENS, LICENSE PLATE LAMP
81271-32240	JZS177,UZS17#	09/1999 - 08/2001	1
81271-30270	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	2
81271-30270	JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179	08/2001 - 12/2003	2
81271-32240	JZS177,UZS17#	08/2001 - 06/2004	1
81271 - LENS, LICENSE PLATE LAMP
81271-32240	JZS177,UZS17#	09/1999 - 08/2001	1
81271-30270	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	2
81271-30270	JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179	08/2001 - 12/2003	2
81271-32240	JZS177,UZS17#	08/2001 - 06/2004	1
81275B - SOCKET PLUG, LICENSE PLATE LAMP
90075-99011	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	2
90075-99011	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	2
81275B - SOCKET PLUG, LICENSE PLATE LAMP
90075-99011	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	2
90075-99011	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	2

Click highlighted areas on diagram

Part #	Description	Period	Qty
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	GS171,JZS17#,UZS17# 12V 5W	09/1999 - 08/2001	2
99132-12050	GS171,JKS175,JZS17#,UZS17# 12V 5W	08/2001 - 12/2999	2
81270B - BULB (FOR LICENSE PLATE LAMP)
99132-12050	GS171,JZS17#,UZS17# 12V 5W	09/1999 - 08/2001	2
99132-12050	GS171,JKS175,JZS17#,UZS17# 12V 5W	08/2001 - 12/2999	2
81271 - LENS, LICENSE PLATE LAMP
81271-32240	JZS177,UZS17#	09/1999 - 08/2001	1
81271-30270	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	2
81271-30270	JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179	08/2001 - 12/2003	2
81271-32240	JZS177,UZS17#	08/2001 - 06/2004	1
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99005	JZS177,UZS17#	08/2001 - 06/2004	2
90075-99005	JZS177,UZS17#	09/1999 - 08/2001	2
81275 - SOCKET AND WIRE, LICENSE PLATE LAMP
90075-99005	JZS177,UZS17#	08/2001 - 06/2004	2
90075-99005	JZS177,UZS17#	09/1999 - 08/2001	2
Common parts
90075-02719
90189-05097
