UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta

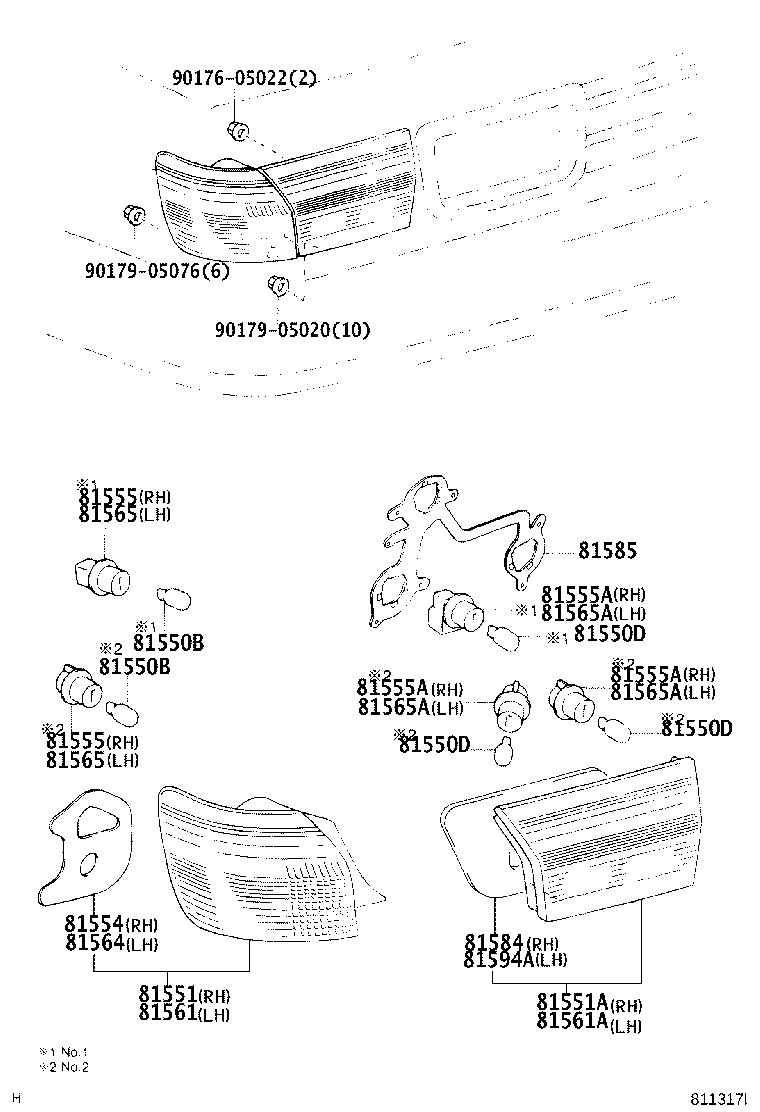

(9909-0108)GS171,JZS171,173,175,179..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11043 |
GS171,JZS171,173,175,179..SED 12V 21/5W,NO.2,TOSHIBA |
4 | ||
| 90981-11047 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.2,ﾗｲﾌ ｴﾚｯｸｽ |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,NO.1,TOSHIBA |
2 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.1,ﾗｲﾌ ｴﾚｯｸｽ |
4 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11043 |
GS171,JZS171,173,175,179..SED 12V 21/5W,NO.2,TOSHIBA |
4 | ||
| 90981-11047 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.2,ﾗｲﾌ ｴﾚｯｸｽ |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,NO.1,TOSHIBA |
2 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.1,ﾗｲﾌ ｴﾚｯｸｽ |
4 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11043 |
GS171,JZS171,173,175,179..SED 12V 21/5W,NO.2,TOSHIBA |
4 | ||
| 90981-11047 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.2,ﾗｲﾌ ｴﾚｯｸｽ |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,NO.1,TOSHIBA |
2 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.1,ﾗｲﾌ ｴﾚｯｸｽ |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-30800 |
JZS177,UZS17# |
1 | ||
| 81551-3A050 |
JZS177,UZS17# |
1 | ||
| 81551-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81551-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-3A030 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 81554-3A010 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
2 | ||
| 81585-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81586-30290 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30230 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
2 | ||
| 81585-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81586-30290 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30230 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
2 | ||
| 81585-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81586-30290 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30230 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-30890 |
JZS177,UZS17# |
1 | ||
| 81561-30810 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81561-30770 |
JZS177,UZS17# |
1 | ||
| 81561-3A010 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-3A010 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81554-3A030 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81586-30290 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
2 | ||
| 81585-30230 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81586-30290 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
2 | ||
| 81585-30230 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81586-30290 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
2 | ||
| 81585-30230 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-30290 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 81584-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81585 - SOCKET & WIRE, REAR LAMP | ||||
| 81585-30302 |
GS171,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),右側 |
1 | ||
| 81585-30292 |
GS171,JZS171,173,175,179..SED 右側 |
1 | ||
| 81595-30242 |
GS171,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),左側 |
1 | ||
| 81595-30232 |
GS171,JZS171,173,175,179..SED 左側 |
1 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-30150 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81594-30290 |
GS171,JZS171,173,175,179..SED |
1 | ||
| Common parts | ||||
| 90176-05022 | ||||
| 90179-05020 | ||||
| 90179-05076 | ||||

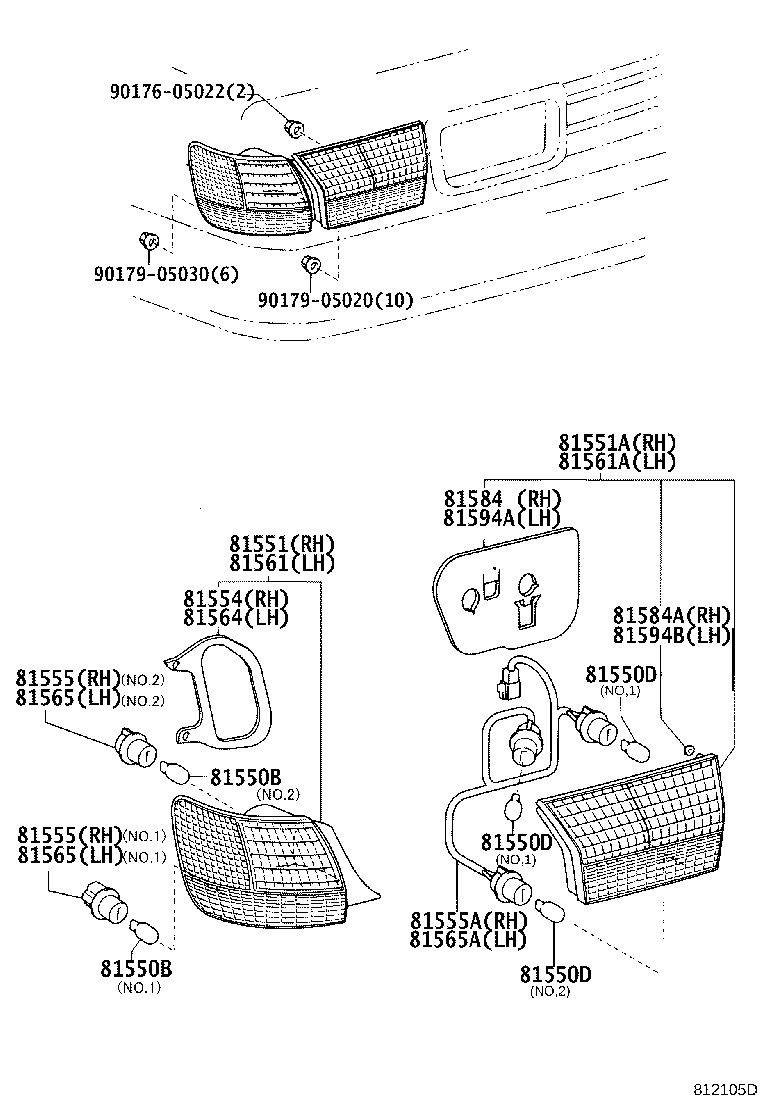

(9909-0108)JZS177,UZS17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-30800 |
JZS177,UZS17# |
1 | ||
| 81551-3A050 |
JZS177,UZS17# |
1 | ||
| 81551-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81551-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-30890 |
JZS177,UZS17# |
1 | ||
| 81561-30810 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81561-30770 |
JZS177,UZS17# |
1 | ||
| 81561-3A010 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| Common parts | ||||
| 90179-05032 | ||||
(0108- )JZS177,UZS17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-30800 |
JZS177,UZS17# |
1 | ||
| 81551-3A050 |
JZS177,UZS17# |
1 | ||
| 81551-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81551-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-30890 |
JZS177,UZS17# |
1 | ||
| 81561-30810 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81561-30770 |
JZS177,UZS17# |
1 | ||
| 81561-3A010 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| Common parts | ||||
| 90179-05032 | ||||
(0108- )GS171,JKS175,JZS171,173,175,179..SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550B - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11042 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ),NO.1 |
6 | ||
| 90981-11042 |
JZS177,UZS17# 12V 21W,NO.1 |
4 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W |
4 | ||
| 90981-11043 |
GS171,JZS17#,UZS17#..SED 12V 21/5W,ﾃ-ﾙ & ｽﾄﾂﾌﾟﾖｳ,TOSHIBA |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,ﾀ-ﾝ ｼｸﾞﾅﾙ,TOSHIBA |
2 | ||
| 90981-11047 |
JZS177,UZS17# 12V 21W,ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
6 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,NO.2 |
2 | ||
| 90981-11059 |
JZS177,UZS17# 12V 16W,ｱﾘ(ﾘﾔ ﾌｵｸﾞﾗﾝﾌﾟ),NO.2 |
4 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.2 |
2 | ||
| 90981-15011 |
JZS177,UZS17# 12V 21W,ｱﾝﾊﾞｰ,NO.3 |
2 | ||
| 90981-11048 |
JZS177,UZS17# 12V 21/5W,NO.1 |
4 | ||
| 90981-13043 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.1 |
2 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11043 |
GS171,JZS171,173,175,179..SED 12V 21/5W,NO.2,TOSHIBA |
4 | ||
| 90981-11047 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.2,ﾗｲﾌ ｴﾚｯｸｽ |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,NO.1,TOSHIBA |
2 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.1,ﾗｲﾌ ｴﾚｯｸｽ |
4 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11043 |
GS171,JZS171,173,175,179..SED 12V 21/5W,NO.2,TOSHIBA |
4 | ||
| 90981-11047 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.2,ﾗｲﾌ ｴﾚｯｸｽ |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,NO.1,TOSHIBA |
2 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.1,ﾗｲﾌ ｴﾚｯｸｽ |
4 | ||
| 81550D - BULB(FOR REAR COMBINATION LAMP) | ||||
| 90981-11043 |
GS171,JZS171,173,175,179..SED 12V 21/5W,NO.2,TOSHIBA |
4 | ||
| 90981-11047 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21W,NO.2,ﾗｲﾌ ｴﾚｯｸｽ |
2 | ||
| 90981-11042 |
GS171,JZS171,173,175,179..SED 12V 21W,NO.1,TOSHIBA |
2 | ||
| 90981-11048 |
GS171,JKS175,JZS171,173,175,179..SED 12V 21/5W,NO.1,ﾗｲﾌ ｴﾚｯｸｽ |
4 | ||
| 81551 - LENS, REAR COMBINATION LAMP, RH | ||||
| 81551-30800 |
JZS177,UZS17# |
1 | ||
| 81551-3A050 |
JZS177,UZS17# |
1 | ||
| 81551-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81551-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81554 - GASKET, REAR COMBINATION LAMP BODY, RH | ||||
| 81554-3A030 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 81554-3A010 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH | ||||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
2 | ||
| 81585-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81586-30290 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30230 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81561 - LENS, REAR COMBINATION LAMP, LH | ||||
| 81561-30890 |
JZS177,UZS17# |
1 | ||
| 81561-30810 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81561-30770 |
JZS177,UZS17# |
1 | ||
| 81561-3A010 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81564 - GASKET, REAR COMBINATION LAMP BODY, LH | ||||
| 81554-3A010 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81554-3A030 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81555-30800 |
JZS177,UZS17# |
1 | ||
| 81555-3A030 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81555-30840 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A030 |
GS171,JKS175,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JKS175,JZS171,173,175,179..SED NO.2 |
1 | ||
| 81555-3A050 |
JZS177,UZS17# |
1 | ||
| 81555-3A070 |
JZS177,UZS17# ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81565A - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH | ||||
| 81586-30290 |
GS171,JZS171,173,175,179..SED NO.1 |
1 | ||
| 81585-30290 |
GS171,JZS171,173,175,179..SED NO.2 |
2 | ||
| 81585-30230 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 81585-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81584 - PACKING, REAR LAMP RH | ||||
| 81584-30290 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 81584-30220 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81584A - GASKET, REAR LAMP RH | ||||
| 81584-22040 |
GS171,JKS175,JZS171,173,175,179..SED |
2 | ||
| 81594A - GASKET, REAR LAMP LH | ||||
| 81594-30150 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| 81594-30290 |
GS171,JZS171,173,175,179..SED |
1 | ||
| 81594B - PACKING, REAR LAMP LH | ||||
| 81584-22040 |
GS171,JKS175,JZS171,173,175,179..SED |
1 | ||
| Common parts | ||||
| 90176-05022 | ||||
| 90179-05020 | ||||
| 90179-05030 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
