UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )UZS173

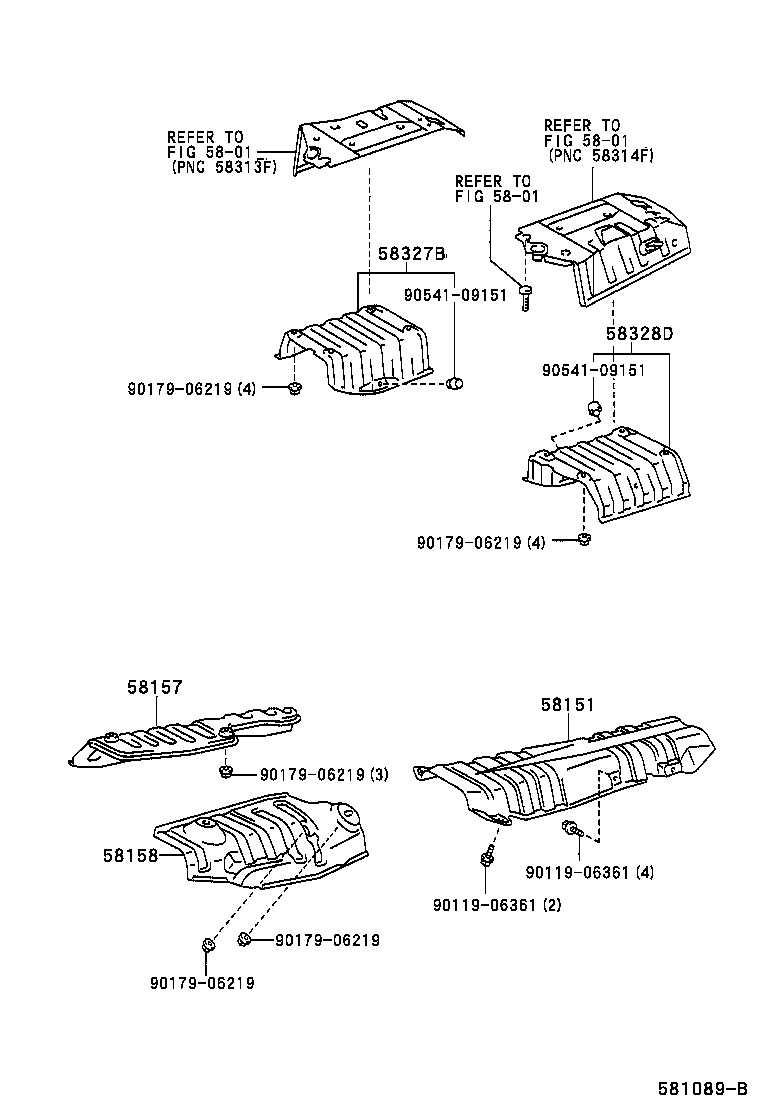

Click highlighted areas on diagram

diagram 5801 5801 5801 58151 58157 58158 58327B 58328D 9011906361 9011906361 9017906219 9017906219 9017906219 9017906219 9017906219 9054109151 9054109151
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30120

UZS173

 1
58151-30120

UZS173

 1
58157 - INSULATOR, FRONT FLOOR HEAT, NO.5
58041-30060

UZS173

 1
58041-30060

UZS173

 1
58158 - INSULATOR, FRONT FLOOR HEAT, NO.6
58158-30050

UZS173

 1
58158-30050

UZS173

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-30040

GS171,JZS171,173,175,179

 1
58327-30030

JZS177,UZS17#

 1
58327-30040

GS171,JKS175,JZS171,173,175,179

 1
58327-30030

JZS177,UZS17#

 1
58328D - INSULATOR, MAIN MUFFLER HEAT, LH
58328-30020

JZS177,UZS17#

 1
58328-30020

JZS177,UZS17#

 1
Common parts
90119-06361
90179-06219
90541-09151
Linked diagrams
5801

(9909- )GS171,JKS175,JZS171,173,175,179

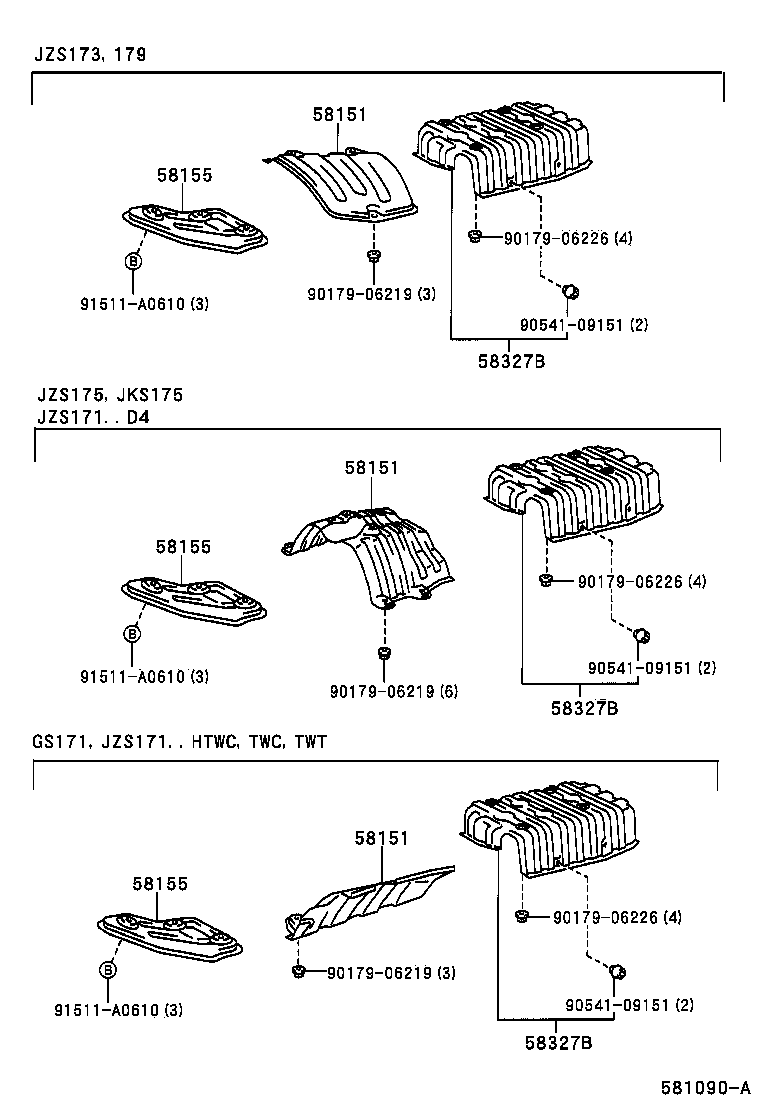

Click highlighted areas on diagram

diagram 58151 58151 58151 58155 58155 58155 58327B 58327B 58327B 9017906219 9017906219 9017906219 9017906226 9017906226 9017906226 9054109151 9054109151 9054109151 91511A0610 91511A0610 91511A0610
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30120

UZS173

 1
58151-30120

UZS173

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30120

UZS173

 1
58151-30120

UZS173

 1
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58151-30120

UZS173

 1
58151-30120

UZS173

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-51010

GS171,JZS171,173,175,179

 1
58155-51010

GS171,JKS175,JZS171,173,175,179

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-51010

GS171,JZS171,173,175,179

 1
58155-51010

GS171,JKS175,JZS171,173,175,179

 1
58155 - INSULATOR, FRONT FLOOR HEAT, NO.3
58155-51010

GS171,JZS171,173,175,179

 1
58155-51010

GS171,JKS175,JZS171,173,175,179

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-30040

GS171,JZS171,173,175,179

 1
58327-30030

JZS177,UZS17#

 1
58327-30040

GS171,JKS175,JZS171,173,175,179

 1
58327-30030

JZS177,UZS17#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-30040

GS171,JZS171,173,175,179

 1
58327-30030

JZS177,UZS17#

 1
58327-30040

GS171,JKS175,JZS171,173,175,179

 1
58327-30030

JZS177,UZS17#

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-30040

GS171,JZS171,173,175,179

 1
58327-30030

JZS177,UZS17#

 1
58327-30040

GS171,JKS175,JZS171,173,175,179

 1
58327-30030

JZS177,UZS17#

 1
Common parts
90179-06219
90179-06226
90541-09151
91511-A0610
