Toyota Crown/crown majesta UZS173 FLOOR PAN & LOWER BACK PANEL

Manufacturers Home
Toyota
JP
CROWN/CROWN MAJESTA
UZS173-CEPZK (1999)
5801 - FLOOR PAN & LOWER BACK PANEL

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

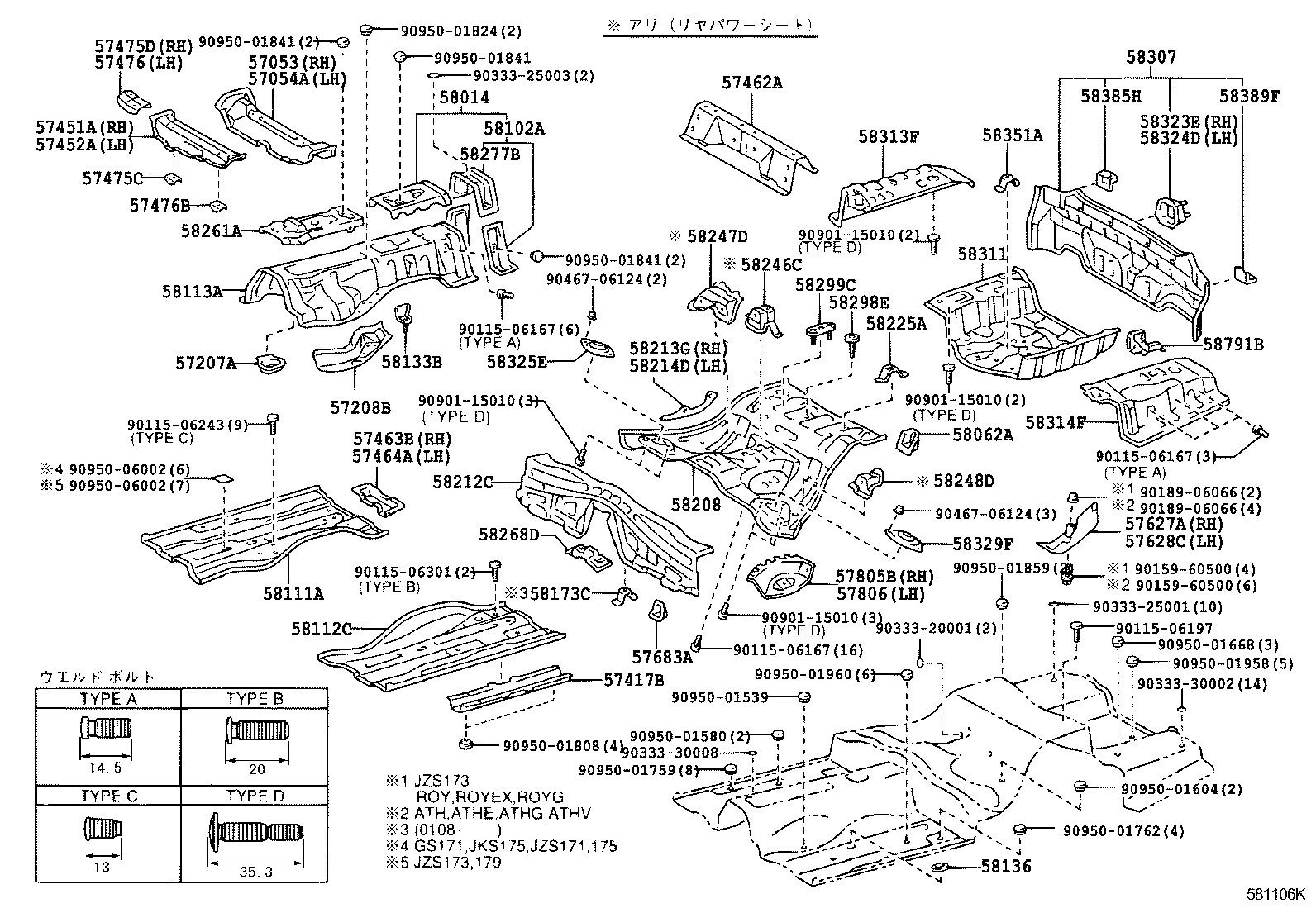

Click highlighted areas on diagram

Part #	Description	Period	Qty
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57453-30050	JZS177,UZS17#	09/1999 - 08/2001	1
57453-30050	JZS177,UZS17#	08/2001 - 06/2004	1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57454-30050	JZS177,UZS17#	08/2001 - 06/2004	1
57454-30050	JZS177,UZS17#	09/1999 - 08/2001	1
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57418-30021	JZS177,UZS17# 左側	09/1999 - 08/2001	1
57417-30051	JZS177,UZS17# 右側	09/1999 - 08/2001	1
57417-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
57417-30051	JZS177,UZS17# 右側	08/2001 - 06/2004	1
57417-51010	GS171,JZS171,173,175,179	08/2001 - 12/2999	2
57418-30021	JZS177,UZS17# 左側	08/2001 - 06/2004	1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-30061	JZS177,UZS17#	09/1999 - 08/2001	1
57451-30061	JZS177,UZS17#	08/2001 - 06/2004	1
57452A - MEMBER, FRONT FLOOR CROSS, NO.2
57452-30100	UZS173	08/2001 - 06/2004	1
57452-30100	UZS173	09/1999 - 08/2001	1
57462A - MEMBER, CENTER FLOOR CROSS, NO.2
57405-30010	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
57462-30011	JZS177,UZS17#	09/1999 - 08/2001	1
57462-30011	JZS177,UZS17#	08/2001 - 06/2004	1
57405-30010	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	1
57465A - GUSSET, CENTER FLOOR CROSSMEMBER, RH
57465-30030	JZS177,UZS17#	08/2001 - 06/2004	1
57465-30030	JZS177,UZS17#	09/1999 - 08/2001	1
57466A - GUSSET, CENTER FLOOR CROSSMEMBER, LH
57466-30030	JZS177,UZS17#	09/1999 - 08/2001	1
57466-30030	JZS177,UZS17#	08/2001 - 06/2004	1
57467B - STIFFENER, CENTER FLOOR CROSS MEMBER
57467-30070	JZS177,UZS17#	09/1999 - 08/2001	1
57467-30070	JZS177,UZS17#	08/2001 - 06/2004	1
57468A - BRACKET, FRONT SEAT, OUTSIDE, REAR RH
58105-30030	JZS177,UZS17#	08/2001 - 06/2004	1
58105-30030	JZS177,UZS17#	09/1999 - 08/2001	1
57469A - BRACKET, FRONT SEAT, OUTSIDE, REAR LH
58106-30040	JZS177,UZS17#	09/1999 - 08/2001	1
58106-30040	JZS177,UZS17#	08/2001 - 06/2004	1
57475C - PLATE, FRONT FLOOR CROSSMEMBER
57475-22020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
57475-22020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH
57475-30040	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
57475-30040	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57475-30050	JZS177,UZS17#	09/1999 - 08/2001	1
57475-30050	JZS177,UZS17#	08/2001 - 06/2004	1
57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH
57476-30030	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
57476-30040	JZS177,UZS17#	08/2001 - 06/2004	1
57476-30040	JZS177,UZS17#	09/1999 - 08/2001	1
57476-30030	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57476B - PLATE, FRONT FLOOR CROSSMEMBER
57475-22020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
57475-22020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
57605B - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57605-30904	JZS177,UZS17# ｱﾘ(ﾘﾔｸ-ﾗ)	09/1999 - 08/2001	1
57605-30904	JZS177,UZS17# ｱﾘ(ﾘﾔｸ-ﾗ)	08/2001 - 06/2004	1
57627A - COVER, REAR FLOOR SIDE MEMBER, RH
57627-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57627-30020	JZS177,UZS17#	08/2001 - 06/2004	1
57627-30020	JZS177,UZS17#	09/1999 - 08/2001	1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-30020	JZS177,UZS17#	09/1999 - 08/2001	1
57628-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57628-30020	JZS177,UZS17#	08/2001 - 06/2004	1
57686A - BRACKET, FUEL TANK MOUNTING, REAR RH
57686-30050	JZS177,UZS17#	09/1999 - 08/2001	1
57686-30050	JZS177,UZS17#	08/2001 - 06/2004	1
57687A - BRACKET, FUEL TANK MOUNTING, REAR LH
57686-30050	JZS177,UZS17#	09/1999 - 08/2001	1
57686-30050	JZS177,UZS17#	08/2001 - 06/2004	1
57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57805-30042	JZS177,UZS17#	07/2000 - 08/2001	1
57805-53012	JZS171,173,175	04/2004 - 12/2999	1
57805-30041	JZS177,UZS17#	03/2000 - 07/2000	1
57805-30040	JZS177,UZS17#	09/1999 - 03/2000	1
57805-51011	GS171,JZS171,173,175,179	12/2000 - 08/2001	1
57805-51010	GS171,JZS171,173,175,179	09/1999 - 12/2000	1
57805-30043	JZS177,UZS17#	08/2001 - 06/2004	1
57805-53011	GS171,JKS175,JZS171,173,175,179	08/2001 - 03/2004	1
57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57806-30030	JZS177,UZS17#	09/1999 - 03/2000	1
57806-51010	GS171,JZS171,173,175,179	09/1999 - 12/2000	1
57806-51011	GS171,JZS171,173,175,179	12/2000 - 08/2001	1
57806-53011	GS171,JKS175,JZS171,173,175,179	08/2001 - 03/2004	1
57806-30032	JZS177,UZS17#	07/2000 - 08/2001	1
57806-30033	JZS177,UZS17#	08/2001 - 06/2004	1
57806-30031	JZS177,UZS17#	03/2000 - 07/2000	1
57806-53012	JZS171,173,175	04/2004 - 12/2999	1
58103B - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, INNER RH
58103-30020	JZS177,UZS17#	08/2001 - 06/2004	1
58103-30020	JZS177,UZS17#	09/1999 - 08/2001	1
58104B - BRACKET SUB-ASSY, FRONT SEAT MOUNTING, INSIDE, LH
58104-30030	UZS173	09/1999 - 08/2001	1
58104-30030	UZS173	08/2001 - 06/2004	1
58111A - PAN, FRONT FLOOR, RH
58111-30910	UZS173	09/1999 - 08/2001	1
58111-30910	UZS173	08/2001 - 06/2004	1
58112C - PAN, FRONT FLOOR, LH
58112-30910	UZS173	09/1999 - 08/2001	1
58112-30910	UZS173	08/2001 - 06/2004	1
58113A - PANEL, FRONT FLOOR, CENTER
58013-30240	UZS173	09/1999 - 08/2001	1
58013-30240	UZS173	08/2001 - 06/2004	1
58136 - COVER, FRONT FLOOR HOLE
58136-51010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	2
58136-30040	JZS177,UZS17#	08/2001 - 01/2004	2
58136-30040	JZS177,UZS17#	09/1999 - 08/2001	2
58136-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
58136-51010	JZS177,UZS17#	01/2004 - 12/2999	2
58191 - FOOTREST, FRONT FLOOR
58191-30060	UZS173	09/1999 - 08/2001	1
58191-30060	UZS173	08/2001 - 06/2004	1
58198 - CLIP, FOOTREST
58198-33010	JZS177,UZS17#	08/2001 - 06/2004	2
58198-33010	JZS177,UZS17#	09/1999 - 08/2001	2
58208 - PAN, CENTER FLOOR
58211-30290	GS171,JZS171,173,175,179..SED ｱﾘ(ﾘﾔｸ-ﾗ)	09/1999 - 12/2000	1
58211-30911	JZS177,UZS171,173..C	08/2001 - 06/2004	1
58211-30907	JZS177,UZS171,173..C	09/1999 - 08/2001	1
58213G - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH
58213-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58213-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58213-30070	JZS177,UZS17#	09/1999 - 08/2001	1
58213-30070	JZS177,UZS17#	08/2001 - 06/2004	1
58214D - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58214-30040	JZS177,UZS17#	09/1999 - 08/2001	1
58214-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58214-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58214-30040	JZS177,UZS17#	08/2001 - 06/2004	1
58225A - BRACKET, CENTER MOUNTING
58225-30060	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	2
58225-30070	JZS177,UZS17#	09/1999 - 08/2001	2
58225-30060	GS171,JZS171,173,175,179..SED	08/2001 - 12/2003	2
58225-30070	JZS177,UZS17#	08/2001 - 06/2004	2
58243A - BRACKET, REAR SEAT HINGE FRONT
58243-30030	JZS177,UZS17#	08/2001 - 06/2004	1
58243-30030	JZS177,UZS17#	09/1999 - 08/2001	1
58244C - BRACKET, REAR SEAT CUSHION MOUNTING, RH
58244-30040	JZS177,UZS17#	09/1999 - 08/2001	1
58244-30040	JZS177,UZS17#	08/2001 - 06/2004	1
58245A - BRACKET, REAR SEAT HINGE, CENTER NO.1
58245-30030	JZS177,UZS17#	09/1999 - 08/2001	1
58245-30030	JZS177,UZS17#	08/2001 - 06/2004	1
58298E - BRACKET, HOT AIR INTAKE, NO.1
58298-30030	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58298-30021	JZS177,UZS17#	08/2001 - 06/2004	3
58298-30021	JZS177,UZS17#	09/1999 - 08/2001	3
58298-30030	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-30720	JZS177,UZS17#	09/1999 - 08/2001	1
58307-30710	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	1
58307-30710	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
58307-30720	JZS177,UZS17#	08/2001 - 06/2004	1
58311 - PAN, REAR FLOOR
58311-30906	UZS171,173	08/2001 - 06/2004	1
58311-30906	UZS171,173	09/1999 - 08/2001	1
58311-30905	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58311-30905	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-30160	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58313-30900	JZS177,UZS17#	09/1999 - 08/2001	1
58313-30160	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58313-30900	JZS177,UZS17#	08/2001 - 06/2004	1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-30901	JZS177,UZS17#	08/2001 - 06/2004	1
58314-30901	JZS177,UZS17#	09/1999 - 08/2001	1
58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58323-30040	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
58323-30040	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	1
58323-30050	JZS177,UZS17#	08/2001 - 06/2004	1
58323-30050	JZS177,UZS17#	09/1999 - 08/2001	1
58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58324-30020	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
58324-30030	JZS177,UZS17#	08/2001 - 06/2004	1
58324-30020	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	1
58324-30030	JZS177,UZS17#	09/1999 - 08/2001	1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-30010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
58325-30010	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-30020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
58329-30020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
58351A - BRACKET, SPARE WHEEL CARRIER
58351-53010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58351-53010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58351-33010	JZS177,UZS17#	08/2001 - 06/2004	1
58351-33010	JZS177,UZS17#	09/1999 - 08/2001	1
58389F - BRACKET, LOWER BACK COVER
58389-30020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
58389-30020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
58791B - CARRIER, JACK
58791-30030	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
58791-30030	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
77148A - BRACKET, FUEL TUBE TO TANK
77148-32010	JZS177,UZS17#	08/2001 - 06/2004	1
Common parts
61825-22050
90115-06167
90115-06242
90115-06243
90115-06273
90119-06361
90159-60507
90189-06027
90333-30002
90467-06124
90901-15013
90950-01345
90950-01604
90950-01759
90950-01808
90950-01841
90950-01859
90950-01955
90950-01956
90950-01959
90950-01960

(9909- )GS171,JKS175,JZS171,173,175,179..SED

Click highlighted areas on diagram

Part #	Description	Period	Qty
57053 - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, RH
57453-30050	JZS177,UZS17#	09/1999 - 08/2001	1
57453-30050	JZS177,UZS17#	08/2001 - 06/2004	1
57054A - REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSS MEMBER, LH
57454-30050	JZS177,UZS17#	08/2001 - 06/2004	1
57454-30050	JZS177,UZS17#	09/1999 - 08/2001	1
57417B - REINFORCEMENT, FRONT FLOOR UNDER
57418-30021	JZS177,UZS17# 左側	09/1999 - 08/2001	1
57417-30051	JZS177,UZS17# 右側	09/1999 - 08/2001	1
57417-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
57417-30051	JZS177,UZS17# 右側	08/2001 - 06/2004	1
57417-51010	GS171,JZS171,173,175,179	08/2001 - 12/2999	2
57418-30021	JZS177,UZS17# 左側	08/2001 - 06/2004	1
57451A - MEMBER, FRONT FLOOR CROSS, RH
57451-30061	JZS177,UZS17#	09/1999 - 08/2001	1
57451-30061	JZS177,UZS17#	08/2001 - 06/2004	1
57452A - MEMBER, FRONT FLOOR CROSS, NO.2
57452-30100	UZS173	08/2001 - 06/2004	1
57452-30100	UZS173	09/1999 - 08/2001	1
57462A - MEMBER, CENTER FLOOR CROSS, NO.2
57405-30010	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
57462-30011	JZS177,UZS17#	09/1999 - 08/2001	1
57462-30011	JZS177,UZS17#	08/2001 - 06/2004	1
57405-30010	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	1
57463B - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57463-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57464A - REINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57464-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57475C - PLATE, FRONT FLOOR CROSSMEMBER
57475-22020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
57475-22020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
57475D - PLATE, FRONT FLOOR CROSSMEMBER, RH
57475-30040	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
57475-30040	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57475-30050	JZS177,UZS17#	09/1999 - 08/2001	1
57475-30050	JZS177,UZS17#	08/2001 - 06/2004	1
57476 - PLATE, FRONT FLOOR CROSSMEMBER, LH
57476-30030	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
57476-30040	JZS177,UZS17#	08/2001 - 06/2004	1
57476-30040	JZS177,UZS17#	09/1999 - 08/2001	1
57476-30030	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57476B - PLATE, FRONT FLOOR CROSSMEMBER
57475-22020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
57475-22020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
57627A - COVER, REAR FLOOR SIDE MEMBER, RH
57627-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57627-30020	JZS177,UZS17#	08/2001 - 06/2004	1
57627-30020	JZS177,UZS17#	09/1999 - 08/2001	1
57628C - COVER, REAR FLOOR SIDE MEMBER, LH
57628-30020	JZS177,UZS17#	09/1999 - 08/2001	1
57628-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
57628-30020	JZS177,UZS17#	08/2001 - 06/2004	1
57683A - BRACKET, FUEL TANK MOUNTING, NO.1
57683-51010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	2
57683-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
57805B - REINFORCEMENT SUB-ASSY, BELT ANCHOR, RH
57805-30042	JZS177,UZS17#	07/2000 - 08/2001	1
57805-53012	JZS171,173,175	04/2004 - 12/2999	1
57805-30041	JZS177,UZS17#	03/2000 - 07/2000	1
57805-30040	JZS177,UZS17#	09/1999 - 03/2000	1
57805-51011	GS171,JZS171,173,175,179	12/2000 - 08/2001	1
57805-51010	GS171,JZS171,173,175,179	09/1999 - 12/2000	1
57805-30043	JZS177,UZS17#	08/2001 - 06/2004	1
57805-53011	GS171,JKS175,JZS171,173,175,179	08/2001 - 03/2004	1
57806 - REINFORCEMENT SUB-ASSY, BELT ANCHOR, LH
57806-30030	JZS177,UZS17#	09/1999 - 03/2000	1
57806-51010	GS171,JZS171,173,175,179	09/1999 - 12/2000	1
57806-51011	GS171,JZS171,173,175,179	12/2000 - 08/2001	1
57806-53011	GS171,JKS175,JZS171,173,175,179	08/2001 - 03/2004	1
57806-30032	JZS177,UZS17#	07/2000 - 08/2001	1
57806-30033	JZS177,UZS17#	08/2001 - 06/2004	1
57806-30031	JZS177,UZS17#	03/2000 - 07/2000	1
57806-53012	JZS171,173,175	04/2004 - 12/2999	1
58014 - PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58014-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58014-51010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58062A - BRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR
58062-30010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	2
58062-30010	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
58111A - PAN, FRONT FLOOR, RH
58111-30910	UZS173	09/1999 - 08/2001	1
58111-30910	UZS173	08/2001 - 06/2004	1
58112C - PAN, FRONT FLOOR, LH
58112-30910	UZS173	09/1999 - 08/2001	1
58112-30910	UZS173	08/2001 - 06/2004	1
58113A - PANEL, FRONT FLOOR, CENTER
58013-30240	UZS173	09/1999 - 08/2001	1
58013-30240	UZS173	08/2001 - 06/2004	1
58133B - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58133-51010	GS171,JZS171,173,179..HTWC,TWC,TWT	08/2001 - 12/2999	1
58133-51010	GS171,JZS171,173,179	09/1999 - 08/2001	1
58136 - COVER, FRONT FLOOR HOLE
58136-51010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	2
58136-30040	JZS177,UZS17#	08/2001 - 01/2004	2
58136-30040	JZS177,UZS17#	09/1999 - 08/2001	2
58136-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
58136-51010	JZS177,UZS17#	01/2004 - 12/2999	2
58208 - PAN, CENTER FLOOR
58211-30290	GS171,JZS171,173,175,179..SED ｱﾘ(ﾘﾔｸ-ﾗ)	09/1999 - 12/2000	1
58211-30911	JZS177,UZS171,173..C	08/2001 - 06/2004	1
58211-30907	JZS177,UZS171,173..C	09/1999 - 08/2001	1
58212C - PAN, CENTER FLOOR, FRONT
58212-51010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58212-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58213G - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 RH
58213-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58213-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58213-30070	JZS177,UZS17#	09/1999 - 08/2001	1
58213-30070	JZS177,UZS17#	08/2001 - 06/2004	1
58214D - REINFORCEMENT, CENTER FLOOR PANEL, NO.1 LH
58214-30040	JZS177,UZS17#	09/1999 - 08/2001	1
58214-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58214-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58214-30040	JZS177,UZS17#	08/2001 - 06/2004	1
58225A - BRACKET, CENTER MOUNTING
58225-30060	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	2
58225-30070	JZS177,UZS17#	09/1999 - 08/2001	2
58225-30060	GS171,JZS171,173,175,179..SED	08/2001 - 12/2003	2
58225-30070	JZS177,UZS17#	08/2001 - 06/2004	2
58268D - REINFORCEMENT, PARKING BRAKE CABLE, NO.3
58268-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58268-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58277B - REINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
58209-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58209-51010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58298E - BRACKET, HOT AIR INTAKE, NO.1
58298-30030	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58298-30021	JZS177,UZS17#	08/2001 - 06/2004	3
58298-30021	JZS177,UZS17#	09/1999 - 08/2001	3
58298-30030	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58299C - BRACKET, HOT AIR INTAKE, NO.2
58299-30010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58299-30010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58307 - PANEL SUB-ASSY, BODY LOWER BACK
58307-30720	JZS177,UZS17#	09/1999 - 08/2001	1
58307-30710	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	1
58307-30710	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
58307-30720	JZS177,UZS17#	08/2001 - 06/2004	1
58311 - PAN, REAR FLOOR
58311-30906	UZS171,173	08/2001 - 06/2004	1
58311-30906	UZS171,173	09/1999 - 08/2001	1
58311-30905	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58311-30905	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58313F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58313-30160	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58313-30900	JZS177,UZS17#	09/1999 - 08/2001	1
58313-30160	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58313-30900	JZS177,UZS17#	08/2001 - 06/2004	1
58314F - EXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58314-30901	JZS177,UZS17#	08/2001 - 06/2004	1
58314-30901	JZS177,UZS17#	09/1999 - 08/2001	1
58323E - REINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58323-30040	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
58323-30040	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	1
58323-30050	JZS177,UZS17#	08/2001 - 06/2004	1
58323-30050	JZS177,UZS17#	09/1999 - 08/2001	1
58324D - REINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58324-30020	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	1
58324-30030	JZS177,UZS17#	08/2001 - 06/2004	1
58324-30020	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	1
58324-30030	JZS177,UZS17#	09/1999 - 08/2001	1
58325E - COVER, REAR FLOOR SERVICE HOLE
58325-30010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
58325-30010	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
58329F - COVER, REAR FLOOR SERVICE HOLE, NO.2
58329-30020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
58329-30020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
58351A - BRACKET, SPARE WHEEL CARRIER
58351-53010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
58351-53010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
58351-33010	JZS177,UZS17#	08/2001 - 06/2004	1
58351-33010	JZS177,UZS17#	09/1999 - 08/2001	1
58385H - BRACKET, REAR BUMPER COVER, NO.1
58385-53010	GS171,JKS175,JZS171,173,175,179..SED	08/2001 - 12/2003	2
58385-53010	GS171,JZS171,173,175,179..SED	09/1999 - 08/2001	2
58389F - BRACKET, LOWER BACK COVER
58389-30020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
58389-30020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
58791B - CARRIER, JACK
58791-30030	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
58791-30030	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
Common parts
90115-06167
90115-06197
90115-06243
90115-06301
90159-60500
90189-06066
90333-20001
90333-25001
90333-25003
90333-30002
90333-30008
90467-06124
90901-15010
90950-01539
90950-01580
90950-01604
90950-01668
90950-01759
90950-01762
90950-01808
90950-01824
90950-01841
90950-01859
90950-01958
90950-01960
90950-06002

UZS173-CEPZK (1999)

(9909- )JZS177,UZS17#

(9909- )GS171,JKS175,JZS171,173,175,179..SED

Part Price Details
