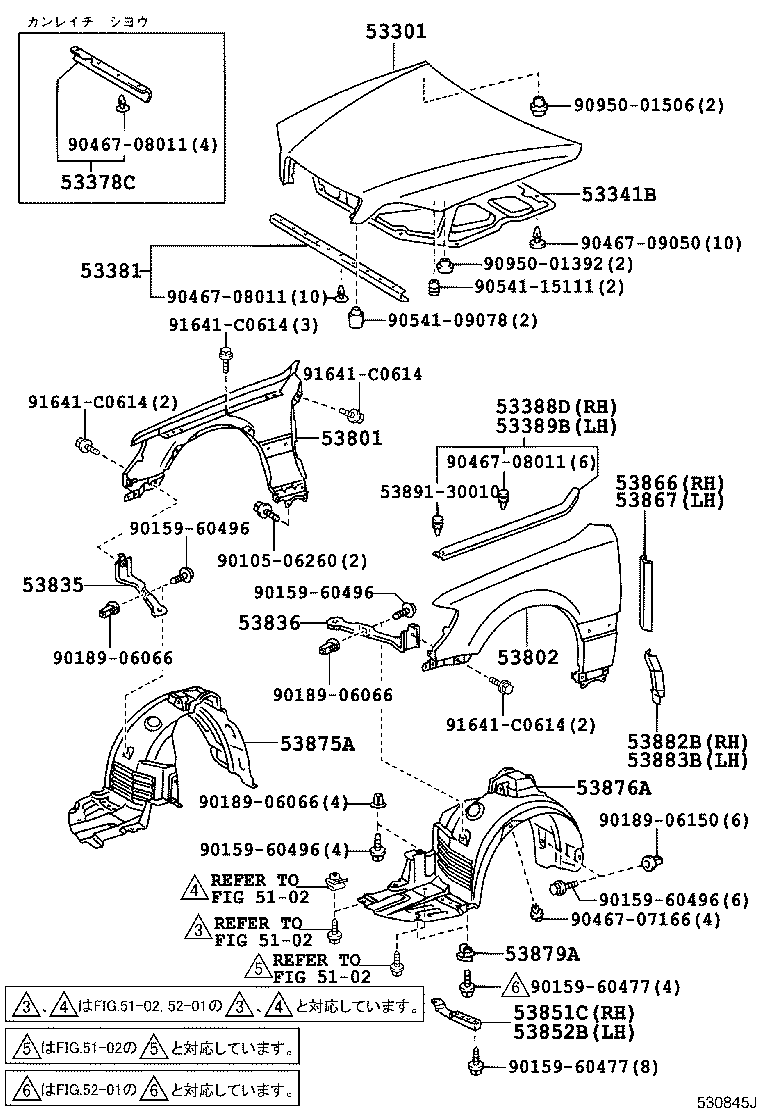

UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
(9909- )GS171,JKS175,JZS171,173,175,179
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30390 |
GS171,JZS171,173,175,179 |
1 | ||
| 53301-30400 |
JZS177,UZS17# |
1 | ||
| 53301-30400 |
JZS177,UZS17# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30230 |
JZS177,UZS17# |
1 | ||
| 53341-30230 |
JZS177,UZS17# |
1 | ||
| 53341-30200 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53341-30200 |
GS171,JZS171,173,175,179 |
1 | ||
| 53378C - SEAL, HOOD AIR INTAKE DUCT | ||||
| 53378-30070 |
JZS177,UZS17# |
1 | ||
| 53378-30060 |
GS171,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53378-30070 |
JZS177,UZS17# |
1 | ||
| 53378-30060 |
GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JZS171,173,175,179 |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-30030 |
JZS177,UZS17# |
1 | ||
| 53388-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 53388-30030 |
JZS177,UZS17# |
1 | ||
| 53388-30020 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-30030 |
JZS177,UZS17# |
1 | ||
| 53389-30020 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53389-30030 |
JZS177,UZS17# |
1 | ||
| 53389-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-3F360 |
JZS177,UZS17# |
1 | ||
| 53801-3F360 |
JZS177,UZS17# |
1 | ||
| 53811-3F190 |
GS171,JZS171,173,175,179 |
1 | ||
| 53811-3F200 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53811-3F200 |
GS171,JZS171,173,175,179 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-3F180 |
JZS177,UZS17# |
1 | ||
| 53812-3F170 |
GS171,JZS171,173,175,179 |
1 | ||
| 53812-3F180 |
GS171,JZS171,173,175,179 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53812-3F180 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53802-3F180 |
JZS177,UZS17# |
1 | ||
| 53835 - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-30080 |
GS171,JZS171,173,175,179 |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53836 - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53836-30040 |
GS171,JZS171,173,175,179 |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-30030 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53851-30040 |
JZS177,UZS17# |
1 | ||
| 53851-30040 |
JZS177,UZS17# |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-30040 |
JZS177,UZS17# |
1 | ||
| 53852-30040 |
JZS177,UZS17# |
1 | ||
| 53852-30030 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-30100 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 53866-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 53867-30100 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-30040 |
UZS173 |
1 | ||
| 53805-30040 |
UZS173 |
1 | ||
| 53875-30160 |
GS171,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53875-30160 |
GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-30050 |
UZS173 |
1 | ||
| 53806-30050 |
UZS173 |
1 | ||
| 53876-30120 |
GS171,JZS171,173,175,179 |
1 | ||
| 53876-30120 |
GS171,JZS171,173,175,179 |
1 | ||
| 53879A - RETAINER, FRONT FENDER LINER | ||||
| 53879-17020 |
GS171,JZS171,173,175,179 |
4 | ||
| 53879-17020 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 53882B - SEAL, FRONT FENDER, RH | ||||
| 53882-30050 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53882-30050 |
GS171,JZS171,173,175,179 |
1 | ||
| 53883B - SEAL, FRONT FENDER, LH | ||||
| 53883-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 53883-30020 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 53891-30010 | ||||
| 90105-06260 | ||||
| 90159-60477 | ||||
| 90159-60496 | ||||
| 90189-06066 | ||||
| 90189-06150 | ||||
| 90467-07166 | ||||
| 90467-08011 | ||||
| 90467-09050 | ||||
| 90541-09078 | ||||
| 90541-15111 | ||||
| 90950-01392 | ||||
| 90950-01506 | ||||
| 91641-C0614 | ||||
| Linked diagrams | ||||
| 5102 | ||||
(9909-0104)JZS177,UZS17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30390 |
GS171,JZS171,173,175,179 |
1 | ||
| 53301-30400 |
JZS177,UZS17# |
1 | ||
| 53301-30400 |
JZS177,UZS17# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30230 |
JZS177,UZS17# |
1 | ||
| 53341-30230 |
JZS177,UZS17# |
1 | ||
| 53341-30200 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53341-30200 |
GS171,JZS171,173,175,179 |
1 | ||
| 53378C - SEAL, HOOD AIR INTAKE DUCT | ||||
| 53378-30070 |
JZS177,UZS17# |
1 | ||
| 53378-30060 |
GS171,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53378-30070 |
JZS177,UZS17# |
1 | ||
| 53378-30060 |
GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JZS171,173,175,179 |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JZS171,173,175,179 |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-30030 |
JZS177,UZS17# |
1 | ||
| 53388-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 53388-30030 |
JZS177,UZS17# |
1 | ||
| 53388-30020 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-30030 |
JZS177,UZS17# |
1 | ||
| 53389-30020 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53389-30030 |
JZS177,UZS17# |
1 | ||
| 53389-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-3F360 |
JZS177,UZS17# |
1 | ||
| 53801-3F360 |
JZS177,UZS17# |
1 | ||
| 53811-3F190 |
GS171,JZS171,173,175,179 |
1 | ||
| 53811-3F200 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53811-3F200 |
GS171,JZS171,173,175,179 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-3F180 |
JZS177,UZS17# |
1 | ||
| 53812-3F170 |
GS171,JZS171,173,175,179 |
1 | ||
| 53812-3F180 |
GS171,JZS171,173,175,179 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53812-3F180 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53802-3F180 |
JZS177,UZS17# |
1 | ||
| 53834C - PLATE, FRONT FENDER SUPPORT, RH | ||||
| 53834-30110 |
JZS177,UZS17# |
1 | ||
| 53834D - PLATE, FRONT FENDER SUPPORT, LH | ||||
| 53834-30110 |
JZS177,UZS17# |
1 | ||
| 53835 - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-30080 |
GS171,JZS171,173,175,179 |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53836 - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53836-30040 |
GS171,JZS171,173,175,179 |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-30030 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53851-30040 |
JZS177,UZS17# |
1 | ||
| 53851-30040 |
JZS177,UZS17# |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-30040 |
JZS177,UZS17# |
1 | ||
| 53852-30040 |
JZS177,UZS17# |
1 | ||
| 53852-30030 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-30100 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 53866-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 53867-30100 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-30040 |
UZS173 |
1 | ||
| 53805-30040 |
UZS173 |
1 | ||
| 53875-30160 |
GS171,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53875-30160 |
GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-30050 |
UZS173 |
1 | ||
| 53806-30050 |
UZS173 |
1 | ||
| 53876-30120 |
GS171,JZS171,173,175,179 |
1 | ||
| 53876-30120 |
GS171,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 90119-06514 | ||||
| 90159-60507 | ||||
| 90179-06273 | ||||
| 90189-06027 | ||||
| 90189-06087 | ||||
| 90467-07166 | ||||
| 90467-08011 | ||||
| 90467-08146 | ||||
| 90467-09050 | ||||
| 90541-09096 | ||||
| 90541-15014 | ||||
| 90950-01392 | ||||
| 90950-01506 | ||||
| 90950-01527 | ||||
| Linked diagrams | ||||
| 5102 | ||||
(0104- )JZS177,UZS17#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53301 - HOOD SUB-ASSY | ||||
| 53301-30390 |
GS171,JZS171,173,175,179 |
1 | ||
| 53301-30400 |
JZS177,UZS17# |
1 | ||
| 53301-30400 |
JZS177,UZS17# |
1 | ||
| 53341B - INSULATOR, HOOD | ||||
| 53341-30230 |
JZS177,UZS17# |
1 | ||
| 53341-30230 |
JZS177,UZS17# |
1 | ||
| 53341-30200 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53341-30200 |
GS171,JZS171,173,175,179 |
1 | ||
| 53378C - SEAL, HOOD AIR INTAKE DUCT | ||||
| 53378-30070 |
JZS177,UZS17# |
1 | ||
| 53378-30060 |
GS171,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53378-30070 |
JZS177,UZS17# |
1 | ||
| 53378-30060 |
GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JZS171,173,175,179 |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53381 - SEAL, HOOD TO RADIATOR SUPPORT | ||||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30210 |
JZS177,UZS17# ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JZS171,173,175,179 |
1 | ||
| 53381-30200 |
JZS177,UZS17# |
1 | ||
| 53381-30190 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53388D - SEAL, HOOD TO FRONT FENDER, RH | ||||
| 53388-30030 |
JZS177,UZS17# |
1 | ||
| 53388-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 53388-30030 |
JZS177,UZS17# |
1 | ||
| 53388-30020 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53389B - SEAL, HOOD TO FRONT FENDER, LH | ||||
| 53389-30030 |
JZS177,UZS17# |
1 | ||
| 53389-30020 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 53389-30030 |
JZS177,UZS17# |
1 | ||
| 53389-30020 |
GS171,JZS171,173,175,179 |
1 | ||
| 53801 - FENDER SUB-ASSY, FRONT RH | ||||
| 53801-3F360 |
JZS177,UZS17# |
1 | ||
| 53801-3F360 |
JZS177,UZS17# |
1 | ||
| 53811-3F190 |
GS171,JZS171,173,175,179 |
1 | ||
| 53811-3F200 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53811-3F200 |
GS171,JZS171,173,175,179 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53802 - FENDER SUB-ASSY, FRONT LH | ||||
| 53802-3F180 |
JZS177,UZS17# |
1 | ||
| 53812-3F170 |
GS171,JZS171,173,175,179 |
1 | ||
| 53812-3F180 |
GS171,JZS171,173,175,179 ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53812-3F180 |
GS171,JKS175,JZS171,173,175,179..SED ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 53802-3F180 |
JZS177,UZS17# |
1 | ||
| 53835 - BRACE, FRONT FENDER TO EXTENSION, RH | ||||
| 53835-30080 |
GS171,JZS171,173,175,179 |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53836 - BRACE, FRONT FENDER TO EXTENSION, LH | ||||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53835-30090 |
JZS177,UZS17# |
1 | ||
| 53836-30040 |
GS171,JZS171,173,175,179 |
1 | ||
| 53851C - PAD, FRONT WHEEL OPENING EXTENSION, NO.1 | ||||
| 53851-30030 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53851-30040 |
JZS177,UZS17# |
1 | ||
| 53851-30040 |
JZS177,UZS17# |
1 | ||
| 53852B - PAD, FRONT WHEEL OPENING EXTENSION, LH | ||||
| 53852-30040 |
JZS177,UZS17# |
1 | ||
| 53852-30040 |
JZS177,UZS17# |
1 | ||
| 53852-30030 |
JZS171..WG..TWT;JZS171,173,175..SED;GS171,JKS175,JZS179 |
1 | ||
| 53866 - SEAL, FRONT FENDER TO COWL SIDE, RH | ||||
| 53866-30100 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 53866-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 53867 - SEAL, FRONT FENDER TO COWL SIDE, LH | ||||
| 53867-30100 |
GS171,JZS17#,UZS17# |
1 | ||
| 53867-30100 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 53875A - LINER, FRONT FENDER, RH | ||||
| 53805-30040 |
UZS173 |
1 | ||
| 53805-30040 |
UZS173 |
1 | ||
| 53875-30160 |
GS171,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53875-30160 |
GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC |
1 | ||
| 53876A - LINER, FRONT FENDER, LH | ||||
| 53806-30050 |
UZS173 |
1 | ||
| 53806-30050 |
UZS173 |
1 | ||
| 53876-30120 |
GS171,JZS171,173,175,179 |
1 | ||
| 53876-30120 |
GS171,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 90119-06514 | ||||
| 90159-60507 | ||||
| 90179-06273 | ||||
| 90189-06027 | ||||
| 90189-06087 | ||||
| 90467-07166 | ||||
| 90467-08011 | ||||
| 90467-08146 | ||||
| 90467-09050 | ||||
| 90541-09096 | ||||
| 90541-15014 | ||||
| 90950-01392 | ||||
| 90950-01506 | ||||
| 90950-01527 | ||||
| Linked diagrams | ||||
| 5102 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
