Toyota Crown/crown majesta UZS173 FRONT BUMPER & BUMPER STAY

Manufacturers Home
Toyota
JP
CROWN/CROWN MAJESTA
UZS173-CEPZK (1999)
5201 - FRONT BUMPER & BUMPER STAY

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

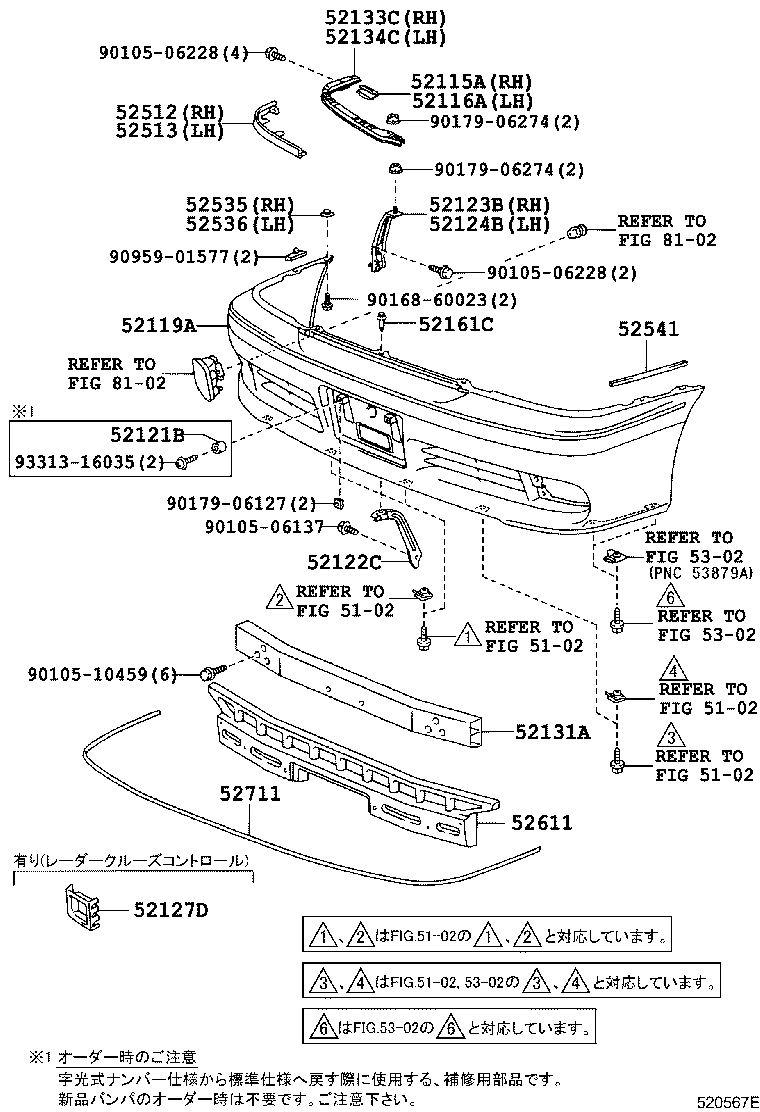

(9909- )GS171,JKS175,JZS171,173,175,179

Click highlighted areas on diagram

Part #	Description	Period	Qty
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14130	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52115-14130	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-14130	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
52115-14130	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52119A - COVER, FRONT BUMPER
52119-30440J0	JZS177,UZS17# DK.BLUE MC.,8L4	09/1999 - 08/2001	1
52119-30440B0	JZS177,UZS17# SILVER ME.,1C0	09/1999 - 08/2001	1
52119-30440D0	JZS177,UZS17# ROSE RED MC.,3M9	09/1999 - 08/2001	1
52119-30440C0	JZS177,UZS17# BLACK,202	09/1999 - 08/2001	1
52119-30440G1	JZS177,UZS17# BLACKISH GREEN MC.CC,6R5	09/1999 - 08/2001	1
52119-30440A0	JZS177,UZS17# WHITE PEAL CS.,062	09/1999 - 08/2001	1
52119-30440A0	JZS177,UZS17# WHITE PEAL CS.,062	08/2001 - 06/2004	1
52119-30440C0	JZS177,UZS17# BLACK,202	08/2001 - 06/2004	1
52119-30440G1	JZS177,UZS17# BLACKISH GREEN MC.CC,6R5	08/2001 - 06/2004	1
52119-30440B0	JZS177,UZS17# SILVER ME.,1C0	08/2001 - 06/2004	1
52119-30440C1	JZS177,UZS17# BLACK,KA3	08/2001 - 06/2004	1
52119-30440D1	JZS177,UZS17# BORDEAUX MC.,3P2	08/2001 - 06/2004	1
52119-30440J1	JZS177,UZS17# DARK BLUE MC.,8P8	08/2001 - 06/2004	1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
90560-11020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
90560-11020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52122C - PLATE, FRONT BUMPER REINFORCEMENT, CENTER
52122-30100	JZS177,UZS17#	09/1999 - 08/2001	1
52122-30100	JZS177,UZS17#	08/2001 - 06/2004	1
52122-30090	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52123B - PLATE, FRONT BUMPER REINFORCEMENT, RH
52123-30130	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52124B - PLATE, FRONT BUMPER REINFORCEMENT, LH
52124-30130	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-30230	JZS177,UZS17#	08/2001 - 06/2004	1
52131-30240	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
52131-30230	JZS177,UZS17#	09/1999 - 08/2001	1
52131-30240	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-30110	JZS177,UZS17#	08/2001 - 06/2004	1
52133-30120	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52133-30110	JZS177,UZS17#	09/1999 - 08/2001	1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-30100	JZS177,UZS17#	09/1999 - 08/2001	1
52134-30110	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52134-30100	JZS177,UZS17#	08/2001 - 06/2004	1
52161C - PIECE, FRONT BUMPER
52161-16010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	3
52161-16010	GS171,JZS171,173,175,179	09/1999 - 08/2001	3
52512 - FILLER, FRONT BUMPER, RH
52512-30070A1	GS171,JZS171,173,175,179 WHITE PEARL CS.,062 ,2FQ	09/1999 - 08/2001	1
52512-30070G0	GS171,JZS171,173,175,179 BLACKISH GREEN MC.CC,6R5	09/1999 - 08/2001	1
52512-30070B0	GS171,JZS171,173,175,179 SILVER ME.,1C0	09/1999 - 08/2001	1
52512-30070J0	GS171,JZS171,173,175,179..SED DK.BLUE MC.,2FR ,8L4	09/1999 - 08/2001	1
52512-30070J1	GS171,JZS171,173,175,179 GRAYISH BLUE ME.,8N6	09/1999 - 08/2001	1
52512-30070D0	GS171,JZS171,173,175,179..SED ROSE RED MC.,3M9	09/1999 - 08/2001	1
52513 - FILLER, FRONT BUMPER, LH
52513-30070D0	GS171,JZS171,173,175,179..SED ROSE RED MC.,3M9	09/1999 - 08/2001	1
52513-30070J0	GS171,JZS171,173,175,179..SED DK.BLUE MC.,2FR ,8L4	09/1999 - 08/2001	1
52513-30070A1	GS171,JZS171,173,175,179 WHITE PEARL CS.,062 ,2FQ	09/1999 - 08/2001	1
52513-30070B0	GS171,JZS171,173,175,179 SILVER ME.,1C0	09/1999 - 08/2001	1
52513-30070J1	GS171,JZS171,173,175,179 GRAYISH BLUE ME.,8N6	09/1999 - 08/2001	1
52513-30070G0	GS171,JZS171,173,175,179 BLACKISH GREEN MC.CC,6R5	09/1999 - 08/2001	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30150	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
52535-30150	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-30150	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
52535-30150	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
52541 - PROTECTOR, FRONT BUMPER
52541-30080	GS171,JKS175,JZS171,173,175,179	10/2001 - 12/2999	2
52541-30050	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
52541-30050	GS171,JKS175,JZS171,173,175,179	08/2001 - 10/2001	2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-30250	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
52611-30250	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52611-30240	JZS177,UZS17#	08/2001 - 06/2004	1
52611-30240	JZS177,UZS17#	09/1999 - 08/2001	1
52711 - MOULDING, FRONT BUMPER
52711-30220	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52711-30210	JZS177,UZS17#	09/1999 - 08/2001	1
52711-30220	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
52711-30210	JZS177,UZS17#	08/2001 - 06/2004	1
Common parts
90105-06137
90105-06228
90105-10459
90168-60023
90179-06127
90179-06274
90959-01577
93313-16035
Linked diagrams
5102
5302
8102

(9909- )JZS177,UZS17#

Click highlighted areas on diagram

Part #	Description	Period	Qty
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-14130	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52115-14130	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
52115D - SUPPORT, FRONT BUMPER SIDE, NO.2 RH
52115-30100	JZS177,UZS17#	08/2001 - 06/2004	1
52115-30100	JZS177,UZS17#	09/1999 - 08/2001	1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52115-14130	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
52115-14130	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52116D - SUPPORT, FRONT BUMPER SIDE, NO.2 LH
52116-30060	JZS177,UZS17#	09/1999 - 08/2001	1
52116-30060	JZS177,UZS17#	08/2001 - 06/2004	1
52119A - COVER, FRONT BUMPER
52119-30440J0	JZS177,UZS17# DK.BLUE MC.,8L4	09/1999 - 08/2001	1
52119-30440B0	JZS177,UZS17# SILVER ME.,1C0	09/1999 - 08/2001	1
52119-30440D0	JZS177,UZS17# ROSE RED MC.,3M9	09/1999 - 08/2001	1
52119-30440C0	JZS177,UZS17# BLACK,202	09/1999 - 08/2001	1
52119-30440G1	JZS177,UZS17# BLACKISH GREEN MC.CC,6R5	09/1999 - 08/2001	1
52119-30440A0	JZS177,UZS17# WHITE PEAL CS.,062	09/1999 - 08/2001	1
52119-30440A0	JZS177,UZS17# WHITE PEAL CS.,062	08/2001 - 06/2004	1
52119-30440C0	JZS177,UZS17# BLACK,202	08/2001 - 06/2004	1
52119-30440G1	JZS177,UZS17# BLACKISH GREEN MC.CC,6R5	08/2001 - 06/2004	1
52119-30440B0	JZS177,UZS17# SILVER ME.,1C0	08/2001 - 06/2004	1
52119-30440C1	JZS177,UZS17# BLACK,KA3	08/2001 - 06/2004	1
52119-30440D1	JZS177,UZS17# BORDEAUX MC.,3P2	08/2001 - 06/2004	1
52119-30440J1	JZS177,UZS17# DARK BLUE MC.,8P8	08/2001 - 06/2004	1
52121B - BRACKET, FRONT LICENCE PLATE MOUNTING
90560-11020	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
90560-11020	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
52122C - PLATE, FRONT BUMPER REINFORCEMENT, CENTER
52122-30100	JZS177,UZS17#	09/1999 - 08/2001	1
52122-30100	JZS177,UZS17#	08/2001 - 06/2004	1
52122-30090	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-30230	JZS177,UZS17#	08/2001 - 06/2004	1
52131-30240	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
52131-30230	JZS177,UZS17#	09/1999 - 08/2001	1
52131-30240	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-30110	JZS177,UZS17#	08/2001 - 06/2004	1
52133-30120	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52133-30110	JZS177,UZS17#	09/1999 - 08/2001	1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-30100	JZS177,UZS17#	09/1999 - 08/2001	1
52134-30110	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52134-30100	JZS177,UZS17#	08/2001 - 06/2004	1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-30150	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
52535-30150	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52535-30150	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
52535-30150	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH
52539-30050	JZS177,UZS17#	09/1999 - 08/2001	1
52539-30050	JZS177,UZS17#	08/2001 - 06/2004	1
52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH
52539-30050	JZS177,UZS17#	09/1999 - 08/2001	1
52539-30050	JZS177,UZS17#	08/2001 - 06/2004	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-30250	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
52611-30250	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52611-30240	JZS177,UZS17#	08/2001 - 06/2004	1
52611-30240	JZS177,UZS17#	09/1999 - 08/2001	1
52711 - MOULDING, FRONT BUMPER
52711-30220	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
52711-30210	JZS177,UZS17#	09/1999 - 08/2001	1
52711-30220	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
52711-30210	JZS177,UZS17#	08/2001 - 06/2004	1
53879H - RETAINER, FRONT FENDER LINER
53879-17020	JZS177,UZS17#	08/2001 - 06/2004	4
53879-17020	JZS177,UZS17#	09/1999 - 08/2001	4
Common parts
90105-06137
90105-06228
90119-10928
90159-60215
90179-06127
90179-06273
90179-06274
90467-05116
90467-09093
93313-16035
Linked diagrams
5102
5302
8102

UZS173-CEPZK (1999)

(9909- )GS171,JKS175,JZS171,173,175,179

(9909- )JZS177,UZS17#
