Toyota Crown/crown majesta UZS173 SPARE WHEEL CARRIER

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9909- )JZS177,UZS17#

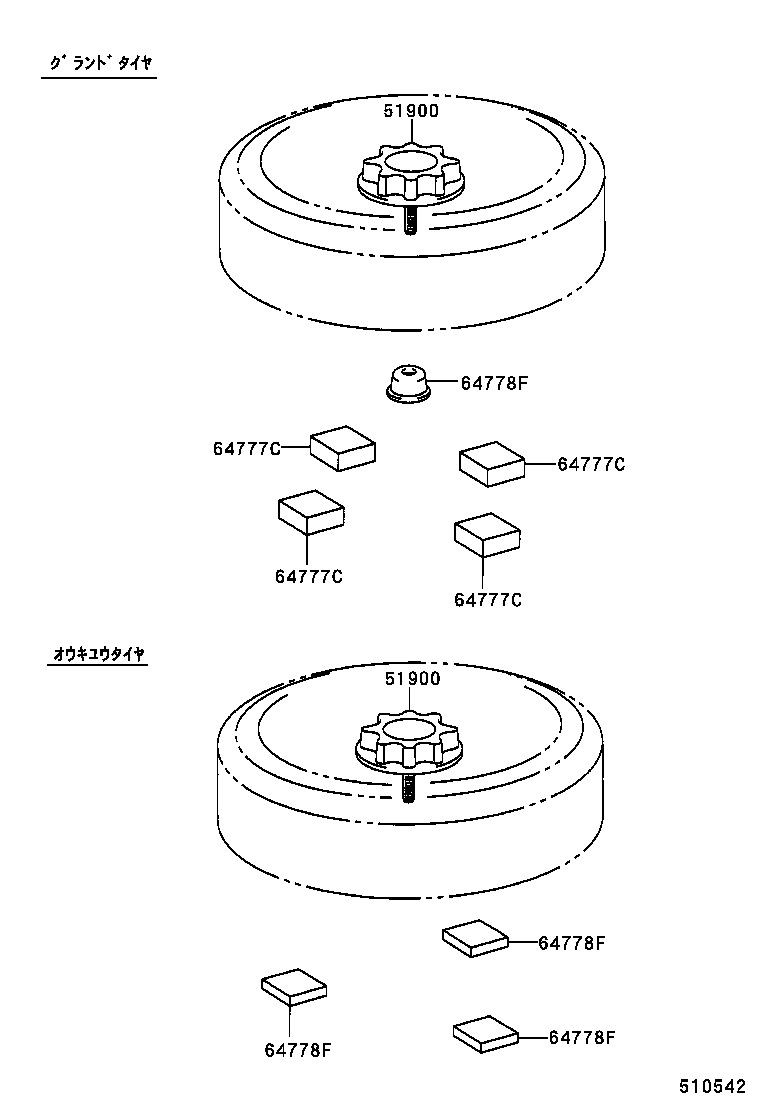

Click highlighted areas on diagram

Part #	Description	Period	Qty
51900 - CARRIER ASSY, SPARE WHEEL
51931-32020	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
51931-30050	GS171,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	09/1999 - 08/2001	1
51931-50010	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
51931-32020	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 06/2004	1
51931-50010	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	1
51931-30050	GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	08/2001 - 12/2999	1
51900 - CARRIER ASSY, SPARE WHEEL
51931-32020	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
51931-30050	GS171,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	09/1999 - 08/2001	1
51931-50010	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
51931-32020	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 06/2004	1
51931-50010	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	1
51931-30050	GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	08/2001 - 12/2999	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1

(9909- )GS171,JKS175,JZS171,173,175,179

Click highlighted areas on diagram

Part #	Description	Period	Qty
51900 - CARRIER ASSY, SPARE WHEEL
51931-32020	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
51931-30050	GS171,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	09/1999 - 08/2001	1
51931-50010	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
51931-32020	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 06/2004	1
51931-50010	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	1
51931-30050	GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	08/2001 - 12/2999	1
51900 - CARRIER ASSY, SPARE WHEEL
51931-32020	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
51931-30050	GS171,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	09/1999 - 08/2001	1
51931-50010	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
51931-32020	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 06/2004	1
51931-50010	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	1
51931-30050	GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	08/2001 - 12/2999	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64777C - CUSHION, SPARE WHEEL
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	08/2001 - 06/2004	1
64777-30050	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	08/2001 - 06/2004	1
64777-30070	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.2	09/1999 - 08/2001	1
64777-30050	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	4
64777-30030	JZS177,UZS17# ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ,NO.1	09/1999 - 08/2001	1
64778F - PROTECTOR, SPARE WHEEL
64778-22030	GS171,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	09/1999 - 08/2001	3
64778-30020	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
64778-22030	GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	08/2001 - 12/2999	3
64778-30020	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	1
64778F - PROTECTOR, SPARE WHEEL
64778-22030	GS171,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	09/1999 - 08/2001	3
64778-30020	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
64778-22030	GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	08/2001 - 12/2999	3
64778-30020	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	1
64778F - PROTECTOR, SPARE WHEEL
64778-22030	GS171,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	09/1999 - 08/2001	3
64778-30020	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
64778-22030	GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	08/2001 - 12/2999	3
64778-30020	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	1
64778F - PROTECTOR, SPARE WHEEL
64778-22030	GS171,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	09/1999 - 08/2001	3
64778-30020	GS171,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	09/1999 - 08/2001	1
64778-22030	GS171,JKS175,JZS171,173,175,179..D4,HTWC,TWC ｽﾍﾟｱﾀｲﾔ = ｵｳｷﾕｳﾀｲﾔ	08/2001 - 12/2999	3
64778-30020	GS171,JKS175,JZS171,173,175,179 ｽﾍﾟｱﾀｲﾔ = ｸﾞﾗﾝﾄﾞﾀｲﾔ	08/2001 - 12/2999	1

UZS173-CEPZK (1999)

(9909- )JZS177,UZS17#

(9909- )GS171,JKS175,JZS171,173,175,179
