Toyota Crown/crown majesta UZS173 HEIGHT CONTROL (AUTO-LEVELER)

Manufacturers Home
Toyota
JP
CROWN/CROWN MAJESTA
UZS173-CEPZK (1999)
4805 - HEIGHT CONTROL (AUTO-LEVELER)

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9909-0406)JZS177,UZS17#

Click highlighted areas on diagram

Part #	Description	Period	Qty
44753C - CLAMP, HEIGHT CONTROL TUBE, NO.2
44753-30170	UZS171,173	09/1999 - 08/2001	1
44753-30170	UZS171,173	08/2001 - 06/2004	1
44753E - CLAMP, HEIGHT CONTROL TUBE, NO.3
44753-30180	UZS171,173	09/1999 - 08/2001	1
44753-30180	UZS171,173	08/2001 - 06/2004	1
44753F - CLAMP, HEIGHT CONTROL TUBE, NO.4
44753-30190	UZS173	08/2001 - 06/2004	3
44753-30190	UZS173	09/1999 - 08/2001	3
44753G - CLAMP, HEIGHT CONTROL TUBE NO.5
44753-30200	UZS171,173	09/1999 - 08/2001	1
44753-30200	UZS171,173	08/2001 - 06/2004	1
44753H - CLAMP, HEIGHT CONTROL TUBE NO.6
44753-30210	UZS171,173	08/2001 - 06/2004	1
44753-30210	UZS171,173	09/1999 - 08/2001	1
44753J - CLAMP, HEIGHT CONTROL TUBE NO.7
44753-30220	UZS171,173	09/1999 - 08/2001	2
44753-30220	UZS171,173	08/2001 - 06/2004	2
44753K - CLAMP, HEIGHT CONTROL TUBE NO.8
90949-01C22	UZS171,173	09/1999 - 08/2001	1
90949-01C22	UZS171,173	08/2001 - 06/2004	1
44753L - CLAMP, HEIGHT CONTROL TUBE NO.9
44753-30160	UZS171,173	09/1999 - 08/2001	1
44753-30160	UZS171,173	08/2001 - 06/2004	1
48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1
48095-30050	UZS171,173	09/1999 - 08/2001	1
48095-30050	UZS171,173	08/2001 - 06/2004	1
48095C - BUSH(FOR HEIGHT CONTROL VALVE NO.1)
90385-09010	UZS171,173	08/2001 - 06/2004	2
90385-09010	UZS171,173	09/1999 - 08/2001	2
48095C - BUSH(FOR HEIGHT CONTROL VALVE NO.1)
90385-09010	UZS171,173	08/2001 - 06/2004	2
90385-09010	UZS171,173	09/1999 - 08/2001	2
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48095D - RING, O(FOR HEIGHT CONTROL VALVE)
90301-04011	UZS171,173	08/2001 - 06/2004	10
90301-04011	UZS171,173	09/1999 - 08/2001	10
48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2
48096-30070	UZS171,173	09/1999 - 08/2001	1
48096-30070	UZS171,173	08/2001 - 06/2004	1
48096A - BUSH, NO.2(FOR HEIGHT CONTROL VALVE)
90389-06054	UZS171,173	08/2001 - 06/2004	2
90389-06054	UZS171,173	09/1999 - 08/2001	2
48096A - BUSH, NO.2(FOR HEIGHT CONTROL VALVE)
90389-06054	UZS171,173	08/2001 - 06/2004	2
90389-06054	UZS171,173	09/1999 - 08/2001	2
48096B - CUSHION, NO.2(FOR HEIGHT CONTROL VALVE)
90541-05023	UZS171,173	08/2001 - 06/2004	2
90541-05023	UZS171,173	09/1999 - 08/2001	2
48096B - CUSHION, NO.2(FOR HEIGHT CONTROL VALVE)
90541-05023	UZS171,173	08/2001 - 06/2004	2
90541-05023	UZS171,173	09/1999 - 08/2001	2
48932A - PLATE, HEIGHT CONTROL TUBE
48932-30010	UZS171,173	09/1999 - 08/2001	4
48932-30010	UZS171,173	08/2001 - 06/2004	4
48932A - PLATE, HEIGHT CONTROL TUBE
48932-30010	UZS171,173	09/1999 - 08/2001	4
48932-30010	UZS171,173	08/2001 - 06/2004	4
48932A - PLATE, HEIGHT CONTROL TUBE
48932-30010	UZS171,173	09/1999 - 08/2001	4
48932-30010	UZS171,173	08/2001 - 06/2004	4
48932A - PLATE, HEIGHT CONTROL TUBE
48932-30010	UZS171,173	09/1999 - 08/2001	4
48932-30010	UZS171,173	08/2001 - 06/2004	4
48934B - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010	UZS171,173	08/2001 - 06/2004	6
48934-30010	UZS171,173	09/1999 - 08/2001	6
48934B - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010	UZS171,173	08/2001 - 06/2004	6
48934-30010	UZS171,173	09/1999 - 08/2001	6
48934B - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010	UZS171,173	08/2001 - 06/2004	6
48934-30010	UZS171,173	09/1999 - 08/2001	6
48934B - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010	UZS171,173	08/2001 - 06/2004	6
48934-30010	UZS171,173	09/1999 - 08/2001	6
48934B - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010	UZS171,173	08/2001 - 06/2004	6
48934-30010	UZS171,173	09/1999 - 08/2001	6
48934B - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010	UZS171,173	08/2001 - 06/2004	6
48934-30010	UZS171,173	09/1999 - 08/2001	6
48980C - HARNESS ASSY, HEIGHT CONTROL VALVE
48980-30050	UZS171,173	08/2001 - 06/2004	1
48980-30050	UZS171,173	09/1999 - 08/2001	1
48983 - TUBE, HEIGHT CONTROL, NO.3
48983-30130	UZS171,173	09/1999 - 08/2001	1
48983-30130	UZS171,173	08/2001 - 06/2004	1
48984 - TUBE, HEIGHT CONTROL, NO.4
48984-30090	UZS171,173	09/1999 - 08/2001	1
48984-30090	UZS171,173	08/2001 - 06/2004	1
48986 - TUBE, HEIGHT CONTROL, NO.6
48986-30030	UZS171,173	08/2001 - 06/2004	1
48986-30030	UZS171,173	09/1999 - 08/2001	1
48987 - TUBE, HEIGHT CONTROL, NO.7
48987-30040	UZS171,173	09/1999 - 08/2001	1
48987-30040	UZS171,173	08/2001 - 06/2004	1
48988 - TUBE, HEIGHT CONTROL, NO.8
48988-30080	UZS171,173	09/1999 - 08/2001	1
48988-30080	UZS171,173	08/2001 - 06/2004	1
Common parts
90178-06006
90179-06169
90333-30002
90949-01A84
90949-01B01
Linked diagrams
4803
4804
8419

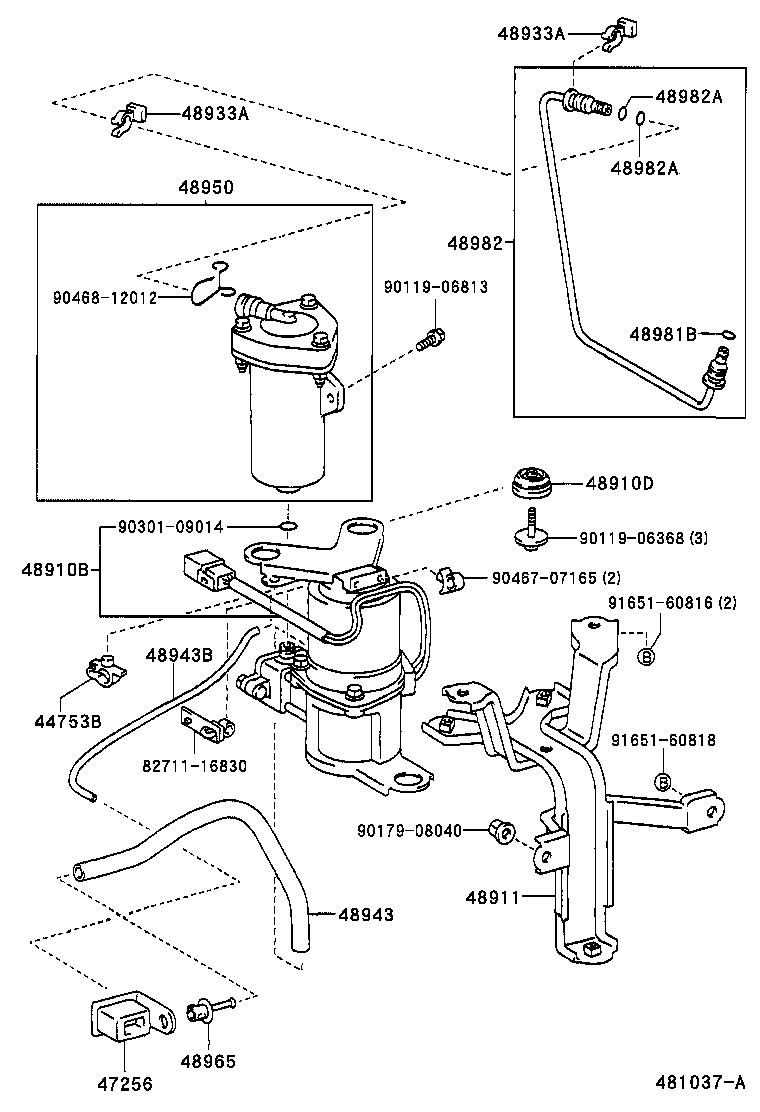

ILLUST NO. 2 OF 2(9909-0406)UZS171,173

Click highlighted areas on diagram

Part #	Description	Period	Qty
44753B - CLAMP, HEIGHT CONTROL TUBE, NO.1
44753-30140	UZS171,173	08/2001 - 06/2004	1
44753-30140	UZS171,173	09/1999 - 08/2001	1
47256 - GROMMET, CAP
47256-30050	UZS171,173	08/2001 - 06/2004	1
47256-30050	UZS171,173	09/1999 - 08/2001	1
48910B - COMPRESSOR ASSY, HEIGHT CONTROL
48910-30170	UZS171,173	09/1999 - 08/2001	1
48910-30170	UZS171,173	08/2001 - 06/2004	1
48910D - BUSH, NO.2(FOR HEIGHT CONTROL COMPRESSOR)
90389-06033	UZS171,173	08/2001 - 06/2004	3
90389-06033	UZS171,173	09/1999 - 08/2001	3
48911 - BRACKET, HEIGHT CONTROL COMPRESSOR
48911-30050	UZS171,173	08/2001 - 06/2004	1
48911-30050	UZS171,173	09/1999 - 08/2001	1
48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP
48933-30010	UZS171,173	08/2001 - 06/2004	2
48933-30010	UZS171,173	09/1999 - 08/2001	2
48933A - HOLDER, FRONT HEIGHT CONTROL AIR CONNECTOR CLIP
48933-30010	UZS171,173	08/2001 - 06/2004	2
48933-30010	UZS171,173	09/1999 - 08/2001	2
48943 - HOSE, HEIGHT CONTROL, NO.1
48943-30130	UZS171,173	09/1999 - 08/2001	1
48943-30130	UZS171,173	08/2001 - 06/2004	1
48943B - HOSE, HEIGHT CONTROL, NO.2
48943-30140	UZS171,173	08/2001 - 06/2004	1
48943-30140	UZS171,173	09/1999 - 08/2001	1
48950 - DRYER ASSY, HEIGHT CONTROL
48950-50030	UZS171,173	08/2001 - 06/2004	1
48950-50030	UZS171,173	09/1999 - 08/2001	1
48965 - CLAMP, HEIGHT CONTROL TUBE
48965-30010	UZS171,173	08/2001 - 06/2004	1
48965-30010	UZS171,173	09/1999 - 08/2001	1
48981B - RING, O(FOR HEIGHT CONTROL TUBE NO.1)
90301-04006	UZS171,173	09/1999 - 08/2001	1
90301-04006	UZS171,173	08/2001 - 06/2004	1
48982 - TUBE, HEIGHT CONTROL, NO.2
48982-30070	UZS171,173	09/1999 - 08/2001	1
48982-30070	UZS171,173	08/2001 - 06/2004	1
48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2)
90301-04004	UZS171,173	08/2001 - 06/2004	2
90301-04004	UZS171,173	09/1999 - 08/2001	2
48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2)
90301-04004	UZS171,173	08/2001 - 06/2004	2
90301-04004	UZS171,173	09/1999 - 08/2001	2
Common parts
82711-16830
90119-06368
90119-06813
90179-08040
90301-09014
90467-07165
90468-12012
91651-60816
91651-60818
