UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )UZS173

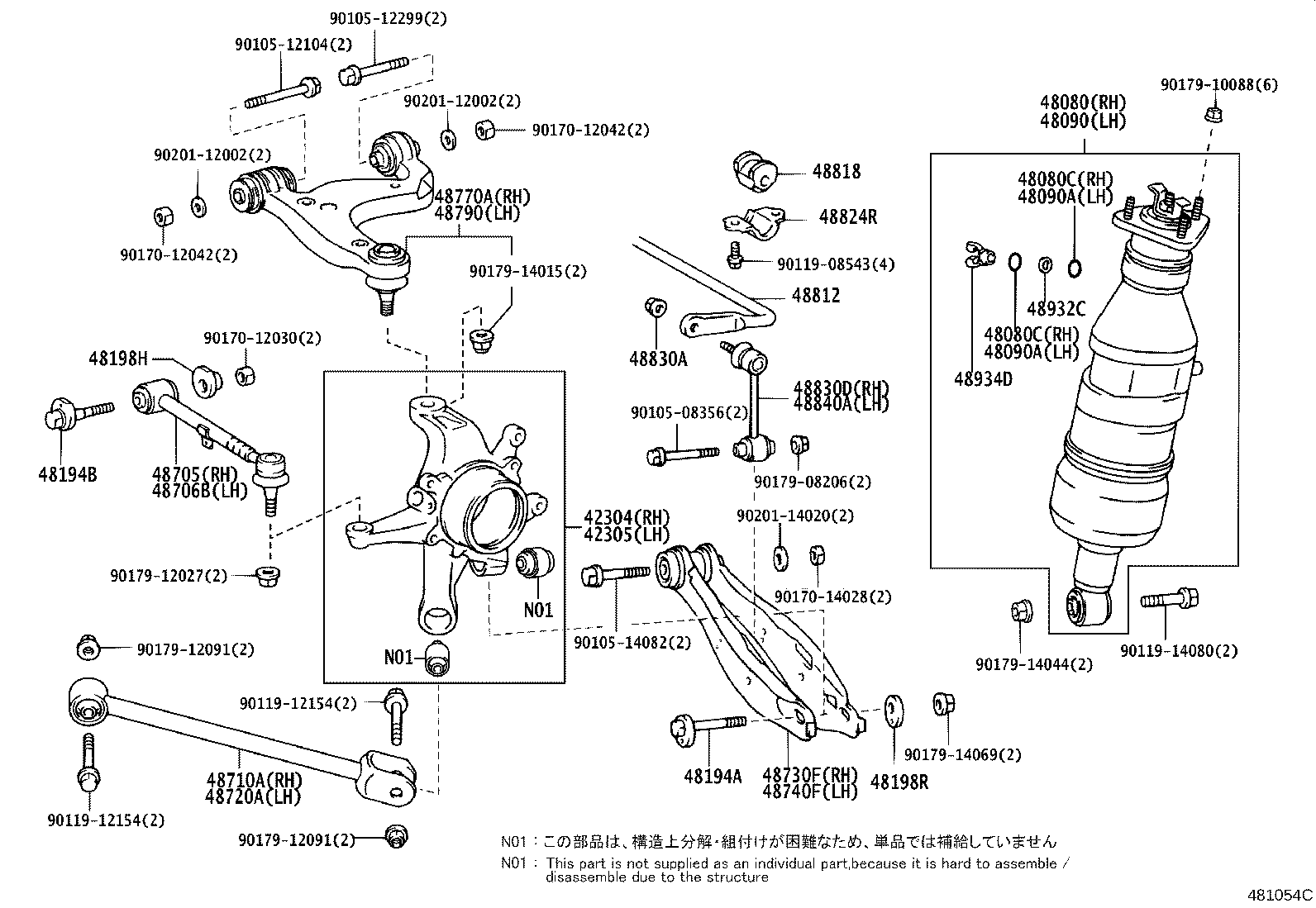

Click highlighted areas on diagram

diagram 42304 42305 48080 48080C 48080C 48090 48090A 48090A 48194A 48194B 48198H 48198R 48705 48706B 48710A 48720A 48730F 48740F 48770A 48790 48812 48818 48824R 48830A 48830D 48840A 48932C 48934D 9010508356 9010512104 9010512299 9010514082 9011908543 9011912154 9011912154 9011914080 9017012030 9017012042 9017012042 9017014028 9017908206 9017910088 9017912027 9017912091 9017912091 9017914015 9017914044 9017914069 9020112002 9020112002 9020114020
Part # Description Qty Price
42304 - CARRIER SUB-ASSY, REAR AXLE, RH
42304-30070

JZS177,UZS173,175

 1
42304-51010

GS171,JZS171,173,175,179

 1
42304-30070

JZS177,UZS173,175

 1
42304-51010

GS171,JKS175,JZS171,173,175,179

 1
42305 - CARRIER SUB-ASSY, REAR AXLE, LH
42305-30070

JZS177,UZS173,175

 1
42305-51010

GS171,JZS171,173,175,179

 1
42305-51010

GS171,JKS175,JZS171,173,175,179

 1
42305-30070

JZS177,UZS173,175

 1
48080 - CYLINDER ASSY, PNEUMATIC, REAR RH W/SHOCK ABSORBER
48080-30130

UZS173

 1
48080-30130

UZS173

 1
48080-30131

UZS173

 1
48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH)
90301-04011

UZS171,173

 2
90301-04011

UZS171,173

 2
48080C - RING, O(FOR REAR PNEUMATIC CYLINDER RH)
90301-04011

UZS171,173

 2
90301-04011

UZS171,173

 2
48090 - CYLINDER ASSY, PNEUMATIC, REAR LH W/SHOCK ABSORBER
48090-30131

UZS173

 1
48090-30130

UZS173

 1
48090-30130

UZS173

 1
48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH)
90301-04011

UZS171,173

 2
90301-04011

UZS171,173

 2
48090A - RING, O(FOR REAR PNEUMATIC CYLINDER LH)
90301-04011

UZS171,173

 2
90301-04011

UZS171,173

 2
48194A - CAM, REAR SUSPENSION CAMBER ADJUST, NO.1
48190-30040

GS171,JKS175,JZS17#,UZS17#

 2
48190-30040

GS171,JZS17#,UZS17#

 2
48194B - CAM, REAR SUSPENSION CAMBER ADJUST, NO.3
48190-30060

GS171,JZS17#,UZS173,175

 2
48190-30060

GS171,JKS175,JZS17#,UZS173,175

 2
48198H - CAM, CAMBER ADJUST, NO.2
48198-30080

GS171,JKS175,JZS17#,UZS173,175

 2
48198-30080

GS171,JZS17#,UZS173,175

 2
48198R - CAM, REAR SUSPENSION CAMBER ADJUST, NO.2
48198-30060

GS171,JKS175,JZS17#,UZS17#

 2
48198-30060

GS171,JZS17#,UZS17#

 2
48705 - LINK SUB-ASSY, TOE CONTROL, RH
48705-30080

GS171,JKS175,JZS17#,UZS173,175

 1
48705-30080

GS171,JZS17#,UZS173,175

 1
48706B - LINK SUB-ASSY, TOE CONTROL, LH
48705-30080

GS171,JZS17#,UZS173,175

 1
48705-30080

GS171,JKS175,JZS17#,UZS173,175

 1
48710A - ARM ASSY, REAR SUSPENSION, NO.1 RH
48710-30210

GS171,JZS17#,UZS17#

 1
48710-30210

GS171,JKS175,JZS17#,UZS17#

 1
48720A - ARM ASSY, REAR SUSPENSION, NO.1 LH
48710-30210

GS171,JZS17#,UZS17#

 1
48710-30210

GS171,JKS175,JZS17#,UZS17#

 1
48730F - ARM ASSY, REAR SUSPENSION, NO.2 RH
48730-30110

JZS177,UZS17#

 1
48730-30110

JZS177,UZS17#

 1
48740F - ARM ASSY, REAR SUSPENSION, NO.2 LH
48740-30100

JZS177,UZS17#

 1
48740-30100

JZS177,UZS17#

 1
48770A - ARM ASSY, UPPER CONTROL, REAR RH
48770-39035

GS171,JZS171,173,175,179

 1
48770-39026

JZS177,UZS17#

 1
48770-39035

GS171,JKS175,JZS171,173,175,179

 1
48770-39025

JZS177,UZS17#

 1
48770-39026

JZS177,UZS17#

 1
48790 - ARM ASSY, UPPER CONTROL, REAR LH
48790-39025

JZS177,UZS17#

 1
48790-39035

GS171,JZS171,173,175,179

 1
48790-39035

GS171,JKS175,JZS171,173,175,179

 1
48790-39026

JZS177,UZS17#

 1
48790-39026

JZS177,UZS17#

 1
48812 - BAR, STABILIZER, REAR
48812-30370

UZS173

 1
48812-30370

UZS173

 1
48818 - BUSH, STABILIZER, REAR
48818-30130

UZS173

 2
48818-30130

UZS173

 2
48824R - BRACKET, STABILIZER(FOR REAR)
48832-30050

GS171,JKS175,JZS17#,UZS17#

 2
48832-30050

GS171,JZS17#,UZS17#

 2
48830A - NUT(FOR REAR STABILIZER LINK)
90179-10054

GS171,JZS17#,UZS17#

 2
90179-10054

GS171,JKS175,JZS17#,UZS17#

 2
48830D - LINK ASSY, REAR STABILIZER, RH
48830-30080

JZS177,UZS17#

 1
48830-30080

JZS177,UZS17#

 1
48830-51010

GS171,JZS171,173,175,179

 1
48830-51010

GS171,JKS175,JZS171,173,175,179

 1
48840A - LINK ASSY, REAR STABILIZER, LH
48830-30080

JZS177,UZS17#

 1
48830-30080

JZS177,UZS17#

 1
48830-51010

GS171,JZS171,173,175,179

 1
48830-51010

GS171,JKS175,JZS171,173,175,179

 1
48932C - PLATE, HEIGHT CONTROL TUBE
48932-30010

UZS171,173

 2
48932-30010

UZS171,173

 2
48934D - CONNECTOR, HEIGHT CONTROL TUBE
48934-30010

UZS171,173

 2
48934-30010

UZS171,173

 2
Common parts
90105-08356
90105-12104
90105-12299
90105-14082
90119-08543
90119-12154
90119-14080
90170-12030
90170-12042
90170-14028
90179-08206
90179-10088
90179-12027
90179-12091
90179-14015
90179-14044
90179-14069
90201-12002
90201-14020
