UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta

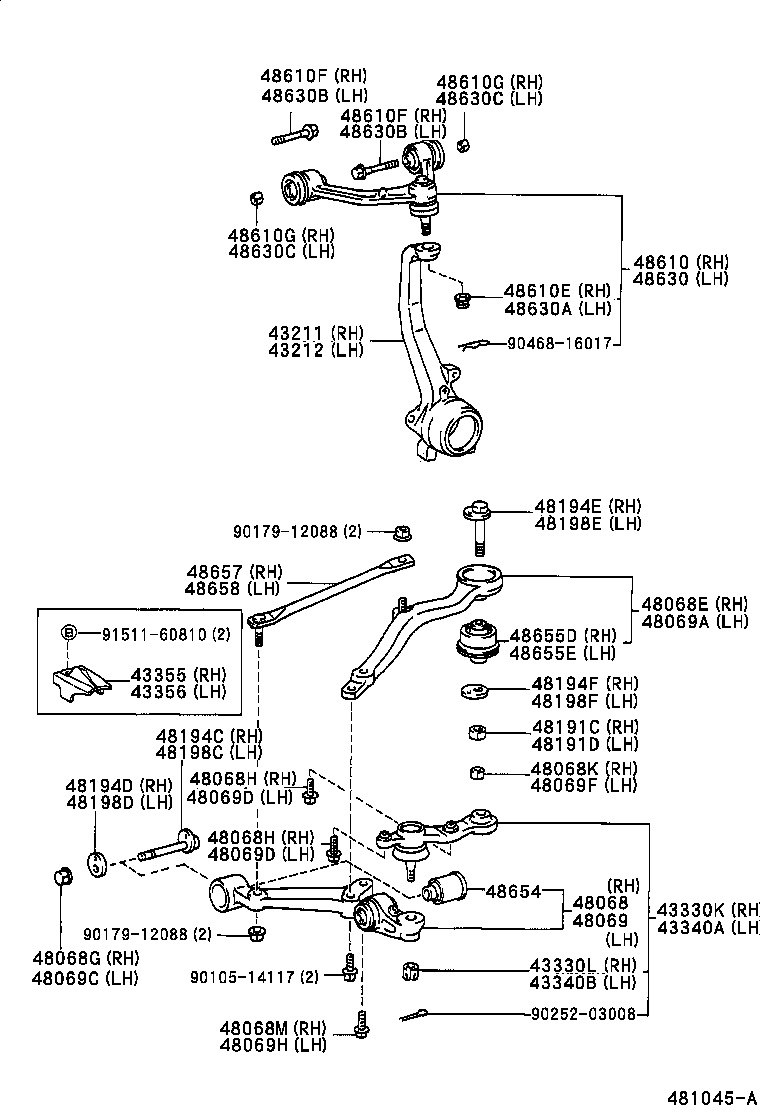

ILLUST NO. 1 OF 2(9909- )UZS173
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-30170 |
JZS173,179,UZS173 |
1 | ||
| 43211-30172 |
JZS173,179,UZS173 |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-30122 |
JZS173,179,UZS173 |
1 | ||
| 43212-30120 |
JZS173,179,UZS173 |
1 | ||
| 43330K - JOINT ASSY, LOWER BALL, FRONT RH | ||||
| 43330-39545 |
UZS173 |
1 | ||
| 43330-39475 |
UZS173 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 43330-39545 |
UZS173 |
1 | ||
| 43330L - NUT, CASTLE (FOR FRONT LOWER BALL JOINT RH) | ||||
| 90171-14002 |
JZS173,179;GS171,JZS171,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
1 | ||
| 90171-14002 |
GS171,JZS17#,UZS17# |
1 | ||
| 43340A - JOINT ASSY, LOWER BALL, FRONT LH | ||||
| 43340-39365 |
UZS173 ｶﾝﾚｲﾁ OR ﾕｷｸﾞﾆ ｼﾖｳ |
1 | ||
| 43340-39425 |
UZS173 |
1 | ||
| 43340-39425 |
UZS173 |
1 | ||
| 43340B - NUT, CASTLE (FOR FRONT LOWER BALL JOINT LH) | ||||
| 90171-14002 |
JZS173,179;GS171,JZS171,175,177,UZS17#..A,ATH,ATHE,ATHG,ATHV,C |
1 | ||
| 90171-14002 |
GS171,JZS17#,UZS17# |
1 | ||
| 43355 - DEFLECTOR, LOWER ARM ICE, RH | ||||
| 43355-30060 |
UZS173 |
1 | ||
| 43355-30060 |
UZS173 |
1 | ||
| 43356 - DEFLECTOR, LOWER ARM ICE, LH | ||||
| 43355-30060 |
UZS173 |
1 | ||
| 43355-30060 |
UZS173 |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-30281 |
UZS173 |
1 | ||
| 48068-30281 |
UZS173 |
1 | ||
| 48068E - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 RH | ||||
| 48660-30191 |
UZS173 |
1 | ||
| 48660-30191 |
UZS173 |
1 | ||
| 48068G - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90179-14019 |
GS171,JZS17#,UZS17# |
1 | ||
| 90179-14019 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 90170-14012 |
JZS171,173,175,179 |
1 | ||
| 90179-14019 |
JZS177,UZS17# |
1 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-12141 |
JZS177,UZS17# |
2 | ||
| 90105-12141 |
JZS177,UZS17# |
2 | ||
| 48068H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH) | ||||
| 90105-12141 |
JZS177,UZS17# |
2 | ||
| 90105-12141 |
JZS177,UZS17# |
2 | ||
| 48068K - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90170-16020 |
UZS173 |
1 | ||
| 90170-16020 |
UZS173 |
1 | ||
| 48068M - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 RH) | ||||
| 90105-14116 |
UZS173 |
1 | ||
| 90105-14116 |
UZS173 |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-30281 |
UZS173 |
1 | ||
| 48069-30281 |
UZS173 |
1 | ||
| 48069A - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.2 LH | ||||
| 48670-30191 |
UZS173 |
1 | ||
| 48670-30191 |
UZS173 |
1 | ||
| 48069C - NUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90170-14012 |
JZS171,173,175,179 |
1 | ||
| 90179-14019 |
JZS177,UZS17# |
1 | ||
| 90179-14019 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 90179-14019 |
GS171,JZS17#,UZS17# |
1 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-12141 |
JZS177,UZS17# |
2 | ||
| 90105-12141 |
JZS177,UZS17# |
2 | ||
| 48069D - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH) | ||||
| 90105-12141 |
JZS177,UZS17# |
2 | ||
| 90105-12141 |
JZS177,UZS17# |
2 | ||
| 48069F - NUT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90170-16020 |
UZS173 |
1 | ||
| 90170-16020 |
UZS173 |
1 | ||
| 48069H - BOLT(FOR FRONT SUSPENSION LOWER ARM NO.2 LH) | ||||
| 90105-14116 |
UZS173 |
1 | ||
| 90105-14116 |
UZS173 |
1 | ||
| 48191C - PLATE, FRONT SUPENSION CASTER ADJUST, RH | ||||
| 48191-30010 |
UZS173 |
1 | ||
| 48191-30010 |
UZS173 |
1 | ||
| 48191D - PLATE, FRONT SUPENSION CASTER ADJUST, LH | ||||
| 48191-30010 |
UZS173 |
1 | ||
| 48191-30010 |
UZS173 |
1 | ||
| 48194C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH | ||||
| 48190-30030 |
UZS173 |
1 | ||
| 48190-30070 |
GS171,JZS171,173,175,179 |
1 | ||
| 48190-30030 |
UZS173 |
1 | ||
| 48190-30070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 48194D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH | ||||
| 48198-30050 |
UZS173 |
1 | ||
| 48198-30050 |
UZS173 |
1 | ||
| 48198-30090 |
GS171,JZS171,173,175,179 |
1 | ||
| 48198-30090 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 48194E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 RH | ||||
| 48190-30020 |
UZS173 |
1 | ||
| 48190-30020 |
UZS173 |
1 | ||
| 48194F - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 RH | ||||
| 48198-30040 |
UZS173 |
1 | ||
| 48198-30040 |
UZS173 |
1 | ||
| 48198C - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH | ||||
| 48190-30030 |
UZS173 |
1 | ||
| 48190-30070 |
GS171,JZS171,173,175,179 |
1 | ||
| 48190-30030 |
UZS173 |
1 | ||
| 48190-30070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 48198D - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH | ||||
| 48198-30090 |
GS171,JZS171,173,175,179 |
1 | ||
| 48198-30050 |
UZS173 |
1 | ||
| 48198-30050 |
UZS173 |
1 | ||
| 48198-30090 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 48198E - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.3 LH | ||||
| 48190-30020 |
UZS173 |
1 | ||
| 48190-30020 |
UZS173 |
1 | ||
| 48198F - CAM, FRONT SUSPENSION CAMBER ADJUST, NO.4 LH | ||||
| 48198-30040 |
UZS173 |
1 | ||
| 48198-30040 |
UZS173 |
1 | ||
| 48610 - ARM ASSY, FRONT SUSPENSION UPPER, RH | ||||
| 48610-39025 |
UZS173 |
1 | ||
| 48610-39025 |
UZS173 |
1 | ||
| 48610E - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90171-12002 |
GS171,JZS17#,UZS17# |
1 | ||
| 90171-12002 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90119-10812 |
GS171,JZS171,173,175,179 |
2 | ||
| 90119-10812 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90119-10853 |
JZS177,UZS17# |
2 | ||
| 91672-G1070 |
JZS17#,UZS17# |
2 | ||
| 90119-10853 |
JZS177,UZS17# |
2 | ||
| 48610F - BOLT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90119-10812 |
GS171,JZS171,173,175,179 |
2 | ||
| 90119-10812 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90119-10853 |
JZS177,UZS17# |
2 | ||
| 91672-G1070 |
JZS17#,UZS17# |
2 | ||
| 90119-10853 |
JZS177,UZS17# |
2 | ||
| 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90173-10010 |
GS171,JZS17#,UZS17# |
2 | ||
| 90173-10010 |
GS171,JZS171,173,175,179 |
2 | ||
| 90173-10012 |
JZS177,UZS17# |
2 | ||
| 90173-10010 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90173-10012 |
JZS177,UZS17# |
2 | ||
| 90173-10012 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 48610G - NUT(FOR FRONT SUSPENSION UPPER ARM RH) | ||||
| 90173-10010 |
GS171,JZS17#,UZS17# |
2 | ||
| 90173-10010 |
GS171,JZS171,173,175,179 |
2 | ||
| 90173-10012 |
JZS177,UZS17# |
2 | ||
| 90173-10010 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90173-10012 |
JZS177,UZS17# |
2 | ||
| 90173-10012 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 48630 - ARM ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48610-39025 |
UZS173 |
1 | ||
| 48610-39025 |
UZS173 |
1 | ||
| 48630A - NUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90171-12002 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| 90171-12002 |
GS171,JZS17#,UZS17# |
1 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90119-10812 |
GS171,JZS171,173,175,179 |
2 | ||
| 90119-10853 |
JZS177,UZS17# |
2 | ||
| 91672-G1070 |
JZS17#,UZS17# |
2 | ||
| 90119-10812 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90119-10853 |
JZS177,UZS17# |
2 | ||
| 48630B - BOLT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90119-10812 |
GS171,JZS171,173,175,179 |
2 | ||
| 90119-10853 |
JZS177,UZS17# |
2 | ||
| 91672-G1070 |
JZS17#,UZS17# |
2 | ||
| 90119-10812 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90119-10853 |
JZS177,UZS17# |
2 | ||
| 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90173-10010 |
GS171,JZS17#,UZS17# |
2 | ||
| 90173-10012 |
JZS177,UZS17# |
2 | ||
| 90173-10010 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90173-10010 |
GS171,JZS171,173,175,179 |
2 | ||
| 90173-10012 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90173-10012 |
JZS177,UZS17# |
2 | ||
| 48630C - NUT(FOR FRONT SUSPENSION UPPER ARM LH) | ||||
| 90173-10010 |
GS171,JZS17#,UZS17# |
2 | ||
| 90173-10012 |
JZS177,UZS17# |
2 | ||
| 90173-10010 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90173-10010 |
GS171,JZS171,173,175,179 |
2 | ||
| 90173-10012 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90173-10012 |
JZS177,UZS17# |
2 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-30081 |
UZS173 |
2 | ||
| 48654-30081 |
UZS173 |
2 | ||
| 48655D - BUSH, FRONT LOWER ARM, NO.2 RH | ||||
| 48655-30090 |
UZS173 |
1 | ||
| 48655-30090 |
UZS173 |
1 | ||
| 48655E - BUSH, FRONT LOWER ARM, NO.2 LH | ||||
| 48655-30090 |
UZS173 |
1 | ||
| 48655-30090 |
UZS173 |
1 | ||
| 48657 - STAY, LOWER ARM BRACKET, RH | ||||
| 48607-30021 |
UZS173 |
1 | ||
| 48607-30021 |
UZS173 |
1 | ||
| 48658 - STAY, LOWER ARM BRACKET, LH | ||||
| 48607-30021 |
UZS173 |
1 | ||
| 48607-30021 |
UZS173 |
1 | ||
| Common parts | ||||
| 90105-14117 | ||||
| 90179-12088 | ||||
| 90252-03008 | ||||
| 90468-16017 | ||||
| 91511-60810 | ||||
ILLUST NO. 2 OF 2(9909-0706)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 04436-30030 | ||||
| 04436-30050 | ||||
| 04436-30080 | ||||
| 04436-30090 | ||||
| 41991-30030 | ||||
| 41991-30040 | ||||
