UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
(9909- )UZS171,173

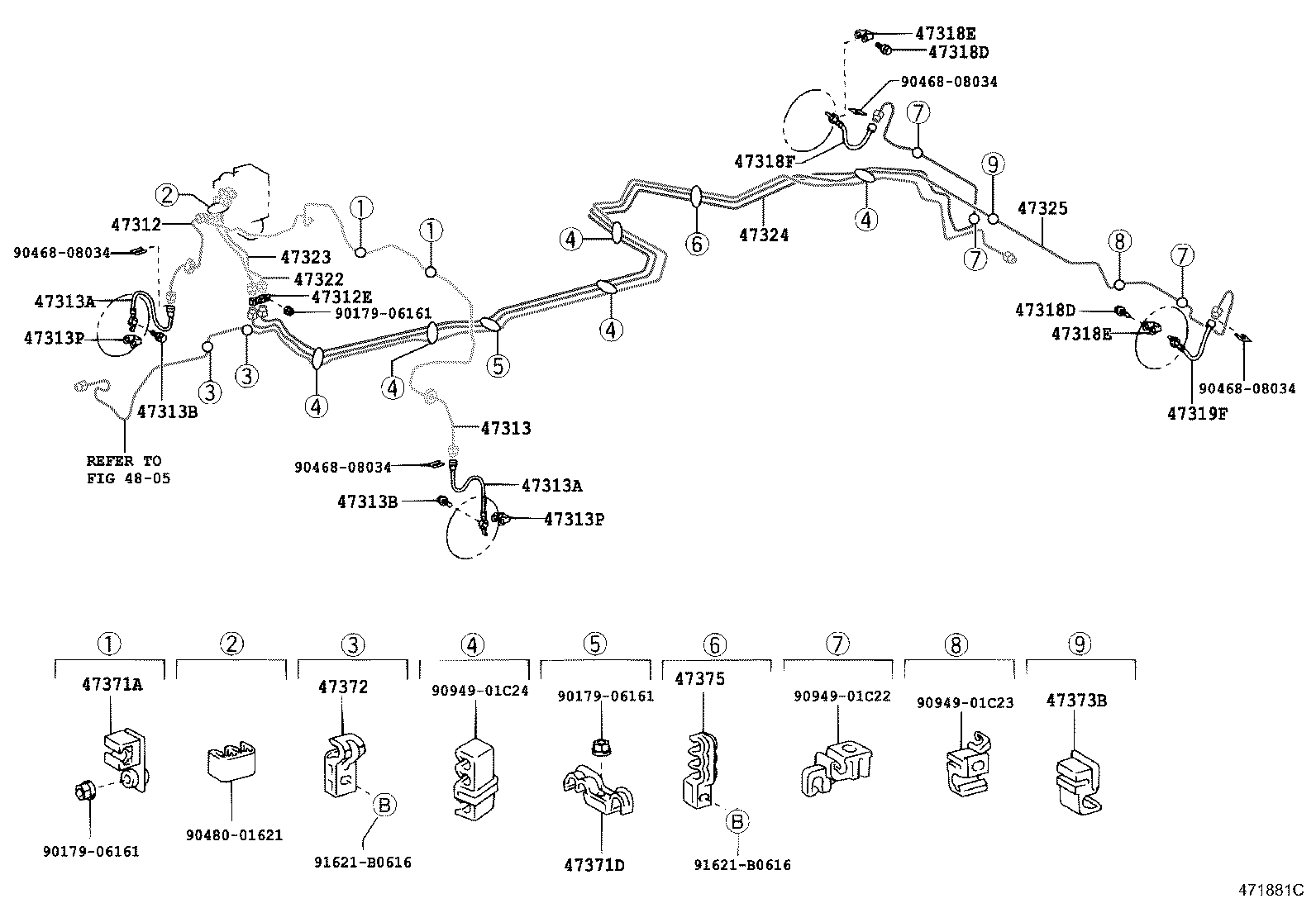

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30510 |
JZS177,UZS17# |
1 | ||
| 47312-30510 |
JZS177,UZS17# |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10144 |
GS171,JZS171,173,175,179 |
2 | ||
| 90412-10144 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90412-10158 |
JZS177,UZS17# |
1 | ||
| 90412-10158 |
JZS177,UZS17# |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30460 |
JZS177,UZS17# |
1 | ||
| 47313-30460 |
JZS177,UZS17# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02838 |
UZS173 |
2 | ||
| 90947-02838 |
UZS173 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02838 |
UZS173 |
2 | ||
| 90947-02838 |
UZS173 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 90401-10058 |
GS171,JZS17#,UZS17# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 90401-10058 |
GS171,JZS17#,UZS17# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 47389-50020 |
GS171,JZS17#,UZS17# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 47389-50020 |
GS171,JZS17#,UZS17# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 90401-10058 |
GS171,JZS17#,UZS17# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 90401-10058 |
GS171,JZS17#,UZS17# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 47389-50020 |
GS171,JZS17#,UZS17# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS171,JKS175,JZS17#,UZS17# |
2 | ||
| 47389-50020 |
GS171,JZS17#,UZS17# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02973 |
JZS177,UZS17# |
1 | ||
| 90947-02973 |
JZS177,UZS17# |
1 | ||
| 90947-02C29 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 90947-02C29 |
GS171,JZS171,173,175,179 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02C29 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 90947-02973 |
JZS177,UZS17# |
1 | ||
| 90947-02C29 |
GS171,JZS171,173,175,179 |
1 | ||
| 90947-02973 |
JZS177,UZS17# |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-30290 |
JZS177,UZS17# |
1 | ||
| 47322-30281 |
GS171,JZS171,173,175,179 |
1 | ||
| 47322-30290 |
JZS177,UZS17# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-30250 |
JZS177,UZS17# |
1 | ||
| 47323-30250 |
JZS177,UZS17# |
1 | ||
| 47323-30241 |
GS171,JZS171,173,175,179 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30271 |
GS171,JZS171,173,175,179 |
1 | ||
| 47324-30280 |
JZS177,UZS17# |
1 | ||
| 47324-30271 |
GS171,JZS171,173,175,179 |
1 | ||
| 47324-30280 |
JZS177,UZS17# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-30061 |
GS171,JZS171,173,175,179 |
1 | ||
| 47325-30061 |
GS171,JZS171,173,175,179 |
1 | ||
| 47325-30070 |
JZS177,UZS17# |
1 | ||
| 47325-30070 |
JZS177,UZS17# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30530 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 47371-30480 |
JZS177,UZS17# |
2 | ||
| 47371-30480 |
JZS177,UZS17# |
2 | ||
| 47371-30530 |
GS171,JZS171,173,175,179 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-30160 |
UZS171,173 |
1 | ||
| 47371-30160 |
UZS171,173 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30180 |
UZS171,173 |
2 | ||
| 47371-30180 |
UZS171,173 |
2 | ||
| 47371-51010 |
GS171,JZS171,173,175,179 |
2 | ||
| 47371-51030 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-30470 |
UZS171,173 |
1 | ||
| 47371-30470 |
UZS171,173 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 47371-30200 |
UZS171,173 |
1 | ||
| 47371-30200 |
UZS171,173 |
1 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90468-08034 | ||||
| 90480-01621 | ||||
| 90949-01C22 | ||||
| 90949-01C23 | ||||
| 90949-01C24 | ||||
| 91621-B0616 | ||||
| Linked diagrams | ||||
| 4805 | ||||
ILLUST NO. 2 OF 2(0108- )GS171,JZS171,173..D4,HTWC,TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-30071 |
GS171,JZS171,173,179..HTWC,TWC |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
GS171,JZS171,173,175,179 |
2 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-42020 |
GS171,JZS171,173,175,179 |
2 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GS171,JZS171,173,175,179 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GS171,JZS171,173,175,179 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-42020 |
GS171,JZS171,173,175,179 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-53020 |
GS171,JZS171,173,175,179 |
1 | ||
| Common parts | ||||
| 90099-05277 | ||||
| 90179-08249 | ||||
| 91626-60816 | ||||
| 91651-B0814 | ||||
