Toyota Crown/crown majesta UZS173 PARKING BRAKE & CABLE

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

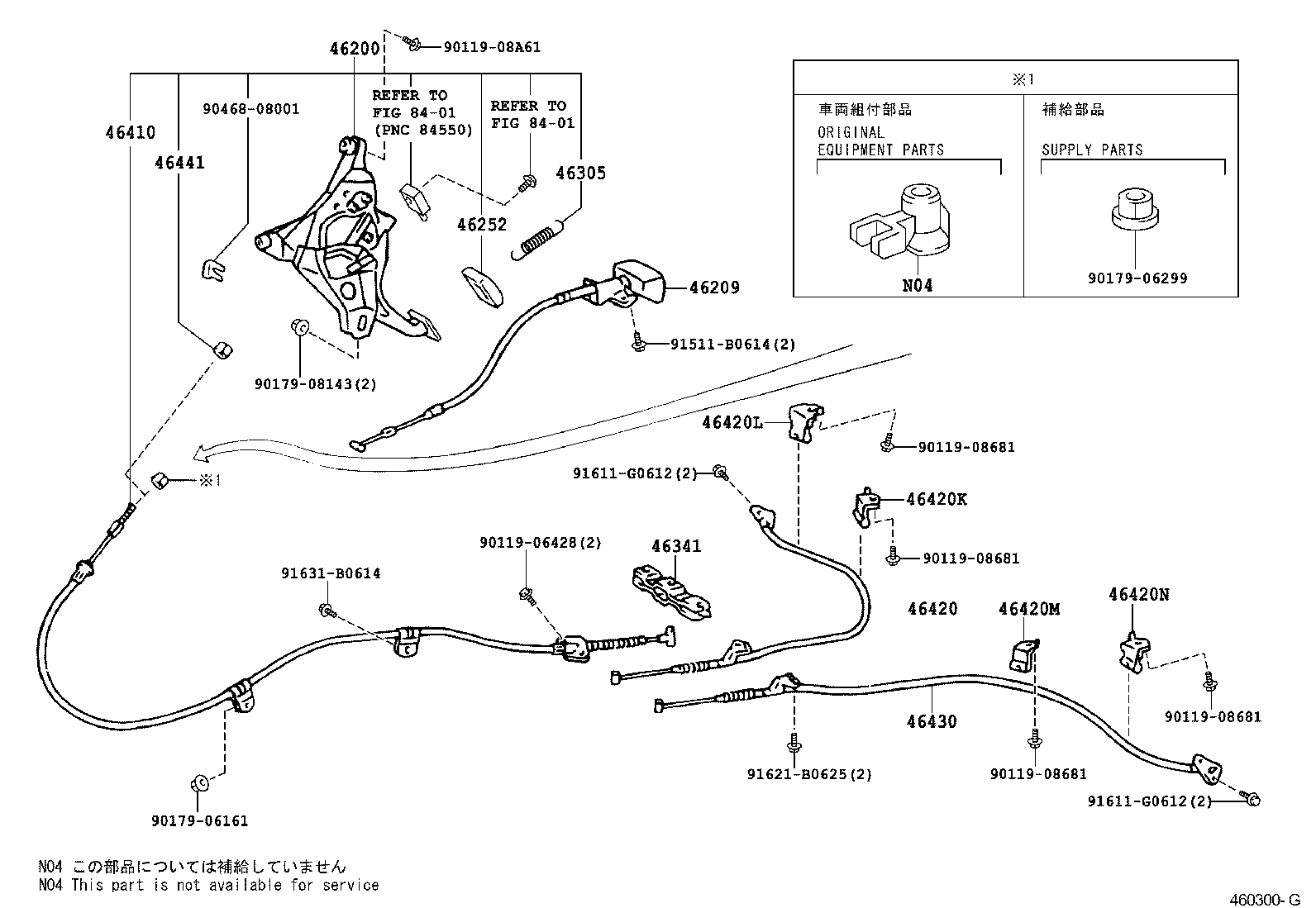

ILLUST NO. 1 OF 2(9909- )GS171,JKS175,JZS171,173,175,179

Click highlighted areas on diagram

Part #	Description	Period	Qty
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-30370	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46200-30360	JZS177,UZS17#	09/1999 - 08/2001	1
46200-30360	JZS177,UZS17#	08/2001 - 06/2004	1
46200-30370	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE
46209-30180A0	JZS177,UZS17# IVORY,TRIM0#	09/1999 - 08/2001	1
46209-30180A0	JZS177,UZS17# IVORY,TRIM0#	08/2001 - 06/2004	1
46209-30190A0	GS171,JZS171,173,175,179 IVORY,TRIM0#	09/1999 - 08/2001	1
46209-30180B0	JZS177,UZS17# MD.CHARCOAL,TRIM1#	08/2001 - 06/2004	1
46209-30180B0	JZS177,UZS17# MD.CHARCOAL,TRIM1#	09/1999 - 08/2001	1
46209-30180C0	JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23	02/2002 - 07/2002	1
46252 - PAD, PARKING PEDAL
46252-50010	JZS177,UZS17#	08/2001 - 06/2004	1
46252-50010	JZS177,UZS17#	09/1999 - 08/2001	1
46252-20010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46252-20010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46305 - SPRING, PARKING BRAKE RETURN W/DAMPER
46305-30020	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46305-30020	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46341 - EQUALIZER, PARKING BRAKE
46341-24010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46341-24010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30720	JZS177,UZS17#	09/1999 - 08/2001	1
46410-30720	JZS177,UZS17#	08/2001 - 06/2004	1
46410-30730	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46410-30730	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-30540	JZS177,UZS17#	09/1999 - 08/2001	1
46420-30540	JZS177,UZS17#	08/2001 - 06/2004	1
46420-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46420-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE)
46421-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46421-51010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46420L - CLAMP, NO.5(FOR PARKING BRAKE CABLE)
46421-51020	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46421-51020	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46420M - CLAMP, NO.6(FOR PARKING BRAKE CABLE)
46431-51010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46431-51010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46420N - CLAMP, NO.7(FOR PARKING BRAKE CABLE)
46431-51020	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46431-51020	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-30140	JZS177,UZS17#	09/1999 - 08/2001	1
46430-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46430-30140	JZS177,UZS17#	08/2001 - 06/2004	1
46430-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-51010	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
46441-51010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
Common parts
90119-06428
90119-08681
90119-08A61
90179-06161
90179-06299
90179-08143
90468-08001
91511-B0614
91611-G0612
91621-B0625
91631-B0614
Linked diagrams
8401

ILLUST NO. 1 OF 2(9909- )JZS177,UZS17#

Click highlighted areas on diagram

Part #	Description	Period	Qty
46200 - PEDAL ASSY, PARKING BRAKE CONTROL
46200-30370	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46200-30360	JZS177,UZS17#	09/1999 - 08/2001	1
46200-30360	JZS177,UZS17#	08/2001 - 06/2004	1
46200-30370	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46209 - CABLE SUB-ASSY, PARKING BRAKE RELEASE
46209-30180A0	JZS177,UZS17# IVORY,TRIM0#	09/1999 - 08/2001	1
46209-30180A0	JZS177,UZS17# IVORY,TRIM0#	08/2001 - 06/2004	1
46209-30190A0	GS171,JZS171,173,175,179 IVORY,TRIM0#	09/1999 - 08/2001	1
46209-30180B0	JZS177,UZS17# MD.CHARCOAL,TRIM1#	08/2001 - 06/2004	1
46209-30180B0	JZS177,UZS17# MD.CHARCOAL,TRIM1#	09/1999 - 08/2001	1
46209-30180C0	JZS177,UZS171,173..C 10TH ANNIVERSARY EDITION *(A),BLACK,TRIM23	02/2002 - 07/2002	1
46252 - PAD, PARKING PEDAL
46252-50010	JZS177,UZS17#	08/2001 - 06/2004	1
46252-50010	JZS177,UZS17#	09/1999 - 08/2001	1
46252-20010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46252-20010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE
46320-30070	JZS177,UZS17#	09/1999 - 08/2001	1
46320-30070	JZS177,UZS17#	08/2001 - 06/2004	1
46301E - PIN, W/HOLE(FOR INTERMEDIATE LEVER)
90240-08059	JZS177,UZS17#	08/2001 - 06/2004	1
90240-08059	JZS177,UZS17#	09/1999 - 08/2001	1
46306 - BRACKET SUB-ASSY, INTERMEDIATE LEVER(FOR PARKING BRAKE)
46306-30110	JZS177,UZS17#	09/1999 - 08/2001	1
46306-30110	JZS177,UZS17#	08/2001 - 06/2004	1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-30720	JZS177,UZS17#	09/1999 - 08/2001	1
46410-30720	JZS177,UZS17#	08/2001 - 06/2004	1
46410-30730	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46410-30730	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-30540	JZS177,UZS17#	09/1999 - 08/2001	1
46420-30540	JZS177,UZS17#	08/2001 - 06/2004	1
46420-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46420-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-30140	JZS177,UZS17#	09/1999 - 08/2001	1
46430-51011	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
46430-30140	JZS177,UZS17#	08/2001 - 06/2004	1
46430-51011	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
46439 - INSULATOR, PARKING BRAKE CABLE HEAT
46439-30011	JZS177,UZS17#	08/2001 - 06/2004	1
46439-30011	JZS177,UZS17#	09/1999 - 08/2001	1
46441 - NUT, WIRE ADJUSTING, NO.1
46441-51010	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
46441-51010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
46451 - BRACKET, CABLE SUPPORT
46451-30090	JZS177,UZS17#	08/2001 - 06/2004	1
46451-30090	JZS177,UZS17#	09/1999 - 08/2001	1
46451B - BRACKET, PARKING BRAKE CABLE SUPPORT
46451-30120	JZS177,UZS17#	08/2001 - 06/2004	1
46451-30120	JZS177,UZS17#	09/1999 - 08/2001	1
46451C - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.1
46451-30150	JZS177,UZS17#	08/2001 - 06/2004	1
46451-30150	JZS177,UZS17#	09/1999 - 08/2001	1
46451F - BRACKET, CABLE SUPPORT
46451-30130	JZS177,UZS17#	08/2001 - 06/2004	1
46451-30130	JZS177,UZS17#	09/1999 - 08/2001	1
46451G - BRACKET, CABLE SUPPORT
46451-30140	JZS177,UZS17#	08/2001 - 06/2004	1
46451-30140	JZS177,UZS17#	09/1999 - 08/2001	1
46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2
46451-30160	JZS177,UZS17#	09/1999 - 08/2001	1
46451-30160	JZS177,UZS17#	08/2001 - 06/2004	1
Common parts
90119-06361
90119-06428
90119-08681
90119-08A61
90179-06161
90179-06299
90179-08143
90468-08001
90468-14004
91511-B0614
91551-80630
91611-G0612
91621-60632
91621-B0816
91621-J0612
Linked diagrams
8401

ILLUST NO. 2 OF 2(9909- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
46503 - PLATE SUB-ASSY, PARKING BRAKE, RH
46503-30090	JZS171,UZS173..HTWC,TWT	08/2001 - 06/2004	1
46503-30090	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
46504 - PLATE SUB-ASSY, PARKING BRAKE, LH
46504-30090	JZS171,UZS173..HTWC,TWT	08/2001 - 06/2004	1
46504-30090	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1
46540-44010	JZS171,UZS173..HTWC,TWT	08/2001 - 06/2004	1
46540-28010	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2
46550-28010	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
46550-44010	UZS173	08/2001 - 06/2004	1
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90507-20016	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	4
90507-20016	UZS173	08/2001 - 06/2004	4
46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN)
90507-20016	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	4
90507-20016	UZS173	08/2001 - 06/2004	4
46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN)
90506-12051	UZS173	08/2001 - 06/2004	2
90506-12051	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	2
46580 - SHOE ASSY, PARKING BRAKE, LH NO.1
46540-28010	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
46540-44010	JZS171,UZS173..HTWC,TWT	08/2001 - 06/2004	1
46590 - SHOE ASSY, PARKING BRAKE, LH NO.2
46590-28010	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
46590-44010	UZS173	08/2001 - 06/2004	1
47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE)
47405-30040	UZS173	08/2001 - 06/2004	1
47405-30040	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE)
47406-30040	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
47406-30040	UZS173	08/2001 - 06/2004	1
47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447-50010	JZS171,UZS173..HTWC,TWT NO.2	09/1999 - 08/2001	2
47447-30020	JZS171,UZS173..HTWC,TWT NO.1	09/1999 - 08/2001	2
47447-50010	UZS173 NO.2	08/2001 - 06/2004	2
47447-30020	UZS173 NO.1	08/2001 - 06/2004	2
47447C - PIN, SHOE HOLD DOWN SPRING(FOR PARKING BRAKE)
47447-50010	JZS171,UZS173..HTWC,TWT NO.2	09/1999 - 08/2001	2
47447-30020	JZS171,UZS173..HTWC,TWT NO.1	09/1999 - 08/2001	2
47447-50010	UZS173 NO.2	08/2001 - 06/2004	2
47447-30020	UZS173 NO.1	08/2001 - 06/2004	2
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
90501-16118	JZS171,UZS173..HTWC,TWT NO.1	09/1999 - 08/2001	2
90501-16118	UZS173 NO.1	08/2001 - 06/2004	2
90501-16053	UZS173 NO.2	08/2001 - 06/2004	2
90501-16053	GS171,JZS17#,UZS17# NO.2	09/1999 - 08/2001	2
47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN)
90501-16118	JZS171,UZS173..HTWC,TWT NO.1	09/1999 - 08/2001	2
90501-16118	UZS173 NO.1	08/2001 - 06/2004	2
90501-16053	UZS173 NO.2	08/2001 - 06/2004	2
90501-16053	GS171,JZS17#,UZS17# NO.2	09/1999 - 08/2001	2
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030	GS171,JZS17#,UZS17# 外側	09/1999 - 08/2001	4
47449-40010	JZS171,UZS173..HTWC,TWT 内側	09/1999 - 08/2001	4
47449-40010	UZS173 内側	08/2001 - 06/2004	4
47449-30030	UZS173 外側	08/2001 - 06/2004	4
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030	GS171,JZS17#,UZS17# 外側	09/1999 - 08/2001	4
47449-40010	JZS171,UZS173..HTWC,TWT 内側	09/1999 - 08/2001	4
47449-40010	UZS173 内側	08/2001 - 06/2004	4
47449-30030	UZS173 外側	08/2001 - 06/2004	4
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030	GS171,JZS17#,UZS17# 外側	09/1999 - 08/2001	4
47449-40010	JZS171,UZS173..HTWC,TWT 内側	09/1999 - 08/2001	4
47449-40010	UZS173 内側	08/2001 - 06/2004	4
47449-30030	UZS173 外側	08/2001 - 06/2004	4
47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE)
47449-30030	GS171,JZS17#,UZS17# 外側	09/1999 - 08/2001	4
47449-40010	JZS171,UZS173..HTWC,TWT 内側	09/1999 - 08/2001	4
47449-40010	UZS173 内側	08/2001 - 06/2004	4
47449-30030	UZS173 外側	08/2001 - 06/2004	4
47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE)
47456-33010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
47456-33010	UZS173	08/2001 - 06/2004	2
47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE)
47459-30010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
47459-30010	UZS173	08/2001 - 06/2004	2
47611 - LEVER, PARKING BRAKE SHOE, RH
47611-50010	UZS173	08/2001 - 06/2004	1
47611-50010	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
47611A - WASHER, TYPE C(FOR PARKING BRAKE SHOE LEVER)
90213-07018	UZS173	08/2001 - 06/2004	2
90213-07018	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
47611B - SHIM(FOR PARKING BRAKE SHOE LEVER)
90564-09184	GS171,JKS175,JZS17#,UZS17# 厚さ=0.3	08/2001 - 12/2999	1
90564-09186	GS171,JZS17#,UZS17# 厚さ=0.9	09/1999 - 08/2001	1
90564-09186	GS171,JKS175,JZS17#,UZS17# 厚さ=0.9	08/2001 - 12/2999	1
90564-09184	GS171,JZS17#,UZS17# 厚さ=0.3	09/1999 - 08/2001	1
90564-09185	GS171,JKS175,JZS17#,UZS17# 厚さ=0.6	08/2001 - 12/2999	1
90564-09185	GS171,JZS17#,UZS17# 厚さ=0.6	09/1999 - 08/2001	1
47612 - LEVER, PARKING BRAKE SHOE, LH
47612-50010	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
47612-50010	UZS173	08/2001 - 06/2004	1
47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT)
90504-14002	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
90504-14002	UZS173	08/2001 - 06/2004	2
47613E - STRUT, PARKING BRAKE SHOE, RH
47613-30060	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
47613-30060	UZS173	08/2001 - 06/2004	1
47614 - STRUT, PARKING BRAKE SHOE, LH
47614-30060	UZS173	08/2001 - 06/2004	1
47614-30060	JZS171,UZS173..HTWC,TWT	09/1999 - 08/2001	1
Common parts
90119-10550
90179-10085

UZS173-CEPZK (1999)

ILLUST NO. 1 OF 2(9909- )GS171,JKS175,JZS171,173,175,179

ILLUST NO. 1 OF 2(9909- )JZS177,UZS17#

ILLUST NO. 2 OF 2(9909- )

Part Price Details
