Toyota Crown/crown majesta UZS173 FRONT STEERING GEAR & LINK

Manufacturers Home
Toyota
JP
CROWN/CROWN MAJESTA
UZS173-CEPZK (1999)
4505 - FRONT STEERING GEAR & LINK

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

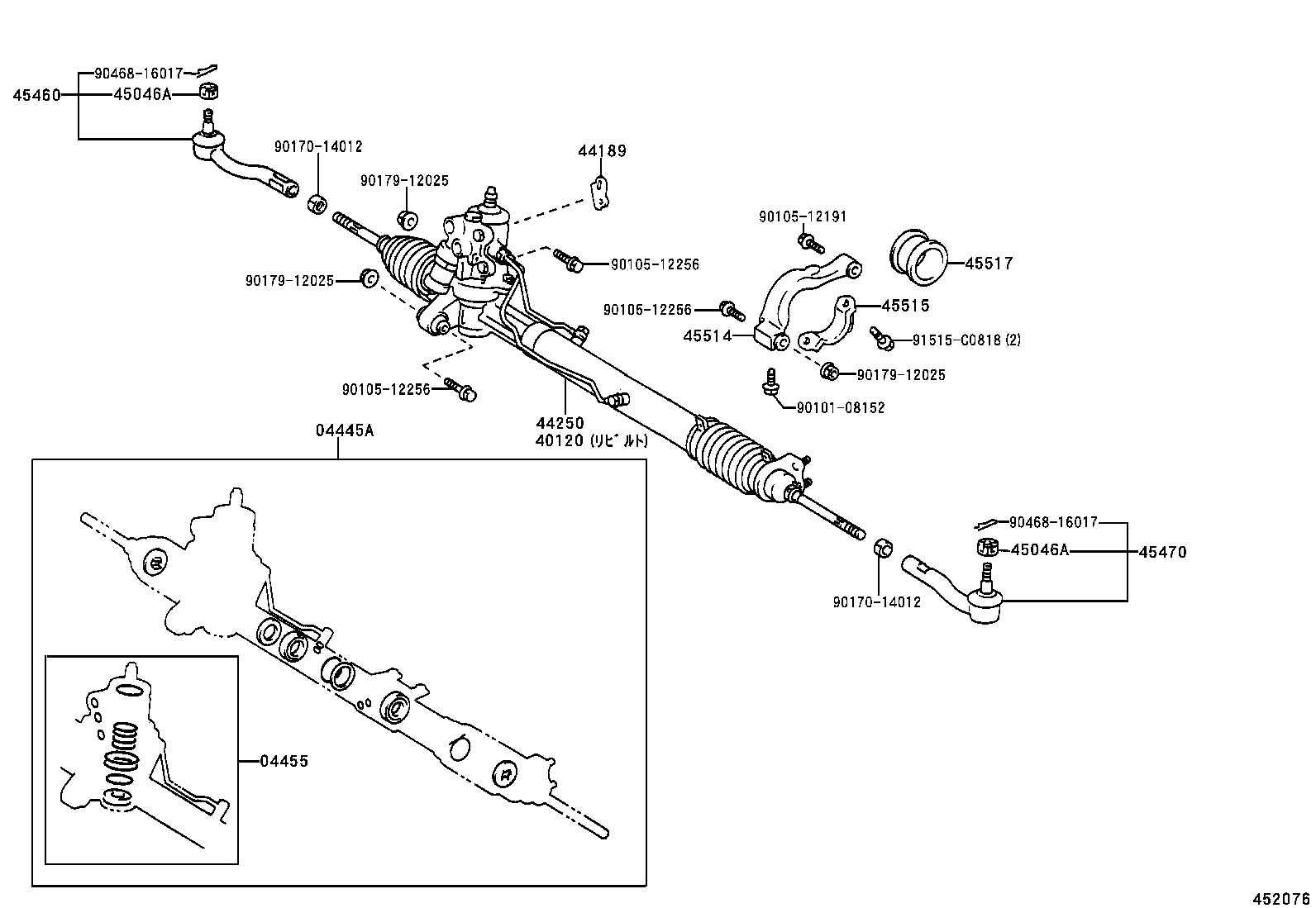

ILLUST NO. 1 OF 2(9909-0108)UZS173

Click highlighted areas on diagram

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-30290	UZS173	09/1999 - 08/2001	1
04445-30290	UZS173	08/2001 - 06/2004	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-30110	UZS173	08/2001 - 06/2004	1
04455-30110	UZS173	09/1999 - 08/2001	1
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-30210	UZS173 TOYODA KOKI	09/1999 - 08/2001	1
40120-30210	UZS173 TOYODA KOKI	08/2001 - 06/2004	1
44189 - CLAMP, SOLENOID VALVE TERMINAL
44189-30010	UZS173	09/1999 - 08/2001	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-30210	UZS173	09/1999 - 08/2001	1
44250-30210	UZS173	08/2001 - 06/2004	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
90171-12002	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
90171-12002	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
45460 - ROD ASSY, TIE, RH
45460-39395	UZS173	08/2001 - 06/2004	1
45460-39395	UZS173	09/1999 - 08/2001	1
45470 - ROD ASSY, TIE, LH
45470-39145	UZS173	08/2001 - 06/2004	1
45470-39145	UZS173	09/1999 - 08/2001	1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45302-30021	UZS173	08/2001 - 06/2004	1
45302-30021	UZS173	09/1999 - 08/2001	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-30040	UZS173	08/2001 - 06/2004	1
45515-30040	UZS173	09/1999 - 08/2001	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-30010	UZS173	09/1999 - 08/2001	1
45517-30010	UZS173	08/2001 - 06/2004	1
Common parts
90101-08152
90105-12191
90105-12256
90170-14012
90179-12025
90468-16017
91515-C0818

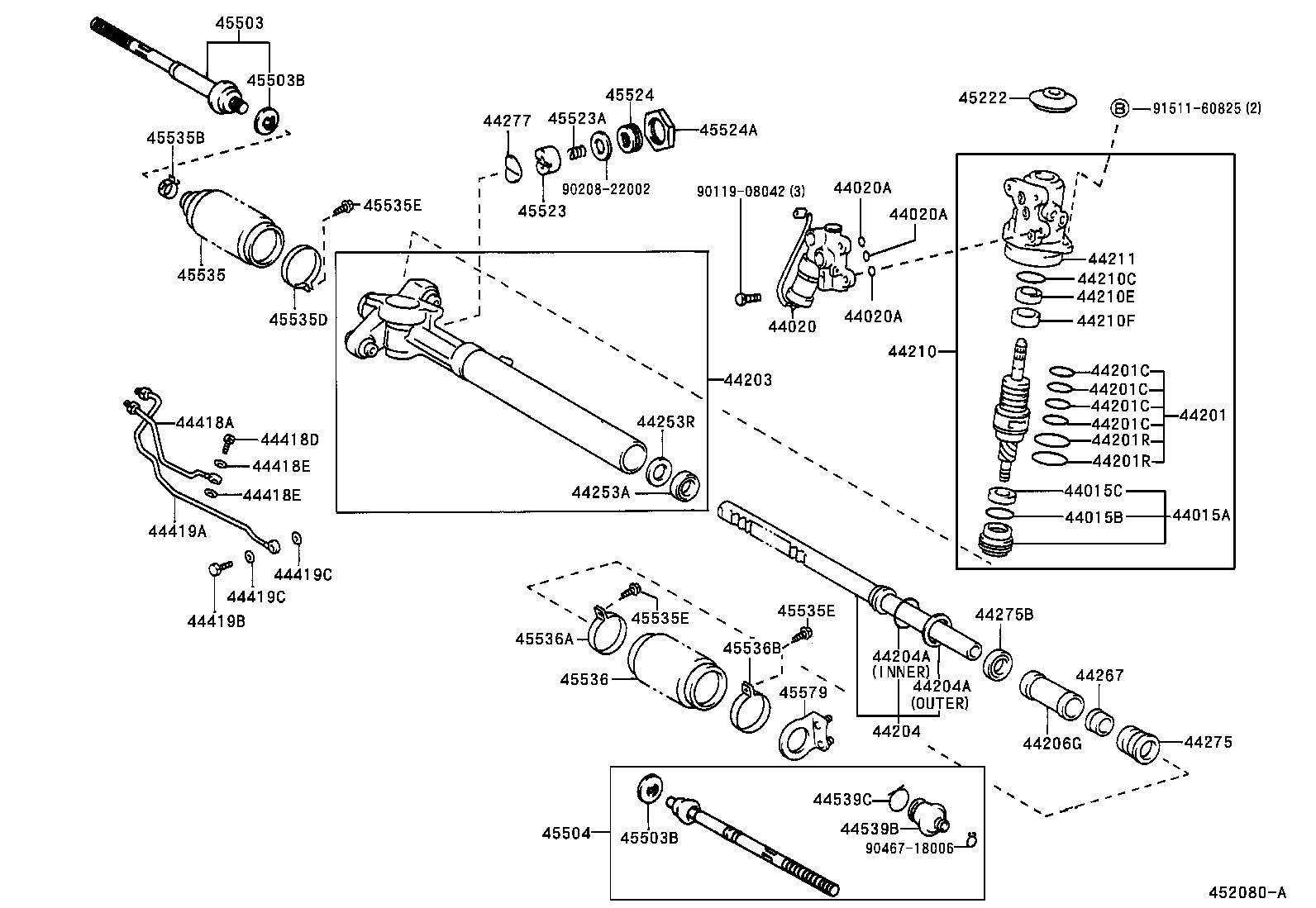

ILLUST NO. 2 OF 2(9909-0108)UZS173

Click highlighted areas on diagram

Part #	Description	Period	Qty
44015A - NUT SUB-ASSY, BEARING GUIDE
44015-22030	UZS173	09/1999 - 08/2001	1
44015-43010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
44015B - RING, O(FOR BEARING GUIDE NUT)
90301-53181	UZS173	09/1999 - 08/2001	1
90301-43002	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
44015C - SEAL, OIL(FOR BEARING GUIDE NUT)
90310-25027	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
90311-30016	UZS173	09/1999 - 08/2001	1
44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE
44020-30051	UZS173	09/1999 - 08/2001	1
44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE)
96711-19014	UZS173	09/1999 - 08/2001	3
44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE)
96711-19014	UZS173	09/1999 - 08/2001	3
44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE)
96711-19014	UZS173	09/1999 - 08/2001	3
44201 - VALVE SUB-ASSY, POWER STEERING CONTROL
44201-30190	UZS173	09/1999 - 08/2001	1
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007	GS171,JZS171,UZS173..HTWC,TWC	09/1999 - 08/2001	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007	GS171,JZS171,UZS173..HTWC,TWC	09/1999 - 08/2001	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007	GS171,JZS171,UZS173..HTWC,TWC	09/1999 - 08/2001	4
44201C - RING(FOR POWER STEERING CONTROL VALVE)
90562-33007	GS171,JZS171,UZS173..HTWC,TWC	09/1999 - 08/2001	4
44201R - RING(FOR POWER STEERING CONTROL VALVE)
90562-49002	UZS173	09/1999 - 08/2001	2
44201R - RING(FOR POWER STEERING CONTROL VALVE)
90562-49002	UZS173	09/1999 - 08/2001	2
44203 - HOUSING SUB-ASSY, POWER STEERING RACK
44203-30050	UZS173	09/1999 - 08/2001	1
44204 - RACK SUB-ASSY, POWER STEERING
44204-30120	UZS173	09/1999 - 08/2001	1
44204A - RING(FOR RACK STEERING PISTON)
90301-37007	GS171,JZS171,173,175,179,UZS173 内側	09/1999 - 07/2001	1
90562-41001	GS171,JZS171,173,175,179,UZS173 外側	09/1999 - 07/2001	1
90301-37009	GS171,JZS171,173,175,179,UZS173 内側	07/2001 - 08/2001	1
90562-41004	GS171,JZS171,173,175,179,UZS173 外側	07/2001 - 08/2001	1
44204A - RING(FOR RACK STEERING PISTON)
90301-37007	GS171,JZS171,173,175,179,UZS173 内側	09/1999 - 07/2001	1
90562-41001	GS171,JZS171,173,175,179,UZS173 外側	09/1999 - 07/2001	1
90301-37009	GS171,JZS171,173,175,179,UZS173 内側	07/2001 - 08/2001	1
90562-41004	GS171,JZS171,173,175,179,UZS173 外側	07/2001 - 08/2001	1
44206G - SPACER, NO.1(FOR POWER STEERING CYLINDER TUBE)
90561-28005	JZS173,179,UZS173	09/1999 - 08/2001	1
44210 - VALVE ASSY, POWER STEERING CONTROL
44210-30180	UZS173	09/1999 - 08/2001	1
44210C - RING, O(FOR POWER STEERING CONTROL VALVE)
90301-62005	UZS173	09/1999 - 08/2001	1
90301-51001	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
44210E - SEAL, OIL(FOR POWER STEERING CONTROL VALVE)
90311-19013	GS171,JZS171,173,175,179,UZS173	09/1999 - 08/2001	1
44210F - BEARING(FOR POWER STEERING CONTROL VALVE)
90363-19003	GS171,JZS171,173,175,179,UZS173	09/1999 - 08/2001	1
44211 - HOUSING, CONTROL VALVE
44211-30060	UZS173	09/1999 - 08/2001	1
44253A - SEAL, OIL(FOR POWER STEERING RACK HOUSING)
90310-26018	UZS173	09/1999 - 08/2001	1
90310-26023	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
44253R - SPACER(FOR POWER STEERING RACK HOUSING)
90560-27013	UZS173	09/1999 - 08/2001	1
44267 - GUIDE, RACK END
44267-22020	UZS173	09/1999 - 08/2001	1
44267-22030	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
44275 - STOPPER, CYLINDER END
44275-22020	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
44275-30010	UZS173	09/1999 - 08/2001	1
44275B - SEAL, OIL(FOR CYLINDER END STOPPER)
90310-26019	UZS173	09/1999 - 08/2001	1
90310-26023	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
44277 - SEAT, RACK GUIDE
44277-22010	UZS173	09/1999 - 08/2001	1
44418A - TUBE, STEERING RIGHT TURN PRESSURE
44418-30031	UZS173	09/1999 - 08/2001	1
44418D - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE)
90401-10021	JZS173,179,UZS173	09/1999 - 08/2001	1
44418E - GASKET(FOR STEERING TURN PRESSURE TUBE)
90430-10008	JZS173,179,UZS173	09/1999 - 08/2001	2
44418E - GASKET(FOR STEERING TURN PRESSURE TUBE)
90430-10008	JZS173,179,UZS173	09/1999 - 08/2001	2
44419A - TUBE, STEERING LEFT TURN PRESSURE
44419-30030	UZS173	09/1999 - 08/2001	1
44419B - BOLT, UNION(FOR STEERING TURN PRESSURE TUBE)
90401-10021	JZS173,179,UZS173	09/1999 - 08/2001	1
44419C - GASKET(FOR STEERING TURN PRESSURE TUBE)
90430-10008	JZS173,179,UZS173	09/1999 - 08/2001	2
44419C - GASKET(FOR STEERING TURN PRESSURE TUBE)
90430-10008	JZS173,179,UZS173	09/1999 - 08/2001	2
44539B - SEAL, RACK END DUST(FOR POWER STEERING)
45539-14010	UZS173	09/1999 - 08/2001	1
45539-14010	UZS173	08/2001 - 06/2004	1
44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL)
90522-30002	UZS173	08/2001 - 06/2004	1
90522-30002	UZS173	09/1999 - 08/2001	1
45222 - COVER, STEERING GEAR DUST
45222-22040	UZS173	09/1999 - 08/2001	1
45503 - END SUB-ASSY, STEERING RACK
45503-39045	UZS173	09/1999 - 08/2001	1
45503-39045	UZS173	08/2001 - 06/2004	1
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007	UZS173 外径=38	09/1999 - 08/2001	1
90214-14007	UZS173 外径=38	08/2001 - 06/2004	1
90214-18001	UZS173 外径=37	08/2001 - 06/2004	1
90214-18001	UZS173 外径=37	09/1999 - 08/2001	1
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007	UZS173 外径=38	09/1999 - 08/2001	1
90214-14007	UZS173 外径=38	08/2001 - 06/2004	1
90214-18001	UZS173 外径=37	08/2001 - 06/2004	1
90214-18001	UZS173 外径=37	09/1999 - 08/2001	1
45504 - END SUB-ASSY, STEERING RACK, NO.2
45504-39035	UZS173	08/2001 - 12/2999	1
45504-39035	UZS173	09/1999 - 08/2001	1
45523 - GUIDE, RACK(FOR STEERING GEAR)
45523-22030	UZS173	09/1999 - 08/2001	1
45523A - SPRING(FOR STEERING GEAR RACK GUIDE)
90502-32001	UZS173	09/1999 - 08/2001	1
90501-30019	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
45524 - CAP, STEERING RACK GUIDE SPRING
45524-16010	UZS173	09/1999 - 08/2001	1
45524-20040	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
45524A - NUT(FOR STEERING RACK GUIDE SPRING CAP)
90179-36002	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
45535 - BOOT, STEERING RACK, NO.1
45535-30010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
45535-30010	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19012	UZS173	09/1999 - 08/2001	1
90467-19019	UZS173	08/2001 - 06/2004	1
90467-19012	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-49002	JZS177,UZS17#	09/1999 - 08/2001	1
90460-49004	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
90460-49004	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
90460-49002	JZS177,UZS17#	08/2001 - 06/2004	1
45535E - SCREW(FOR STEERING RACK BOOT CLAMP)
90149-30004	UZS173	08/2001 - 06/2004	3
90149-30004	UZS173	09/1999 - 08/2001	3
45535E - SCREW(FOR STEERING RACK BOOT CLAMP)
90149-30004	UZS173	08/2001 - 06/2004	3
90149-30004	UZS173	09/1999 - 08/2001	3
45535E - SCREW(FOR STEERING RACK BOOT CLAMP)
90149-30004	UZS173	08/2001 - 06/2004	3
90149-30004	UZS173	09/1999 - 08/2001	3
45536 - BOOT, STEERING RACK, NO.2
45535-30010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
45535-30010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
45536-30010	UZS173	08/2001 - 06/2004	1
45536-30010	UZS173	09/1999 - 08/2001	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-52001	UZS173	09/1999 - 08/2001	1
90460-52001	UZS173	08/2001 - 06/2004	1
90460-49004	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
90460-49004	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
45536B - CLAMP(FOR STEERING RACK BOOT NO.3)
90460-55010	UZS173	08/2001 - 06/2004	1
90460-55010	UZS173	09/1999 - 08/2001	1
45579 - BRACKET, REAR STEERING CONTROL SHAFT, NO.2
45579-30020	UZS173	08/2001 - 06/2004	1
45579-30020	UZS173	09/1999 - 08/2001	1
Common parts
90119-08042
90208-22002
90467-18006
91511-60825

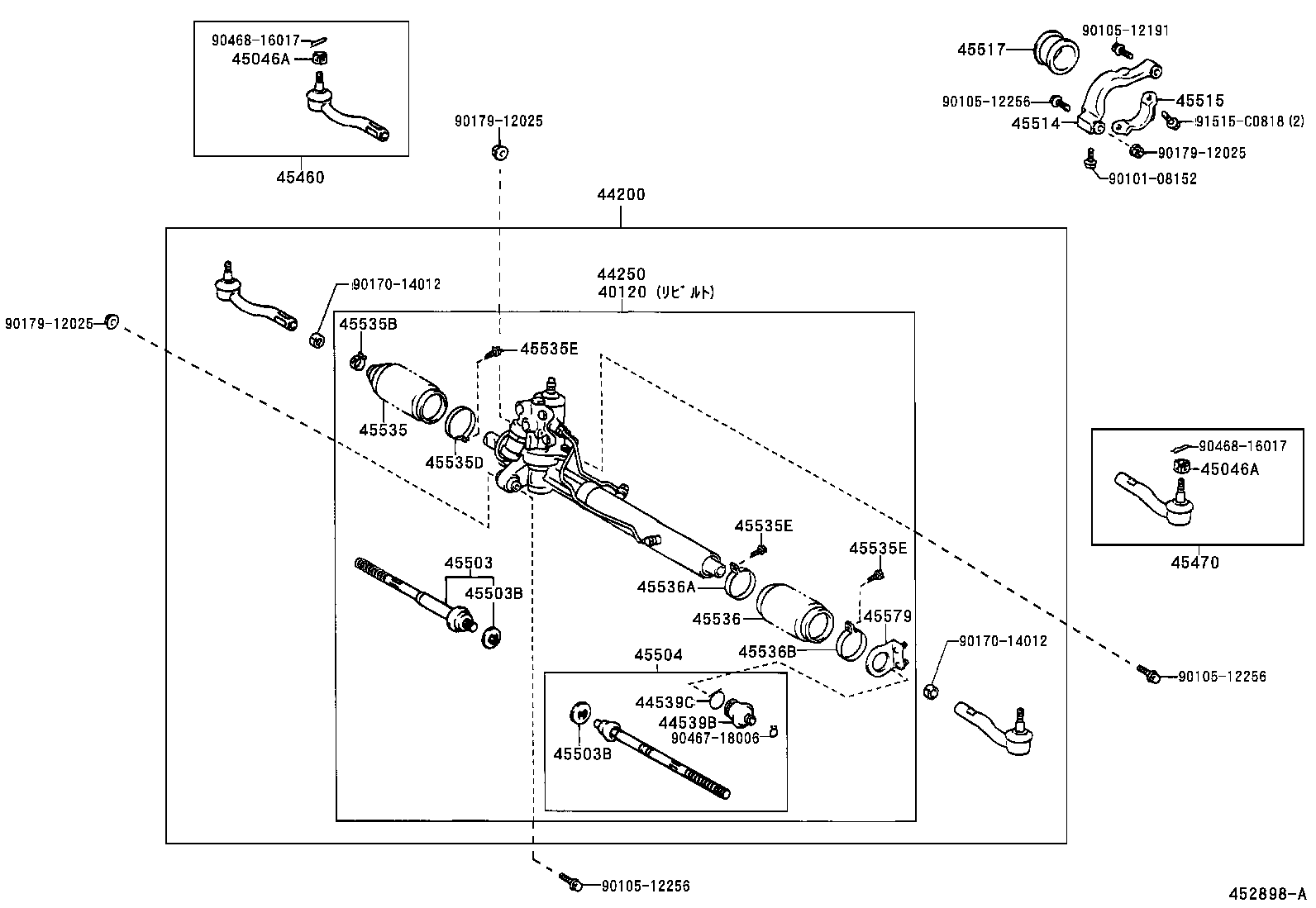

ILLUST NO. 1 OF 2(0108- )UZS173

Click highlighted areas on diagram

Part #	Description	Period	Qty
40120 - GEAR ASSY,POWER STEERING,REBUILT
40120-30210	UZS173 TOYODA KOKI	09/1999 - 08/2001	1
40120-30210	UZS173 TOYODA KOKI	08/2001 - 06/2004	1
44200 - LINK ASSY, POWER STEERING
44200-30211	UZS173	08/2001 - 06/2004	1
44250 - GEAR ASSY, POWER STEERING(FOR RACK & PINION)
44250-30210	UZS173	09/1999 - 08/2001	1
44250-30210	UZS173	08/2001 - 06/2004	1
44539B - SEAL, RACK END DUST(FOR POWER STEERING)
45539-14010	UZS173	09/1999 - 08/2001	1
45539-14010	UZS173	08/2001 - 06/2004	1
44539C - RING, SET(FOR POWER STEERING RACK END DUST SEAL)
90522-30002	UZS173	08/2001 - 06/2004	1
90522-30002	UZS173	09/1999 - 08/2001	1
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
90171-12002	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
45046A - NUT, CASTLE(FOR TIE ROD END)
90171-12002	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	2
90171-12002	GS171,JZS17#,UZS17#	09/1999 - 08/2001	2
45460 - ROD ASSY, TIE, RH
45460-39395	UZS173	08/2001 - 06/2004	1
45460-39395	UZS173	09/1999 - 08/2001	1
45470 - ROD ASSY, TIE, LH
45470-39145	UZS173	08/2001 - 06/2004	1
45470-39145	UZS173	09/1999 - 08/2001	1
45503 - END SUB-ASSY, STEERING RACK
45503-39045	UZS173	09/1999 - 08/2001	1
45503-39045	UZS173	08/2001 - 06/2004	1
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007	UZS173 外径=38	09/1999 - 08/2001	1
90214-14007	UZS173 外径=38	08/2001 - 06/2004	1
90214-18001	UZS173 外径=37	08/2001 - 06/2004	1
90214-18001	UZS173 外径=37	09/1999 - 08/2001	1
45503B - WASHER, CLAW(FOR STEERING RACK END)
90214-14007	UZS173 外径=38	09/1999 - 08/2001	1
90214-14007	UZS173 外径=38	08/2001 - 06/2004	1
90214-18001	UZS173 外径=37	08/2001 - 06/2004	1
90214-18001	UZS173 外径=37	09/1999 - 08/2001	1
45504 - END SUB-ASSY, STEERING RACK, NO.2
45504-39035	UZS173	08/2001 - 12/2999	1
45504-39035	UZS173	09/1999 - 08/2001	1
45514 - BRACKET, STEERING RACK HOUSING, NO.1
45302-30021	UZS173	08/2001 - 06/2004	1
45302-30021	UZS173	09/1999 - 08/2001	1
45515 - BRACKET, STEERING RACK HOUSING, NO.2
45515-30040	UZS173	08/2001 - 06/2004	1
45515-30040	UZS173	09/1999 - 08/2001	1
45517 - GROMMET, STEERING RACK HOUSING, NO.2
45517-30010	UZS173	09/1999 - 08/2001	1
45517-30010	UZS173	08/2001 - 06/2004	1
45535 - BOOT, STEERING RACK, NO.1
45535-30010	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
45535-30010	GS171,JKS175,JZS17#,UZS17#	08/2001 - 12/2999	1
45535B - CLIP(FOR STEERING RACK BOOT)
90467-19012	UZS173	09/1999 - 08/2001	1
90467-19019	UZS173	08/2001 - 06/2004	1
90467-19012	GS171,JZS171,173,175,179	09/1999 - 08/2001	2
45535D - CLAMP(FOR STEERING RACK BOOT NO.1)
90460-49002	JZS177,UZS17#	09/1999 - 08/2001	1
90460-49004	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
90460-49004	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
90460-49002	JZS177,UZS17#	08/2001 - 06/2004	1
45535E - SCREW(FOR STEERING RACK BOOT CLAMP)
90149-30004	UZS173	08/2001 - 06/2004	3
90149-30004	UZS173	09/1999 - 08/2001	3
45535E - SCREW(FOR STEERING RACK BOOT CLAMP)
90149-30004	UZS173	08/2001 - 06/2004	3
90149-30004	UZS173	09/1999 - 08/2001	3
45535E - SCREW(FOR STEERING RACK BOOT CLAMP)
90149-30004	UZS173	08/2001 - 06/2004	3
90149-30004	UZS173	09/1999 - 08/2001	3
45536 - BOOT, STEERING RACK, NO.2
45535-30010	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
45535-30010	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
45536-30010	UZS173	08/2001 - 06/2004	1
45536-30010	UZS173	09/1999 - 08/2001	1
45536A - CLAMP(FOR STEERING RACK BOOT NO.2)
90460-52001	UZS173	09/1999 - 08/2001	1
90460-52001	UZS173	08/2001 - 06/2004	1
90460-49004	GS171,JKS175,JZS171,173,175,179	08/2001 - 12/2999	1
90460-49004	GS171,JZS171,173,175,179	09/1999 - 08/2001	1
45536B - CLAMP(FOR STEERING RACK BOOT NO.3)
90460-55010	UZS173	08/2001 - 06/2004	1
90460-55010	UZS173	09/1999 - 08/2001	1
45579 - BRACKET, REAR STEERING CONTROL SHAFT, NO.2
45579-30020	UZS173	08/2001 - 06/2004	1
45579-30020	UZS173	09/1999 - 08/2001	1
Common parts
90101-08152
90105-12191
90105-12256
90170-14012
90179-12025
90467-18006
90468-16017
91515-C0818

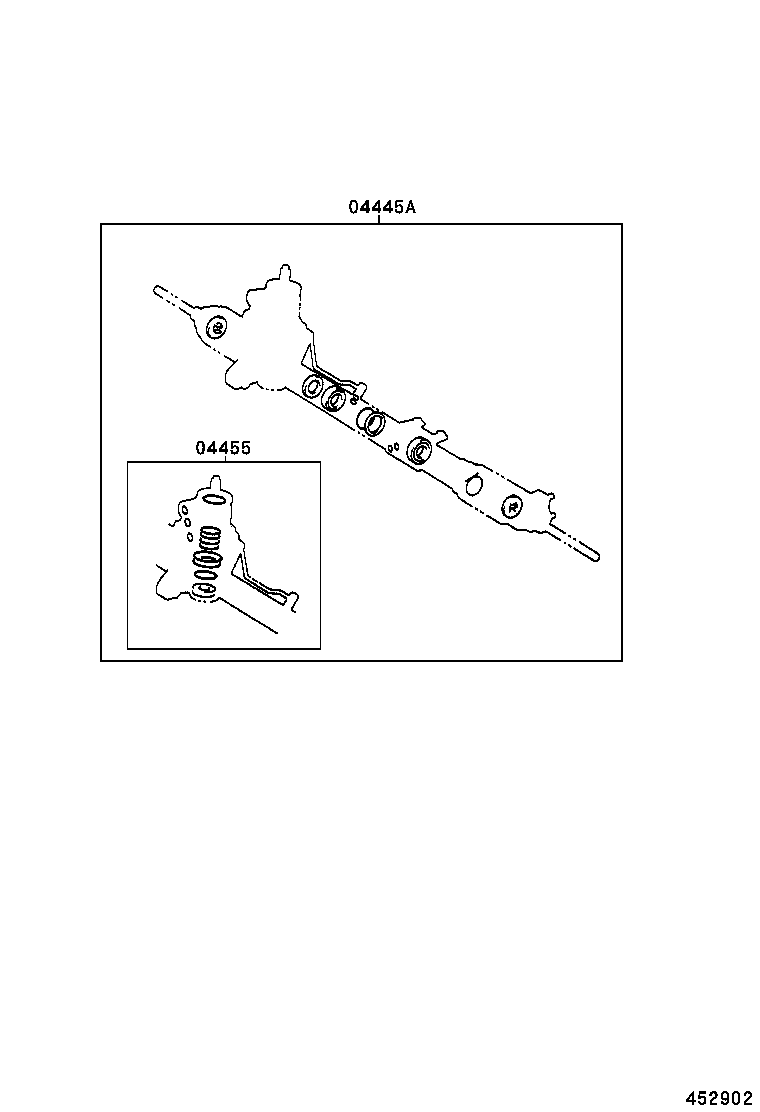

ILLUST NO. 2 OF 2(0108- )UZS173

Click highlighted areas on diagram

Part #	Description	Period	Qty
04445A - GASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)
04445-30290	UZS173	09/1999 - 08/2001	1
04445-30290	UZS173	08/2001 - 06/2004	1
04455 - GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE
04455-30110	UZS173	08/2001 - 06/2004	1
04455-30110	UZS173	09/1999 - 08/2001	1

UZS173-CEPZK (1999)

ILLUST NO. 1 OF 2(9909-0108)UZS173

ILLUST NO. 2 OF 2(9909-0108)UZS173

ILLUST NO. 1 OF 2(0108- )UZS173

ILLUST NO. 2 OF 2(0108- )UZS173

Part Price Details
