Toyota Crown/crown majesta UZS173 VANE PUMP & RESERVOIR (POWER STEERING)

Manufacturers Home
Toyota
JP
CROWN/CROWN MAJESTA
UZS173-CEPZK (1999)
4502 - VANE PUMP & RESERVOIR (POWER STEERING)

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9909-0108)D4,TWC

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-30172	UZS17#	09/1999 - 01/2001	1
04446-30173	UZS17#	08/2001 - 06/2004	1
04446-30173	UZS17#	01/2001 - 08/2001	1
40140 - PUMP ASSY,VANE REBUILT
40140-30650	UZS173 TOYODA KOKI	09/1999 - 08/2001	1
40140-30650	UZS173 TOYODA KOKI	08/2001 - 06/2004	1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-50020	UZS17#	09/1999 - 08/2001	1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17004	UZS17#	09/1999 - 08/2001	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28020	JZS171,UZS17#..HTWC,TWT	09/1999 - 08/2001	1
44305-28020	JZS171,UZS17#..HTWC,TWT	08/2001 - 06/2004	1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-30120	UZS173	09/1999 - 08/2001	1
44311 - PULLEY, VANE PUMP
44311-50020	UZS17#	09/1999 - 08/2001	1
44311-50020	UZS17#	08/2001 - 06/2004	1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
90178-12003	GS171,JZS17#,UZS17#	08/2001 - 12/2999	1
44312 - SHAFT, VANE PUMP
44312-50010	UZS17#	09/1999 - 08/2001	1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17007	UZS17#	09/1999 - 08/2001	1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15005	UZS17#	09/1999 - 08/2001	1
44313 - ROTOR, VANE PUMP
44313-50040	UZS173 ﾏｰｸ 3	09/1999 - 08/2001	1
44313-50050	UZS173 ﾏｰｸ 4	09/1999 - 08/2001	1
44313-50030	UZS173 ﾏｰｸ 2	09/1999 - 08/2001	1
44313-50010	UZS173 ﾏｰｸ無し	09/1999 - 08/2001	1
44313-50020	UZS173 ﾏｰｸ 1	09/1999 - 08/2001	1
44320 - PUMP ASSY, VANE
44320-30650	UZS173	09/1999 - 08/2001	1
44320-30650	UZS173	08/2001 - 06/2004	1
44326 - RING, CAM(FOR VANE PUMP)
44325-32040	UZS173 ﾏｰｸ 3	09/1999 - 08/2001	1
44325-32020	UZS173 ﾏｰｸ 1	09/1999 - 08/2001	1
44325-32010	UZS173 ﾏｰｸ無し	09/1999 - 08/2001	1
44325-32050	UZS173 ﾏｰｸ 4	09/1999 - 08/2001	1
44325-32030	UZS173 ﾏｰｸ 2	09/1999 - 08/2001	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047	GS171,UZS17# 長さ=28,外径=4.0	09/1999 - 08/2001	1
90250-04080	UZS17# 長さ=48	09/1999 - 08/2001	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047	GS171,UZS17# 長さ=28,外径=4.0	09/1999 - 08/2001	1
90250-04080	UZS17# 長さ=48	09/1999 - 08/2001	1
44330 - VALVE ASSY, FLOW CONTROL
44330-30300	UZS17# ﾏｰｸ C	09/1999 - 08/2001	1
44330-30330	UZS17# ﾏｰｸ F	09/1999 - 08/2001	1
44330-30310	UZS17# ﾏｰｸ D	09/1999 - 08/2001	1
44330-30320	UZS17# ﾏｰｸ E	09/1999 - 08/2001	1
44330-30280	UZS17# ﾏｰｸ A	09/1999 - 08/2001	1
44330-30290	UZS17# ﾏｰｸ B	09/1999 - 08/2001	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103	GS171,UZS17#	09/1999 - 08/2001	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19013	GS171,JZS17#,UZS17# 内径=19.2,外径=22.3	09/1999 - 01/2001	1
90301-19018	UZS17# 内径=19.2,外径=22.3	01/2001 - 08/2001	1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-20010	UZS17#	09/1999 - 08/2001	1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53004	UZS17#	09/1999 - 08/2001	1
44345B - PLATE, VANE PUMP
44345-12010	GS171,UZS17# 長さ=14.997	09/1999 - 08/2001	10
44345-12020	GS171,UZS17# 長さ=14.995	09/1999 - 08/2001	10
44345-12050	GS171,UZS17# 長さ=14.989	09/1999 - 08/2001	10
44345-12030	GS171,UZS17# 長さ=14.993	09/1999 - 08/2001	10
44345-12040	GS171,UZS17# 長さ=14.991	09/1999 - 08/2001	10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-22170	UZS17#	08/2001 - 06/2004	1
44306-30280	JZS171,173,175,179..D4,TWC	08/2001 - 12/2999	1
44306-30280	JZS171,173,175,179..D4,TWC	09/1999 - 08/2001	1
44360-22170	UZS17#	09/1999 - 08/2001	1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90301-11016	UZS17#	08/2001 - 06/2004	2
90301-11016	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
Common parts
90105-08194
90105-08271
90105-10405
90119-08469
90206-31001
90360-04005
90360-05012
90410-06006

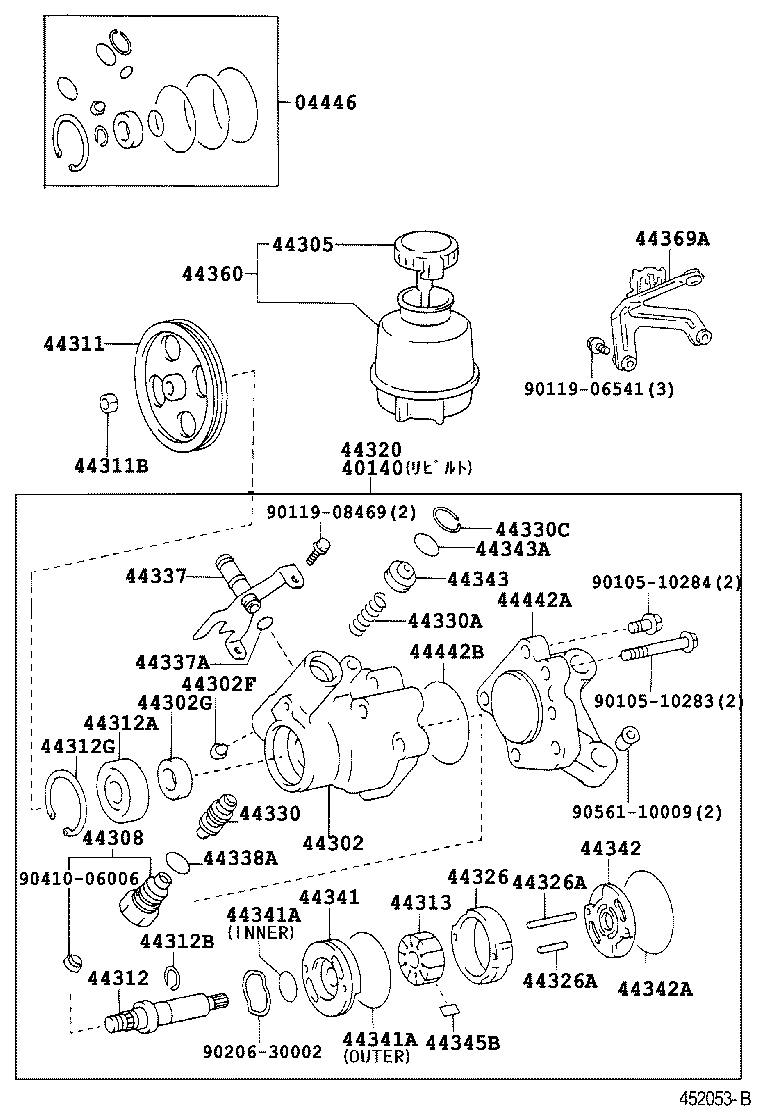

(9909-0108)UZS173

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-30172	UZS17#	09/1999 - 01/2001	1
04446-30173	UZS17#	08/2001 - 06/2004	1
04446-30173	UZS17#	01/2001 - 08/2001	1
40140 - PUMP ASSY,VANE REBUILT
40140-30650	UZS173 TOYODA KOKI	09/1999 - 08/2001	1
40140-30650	UZS173 TOYODA KOKI	08/2001 - 06/2004	1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-50020	UZS17#	09/1999 - 08/2001	1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-05005	UZS17#	09/1999 - 08/2001	1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-17004	UZS17#	09/1999 - 08/2001	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28020	JZS171,UZS17#..HTWC,TWT	09/1999 - 08/2001	1
44305-28020	JZS171,UZS17#..HTWC,TWT	08/2001 - 06/2004	1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-30120	UZS173	09/1999 - 08/2001	1
44311 - PULLEY, VANE PUMP
44311-50020	UZS17#	09/1999 - 08/2001	1
44311-50020	UZS17#	08/2001 - 06/2004	1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
90178-12003	GS171,JZS17#,UZS17#	08/2001 - 12/2999	1
44312 - SHAFT, VANE PUMP
44312-50010	UZS17#	09/1999 - 08/2001	1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17007	UZS17#	09/1999 - 08/2001	1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15005	UZS17#	09/1999 - 08/2001	1
44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)
90521-51003	UZS17#	09/1999 - 08/2001	1
44313 - ROTOR, VANE PUMP
44313-50040	UZS173 ﾏｰｸ 3	09/1999 - 08/2001	1
44313-50050	UZS173 ﾏｰｸ 4	09/1999 - 08/2001	1
44313-50030	UZS173 ﾏｰｸ 2	09/1999 - 08/2001	1
44313-50010	UZS173 ﾏｰｸ無し	09/1999 - 08/2001	1
44313-50020	UZS173 ﾏｰｸ 1	09/1999 - 08/2001	1
44320 - PUMP ASSY, VANE
44320-30650	UZS173	09/1999 - 08/2001	1
44320-30650	UZS173	08/2001 - 06/2004	1
44326 - RING, CAM(FOR VANE PUMP)
44325-32040	UZS173 ﾏｰｸ 3	09/1999 - 08/2001	1
44325-32020	UZS173 ﾏｰｸ 1	09/1999 - 08/2001	1
44325-32010	UZS173 ﾏｰｸ無し	09/1999 - 08/2001	1
44325-32050	UZS173 ﾏｰｸ 4	09/1999 - 08/2001	1
44325-32030	UZS173 ﾏｰｸ 2	09/1999 - 08/2001	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047	GS171,UZS17# 長さ=28,外径=4.0	09/1999 - 08/2001	1
90250-04080	UZS17# 長さ=48	09/1999 - 08/2001	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047	GS171,UZS17# 長さ=28,外径=4.0	09/1999 - 08/2001	1
90250-04080	UZS17# 長さ=48	09/1999 - 08/2001	1
44330 - VALVE ASSY, FLOW CONTROL
44330-30300	UZS17# ﾏｰｸ C	09/1999 - 08/2001	1
44330-30330	UZS17# ﾏｰｸ F	09/1999 - 08/2001	1
44330-30310	UZS17# ﾏｰｸ D	09/1999 - 08/2001	1
44330-30320	UZS17# ﾏｰｸ E	09/1999 - 08/2001	1
44330-30280	UZS17# ﾏｰｸ A	09/1999 - 08/2001	1
44330-30290	UZS17# ﾏｰｸ B	09/1999 - 08/2001	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103	GS171,UZS17#	09/1999 - 08/2001	1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-02200	UZS17#	09/1999 - 08/2001	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-30090	UZS173	09/1999 - 08/2001	1
44337-30090	UZS173	08/2001 - 06/2004	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016	UZS173	09/1999 - 08/2001	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19013	GS171,JZS17#,UZS17# 内径=19.2,外径=22.3	09/1999 - 01/2001	1
90301-19018	UZS17# 内径=19.2,外径=22.3	01/2001 - 08/2001	1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-30050	UZS17#	09/1999 - 08/2001	1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-53004	UZS17# 外側	09/1999 - 08/2001	1
90301-28005	UZS17# 内側	09/1999 - 08/2001	1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-53004	UZS17# 外側	09/1999 - 08/2001	1
90301-28005	UZS17# 内側	09/1999 - 08/2001	1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-20010	UZS17#	09/1999 - 08/2001	1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53004	UZS17#	09/1999 - 08/2001	1
44343 - SEAT, FLOW CONTROL SPRING
44343-50010	UZS17#	09/1999 - 08/2001	1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
90301-18013	UZS17#	01/2001 - 08/2001	1
90301-18006	UZS17#	09/1999 - 01/2001	1
44345B - PLATE, VANE PUMP
44345-12010	GS171,UZS17# 長さ=14.997	09/1999 - 08/2001	10
44345-12020	GS171,UZS17# 長さ=14.995	09/1999 - 08/2001	10
44345-12050	GS171,UZS17# 長さ=14.989	09/1999 - 08/2001	10
44345-12030	GS171,UZS17# 長さ=14.993	09/1999 - 08/2001	10
44345-12040	GS171,UZS17# 長さ=14.991	09/1999 - 08/2001	10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-22170	UZS17#	08/2001 - 06/2004	1
44306-30280	JZS171,173,175,179..D4,TWC	08/2001 - 12/2999	1
44306-30280	JZS171,173,175,179..D4,TWC	09/1999 - 08/2001	1
44360-22170	UZS17#	09/1999 - 08/2001	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-30030	UZS17#	09/1999 - 08/2001	1
44390-30030	UZS17#	08/2001 - 06/2004	1
44442A - BRACKET, VANE PUMP, REAR
44442-50020	UZS17#	09/1999 - 08/2001	1
44442B - RING, O(FOR VANE PUMP BRACKET REAR)
90301-53006	UZS17#	09/1999 - 01/2001	1
90301-53007	UZS17#	01/2001 - 08/2001	1
Common parts
90105-10283
90105-10284
90119-06541
90119-08469
90206-30002
90410-06006
90561-10009

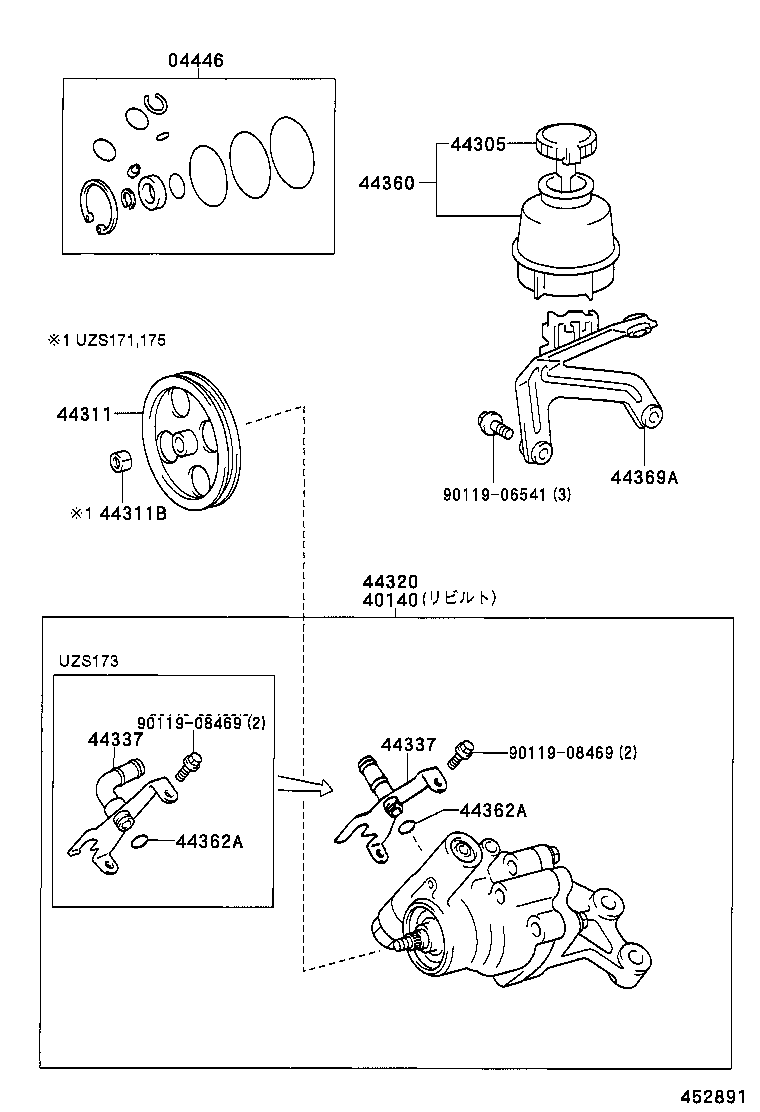

(0108- )UZS17#

Click highlighted areas on diagram

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-30172	UZS17#	09/1999 - 01/2001	1
04446-30173	UZS17#	08/2001 - 06/2004	1
04446-30173	UZS17#	01/2001 - 08/2001	1
40140 - PUMP ASSY,VANE REBUILT
40140-30650	UZS173 TOYODA KOKI	09/1999 - 08/2001	1
40140-30650	UZS173 TOYODA KOKI	08/2001 - 06/2004	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28020	JZS171,UZS17#..HTWC,TWT	09/1999 - 08/2001	1
44305-28020	JZS171,UZS17#..HTWC,TWT	08/2001 - 06/2004	1
44311 - PULLEY, VANE PUMP
44311-50020	UZS17#	09/1999 - 08/2001	1
44311-50020	UZS17#	08/2001 - 06/2004	1
44311B - NUT(FOR VANE PUMP PULLEY)
90178-12003	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
90178-12003	GS171,JZS17#,UZS17#	08/2001 - 12/2999	1
44320 - PUMP ASSY, VANE
44320-30650	UZS173	09/1999 - 08/2001	1
44320-30650	UZS173	08/2001 - 06/2004	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-30090	UZS173	09/1999 - 08/2001	1
44337-30090	UZS173	08/2001 - 06/2004	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-30090	UZS173	09/1999 - 08/2001	1
44337-30090	UZS173	08/2001 - 06/2004	1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-22170	UZS17#	08/2001 - 06/2004	1
44306-30280	JZS171,173,175,179..D4,TWC	08/2001 - 12/2999	1
44306-30280	JZS171,173,175,179..D4,TWC	09/1999 - 08/2001	1
44360-22170	UZS17#	09/1999 - 08/2001	1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90301-11016	UZS17#	08/2001 - 06/2004	2
90301-11016	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
90301-11016	UZS17#	08/2001 - 06/2004	2
90301-11016	GS171,JZS17#,UZS17#	09/1999 - 08/2001	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-30030	UZS17#	09/1999 - 08/2001	1
44390-30030	UZS17#	08/2001 - 06/2004	1
Common parts
90119-06541
90119-08469

UZS173-CEPZK (1999)

(9909-0108)D4,TWC

(9909-0108)UZS173

(0108- )UZS17#
