Toyota Crown/crown majesta UZS173 FRONT DRIVE SHAFT

UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004

Engine 1UZFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9909- )JZS173,179,UZS173

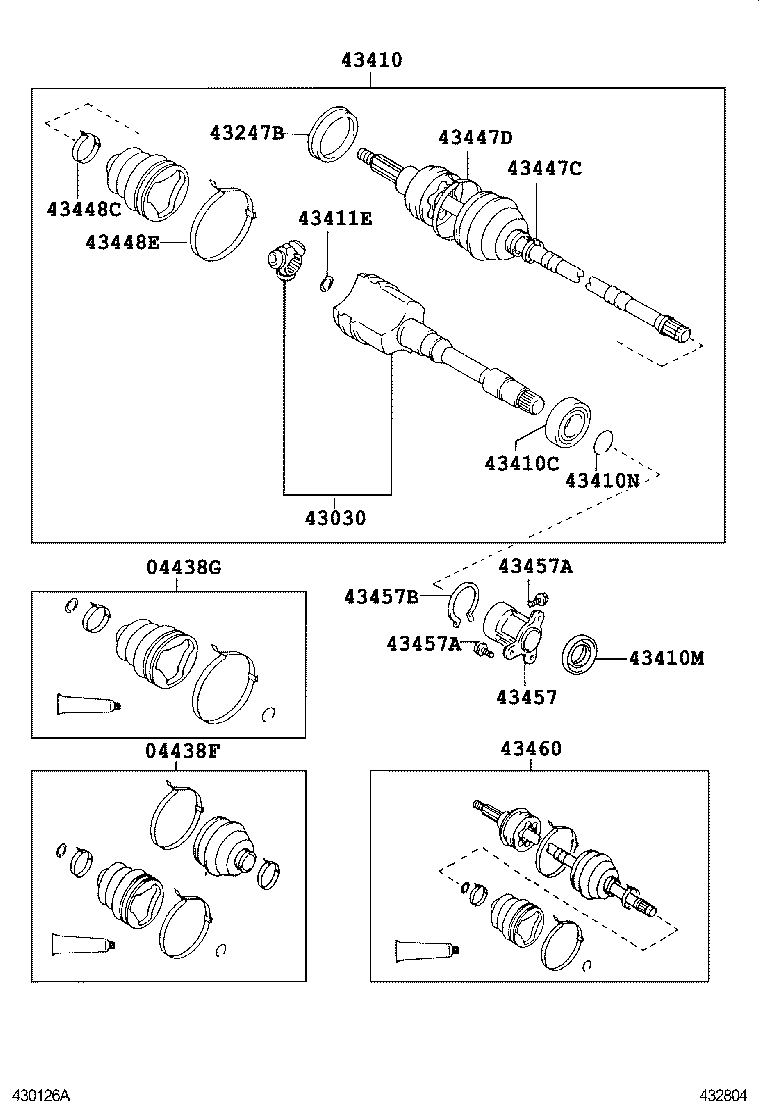

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04438-10080	UZS173	09/1999 - 08/2001	1
04438-10080	UZS173	08/2001 - 06/2004	1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-10070	JZS173,179,UZS173	09/1999 - 08/2001	1
04438-10070	UZS173	08/2001 - 06/2004	1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-30010	UZS173	09/1999 - 08/2001	1
43030-30010	UZS173	08/2001 - 06/2004	1
43247B - DEFLECTOR, FRONT WHEEL BEARING DUST, RH NO.2
43247-12010	JZS173,179,UZS173	09/1999 - 08/2001	1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-30010	UZS173	08/2001 - 06/2004	1
43410-30010	UZS173	09/1999 - 08/2001	1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36001	JZS173,179,UZS173	09/1999 - 08/2001	1
90363-36001	JZS173,179,UZS173	08/2001 - 12/2999	1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90311-35030	JZS173,179,UZS173	09/1999 - 08/2001	1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008	JZS173,179,UZS173	09/1999 - 08/2001	1
90520-33008	JZS173,179,UZS173	08/2001 - 12/2999	1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
90520-20065	JZS173,179,UZS173	09/1999 - 08/2001	1
90520-20065	JZS173,179,UZS173	08/2001 - 12/2999	1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
90949-01804	UZS173	08/2001 - 06/2004	1
90949-01804	UZS173 内径=31.9	09/1999 - 08/2001	1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
90949-01802	UZS173	08/2001 - 06/2004	1
90949-01802	UZS173 内径=88.9	09/1999 - 08/2001	1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01804	JZS173,179,UZS173	08/2001 - 12/2999	1
90949-01804	JZS173,179,UZS173	09/1999 - 08/2001	1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
90949-01803	JZS173,179,UZS173	08/2001 - 12/2999	1
90949-01803	JZS173,179,UZS173	09/1999 - 08/2001	1
43457 - BRACKET, DRIVE SHAFT BEARING
43044-22010	UZS173	08/2001 - 05/2004	1
43044-22010	JZS173,179,UZS173	09/1999 - 08/2001	1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10392	JZS173,179,UZS173 *10−1.25PX35.8−24.8	09/1999 - 08/2001	3
90901-19023	JZS173,179,UZS173 *10−1.25PX27.8−14.8	09/1999 - 08/2001	1
90901-19023	JZS173,179,UZS173 *10−1.25PX27.8−14.8	08/2001 - 12/2003	1
90105-10392	UZS173 *10−1.25PX35.8−24.8	08/2001 - 05/2004	3
90901-19060	UZS173 *10−1.25PX28.5−14.8	12/2003 - 05/2004	1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90105-10392	JZS173,179,UZS173 *10−1.25PX35.8−24.8	09/1999 - 08/2001	3
90901-19023	JZS173,179,UZS173 *10−1.25PX27.8−14.8	09/1999 - 08/2001	1
90901-19023	JZS173,179,UZS173 *10−1.25PX27.8−14.8	08/2001 - 12/2003	1
90105-10392	UZS173 *10−1.25PX35.8−24.8	08/2001 - 05/2004	3
90901-19060	UZS173 *10−1.25PX28.5−14.8	12/2003 - 05/2004	1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90520-65002	UZS173	08/2001 - 05/2004	1
90520-65002	JZS173,179,UZS173	09/1999 - 08/2001	1
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-39226	UZS173	09/1999 - 08/2001	1
43470-39226	UZS173	08/2001 - 06/2004	1

(9909- )JZS173,179,UZS173

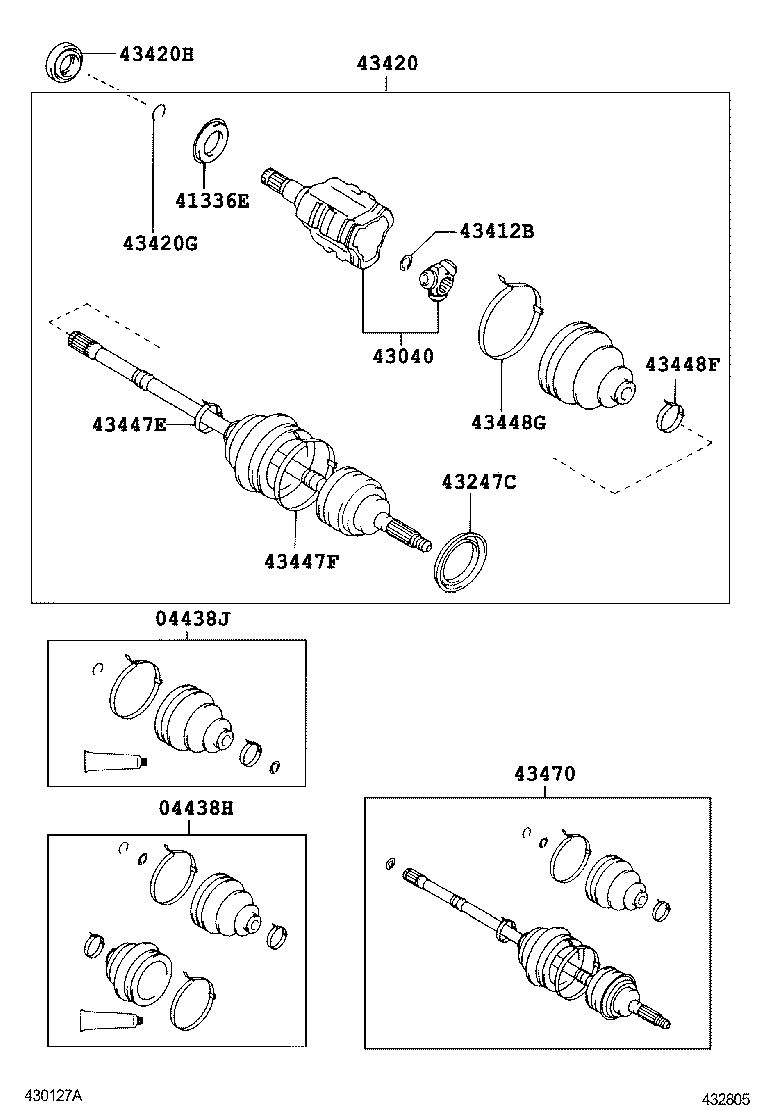

Click highlighted areas on diagram

Part #	Description	Period	Qty
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04438-10080	UZS173	09/1999 - 08/2001	1
04438-10080	UZS173	08/2001 - 06/2004	1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-10070	JZS173,179,UZS173	09/1999 - 08/2001	1
04438-10070	UZS173	08/2001 - 06/2004	1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-32010	JZS173,179,UZS173	08/2001 - 12/2999	1
41336-32010	JZS173,179,UZS173	09/1999 - 08/2001	1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-30010	UZS173	09/1999 - 08/2001	1
43040-30010	UZS173	08/2001 - 06/2004	1
43247C - DEFLECTOR, FRONT WHEEL BEARING DUST, LH NO.2
43247-12010	JZS173,179,UZS173	09/1999 - 08/2001	1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
90520-20065	JZS173,179,UZS173	09/1999 - 08/2001	1
90520-20065	JZS173,179,UZS173	08/2001 - 12/2999	1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-30010	UZS173	08/2001 - 06/2004	1
43420-30010	UZS173	09/1999 - 08/2001	1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-26004	JZS173,179,UZS173	09/1999 - 08/2001	1
90521-26004	JZS173,179,UZS173	08/2001 - 12/2999	1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-35030	JZS173,179,UZS173	09/1999 - 08/2001	1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01804	UZS173 内径=31.9	09/1999 - 08/2001	1
90949-01804	UZS173	08/2001 - 06/2004	1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
90949-01802	UZS173	08/2001 - 06/2004	1
90949-01802	UZS173 内径=88.9	09/1999 - 08/2001	1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01804	JZS173,179,UZS173	09/1999 - 08/2001	1
90949-01804	JZS173,179,UZS173	08/2001 - 12/2999	1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
90949-01803	JZS173,179,UZS173	09/1999 - 08/2001	1
90949-01803	JZS173,179,UZS173	08/2001 - 12/2999	1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-39226	UZS173	09/1999 - 08/2001	1
43470-39226	UZS173	08/2001 - 06/2004	1

UZS173-CEPZK (1999)

(9909- )JZS173,179,UZS173

(9909- )JZS173,179,UZS173
