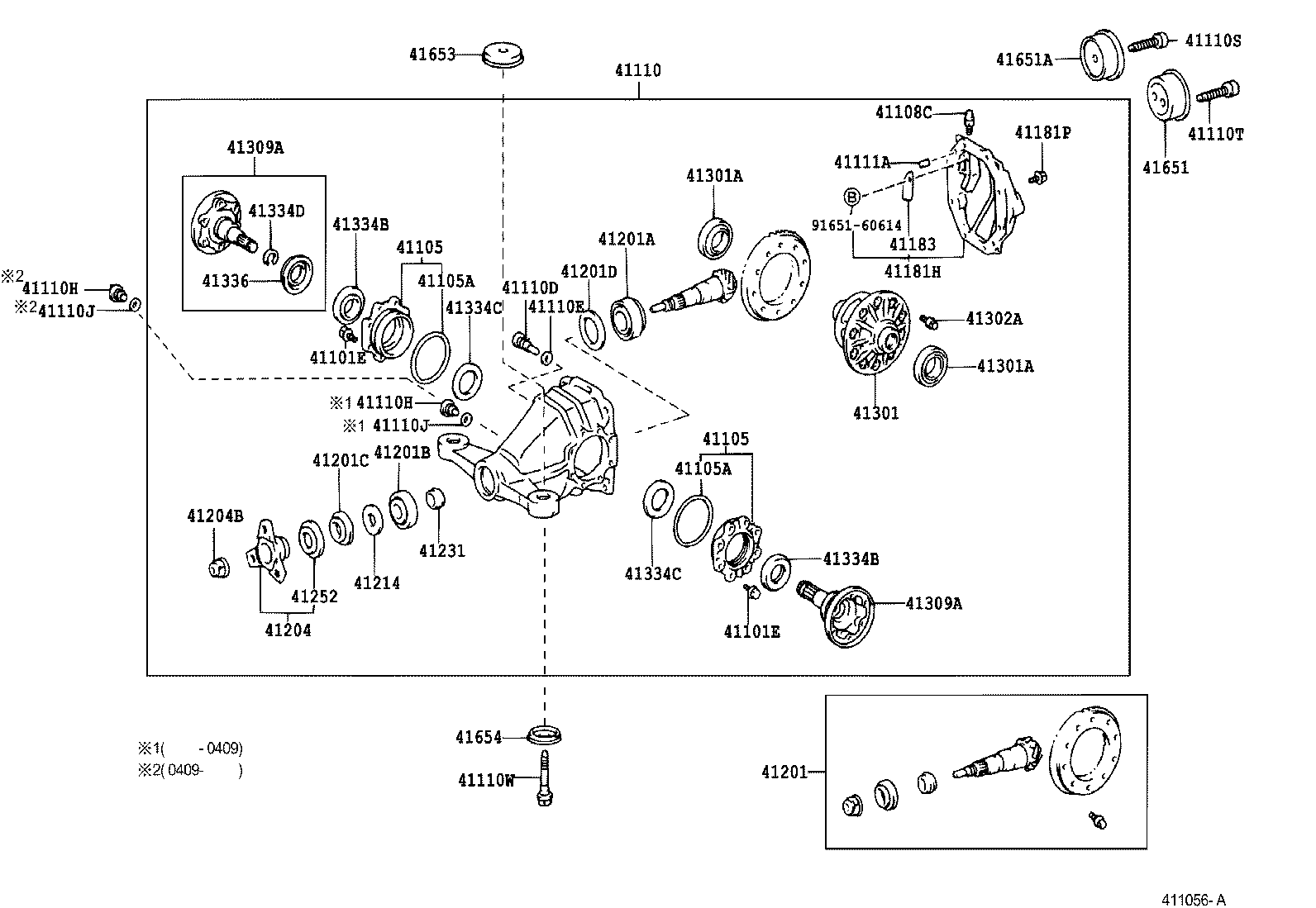

UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
(9909-0005)GS171,JZS171,173,175,179..D4,HTWC,TWC; (0005- )JKS175,JZS175 ; (0005
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34030 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41039-34030 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3A030 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110-3A031 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110-3A030 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18035 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 90341-18035 |
JZS177,UZS17# |
1 | ||
| 90341-18035 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18032 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18032 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) | ||||
| 90930-03077 |
JZS171,173,175 |
1 | ||
| 90930-03031 |
GS171,JZS171,173,175,179 |
1 | ||
| 90930-03031 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 41110S - BOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14004 |
GS171,JZS171,173,175,179 |
1 | ||
| 90110-14003 |
JZS177,UZS17# |
1 | ||
| 90110-14003 |
UZS173 |
1 | ||
| 41110T - BOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14003 |
JZS177,UZS17# |
2 | ||
| 90110-14003 |
JZS177,UZS17# |
2 | ||
| 90110-14004 |
GS171,JZS171,173,175,179 |
2 | ||
| 41110W - BOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90109-12077 |
JZS177,UZS17# |
2 | ||
| 90109-12077 |
JZS177,UZS17# |
2 | ||
| 90109-12081 |
JZS171,173,175 |
2 | ||
| 90901-05011 |
GS171,JZS171,173,175,179 |
2 | ||
| 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90250-08120 |
GS171,JZS171,173,175,179 |
2 | ||
| 90250-08120 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90250-10017 |
JZS177,UZS17# |
2 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12164 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 90105-12164 |
GS171,JZS171,173,175,179 |
4 | ||
| 41181H - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41108-14030 |
JZS177,UZS17# |
1 | ||
| 41108-14030 |
UZS173 |
1 | ||
| 41181-22060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41181-22060 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41108-53010 |
JZS171,173 |
1 | ||
| 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-10117 |
JZS177,UZS17# |
8 | ||
| 90105-10417 |
JZS177,UZS17# |
8 | ||
| 90105-10417 |
GS171,JZS171,173,179..D4,HTWC,TWC HEAD=ﾍｲﾒﾝ ﾀｲﾌﾟ |
8 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-14010 |
UZS173 |
1 | ||
| 41183-14010 |
JZS177,UZS17# |
1 | ||
| 41183-53010 |
JZS171,173 |
1 | ||
| 41183A - BOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR | ||||
| 91611-B0614 |
JZS171,173 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80027 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41201-80004 |
JZS171,173,179..4FC..TWC *FGR=43:10=4.300 |
1 | ||
| 41201-80027 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41201-80004 |
JZS171,173,179..4FC..(D4,TWC) *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35104 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 90366-45016 |
JZS177,UZS17# |
1 | ||
| 90366-35104 |
GS171,JZS171,173,179..4FC..(D4,HTWC,TWC) |
1 | ||
| 90366-45016 |
UZS173 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-34010 |
UZS173 |
1 | ||
| 90366-30078 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 90366-30078 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 90366-34010 |
JZS177,UZS17# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38070 |
GS171,JZS171,173,175,179 |
1 | ||
| 90311-44005 |
JZS177,UZS17# |
1 | ||
| 90311-38070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 90311-44005 |
JZS177,UZS17# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35500 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.79 |
1 | ||
| 90201-35497 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.70 |
1 | ||
| 90201-35499 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.76 |
1 | ||
| 90201-35498 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.73 |
1 | ||
| 90201-35501 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.82 |
1 | ||
| 90201-35502 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.85 |
1 | ||
| 90201-35505 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.94 |
1 | ||
| 90201-35506 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.97 |
1 | ||
| 90201-35504 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.91 |
1 | ||
| 90201-35509 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.06 |
1 | ||
| 90201-35503 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.88 |
1 | ||
| 90201-35511 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.12 |
1 | ||
| 90201-35517 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35508 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.03 |
1 | ||
| 90201-35514 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.21 |
1 | ||
| 90201-70001 |
JZS177,UZS17# 厚さ=1.87,ﾏｰｸ 87 |
1 | ||
| 90201-35507 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.00 |
1 | ||
| 90201-70007 |
JZS177,UZS17# 厚さ=1.93,ﾏｰｸ 93 |
1 | ||
| 90201-70006 |
JZS177,UZS17# 厚さ=1.92,ﾏｰｸ 92 |
1 | ||
| 90201-35513 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.18 |
1 | ||
| 90201-35515 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-70009 |
JZS177,UZS17# 厚さ=1.95,ﾏｰｸ 95 |
1 | ||
| 90201-35510 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.09 |
1 | ||
| 90201-70004 |
JZS177,UZS17# 厚さ=1.90,ﾏｰｸ 90 |
1 | ||
| 90201-70003 |
JZS177,UZS17# 厚さ=1.89,ﾏｰｸ 89 |
1 | ||
| 90201-70005 |
JZS177,UZS17# 厚さ=1.91,ﾏｰｸ 91 |
1 | ||
| 90201-35516 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35512 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.15 |
1 | ||
| 90201-70011 |
JZS177,UZS17# 厚さ=1.97,ﾏｰｸ 97 |
1 | ||
| 90201-70010 |
JZS177,UZS17# 厚さ=1.96,ﾏｰｸ 96 |
1 | ||
| 90201-70002 |
JZS177,UZS17# 厚さ=1.88,ﾏｰｸ 88 |
1 | ||
| 90201-70017 |
JZS177,UZS17# 厚さ=2.03,ﾏｰｸ 03 |
1 | ||
| 90201-70016 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
1 | ||
| 90201-70008 |
JZS177,UZS17# 厚さ=1.94,ﾏｰｸ 94 |
1 | ||
| 90201-70019 |
JZS177,UZS17# 厚さ=2.05,ﾏｰｸ 05 |
1 | ||
| 90201-70012 |
JZS177,UZS17# 厚さ=1.98,ﾏｰｸ 98 |
1 | ||
| 90201-35518 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-70018 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
1 | ||
| 90201-70014 |
JZS177,UZS17# 厚さ=2.00,ﾏｰｸ 00 |
1 | ||
| 90201-70013 |
JZS177,UZS17# 厚さ=1.99,ﾏｰｸ 99 |
1 | ||
| 90201-70020 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
1 | ||
| 90201-70026 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
1 | ||
| 90201-70022 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
1 | ||
| 90201-70025 |
JZS177,UZS17# 厚さ=2.11,ﾏｰｸ 11 |
1 | ||
| 90201-70024 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
1 | ||
| 90201-70027 |
JZS177,UZS17# 厚さ=2.13,ﾏｰｸ 13 |
1 | ||
| 90201-70032 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
1 | ||
| 90201-70030 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
1 | ||
| 90201-70035 |
JZS177,UZS17# 厚さ=2.21,ﾏｰｸ 21 |
1 | ||
| 90201-70023 |
JZS177,UZS17# 厚さ=2.09,ﾏｰｸ 09 |
1 | ||
| 90201-70015 |
JZS177,UZS17# 厚さ=2.01,ﾏｰｸ 01 |
1 | ||
| 90201-70037 |
JZS177,UZS17# 厚さ=2.23,ﾏｰｸ 23 |
1 | ||
| 90201-70021 |
JZS177,UZS17# 厚さ=2.07,ﾏｰｸ 07 |
1 | ||
| 90201-70034 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
1 | ||
| 90201-70039 |
JZS177,UZS17# 厚さ=2.25,ﾏｰｸ 25 |
1 | ||
| 90201-70036 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
1 | ||
| 90201-70031 |
JZS177,UZS17# 厚さ=2.17,ﾏｰｸ 17 |
1 | ||
| 90201-70033 |
JZS177,UZS17# 厚さ=2.19,ﾏｰｸ 19 |
1 | ||
| 90201-70028 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
1 | ||
| 90201-70029 |
JZS177,UZS17# 厚さ=2.15,ﾏｰｸ 15 |
1 | ||
| 90201-70041 |
JZS177,UZS17# 厚さ=2.27,ﾏｰｸ 27 |
1 | ||
| 90201-70006 |
JZS177,UZS17# 厚さ=1.92,ﾏｰｸ 92 |
1 | ||
| 90201-70001 |
JZS177,UZS17# 厚さ=1.87,ﾏｰｸ 87 |
1 | ||
| 90201-70007 |
JZS177,UZS17# 厚さ=1.93,ﾏｰｸ 93 |
1 | ||
| 90201-70042 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
1 | ||
| 90201-70004 |
JZS177,UZS17# 厚さ=1.90,ﾏｰｸ 90 |
1 | ||
| 90201-70009 |
JZS177,UZS17# 厚さ=1.95,ﾏｰｸ 95 |
1 | ||
| 90201-70003 |
JZS177,UZS17# 厚さ=1.89,ﾏｰｸ 89 |
1 | ||
| 90201-70038 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
1 | ||
| 90201-70002 |
JZS177,UZS17# 厚さ=1.88,ﾏｰｸ 88 |
1 | ||
| 90201-70040 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
1 | ||
| 90201-70008 |
JZS177,UZS17# 厚さ=1.94,ﾏｰｸ 94 |
1 | ||
| 90201-70014 |
JZS177,UZS17# 厚さ=2.00,ﾏｰｸ 00 |
1 | ||
| 90201-70016 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
1 | ||
| 90201-70005 |
JZS177,UZS17# 厚さ=1.91,ﾏｰｸ 91 |
1 | ||
| 90201-70019 |
JZS177,UZS17# 厚さ=2.05,ﾏｰｸ 05 |
1 | ||
| 90201-70015 |
JZS177,UZS17# 厚さ=2.01,ﾏｰｸ 01 |
1 | ||
| 90201-70010 |
JZS177,UZS17# 厚さ=1.96,ﾏｰｸ 96 |
1 | ||
| 90201-70024 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
1 | ||
| 90201-70013 |
JZS177,UZS17# 厚さ=1.99,ﾏｰｸ 99 |
1 | ||
| 90201-70021 |
JZS177,UZS17# 厚さ=2.07,ﾏｰｸ 07 |
1 | ||
| 90201-70023 |
JZS177,UZS17# 厚さ=2.09,ﾏｰｸ 09 |
1 | ||
| 90201-70012 |
JZS177,UZS17# 厚さ=1.98,ﾏｰｸ 98 |
1 | ||
| 90201-70031 |
JZS177,UZS17# 厚さ=2.17,ﾏｰｸ 17 |
1 | ||
| 90201-70020 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
1 | ||
| 90201-70011 |
JZS177,UZS17# 厚さ=1.97,ﾏｰｸ 97 |
1 | ||
| 90201-70022 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
1 | ||
| 90201-70028 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
1 | ||
| 90201-70018 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
1 | ||
| 90201-70035 |
JZS177,UZS17# 厚さ=2.21,ﾏｰｸ 21 |
1 | ||
| 90201-70017 |
JZS177,UZS17# 厚さ=2.03,ﾏｰｸ 03 |
1 | ||
| 90201-70036 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
1 | ||
| 90201-70027 |
JZS177,UZS17# 厚さ=2.13,ﾏｰｸ 13 |
1 | ||
| 90201-70041 |
JZS177,UZS17# 厚さ=2.27,ﾏｰｸ 27 |
1 | ||
| 90201-70030 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
1 | ||
| 90201-70026 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
1 | ||
| 90201-70038 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
1 | ||
| 90201-70039 |
JZS177,UZS17# 厚さ=2.25,ﾏｰｸ 25 |
1 | ||
| 90201-70032 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
1 | ||
| 90201-70029 |
JZS177,UZS17# 厚さ=2.15,ﾏｰｸ 15 |
1 | ||
| 90201-70040 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
1 | ||
| 90201-70033 |
JZS177,UZS17# 厚さ=2.19,ﾏｰｸ 19 |
1 | ||
| 90201-70034 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
1 | ||
| 90201-35500 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.79 |
1 | ||
| 90201-70025 |
JZS177,UZS17# 厚さ=2.11,ﾏｰｸ 11 |
1 | ||
| 90201-35501 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.82 |
1 | ||
| 90201-70042 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
1 | ||
| 90201-35502 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.85 |
1 | ||
| 90201-35512 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.15 |
1 | ||
| 90201-35498 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.73 |
1 | ||
| 90201-35504 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.91 |
1 | ||
| 90201-35511 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.12 |
1 | ||
| 90201-35510 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.09 |
1 | ||
| 90201-35503 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.88 |
1 | ||
| 90201-35499 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.76 |
1 | ||
| 90201-35513 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.18 |
1 | ||
| 90201-35508 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.03 |
1 | ||
| 90201-35497 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.70 |
1 | ||
| 90201-35506 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.97 |
1 | ||
| 90201-35517 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-70037 |
JZS177,UZS17# 厚さ=2.23,ﾏｰｸ 23 |
1 | ||
| 90201-35518 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35507 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.00 |
1 | ||
| 90201-35514 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.21 |
1 | ||
| 90201-35509 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.06 |
1 | ||
| 90201-35515 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35516 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35505 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.94 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-24020 |
UZS173 |
1 | ||
| 41204-24020 |
UZS173 |
1 | ||
| 41204-35050 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41204-35050 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 外径=37 |
1 | ||
| 90179-26005 |
JZS177,UZS17# 外径=40.4 |
1 | ||
| 90179-18019 |
GS171,JZS171,173,179..D4,HTWC,TWC 外径=37 |
1 | ||
| 90179-18020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 外径=33.5 |
1 | ||
| 90179-18020 |
GS171,JZS171,173,179..D4,HTWC,TWC 外径=33.5 |
1 | ||
| 90179-26005 |
JZS177,UZS17# 外径=40.4 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-50010 |
JZS177,UZS17# |
1 | ||
| 41214-35020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41214-35020 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41214-50010 |
JZS177,UZS17# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
GS171,JZS171,173,179..D4,HTWC,TWC |
5 | ||
| 41222-35030 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GS171,JKS175,JZS171,173,175,179 |
10 | ||
| 90101-11353 |
GS171,JZS171,173,175,179 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-50010 |
JZS177,UZS17# |
1 | ||
| 41231-22010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41231-22010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41231-50010 |
JZS177,UZS17# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-24010 |
JZS177,UZS17# |
1 | ||
| 41252-24010 |
JZS177,UZS17# |
1 | ||
| 41252-30010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41252-30010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50033 |
JZS177,UZS17# |
2 | ||
| 90366-50033 |
UZS173 |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50033 |
JZS177,UZS17# |
2 | ||
| 90366-50033 |
UZS173 |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-51010 |
JZS171,173,179..4FC..TWC |
2 | ||
| 41309-30050 |
JZS177,UZS173 |
2 | ||
| 41309-51010 |
JZS171,173,179..D4,TWC |
2 | ||
| 41309-30050 |
UZS173 |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-51010 |
JZS171,173,179..4FC..TWC |
2 | ||
| 41309-30050 |
JZS177,UZS173 |
2 | ||
| 41309-51010 |
JZS171,173,179..D4,TWC |
2 | ||
| 41309-30050 |
UZS173 |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-14040 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41331 - GEAR, REAR DIFFERENTIAL SIDE | ||||
| 41331-14040 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-47008 |
UZS173 |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 90311-47008 |
JZS177,UZS17# |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-47008 |
UZS173 |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 90311-47008 |
JZS177,UZS17# |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.64 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.58 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.82 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.94 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.76 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.88 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.06 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.00 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.70 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.66 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.78 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.62 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.68 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.98 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.72 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.60 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.84 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.92 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.08 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.86 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.80 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.96 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.20 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.74 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.02 |
2 | ||
| 90201-63005 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.14 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.90 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.10 |
2 | ||
| 90201-63001 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.22 |
2 | ||
| 90201-63003 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.16 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.04 |
2 | ||
| 90201-63011 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63012 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63008 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63007 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63004 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63006 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63014 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63017 |
JZS177,UZS17# 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63010 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63009 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63016 |
JZS177,UZS17# 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63013 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63002 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63022 |
JZS177,UZS17# 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63015 |
JZS177,UZS17# 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63018 |
JZS177,UZS17# 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63023 |
JZS177,UZS17# 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63024 |
JZS177,UZS17# 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63021 |
JZS177,UZS17# 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63019 |
JZS177,UZS17# 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63020 |
JZS177,UZS17# 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
JZS177,UZS17# 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63025 |
JZS177,UZS17# 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63030 |
JZS177,UZS17# 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63029 |
JZS177,UZS17# 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63033 |
JZS177,UZS17# 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63028 |
JZS177,UZS17# 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63026 |
JZS177,UZS17# 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63031 |
JZS177,UZS17# 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63035 |
JZS177,UZS17# 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63039 |
JZS177,UZS17# 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63038 |
JZS177,UZS17# 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
JZS177,UZS17# 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63041 |
JZS177,UZS17# 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-63032 |
JZS177,UZS17# 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63036 |
JZS177,UZS17# 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63042 |
JZS177,UZS17# 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63034 |
JZS177,UZS17# 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63040 |
JZS177,UZS17# 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63043 |
JZS177,UZS17# 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63001 |
UZS173 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90201-63008 |
UZS173 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63003 |
UZS173 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90201-63002 |
UZS173 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63017 |
UZS173 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63011 |
UZS173 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63016 |
UZS173 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63006 |
UZS173 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63013 |
UZS173 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63018 |
UZS173 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63014 |
UZS173 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63005 |
UZS173 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90201-63007 |
UZS173 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63025 |
UZS173 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63004 |
UZS173 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63009 |
UZS173 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63026 |
UZS173 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63020 |
UZS173 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
UZS173 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63022 |
UZS173 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63032 |
UZS173 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63019 |
UZS173 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63021 |
UZS173 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63034 |
UZS173 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63029 |
UZS173 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63030 |
UZS173 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63031 |
UZS173 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63024 |
UZS173 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63028 |
UZS173 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63036 |
UZS173 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63038 |
UZS173 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
UZS173 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63042 |
UZS173 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63015 |
UZS173 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63023 |
UZS173 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63039 |
UZS173 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63043 |
UZS173 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63010 |
UZS173 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63012 |
UZS173 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63035 |
UZS173 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63033 |
UZS173 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63040 |
UZS173 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63041 |
UZS173 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.58 |
2 | ||
| 90201-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.64 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.70 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.06 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.82 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.00 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.76 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.94 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.88 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.66 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.72 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.78 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.68 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.80 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.86 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.60 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.74 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.96 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.90 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.62 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.08 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.14 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.84 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.98 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.10 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.16 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.20 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.04 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.92 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.22 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.02 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.64 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.58 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.82 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.94 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.76 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.88 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.06 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.00 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.70 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.66 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.78 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.62 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.68 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.98 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.72 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.60 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.84 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.92 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.08 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.86 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.80 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.96 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.20 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.74 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.02 |
2 | ||
| 90201-63005 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.14 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.90 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.10 |
2 | ||
| 90201-63001 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.22 |
2 | ||
| 90201-63003 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.16 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.04 |
2 | ||
| 90201-63011 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63012 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63008 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63007 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63004 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63006 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63014 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63017 |
JZS177,UZS17# 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63010 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63009 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63016 |
JZS177,UZS17# 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63013 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63002 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63022 |
JZS177,UZS17# 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63015 |
JZS177,UZS17# 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63018 |
JZS177,UZS17# 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63023 |
JZS177,UZS17# 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63024 |
JZS177,UZS17# 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63021 |
JZS177,UZS17# 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63019 |
JZS177,UZS17# 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63020 |
JZS177,UZS17# 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
JZS177,UZS17# 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63025 |
JZS177,UZS17# 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63030 |
JZS177,UZS17# 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63029 |
JZS177,UZS17# 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63033 |
JZS177,UZS17# 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63028 |
JZS177,UZS17# 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63026 |
JZS177,UZS17# 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63031 |
JZS177,UZS17# 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63035 |
JZS177,UZS17# 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63039 |
JZS177,UZS17# 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63038 |
JZS177,UZS17# 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
JZS177,UZS17# 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63041 |
JZS177,UZS17# 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-63032 |
JZS177,UZS17# 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63036 |
JZS177,UZS17# 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63042 |
JZS177,UZS17# 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63034 |
JZS177,UZS17# 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63040 |
JZS177,UZS17# 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63043 |
JZS177,UZS17# 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63001 |
UZS173 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90201-63008 |
UZS173 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63003 |
UZS173 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90201-63002 |
UZS173 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63017 |
UZS173 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63011 |
UZS173 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63016 |
UZS173 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63006 |
UZS173 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63013 |
UZS173 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63018 |
UZS173 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63014 |
UZS173 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63005 |
UZS173 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90201-63007 |
UZS173 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63025 |
UZS173 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63004 |
UZS173 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63009 |
UZS173 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63026 |
UZS173 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63020 |
UZS173 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
UZS173 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63022 |
UZS173 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63032 |
UZS173 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63019 |
UZS173 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63021 |
UZS173 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63034 |
UZS173 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63029 |
UZS173 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63030 |
UZS173 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63031 |
UZS173 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63024 |
UZS173 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63028 |
UZS173 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63036 |
UZS173 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63038 |
UZS173 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
UZS173 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63042 |
UZS173 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63015 |
UZS173 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63023 |
UZS173 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63039 |
UZS173 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63043 |
UZS173 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63010 |
UZS173 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63012 |
UZS173 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63035 |
UZS173 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63033 |
UZS173 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63040 |
UZS173 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63041 |
UZS173 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.58 |
2 | ||
| 90201-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.64 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.70 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.06 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.82 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.00 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.76 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.94 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.88 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.66 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.72 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.78 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.68 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.80 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.86 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.60 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.74 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.96 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.90 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.62 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.08 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.14 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.84 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.98 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.10 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.16 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.20 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.04 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.92 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.22 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.02 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.5 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41336-22010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41336-24020 |
JZS177,UZS17# |
2 | ||
| 41336-24020 |
JZS177,UZS17# |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41341 - PINION, REAR DIFFERENTIAL | ||||
| 41341-30020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41342-22021 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41342-22021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41351-30060 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41351-30060 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30050 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.1 |
2 | ||
| 41361-30040 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.0 |
2 | ||
| 41361-30090 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.5 |
2 | ||
| 41361-30060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.2 |
2 | ||
| 41361-30070 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.3 |
2 | ||
| 41361-30100 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.6 |
2 | ||
| 41361-30080 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.4 |
2 | ||
| 41361-30040 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.0 |
2 | ||
| 41361-30090 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.5 |
2 | ||
| 41361-30070 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.3 |
2 | ||
| 41361-30050 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.1 |
2 | ||
| 41361-30060 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.2 |
2 | ||
| 41361-30080 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.4 |
2 | ||
| 41361-30100 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30050 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.1 |
2 | ||
| 41361-30040 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.0 |
2 | ||
| 41361-30090 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.5 |
2 | ||
| 41361-30060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.2 |
2 | ||
| 41361-30070 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.3 |
2 | ||
| 41361-30100 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.6 |
2 | ||
| 41361-30080 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.4 |
2 | ||
| 41361-30040 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.0 |
2 | ||
| 41361-30090 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.5 |
2 | ||
| 41361-30070 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.3 |
2 | ||
| 41361-30050 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.1 |
2 | ||
| 41361-30060 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.2 |
2 | ||
| 41361-30080 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.4 |
2 | ||
| 41361-30100 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.6 |
2 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-30060 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 41651-30060 |
GS171,JZS171,173,175,179 |
1 | ||
| 41651-30090 |
JZS177,UZS17# |
1 | ||
| 41651-30090 |
JZS177,UZS17# |
1 | ||
| 41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-30070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 41651-50140 |
JZS177,UZS17# |
1 | ||
| 41651-50140 |
JZS177,UZS17# |
1 | ||
| 41651-30070 |
GS171,JZS171,173,175,179 |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-30050 |
JZS177,UZS17# 高さ=18.0 |
2 | ||
| 41653-30050 |
JZS177,UZS17# 高さ=18.0 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-22010 |
GS171,JZS171,173,175,179 |
2 | ||
| 41654-30030 |
JZS177,UZS17# |
2 | ||
| 41654-30030 |
JZS177,UZS17# |
2 | ||
| 41654-30040 |
JZS171,173,175 |
2 | ||
(9909- )UZS173
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90105-08328 |
JZS177,UZS17# |
16 | ||
| 90105-08328 |
UZS173 |
16 | ||
| 41101E - BOLT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90105-08328 |
JZS177,UZS17# |
16 | ||
| 90105-08328 |
UZS173 |
16 | ||
| 41105 - RETAINER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41105-24010 |
UZS173 |
2 | ||
| 41105-24010 |
JZS177,UZS17# |
2 | ||
| 41105 - RETAINER SUB-ASSY, REAR DIFFERENTIAL CARRIER | ||||
| 41105-24010 |
UZS173 |
2 | ||
| 41105-24010 |
JZS177,UZS17# |
2 | ||
| 41105A - RING, O (FOR REAR DIFFERENTIAL CARRIER RETAINER) | ||||
| 90301-96003 |
UZS173 |
2 | ||
| 90301-96003 |
JZS177,UZS17# |
2 | ||
| 41105A - RING, O (FOR REAR DIFFERENTIAL CARRIER RETAINER) | ||||
| 90301-96003 |
UZS173 |
2 | ||
| 90301-96003 |
JZS177,UZS17# |
2 | ||
| 41108C - PLUG, BREATHER (FOR REAR DIFFERENTIAL CARRIER COVER) | ||||
| 90930-03077 |
JZS177,UZS17# |
1 | ||
| 90930-03077 |
UZS173 |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3A030 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110-3A031 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110-3A030 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18035 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 90341-18035 |
JZS177,UZS17# |
1 | ||
| 90341-18035 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18032 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18032 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110S - BOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14004 |
GS171,JZS171,173,175,179 |
1 | ||
| 90110-14003 |
JZS177,UZS17# |
1 | ||
| 90110-14003 |
UZS173 |
1 | ||
| 41110T - BOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14003 |
JZS177,UZS17# |
2 | ||
| 90110-14003 |
JZS177,UZS17# |
2 | ||
| 90110-14004 |
GS171,JZS171,173,175,179 |
2 | ||
| 41110W - BOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90109-12077 |
JZS177,UZS17# |
2 | ||
| 90109-12077 |
JZS177,UZS17# |
2 | ||
| 90109-12081 |
JZS171,173,175 |
2 | ||
| 90901-05011 |
GS171,JZS171,173,175,179 |
2 | ||
| 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90250-08120 |
GS171,JZS171,173,175,179 |
2 | ||
| 90250-08120 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90250-10017 |
JZS177,UZS17# |
2 | ||
| 41181H - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41108-14030 |
JZS177,UZS17# |
1 | ||
| 41108-14030 |
UZS173 |
1 | ||
| 41181-22060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41181-22060 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41108-53010 |
JZS171,173 |
1 | ||
| 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-10117 |
JZS177,UZS17# |
8 | ||
| 90105-10417 |
JZS177,UZS17# |
8 | ||
| 90105-10417 |
GS171,JZS171,173,179..D4,HTWC,TWC HEAD=ﾍｲﾒﾝ ﾀｲﾌﾟ |
8 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-14010 |
UZS173 |
1 | ||
| 41183-14010 |
JZS177,UZS17# |
1 | ||
| 41183-53010 |
JZS171,173 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80027 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41201-80004 |
JZS171,173,179..4FC..TWC *FGR=43:10=4.300 |
1 | ||
| 41201-80027 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41201-80004 |
JZS171,173,179..4FC..(D4,TWC) *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35104 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 90366-45016 |
JZS177,UZS17# |
1 | ||
| 90366-35104 |
GS171,JZS171,173,179..4FC..(D4,HTWC,TWC) |
1 | ||
| 90366-45016 |
UZS173 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-34010 |
UZS173 |
1 | ||
| 90366-30078 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 90366-30078 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 90366-34010 |
JZS177,UZS17# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38070 |
GS171,JZS171,173,175,179 |
1 | ||
| 90311-44005 |
JZS177,UZS17# |
1 | ||
| 90311-38070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 90311-44005 |
JZS177,UZS17# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35500 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.79 |
1 | ||
| 90201-35497 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.70 |
1 | ||
| 90201-35499 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.76 |
1 | ||
| 90201-35498 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.73 |
1 | ||
| 90201-35501 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.82 |
1 | ||
| 90201-35502 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.85 |
1 | ||
| 90201-35505 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.94 |
1 | ||
| 90201-35506 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.97 |
1 | ||
| 90201-35504 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.91 |
1 | ||
| 90201-35509 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.06 |
1 | ||
| 90201-35503 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.88 |
1 | ||
| 90201-35511 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.12 |
1 | ||
| 90201-35517 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35508 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.03 |
1 | ||
| 90201-35514 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.21 |
1 | ||
| 90201-70001 |
JZS177,UZS17# 厚さ=1.87,ﾏｰｸ 87 |
1 | ||
| 90201-35507 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.00 |
1 | ||
| 90201-70007 |
JZS177,UZS17# 厚さ=1.93,ﾏｰｸ 93 |
1 | ||
| 90201-70006 |
JZS177,UZS17# 厚さ=1.92,ﾏｰｸ 92 |
1 | ||
| 90201-35513 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.18 |
1 | ||
| 90201-35515 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-70009 |
JZS177,UZS17# 厚さ=1.95,ﾏｰｸ 95 |
1 | ||
| 90201-35510 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.09 |
1 | ||
| 90201-70004 |
JZS177,UZS17# 厚さ=1.90,ﾏｰｸ 90 |
1 | ||
| 90201-70003 |
JZS177,UZS17# 厚さ=1.89,ﾏｰｸ 89 |
1 | ||
| 90201-70005 |
JZS177,UZS17# 厚さ=1.91,ﾏｰｸ 91 |
1 | ||
| 90201-35516 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35512 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.15 |
1 | ||
| 90201-70011 |
JZS177,UZS17# 厚さ=1.97,ﾏｰｸ 97 |
1 | ||
| 90201-70010 |
JZS177,UZS17# 厚さ=1.96,ﾏｰｸ 96 |
1 | ||
| 90201-70002 |
JZS177,UZS17# 厚さ=1.88,ﾏｰｸ 88 |
1 | ||
| 90201-70017 |
JZS177,UZS17# 厚さ=2.03,ﾏｰｸ 03 |
1 | ||
| 90201-70016 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
1 | ||
| 90201-70008 |
JZS177,UZS17# 厚さ=1.94,ﾏｰｸ 94 |
1 | ||
| 90201-70019 |
JZS177,UZS17# 厚さ=2.05,ﾏｰｸ 05 |
1 | ||
| 90201-70012 |
JZS177,UZS17# 厚さ=1.98,ﾏｰｸ 98 |
1 | ||
| 90201-35518 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-70018 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
1 | ||
| 90201-70014 |
JZS177,UZS17# 厚さ=2.00,ﾏｰｸ 00 |
1 | ||
| 90201-70013 |
JZS177,UZS17# 厚さ=1.99,ﾏｰｸ 99 |
1 | ||
| 90201-70020 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
1 | ||
| 90201-70026 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
1 | ||
| 90201-70022 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
1 | ||
| 90201-70025 |
JZS177,UZS17# 厚さ=2.11,ﾏｰｸ 11 |
1 | ||
| 90201-70024 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
1 | ||
| 90201-70027 |
JZS177,UZS17# 厚さ=2.13,ﾏｰｸ 13 |
1 | ||
| 90201-70032 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
1 | ||
| 90201-70030 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
1 | ||
| 90201-70035 |
JZS177,UZS17# 厚さ=2.21,ﾏｰｸ 21 |
1 | ||
| 90201-70023 |
JZS177,UZS17# 厚さ=2.09,ﾏｰｸ 09 |
1 | ||
| 90201-70015 |
JZS177,UZS17# 厚さ=2.01,ﾏｰｸ 01 |
1 | ||
| 90201-70037 |
JZS177,UZS17# 厚さ=2.23,ﾏｰｸ 23 |
1 | ||
| 90201-70021 |
JZS177,UZS17# 厚さ=2.07,ﾏｰｸ 07 |
1 | ||
| 90201-70034 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
1 | ||
| 90201-70039 |
JZS177,UZS17# 厚さ=2.25,ﾏｰｸ 25 |
1 | ||
| 90201-70036 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
1 | ||
| 90201-70031 |
JZS177,UZS17# 厚さ=2.17,ﾏｰｸ 17 |
1 | ||
| 90201-70033 |
JZS177,UZS17# 厚さ=2.19,ﾏｰｸ 19 |
1 | ||
| 90201-70028 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
1 | ||
| 90201-70029 |
JZS177,UZS17# 厚さ=2.15,ﾏｰｸ 15 |
1 | ||
| 90201-70041 |
JZS177,UZS17# 厚さ=2.27,ﾏｰｸ 27 |
1 | ||
| 90201-70006 |
JZS177,UZS17# 厚さ=1.92,ﾏｰｸ 92 |
1 | ||
| 90201-70001 |
JZS177,UZS17# 厚さ=1.87,ﾏｰｸ 87 |
1 | ||
| 90201-70007 |
JZS177,UZS17# 厚さ=1.93,ﾏｰｸ 93 |
1 | ||
| 90201-70042 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
1 | ||
| 90201-70004 |
JZS177,UZS17# 厚さ=1.90,ﾏｰｸ 90 |
1 | ||
| 90201-70009 |
JZS177,UZS17# 厚さ=1.95,ﾏｰｸ 95 |
1 | ||
| 90201-70003 |
JZS177,UZS17# 厚さ=1.89,ﾏｰｸ 89 |
1 | ||
| 90201-70038 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
1 | ||
| 90201-70002 |
JZS177,UZS17# 厚さ=1.88,ﾏｰｸ 88 |
1 | ||
| 90201-70040 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
1 | ||
| 90201-70008 |
JZS177,UZS17# 厚さ=1.94,ﾏｰｸ 94 |
1 | ||
| 90201-70014 |
JZS177,UZS17# 厚さ=2.00,ﾏｰｸ 00 |
1 | ||
| 90201-70016 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
1 | ||
| 90201-70005 |
JZS177,UZS17# 厚さ=1.91,ﾏｰｸ 91 |
1 | ||
| 90201-70019 |
JZS177,UZS17# 厚さ=2.05,ﾏｰｸ 05 |
1 | ||
| 90201-70015 |
JZS177,UZS17# 厚さ=2.01,ﾏｰｸ 01 |
1 | ||
| 90201-70010 |
JZS177,UZS17# 厚さ=1.96,ﾏｰｸ 96 |
1 | ||
| 90201-70024 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
1 | ||
| 90201-70013 |
JZS177,UZS17# 厚さ=1.99,ﾏｰｸ 99 |
1 | ||
| 90201-70021 |
JZS177,UZS17# 厚さ=2.07,ﾏｰｸ 07 |
1 | ||
| 90201-70023 |
JZS177,UZS17# 厚さ=2.09,ﾏｰｸ 09 |
1 | ||
| 90201-70012 |
JZS177,UZS17# 厚さ=1.98,ﾏｰｸ 98 |
1 | ||
| 90201-70031 |
JZS177,UZS17# 厚さ=2.17,ﾏｰｸ 17 |
1 | ||
| 90201-70020 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
1 | ||
| 90201-70011 |
JZS177,UZS17# 厚さ=1.97,ﾏｰｸ 97 |
1 | ||
| 90201-70022 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
1 | ||
| 90201-70028 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
1 | ||
| 90201-70018 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
1 | ||
| 90201-70035 |
JZS177,UZS17# 厚さ=2.21,ﾏｰｸ 21 |
1 | ||
| 90201-70017 |
JZS177,UZS17# 厚さ=2.03,ﾏｰｸ 03 |
1 | ||
| 90201-70036 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
1 | ||
| 90201-70027 |
JZS177,UZS17# 厚さ=2.13,ﾏｰｸ 13 |
1 | ||
| 90201-70041 |
JZS177,UZS17# 厚さ=2.27,ﾏｰｸ 27 |
1 | ||
| 90201-70030 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
1 | ||
| 90201-70026 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
1 | ||
| 90201-70038 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
1 | ||
| 90201-70039 |
JZS177,UZS17# 厚さ=2.25,ﾏｰｸ 25 |
1 | ||
| 90201-70032 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
1 | ||
| 90201-70029 |
JZS177,UZS17# 厚さ=2.15,ﾏｰｸ 15 |
1 | ||
| 90201-70040 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
1 | ||
| 90201-70033 |
JZS177,UZS17# 厚さ=2.19,ﾏｰｸ 19 |
1 | ||
| 90201-70034 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
1 | ||
| 90201-35500 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.79 |
1 | ||
| 90201-70025 |
JZS177,UZS17# 厚さ=2.11,ﾏｰｸ 11 |
1 | ||
| 90201-35501 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.82 |
1 | ||
| 90201-70042 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
1 | ||
| 90201-35502 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.85 |
1 | ||
| 90201-35512 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.15 |
1 | ||
| 90201-35498 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.73 |
1 | ||
| 90201-35504 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.91 |
1 | ||
| 90201-35511 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.12 |
1 | ||
| 90201-35510 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.09 |
1 | ||
| 90201-35503 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.88 |
1 | ||
| 90201-35499 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.76 |
1 | ||
| 90201-35513 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.18 |
1 | ||
| 90201-35508 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.03 |
1 | ||
| 90201-35497 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.70 |
1 | ||
| 90201-35506 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.97 |
1 | ||
| 90201-35517 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-70037 |
JZS177,UZS17# 厚さ=2.23,ﾏｰｸ 23 |
1 | ||
| 90201-35518 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35507 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.00 |
1 | ||
| 90201-35514 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.21 |
1 | ||
| 90201-35509 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.06 |
1 | ||
| 90201-35515 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35516 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35505 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.94 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-24020 |
UZS173 |
1 | ||
| 41204-24020 |
UZS173 |
1 | ||
| 41204-35050 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41204-35050 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 外径=37 |
1 | ||
| 90179-26005 |
JZS177,UZS17# 外径=40.4 |
1 | ||
| 90179-18019 |
GS171,JZS171,173,179..D4,HTWC,TWC 外径=37 |
1 | ||
| 90179-18020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 外径=33.5 |
1 | ||
| 90179-18020 |
GS171,JZS171,173,179..D4,HTWC,TWC 外径=33.5 |
1 | ||
| 90179-26005 |
JZS177,UZS17# 外径=40.4 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-50010 |
JZS177,UZS17# |
1 | ||
| 41214-35020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41214-35020 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41214-50010 |
JZS177,UZS17# |
1 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-50010 |
JZS177,UZS17# |
1 | ||
| 41231-22010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41231-22010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41231-50010 |
JZS177,UZS17# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-24010 |
JZS177,UZS17# |
1 | ||
| 41252-24010 |
JZS177,UZS17# |
1 | ||
| 41252-30010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41252-30010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41301 - CASE SUB-ASSY, REAR DIFFERENTIAL | ||||
| 41301-14100 |
UZS173 |
1 | ||
| 41301-14100 |
UZS173 |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50033 |
JZS177,UZS17# |
2 | ||
| 90366-50033 |
UZS173 |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50033 |
JZS177,UZS17# |
2 | ||
| 90366-50033 |
UZS173 |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41302A - BOLT(FOR REAR DIFFERENTIAL CASE) | ||||
| 90105-12219 |
JZS177,UZS17# |
10 | ||
| 90105-12219 |
JZS177,UZS17# |
10 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-51010 |
JZS171,173,179..4FC..TWC |
2 | ||
| 41309-30050 |
JZS177,UZS173 |
2 | ||
| 41309-51010 |
JZS171,173,179..D4,TWC |
2 | ||
| 41309-30050 |
UZS173 |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-51010 |
JZS171,173,179..4FC..TWC |
2 | ||
| 41309-30050 |
JZS177,UZS173 |
2 | ||
| 41309-51010 |
JZS171,173,179..D4,TWC |
2 | ||
| 41309-30050 |
UZS173 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-47008 |
UZS173 |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 90311-47008 |
JZS177,UZS17# |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-47008 |
UZS173 |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 90311-47008 |
JZS177,UZS17# |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.64 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.58 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.82 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.94 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.76 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.88 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.06 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.00 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.70 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.66 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.78 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.62 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.68 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.98 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.72 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.60 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.84 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.92 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.08 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.86 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.80 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.96 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.20 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.74 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.02 |
2 | ||
| 90201-63005 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.14 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.90 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.10 |
2 | ||
| 90201-63001 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.22 |
2 | ||
| 90201-63003 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.16 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.04 |
2 | ||
| 90201-63011 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63012 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63008 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63007 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63004 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63006 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63014 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63017 |
JZS177,UZS17# 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63010 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63009 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63016 |
JZS177,UZS17# 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63013 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63002 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63022 |
JZS177,UZS17# 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63015 |
JZS177,UZS17# 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63018 |
JZS177,UZS17# 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63023 |
JZS177,UZS17# 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63024 |
JZS177,UZS17# 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63021 |
JZS177,UZS17# 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63019 |
JZS177,UZS17# 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63020 |
JZS177,UZS17# 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
JZS177,UZS17# 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63025 |
JZS177,UZS17# 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63030 |
JZS177,UZS17# 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63029 |
JZS177,UZS17# 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63033 |
JZS177,UZS17# 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63028 |
JZS177,UZS17# 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63026 |
JZS177,UZS17# 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63031 |
JZS177,UZS17# 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63035 |
JZS177,UZS17# 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63039 |
JZS177,UZS17# 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63038 |
JZS177,UZS17# 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
JZS177,UZS17# 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63041 |
JZS177,UZS17# 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-63032 |
JZS177,UZS17# 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63036 |
JZS177,UZS17# 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63042 |
JZS177,UZS17# 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63034 |
JZS177,UZS17# 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63040 |
JZS177,UZS17# 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63043 |
JZS177,UZS17# 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63001 |
UZS173 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90201-63008 |
UZS173 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63003 |
UZS173 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90201-63002 |
UZS173 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63017 |
UZS173 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63011 |
UZS173 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63016 |
UZS173 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63006 |
UZS173 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63013 |
UZS173 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63018 |
UZS173 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63014 |
UZS173 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63005 |
UZS173 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90201-63007 |
UZS173 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63025 |
UZS173 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63004 |
UZS173 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63009 |
UZS173 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63026 |
UZS173 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63020 |
UZS173 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
UZS173 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63022 |
UZS173 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63032 |
UZS173 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63019 |
UZS173 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63021 |
UZS173 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63034 |
UZS173 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63029 |
UZS173 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63030 |
UZS173 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63031 |
UZS173 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63024 |
UZS173 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63028 |
UZS173 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63036 |
UZS173 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63038 |
UZS173 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
UZS173 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63042 |
UZS173 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63015 |
UZS173 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63039 |
UZS173 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63043 |
UZS173 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63010 |
UZS173 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63012 |
UZS173 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63035 |
UZS173 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63023 |
UZS173 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63033 |
UZS173 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63040 |
UZS173 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63041 |
UZS173 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.58 |
2 | ||
| 90201-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.64 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.70 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.06 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.82 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.00 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.76 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.94 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.88 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.66 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.72 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.78 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.68 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.80 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.86 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.60 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.74 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.96 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.90 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.62 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.08 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.14 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.84 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.98 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.10 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.16 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.20 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.04 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.92 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.22 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.02 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.64 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.58 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.82 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.94 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.76 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.88 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.06 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.00 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.70 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.66 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.78 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.62 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.68 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.98 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.72 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.60 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.84 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.92 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.08 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.86 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.80 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.96 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.20 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.74 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.02 |
2 | ||
| 90201-63005 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.14 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.90 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.10 |
2 | ||
| 90201-63001 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.22 |
2 | ||
| 90201-63003 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.16 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.04 |
2 | ||
| 90201-63011 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63012 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63008 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63007 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63004 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63006 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63014 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63017 |
JZS177,UZS17# 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63010 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63009 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63016 |
JZS177,UZS17# 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63013 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63002 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63022 |
JZS177,UZS17# 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63015 |
JZS177,UZS17# 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63018 |
JZS177,UZS17# 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63023 |
JZS177,UZS17# 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63024 |
JZS177,UZS17# 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63021 |
JZS177,UZS17# 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63019 |
JZS177,UZS17# 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63020 |
JZS177,UZS17# 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
JZS177,UZS17# 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63025 |
JZS177,UZS17# 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63030 |
JZS177,UZS17# 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63029 |
JZS177,UZS17# 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63033 |
JZS177,UZS17# 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63028 |
JZS177,UZS17# 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63026 |
JZS177,UZS17# 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63031 |
JZS177,UZS17# 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63035 |
JZS177,UZS17# 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63039 |
JZS177,UZS17# 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63038 |
JZS177,UZS17# 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
JZS177,UZS17# 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63041 |
JZS177,UZS17# 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-63032 |
JZS177,UZS17# 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63036 |
JZS177,UZS17# 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63042 |
JZS177,UZS17# 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63034 |
JZS177,UZS17# 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63040 |
JZS177,UZS17# 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63043 |
JZS177,UZS17# 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63001 |
UZS173 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90201-63008 |
UZS173 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63003 |
UZS173 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90201-63002 |
UZS173 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63017 |
UZS173 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63011 |
UZS173 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63016 |
UZS173 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63006 |
UZS173 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63013 |
UZS173 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63018 |
UZS173 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63014 |
UZS173 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63005 |
UZS173 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90201-63007 |
UZS173 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63025 |
UZS173 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63004 |
UZS173 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63009 |
UZS173 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63026 |
UZS173 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63020 |
UZS173 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
UZS173 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63022 |
UZS173 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63032 |
UZS173 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63019 |
UZS173 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63021 |
UZS173 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63034 |
UZS173 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63029 |
UZS173 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63030 |
UZS173 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63031 |
UZS173 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63024 |
UZS173 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63028 |
UZS173 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63036 |
UZS173 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63038 |
UZS173 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
UZS173 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63042 |
UZS173 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63015 |
UZS173 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63023 |
UZS173 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63039 |
UZS173 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63043 |
UZS173 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63010 |
UZS173 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63012 |
UZS173 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63035 |
UZS173 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63033 |
UZS173 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63040 |
UZS173 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63041 |
UZS173 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.58 |
2 | ||
| 90201-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.64 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.70 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.06 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.82 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.00 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.76 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.94 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.88 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.66 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.72 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.78 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.68 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.80 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.86 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.60 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.74 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.96 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.90 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.62 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.08 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.14 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.84 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.98 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.10 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.16 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.20 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.04 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.92 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.22 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.02 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.5 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41336-22010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41336-24020 |
JZS177,UZS17# |
2 | ||
| 41336-24020 |
JZS177,UZS17# |
2 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-30060 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 41651-30060 |
GS171,JZS171,173,175,179 |
1 | ||
| 41651-30090 |
JZS177,UZS17# |
1 | ||
| 41651-30090 |
JZS177,UZS17# |
1 | ||
| 41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-30070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 41651-50140 |
JZS177,UZS17# |
1 | ||
| 41651-50140 |
JZS177,UZS17# |
1 | ||
| 41651-30070 |
GS171,JZS171,173,175,179 |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-30050 |
JZS177,UZS17# 高さ=18.0 |
2 | ||
| 41653-30050 |
JZS177,UZS17# 高さ=18.0 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-22010 |
GS171,JZS171,173,175,179 |
2 | ||
| 41654-30030 |
JZS177,UZS17# |
2 | ||
| 41654-30030 |
JZS177,UZS17# |
2 | ||
| 41654-30040 |
JZS171,173,175 |
2 | ||
| Common parts | ||||
| 91651-60614 | ||||
(0005- )JZS171..D4 ; (0005- )GS171,JZS171,173,179..4FC..HTWC,TWC ; (0108-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41039 - GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41039-34030 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41039-34030 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-3A030 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110-3A031 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110-3A030 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41110D - PLUG (FOR REAR DIFFERENTIAL DRAIN) | ||||
| 90341-18035 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 90341-18035 |
JZS177,UZS17# |
1 | ||
| 90341-18035 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110E - GASKET (FOR REAR DIFFERENTIAL DRAIN PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18032 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110H - PLUG (FOR REAR DIFFERENTIAL FILLER) | ||||
| 90341-18032 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110J - GASKET (FOR REAR DIFFERENTIAL FILLER PLUG) | ||||
| 12157-10010 |
GS171,JZS17#,UZS17# |
1 | ||
| 41110K - PLUG, BREATHER (FOR REAR DIFFERENTIAL) | ||||
| 90930-03077 |
JZS171,173,175 |
1 | ||
| 90930-03031 |
GS171,JZS171,173,175,179 |
1 | ||
| 90930-03031 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 41110S - BOLT, NO.2 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14004 |
GS171,JZS171,173,175,179 |
1 | ||
| 90110-14003 |
JZS177,UZS17# |
1 | ||
| 90110-14003 |
UZS173 |
1 | ||
| 41110T - BOLT, NO.3 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90110-14003 |
JZS177,UZS17# |
2 | ||
| 90110-14003 |
JZS177,UZS17# |
2 | ||
| 90110-14004 |
GS171,JZS171,173,175,179 |
2 | ||
| 41110W - BOLT, NO.4 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90109-12077 |
JZS177,UZS17# |
2 | ||
| 90109-12077 |
JZS177,UZS17# |
2 | ||
| 90109-12081 |
JZS171,173,175 |
2 | ||
| 90901-05011 |
GS171,JZS171,173,175,179 |
2 | ||
| 41111A - PIN, STRAIGHT (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90250-08120 |
GS171,JZS171,173,175,179 |
2 | ||
| 90250-08120 |
GS171,JKS175,JZS171,173,175,179 |
2 | ||
| 90250-10017 |
JZS177,UZS17# |
2 | ||
| 41114 - BOLT, REAR DIFFERENTIAL BEARING CAP | ||||
| 90105-12164 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 90105-12164 |
GS171,JZS171,173,175,179 |
4 | ||
| 41181H - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41108-14030 |
JZS177,UZS17# |
1 | ||
| 41108-14030 |
UZS173 |
1 | ||
| 41181-22060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41181-22060 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41108-53010 |
JZS171,173 |
1 | ||
| 41181H - COVER, REAR DIFFERENTIAL CARRIER | ||||
| 41108-14030 |
JZS177,UZS17# |
1 | ||
| 41108-14030 |
UZS173 |
1 | ||
| 41181-22060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41181-22060 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41108-53010 |
JZS171,173 |
1 | ||
| 41181P - BOLT (FOR REAR DIFFERENTIAL CARRIER COVER SETTING) | ||||
| 90105-10117 |
JZS177,UZS17# |
8 | ||
| 90105-10417 |
JZS177,UZS17# |
8 | ||
| 90105-10417 |
GS171,JZS171,173,179..D4,HTWC,TWC HEAD=ﾍｲﾒﾝ ﾀｲﾌﾟ |
8 | ||
| 41183 - DEFLECTOR, REAR DIFFERENTIAL BREATHER PLUG OIL | ||||
| 41183-14010 |
UZS173 |
1 | ||
| 41183-14010 |
JZS177,UZS17# |
1 | ||
| 41183-53010 |
JZS171,173 |
1 | ||
| 41183A - BOLT (FOR REAR DIFFERENTIAL BREATHER PLUG OIL DEFLECTOR | ||||
| 91611-B0614 |
JZS171,173 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-80027 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41201-80004 |
JZS171,173,179..4FC..TWC *FGR=43:10=4.300 |
1 | ||
| 41201-80027 |
UZS173 *FGR=49:12=4.083 |
1 | ||
| 41201-80004 |
JZS171,173,179..4FC..(D4,TWC) *FGR=43:10=4.300 |
1 | ||
| 41201A - BEARING (FOR REAR DRIVE PINION REAR) | ||||
| 90366-35104 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 90366-45016 |
JZS177,UZS17# |
1 | ||
| 90366-35104 |
GS171,JZS171,173,179..4FC..(D4,HTWC,TWC) |
1 | ||
| 90366-45016 |
UZS173 |
1 | ||
| 41201B - BEARING (FOR REAR DRIVE PINION FRONT) | ||||
| 90366-34010 |
UZS173 |
1 | ||
| 90366-30078 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 90366-30078 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 90366-34010 |
JZS177,UZS17# |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90311-38070 |
GS171,JZS171,173,175,179 |
1 | ||
| 90311-44005 |
JZS177,UZS17# |
1 | ||
| 90311-38070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 90311-44005 |
JZS177,UZS17# |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90201-35500 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.79 |
1 | ||
| 90201-35497 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.70 |
1 | ||
| 90201-35499 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.76 |
1 | ||
| 90201-35498 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.73 |
1 | ||
| 90201-35501 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.82 |
1 | ||
| 90201-35502 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.85 |
1 | ||
| 90201-35505 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.94 |
1 | ||
| 90201-35506 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.97 |
1 | ||
| 90201-35504 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.91 |
1 | ||
| 90201-35509 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.06 |
1 | ||
| 90201-35503 |
GS171,JZS171,173,175,179 外径=47,厚さ=1.88 |
1 | ||
| 90201-35511 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.12 |
1 | ||
| 90201-35517 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-35508 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.03 |
1 | ||
| 90201-35514 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.21 |
1 | ||
| 90201-70001 |
JZS177,UZS17# 厚さ=1.87,ﾏｰｸ 87 |
1 | ||
| 90201-35507 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.00 |
1 | ||
| 90201-70007 |
JZS177,UZS17# 厚さ=1.93,ﾏｰｸ 93 |
1 | ||
| 90201-70006 |
JZS177,UZS17# 厚さ=1.92,ﾏｰｸ 92 |
1 | ||
| 90201-35513 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.18 |
1 | ||
| 90201-35515 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-70009 |
JZS177,UZS17# 厚さ=1.95,ﾏｰｸ 95 |
1 | ||
| 90201-35510 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.09 |
1 | ||
| 90201-70004 |
JZS177,UZS17# 厚さ=1.90,ﾏｰｸ 90 |
1 | ||
| 90201-70003 |
JZS177,UZS17# 厚さ=1.89,ﾏｰｸ 89 |
1 | ||
| 90201-70005 |
JZS177,UZS17# 厚さ=1.91,ﾏｰｸ 91 |
1 | ||
| 90201-35516 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35512 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.15 |
1 | ||
| 90201-70011 |
JZS177,UZS17# 厚さ=1.97,ﾏｰｸ 97 |
1 | ||
| 90201-70010 |
JZS177,UZS17# 厚さ=1.96,ﾏｰｸ 96 |
1 | ||
| 90201-70002 |
JZS177,UZS17# 厚さ=1.88,ﾏｰｸ 88 |
1 | ||
| 90201-70017 |
JZS177,UZS17# 厚さ=2.03,ﾏｰｸ 03 |
1 | ||
| 90201-70016 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
1 | ||
| 90201-70008 |
JZS177,UZS17# 厚さ=1.94,ﾏｰｸ 94 |
1 | ||
| 90201-70019 |
JZS177,UZS17# 厚さ=2.05,ﾏｰｸ 05 |
1 | ||
| 90201-70012 |
JZS177,UZS17# 厚さ=1.98,ﾏｰｸ 98 |
1 | ||
| 90201-35518 |
GS171,JZS171,173,175,179 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-70018 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
1 | ||
| 90201-70014 |
JZS177,UZS17# 厚さ=2.00,ﾏｰｸ 00 |
1 | ||
| 90201-70013 |
JZS177,UZS17# 厚さ=1.99,ﾏｰｸ 99 |
1 | ||
| 90201-70020 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
1 | ||
| 90201-70026 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
1 | ||
| 90201-70022 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
1 | ||
| 90201-70025 |
JZS177,UZS17# 厚さ=2.11,ﾏｰｸ 11 |
1 | ||
| 90201-70024 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
1 | ||
| 90201-70027 |
JZS177,UZS17# 厚さ=2.13,ﾏｰｸ 13 |
1 | ||
| 90201-70032 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
1 | ||
| 90201-70030 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
1 | ||
| 90201-70035 |
JZS177,UZS17# 厚さ=2.21,ﾏｰｸ 21 |
1 | ||
| 90201-70023 |
JZS177,UZS17# 厚さ=2.09,ﾏｰｸ 09 |
1 | ||
| 90201-70015 |
JZS177,UZS17# 厚さ=2.01,ﾏｰｸ 01 |
1 | ||
| 90201-70037 |
JZS177,UZS17# 厚さ=2.23,ﾏｰｸ 23 |
1 | ||
| 90201-70021 |
JZS177,UZS17# 厚さ=2.07,ﾏｰｸ 07 |
1 | ||
| 90201-70034 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
1 | ||
| 90201-70039 |
JZS177,UZS17# 厚さ=2.25,ﾏｰｸ 25 |
1 | ||
| 90201-70036 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
1 | ||
| 90201-70031 |
JZS177,UZS17# 厚さ=2.17,ﾏｰｸ 17 |
1 | ||
| 90201-70033 |
JZS177,UZS17# 厚さ=2.19,ﾏｰｸ 19 |
1 | ||
| 90201-70028 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
1 | ||
| 90201-70029 |
JZS177,UZS17# 厚さ=2.15,ﾏｰｸ 15 |
1 | ||
| 90201-70041 |
JZS177,UZS17# 厚さ=2.27,ﾏｰｸ 27 |
1 | ||
| 90201-70006 |
JZS177,UZS17# 厚さ=1.92,ﾏｰｸ 92 |
1 | ||
| 90201-70001 |
JZS177,UZS17# 厚さ=1.87,ﾏｰｸ 87 |
1 | ||
| 90201-70007 |
JZS177,UZS17# 厚さ=1.93,ﾏｰｸ 93 |
1 | ||
| 90201-70042 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
1 | ||
| 90201-70004 |
JZS177,UZS17# 厚さ=1.90,ﾏｰｸ 90 |
1 | ||
| 90201-70009 |
JZS177,UZS17# 厚さ=1.95,ﾏｰｸ 95 |
1 | ||
| 90201-70003 |
JZS177,UZS17# 厚さ=1.89,ﾏｰｸ 89 |
1 | ||
| 90201-70038 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
1 | ||
| 90201-70002 |
JZS177,UZS17# 厚さ=1.88,ﾏｰｸ 88 |
1 | ||
| 90201-70040 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
1 | ||
| 90201-70008 |
JZS177,UZS17# 厚さ=1.94,ﾏｰｸ 94 |
1 | ||
| 90201-70014 |
JZS177,UZS17# 厚さ=2.00,ﾏｰｸ 00 |
1 | ||
| 90201-70016 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
1 | ||
| 90201-70005 |
JZS177,UZS17# 厚さ=1.91,ﾏｰｸ 91 |
1 | ||
| 90201-70019 |
JZS177,UZS17# 厚さ=2.05,ﾏｰｸ 05 |
1 | ||
| 90201-70015 |
JZS177,UZS17# 厚さ=2.01,ﾏｰｸ 01 |
1 | ||
| 90201-70010 |
JZS177,UZS17# 厚さ=1.96,ﾏｰｸ 96 |
1 | ||
| 90201-70024 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
1 | ||
| 90201-70013 |
JZS177,UZS17# 厚さ=1.99,ﾏｰｸ 99 |
1 | ||
| 90201-70021 |
JZS177,UZS17# 厚さ=2.07,ﾏｰｸ 07 |
1 | ||
| 90201-70023 |
JZS177,UZS17# 厚さ=2.09,ﾏｰｸ 09 |
1 | ||
| 90201-70012 |
JZS177,UZS17# 厚さ=1.98,ﾏｰｸ 98 |
1 | ||
| 90201-70031 |
JZS177,UZS17# 厚さ=2.17,ﾏｰｸ 17 |
1 | ||
| 90201-70020 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
1 | ||
| 90201-70011 |
JZS177,UZS17# 厚さ=1.97,ﾏｰｸ 97 |
1 | ||
| 90201-70022 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
1 | ||
| 90201-70028 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
1 | ||
| 90201-70018 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
1 | ||
| 90201-70035 |
JZS177,UZS17# 厚さ=2.21,ﾏｰｸ 21 |
1 | ||
| 90201-70017 |
JZS177,UZS17# 厚さ=2.03,ﾏｰｸ 03 |
1 | ||
| 90201-70036 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
1 | ||
| 90201-70027 |
JZS177,UZS17# 厚さ=2.13,ﾏｰｸ 13 |
1 | ||
| 90201-70041 |
JZS177,UZS17# 厚さ=2.27,ﾏｰｸ 27 |
1 | ||
| 90201-70030 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
1 | ||
| 90201-70026 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
1 | ||
| 90201-70038 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
1 | ||
| 90201-70039 |
JZS177,UZS17# 厚さ=2.25,ﾏｰｸ 25 |
1 | ||
| 90201-70032 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
1 | ||
| 90201-70029 |
JZS177,UZS17# 厚さ=2.15,ﾏｰｸ 15 |
1 | ||
| 90201-70040 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
1 | ||
| 90201-70033 |
JZS177,UZS17# 厚さ=2.19,ﾏｰｸ 19 |
1 | ||
| 90201-70034 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
1 | ||
| 90201-35500 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.79 |
1 | ||
| 90201-70025 |
JZS177,UZS17# 厚さ=2.11,ﾏｰｸ 11 |
1 | ||
| 90201-35501 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.82 |
1 | ||
| 90201-70042 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
1 | ||
| 90201-35502 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.85 |
1 | ||
| 90201-35512 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.15 |
1 | ||
| 90201-35498 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.73 |
1 | ||
| 90201-35504 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.91 |
1 | ||
| 90201-35511 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.12 |
1 | ||
| 90201-35510 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.09 |
1 | ||
| 90201-35503 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.88 |
1 | ||
| 90201-35499 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.76 |
1 | ||
| 90201-35513 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.18 |
1 | ||
| 90201-35508 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.03 |
1 | ||
| 90201-35497 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.70 |
1 | ||
| 90201-35506 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.97 |
1 | ||
| 90201-35517 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.30,ﾏｰｸ 03 |
1 | ||
| 90201-70037 |
JZS177,UZS17# 厚さ=2.23,ﾏｰｸ 23 |
1 | ||
| 90201-35518 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.33,ﾏｰｸ 04 |
1 | ||
| 90201-35507 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.00 |
1 | ||
| 90201-35514 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.21 |
1 | ||
| 90201-35509 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.06 |
1 | ||
| 90201-35515 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.24,ﾏｰｸ 01 |
1 | ||
| 90201-35516 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=2.27,ﾏｰｸ 02 |
1 | ||
| 90201-35505 |
GS171,JKS175,JZS171,173,175,179 外径=47,厚さ=1.94 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-24020 |
UZS173 |
1 | ||
| 41204-24020 |
UZS173 |
1 | ||
| 41204-35050 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41204-35050 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41204B - NUT (FOR REAR DRIVE PINION) | ||||
| 90179-18019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 外径=37 |
1 | ||
| 90179-26005 |
JZS177,UZS17# 外径=40.4 |
1 | ||
| 90179-18019 |
GS171,JZS171,173,179..D4,HTWC,TWC 外径=37 |
1 | ||
| 90179-18020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 外径=33.5 |
1 | ||
| 90179-18020 |
GS171,JZS171,173,179..D4,HTWC,TWC 外径=33.5 |
1 | ||
| 90179-26005 |
JZS177,UZS17# 外径=40.4 |
1 | ||
| 41214 - SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL | ||||
| 41214-50010 |
JZS177,UZS17# |
1 | ||
| 41214-35020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41214-35020 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41214-50010 |
JZS177,UZS17# |
1 | ||
| 41222 - PLATE, REAR DIFFERENTIAL RING GEAR SET BOLT LOCK | ||||
| 41222-35030 |
GS171,JZS171,173,179..D4,HTWC,TWC |
5 | ||
| 41222-35030 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
5 | ||
| 41222A - BOLT (FOR REAR DIFFERENTIAL RING GEAR SET) | ||||
| 90101-11353 |
GS171,JKS175,JZS171,173,175,179 |
10 | ||
| 90101-11353 |
GS171,JZS171,173,175,179 |
10 | ||
| 41231 - SPACER, REAR DIFFERENTIAL DRIVE PINION BEARING | ||||
| 41231-50010 |
JZS177,UZS17# |
1 | ||
| 41231-22010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41231-22010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41231-50010 |
JZS177,UZS17# |
1 | ||
| 41252 - DEFLECTOR, DUST (FOR REAR DIFFERENTIAL) | ||||
| 41252-24010 |
JZS177,UZS17# |
1 | ||
| 41252-24010 |
JZS177,UZS17# |
1 | ||
| 41252-30010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41252-30010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50033 |
JZS177,UZS17# |
2 | ||
| 90366-50033 |
UZS173 |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41301A - BEARING(FOR REAR DIFFERENTIAL CASE) | ||||
| 90366-50033 |
JZS177,UZS17# |
2 | ||
| 90366-50033 |
UZS173 |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90368-50006 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-51010 |
JZS171,173,179..4FC..TWC |
2 | ||
| 41309-30050 |
JZS177,UZS173 |
2 | ||
| 41309-51010 |
JZS171,173,179..D4,TWC |
2 | ||
| 41309-30050 |
UZS173 |
2 | ||
| 41309A - SHAFT SUB-ASSY, REAR DIFFERENTIAL SIDE GEAR | ||||
| 41309-51010 |
JZS171,173,179..4FC..TWC |
2 | ||
| 41309-30050 |
JZS177,UZS173 |
2 | ||
| 41309-51010 |
JZS171,173,179..D4,TWC |
2 | ||
| 41309-30050 |
UZS173 |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-47008 |
UZS173 |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 90311-47008 |
JZS177,UZS17# |
2 | ||
| 41334B - SEAL, OIL (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90311-47008 |
UZS173 |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 90311-38071 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 90311-47008 |
JZS177,UZS17# |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.64 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.58 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.82 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.94 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.76 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.88 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.06 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.00 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.70 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.66 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.78 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.62 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.68 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.98 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.72 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.60 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.84 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.92 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.08 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.86 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.80 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.96 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.20 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.74 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.02 |
2 | ||
| 90201-63005 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.14 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.90 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.10 |
2 | ||
| 90201-63001 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.22 |
2 | ||
| 90201-63003 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.16 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.04 |
2 | ||
| 90201-63011 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63012 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63008 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63007 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63004 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63006 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63014 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63017 |
JZS177,UZS17# 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63010 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63009 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63016 |
JZS177,UZS17# 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63013 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63002 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63022 |
JZS177,UZS17# 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63015 |
JZS177,UZS17# 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63018 |
JZS177,UZS17# 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63023 |
JZS177,UZS17# 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63024 |
JZS177,UZS17# 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63021 |
JZS177,UZS17# 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63019 |
JZS177,UZS17# 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63020 |
JZS177,UZS17# 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
JZS177,UZS17# 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63025 |
JZS177,UZS17# 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63030 |
JZS177,UZS17# 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63029 |
JZS177,UZS17# 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63033 |
JZS177,UZS17# 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63028 |
JZS177,UZS17# 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63026 |
JZS177,UZS17# 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63031 |
JZS177,UZS17# 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63035 |
JZS177,UZS17# 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63039 |
JZS177,UZS17# 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63038 |
JZS177,UZS17# 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
JZS177,UZS17# 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63041 |
JZS177,UZS17# 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-63032 |
JZS177,UZS17# 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63036 |
JZS177,UZS17# 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63042 |
JZS177,UZS17# 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63034 |
JZS177,UZS17# 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63040 |
JZS177,UZS17# 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63043 |
JZS177,UZS17# 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63001 |
UZS173 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90201-63008 |
UZS173 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63003 |
UZS173 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90201-63002 |
UZS173 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63017 |
UZS173 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63011 |
UZS173 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63016 |
UZS173 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63006 |
UZS173 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63013 |
UZS173 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63018 |
UZS173 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63014 |
UZS173 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63005 |
UZS173 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90201-63007 |
UZS173 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63025 |
UZS173 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63004 |
UZS173 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63009 |
UZS173 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63026 |
UZS173 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63020 |
UZS173 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
UZS173 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63022 |
UZS173 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63032 |
UZS173 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63019 |
UZS173 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63021 |
UZS173 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63034 |
UZS173 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63029 |
UZS173 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63030 |
UZS173 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63031 |
UZS173 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63024 |
UZS173 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63028 |
UZS173 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63036 |
UZS173 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63038 |
UZS173 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
UZS173 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63042 |
UZS173 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63015 |
UZS173 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63023 |
UZS173 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63039 |
UZS173 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63043 |
UZS173 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63010 |
UZS173 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63012 |
UZS173 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63035 |
UZS173 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63033 |
UZS173 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63040 |
UZS173 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63041 |
UZS173 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.58 |
2 | ||
| 90201-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.64 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.70 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.06 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.82 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.00 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.76 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.94 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.88 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.66 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.72 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.78 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.68 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.80 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.86 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.60 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.74 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.96 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.90 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.62 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.08 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.14 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.84 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.98 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.10 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.16 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.20 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.04 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.92 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.22 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.02 |
2 | ||
| 41334C - WASHER, PLATE (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 90201-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.64 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.58 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.82 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.94 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.76 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.88 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.06 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.00 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.70 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.66 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.78 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.62 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.68 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.98 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.72 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.60 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.84 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.92 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.08 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.86 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.80 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.96 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.20 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.74 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.02 |
2 | ||
| 90201-63005 |
JZS177,UZS17# 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.14 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.90 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.10 |
2 | ||
| 90201-63001 |
JZS177,UZS17# 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.22 |
2 | ||
| 90201-63003 |
JZS177,UZS17# 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.16 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=3.04 |
2 | ||
| 90201-63011 |
JZS177,UZS17# 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63012 |
JZS177,UZS17# 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63008 |
JZS177,UZS17# 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63007 |
JZS177,UZS17# 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63004 |
JZS177,UZS17# 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63006 |
JZS177,UZS17# 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63014 |
JZS177,UZS17# 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63017 |
JZS177,UZS17# 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63010 |
JZS177,UZS17# 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63009 |
JZS177,UZS17# 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63016 |
JZS177,UZS17# 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63013 |
JZS177,UZS17# 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63002 |
JZS177,UZS17# 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63022 |
JZS177,UZS17# 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63015 |
JZS177,UZS17# 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63018 |
JZS177,UZS17# 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63023 |
JZS177,UZS17# 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63024 |
JZS177,UZS17# 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63021 |
JZS177,UZS17# 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63019 |
JZS177,UZS17# 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63020 |
JZS177,UZS17# 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
JZS177,UZS17# 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63025 |
JZS177,UZS17# 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63030 |
JZS177,UZS17# 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63029 |
JZS177,UZS17# 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63033 |
JZS177,UZS17# 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63028 |
JZS177,UZS17# 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63026 |
JZS177,UZS17# 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63031 |
JZS177,UZS17# 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63035 |
JZS177,UZS17# 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63039 |
JZS177,UZS17# 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63038 |
JZS177,UZS17# 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
JZS177,UZS17# 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63041 |
JZS177,UZS17# 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-63032 |
JZS177,UZS17# 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63036 |
JZS177,UZS17# 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63042 |
JZS177,UZS17# 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63034 |
JZS177,UZS17# 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63040 |
JZS177,UZS17# 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63043 |
JZS177,UZS17# 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63001 |
UZS173 厚さ=2.02,ﾏｰｸ 02 |
2 | ||
| 90201-63008 |
UZS173 厚さ=2.16,ﾏｰｸ 16 |
2 | ||
| 90201-63003 |
UZS173 厚さ=2.06,ﾏｰｸ 06 |
2 | ||
| 90201-63002 |
UZS173 厚さ=2.04,ﾏｰｸ 04 |
2 | ||
| 90201-63017 |
UZS173 厚さ=2.34,ﾏｰｸ 34 |
2 | ||
| 90201-63011 |
UZS173 厚さ=2.22,ﾏｰｸ 22 |
2 | ||
| 90201-63016 |
UZS173 厚さ=2.32,ﾏｰｸ 32 |
2 | ||
| 90201-63006 |
UZS173 厚さ=2.12,ﾏｰｸ 12 |
2 | ||
| 90201-63013 |
UZS173 厚さ=2.26,ﾏｰｸ 26 |
2 | ||
| 90201-63018 |
UZS173 厚さ=2.36,ﾏｰｸ 36 |
2 | ||
| 90201-63014 |
UZS173 厚さ=2.28,ﾏｰｸ 28 |
2 | ||
| 90201-63005 |
UZS173 厚さ=2.10,ﾏｰｸ 10 |
2 | ||
| 90201-63007 |
UZS173 厚さ=2.14,ﾏｰｸ 14 |
2 | ||
| 90201-63025 |
UZS173 厚さ=2.50,ﾏｰｸ 50 |
2 | ||
| 90201-63004 |
UZS173 厚さ=2.08,ﾏｰｸ 08 |
2 | ||
| 90201-63009 |
UZS173 厚さ=2.18,ﾏｰｸ 18 |
2 | ||
| 90201-63026 |
UZS173 厚さ=2.52,ﾏｰｸ 52 |
2 | ||
| 90201-63020 |
UZS173 厚さ=2.40,ﾏｰｸ 40 |
2 | ||
| 90201-63027 |
UZS173 厚さ=2.54,ﾏｰｸ 54 |
2 | ||
| 90201-63022 |
UZS173 厚さ=2.44,ﾏｰｸ 44 |
2 | ||
| 90201-63032 |
UZS173 厚さ=2.64,ﾏｰｸ 64 |
2 | ||
| 90201-63019 |
UZS173 厚さ=2.38,ﾏｰｸ 38 |
2 | ||
| 90201-63021 |
UZS173 厚さ=2.42,ﾏｰｸ 42 |
2 | ||
| 90201-63034 |
UZS173 厚さ=2.68,ﾏｰｸ 68 |
2 | ||
| 90201-63029 |
UZS173 厚さ=2.58,ﾏｰｸ 58 |
2 | ||
| 90201-63030 |
UZS173 厚さ=2.60,ﾏｰｸ 60 |
2 | ||
| 90201-63031 |
UZS173 厚さ=2.62,ﾏｰｸ 62 |
2 | ||
| 90201-63024 |
UZS173 厚さ=2.48,ﾏｰｸ 48 |
2 | ||
| 90201-63028 |
UZS173 厚さ=2.56,ﾏｰｸ 56 |
2 | ||
| 90201-63036 |
UZS173 厚さ=2.72,ﾏｰｸ 72 |
2 | ||
| 90201-63038 |
UZS173 厚さ=2.76,ﾏｰｸ 76 |
2 | ||
| 90201-63037 |
UZS173 厚さ=2.74,ﾏｰｸ 74 |
2 | ||
| 90201-63042 |
UZS173 厚さ=2.84,ﾏｰｸ 84 |
2 | ||
| 90201-63015 |
UZS173 厚さ=2.30,ﾏｰｸ 30 |
2 | ||
| 90201-63023 |
UZS173 厚さ=2.46,ﾏｰｸ 46 |
2 | ||
| 90201-63039 |
UZS173 厚さ=2.78,ﾏｰｸ 78 |
2 | ||
| 90201-63043 |
UZS173 厚さ=2.86,ﾏｰｸ 86 |
2 | ||
| 90201-63010 |
UZS173 厚さ=2.20,ﾏｰｸ 20 |
2 | ||
| 90201-63012 |
UZS173 厚さ=2.24,ﾏｰｸ 24 |
2 | ||
| 90201-63035 |
UZS173 厚さ=2.70,ﾏｰｸ 70 |
2 | ||
| 90201-63033 |
UZS173 厚さ=2.66,ﾏｰｸ 66 |
2 | ||
| 90201-63040 |
UZS173 厚さ=2.80,ﾏｰｸ 80 |
2 | ||
| 90201-63041 |
UZS173 厚さ=2.82,ﾏｰｸ 82 |
2 | ||
| 90201-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.58 |
2 | ||
| 90201-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.64 |
2 | ||
| 90201-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.70 |
2 | ||
| 90201-65023 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.06 |
2 | ||
| 90201-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.82 |
2 | ||
| 90201-65025 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.12 |
2 | ||
| 90201-65027 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.18 |
2 | ||
| 90201-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.00 |
2 | ||
| 90201-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.76 |
2 | ||
| 90201-65029 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.24 |
2 | ||
| 90201-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.94 |
2 | ||
| 90201-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.88 |
2 | ||
| 90564-65003 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.66 |
2 | ||
| 90564-65005 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.72 |
2 | ||
| 90564-65007 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.78 |
2 | ||
| 90564-65004 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.68 |
2 | ||
| 90564-65008 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.80 |
2 | ||
| 90564-65010 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.86 |
2 | ||
| 90564-65001 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.60 |
2 | ||
| 90564-65006 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.74 |
2 | ||
| 90564-65013 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.96 |
2 | ||
| 90564-65011 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.90 |
2 | ||
| 90564-65002 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.62 |
2 | ||
| 90564-65017 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.08 |
2 | ||
| 90564-65019 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.14 |
2 | ||
| 90564-65009 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.84 |
2 | ||
| 90564-65014 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.98 |
2 | ||
| 90564-65018 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.10 |
2 | ||
| 90564-65020 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.16 |
2 | ||
| 90564-65021 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.20 |
2 | ||
| 90564-65016 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.04 |
2 | ||
| 90564-65012 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=2.92 |
2 | ||
| 90564-65022 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.22 |
2 | ||
| 90564-65015 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=3.02 |
2 | ||
| 41334D - RING, SHAFT SNAP (FOR REAR DIFFERENTIAL SIDE GEAR SHAFT | ||||
| 90521-29002 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=2.5 |
2 | ||
| 41336 - COVER, DUST(FOR REAR DIFFERENTIAL SIDE GEAR SHAFT) | ||||
| 41336-22010 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41336-22010 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41336-24020 |
JZS177,UZS17# |
2 | ||
| 41336-24020 |
JZS177,UZS17# |
2 | ||
| 41342 - SHAFT, REAR DIFFERENTIAL PINION | ||||
| 41342-22020 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41342-22021 |
GS171,JZS171,173,179..D4,HTWC,TWC |
1 | ||
| 41342-22021 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
1 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41351-30060 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41351 - WASHER, REAR DIFFERENTIAL PINION THRUST | ||||
| 41351-30060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) |
2 | ||
| 41351-30060 |
GS171,JZS171,173,179..D4,HTWC,TWC |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30050 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.1 |
2 | ||
| 41361-30040 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.0 |
2 | ||
| 41361-30090 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.5 |
2 | ||
| 41361-30060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.2 |
2 | ||
| 41361-30070 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.3 |
2 | ||
| 41361-30100 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.6 |
2 | ||
| 41361-30080 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.4 |
2 | ||
| 41361-30040 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.0 |
2 | ||
| 41361-30090 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.5 |
2 | ||
| 41361-30070 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.3 |
2 | ||
| 41361-30050 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.1 |
2 | ||
| 41361-30060 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.2 |
2 | ||
| 41361-30080 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.4 |
2 | ||
| 41361-30100 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.6 |
2 | ||
| 41361 - WASHER, REAR DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-30050 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.1 |
2 | ||
| 41361-30040 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.0 |
2 | ||
| 41361-30090 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.5 |
2 | ||
| 41361-30060 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.2 |
2 | ||
| 41361-30070 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.3 |
2 | ||
| 41361-30100 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.6 |
2 | ||
| 41361-30080 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 厚さ=1.4 |
2 | ||
| 41361-30040 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.0 |
2 | ||
| 41361-30090 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.5 |
2 | ||
| 41361-30070 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.3 |
2 | ||
| 41361-30050 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.1 |
2 | ||
| 41361-30060 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.2 |
2 | ||
| 41361-30080 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.4 |
2 | ||
| 41361-30100 |
GS171,JZS171,173,179..D4,HTWC,TWC 厚さ=1.6 |
2 | ||
| 41651 - CUSHION, REAR DIFFERENTIAL MOUNT, NO.1 | ||||
| 41651-30060 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 41651-30060 |
GS171,JZS171,173,175,179 |
1 | ||
| 41651-30090 |
JZS177,UZS17# |
1 | ||
| 41651-30090 |
JZS177,UZS17# |
1 | ||
| 41651A - CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 | ||||
| 41651-30070 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 41651-50140 |
JZS177,UZS17# |
1 | ||
| 41651-50140 |
JZS177,UZS17# |
1 | ||
| 41651-30070 |
GS171,JZS171,173,175,179 |
1 | ||
| 41653 - STOPPER, REAR DIFFERENTIAL MOUNT, UPPER | ||||
| 41653-30050 |
JZS177,UZS17# 高さ=18.0 |
2 | ||
| 41653-30050 |
JZS177,UZS17# 高さ=18.0 |
2 | ||
| 41654 - STOPPER, REAR DIFFERENTIAL MOUNT, LOWER | ||||
| 41654-22010 |
GS171,JZS171,173,175,179 |
2 | ||
| 41654-30030 |
JZS177,UZS17# |
2 | ||
| 41654-30030 |
JZS177,UZS17# |
2 | ||
| 41654-30040 |
JZS171,173,175 |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
