UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
(9909-0108)GS171,JZS171,173,175,179
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

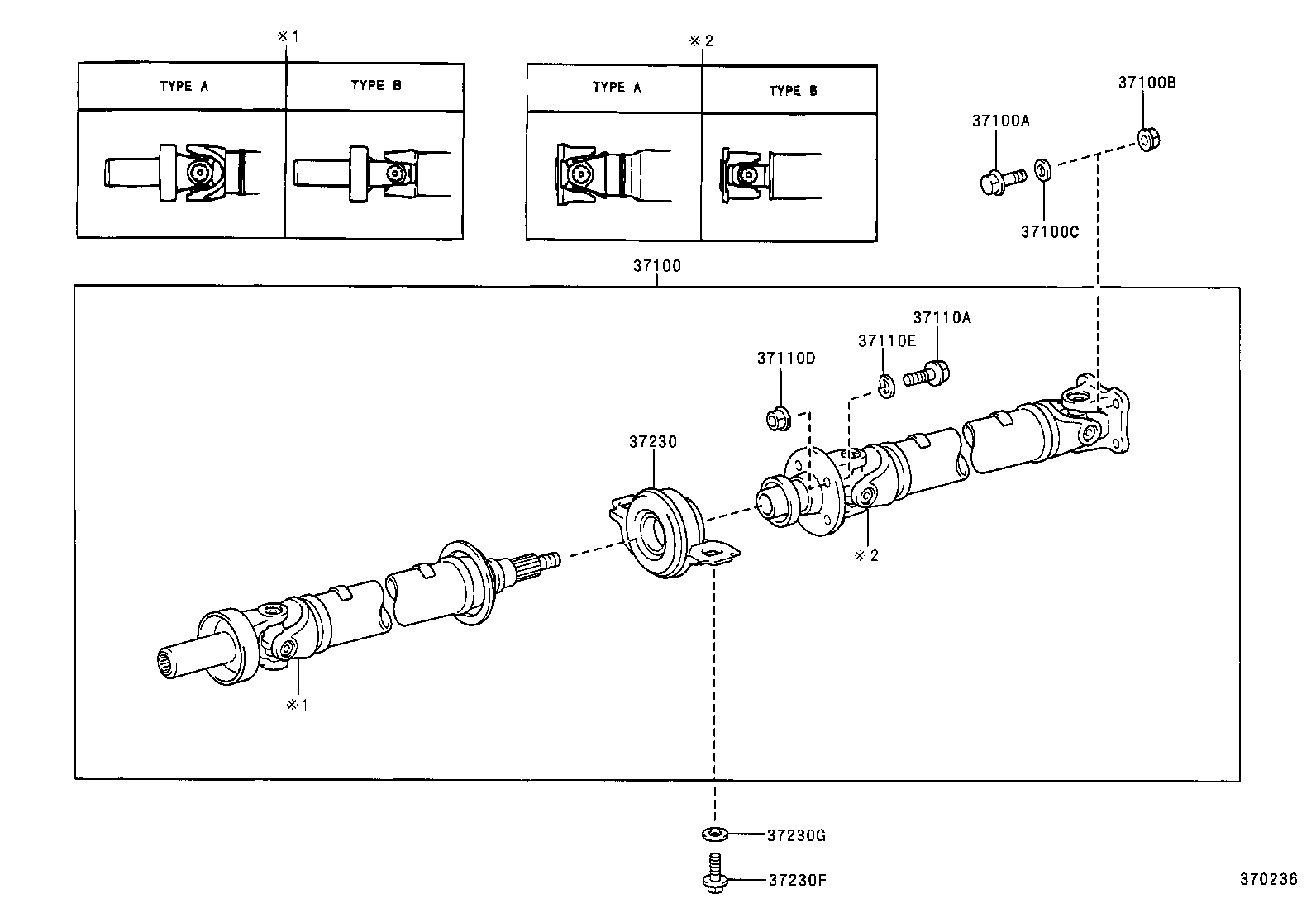

| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30720 |
UZS173 |
1 | ||
| 37100-30720 |
UZS173 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10466 |
GS171,JZS171,173,175,179 |
4 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-10466 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90178-10007 |
GS171,JZS171,173,175,179 |
4 | ||
| 90178-10007 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-10102 |
GS171,JZS171,173,175,179 |
4 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-10102 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 10G,長さ=20.7,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01147 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 2G,厚さ=2.0 |
1 | ||
| 90937-01148 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 4G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 12G,長さ=24.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01154 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 6G,長さ=12.4,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01140 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 30G,長さ=62.2 |
1 | ||
| 90937-01157 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 26G,長さ=53.9 |
1 | ||
| 90937-01152 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 14G,長さ=29.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01155 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 22G,長さ=45.6 |
1 | ||
| 90937-01312 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 5G |
1 | ||
| 90937-01158 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 28G,長さ=58.1 |
1 | ||
| 90937-01153 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 8G,長さ=16.6,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01314 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 9G,長さ=18.5 |
1 | ||
| 90937-01311 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 3G |
1 | ||
| 90937-01313 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 7G,長さ=14.4 |
1 | ||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 10G,長さ=20.7,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01147 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 2G,厚さ=2.0 |
1 | ||
| 90937-01148 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 4G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 12G,長さ=24.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01154 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 6G,長さ=12.4,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01140 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 30G,長さ=62.2 |
1 | ||
| 90937-01157 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 26G,長さ=53.9 |
1 | ||
| 90937-01152 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 14G,長さ=29.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01155 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 22G,長さ=45.6 |
1 | ||
| 90937-01312 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 5G |
1 | ||
| 90937-01158 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 28G,長さ=58.1 |
1 | ||
| 90937-01153 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 8G,長さ=16.6,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01314 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 9G,長さ=18.5 |
1 | ||
| 90937-01311 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 3G |
1 | ||
| 90937-01313 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 7G,長さ=14.4 |
1 | ||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 10G,長さ=20.7,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01147 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 2G,厚さ=2.0 |
1 | ||
| 90937-01148 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 4G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 12G,長さ=24.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01154 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 6G,長さ=12.4,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01140 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 30G,長さ=62.2 |
1 | ||
| 90937-01157 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 26G,長さ=53.9 |
1 | ||
| 90937-01152 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 14G,長さ=29.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01155 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 22G,長さ=45.6 |
1 | ||
| 90937-01312 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 5G |
1 | ||
| 90937-01158 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 28G,長さ=58.1 |
1 | ||
| 90937-01153 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 8G,長さ=16.6,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01314 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 9G,長さ=18.5 |
1 | ||
| 90937-01311 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 3G |
1 | ||
| 90937-01313 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 7G,長さ=14.4 |
1 | ||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-51010 |
GS171,JZS171,173,175,179 |
1 | ||
| 37230-51010 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10902 |
GS171,JKS175,JZS171,173,175,179 長さ=33 |
2 | ||
| 90119-10902 |
GS171,JZS171,173,175,179 長さ=33 |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10033 |
GS171,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10008 |
GS171,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10017 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10034 |
GS171,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 90201-10017 |
GS171,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10008 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10033 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10034 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 37304 - FLANGE SUB-ASSY, UNIVERSAL JOINT | ||||
| 37304-35041 |
GS171,JZS171,173,175,179 |
1 | ||
(9909-0108)JZS177,UZS17#
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30720 |
UZS173 |
1 | ||
| 37100-30720 |
UZS173 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10466 |
GS171,JZS171,173,175,179 |
4 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-10466 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90178-10007 |
GS171,JZS171,173,175,179 |
4 | ||
| 90178-10007 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-10102 |
GS171,JZS171,173,175,179 |
4 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-10102 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37100D - BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 10G,長さ=20.7,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01147 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 2G,厚さ=2.0 |
1 | ||
| 90937-01148 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 4G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 12G,長さ=24.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01154 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 6G,長さ=12.4,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01140 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 30G,長さ=62.2 |
1 | ||
| 90937-01157 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 26G,長さ=53.9 |
1 | ||
| 90937-01152 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 14G,長さ=29.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01155 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 22G,長さ=45.6 |
1 | ||
| 90937-01312 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 5G |
1 | ||
| 90937-01158 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 28G,長さ=58.1 |
1 | ||
| 90937-01153 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 8G,長さ=16.6,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01314 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 9G,長さ=18.5 |
1 | ||
| 90937-01311 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 3G |
1 | ||
| 90937-01313 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 7G,長さ=14.4 |
1 | ||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 10G,長さ=20.7,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01147 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 2G,厚さ=2.0 |
1 | ||
| 90937-01148 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 4G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 12G,長さ=24.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01154 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 6G,長さ=12.4,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01140 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 30G,長さ=62.2 |
1 | ||
| 90937-01157 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 26G,長さ=53.9 |
1 | ||
| 90937-01152 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 14G,長さ=29.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01155 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 22G,長さ=45.6 |
1 | ||
| 90937-01312 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 5G |
1 | ||
| 90937-01158 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 28G,長さ=58.1 |
1 | ||
| 90937-01153 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 8G,長さ=16.6,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01314 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 9G,長さ=18.5 |
1 | ||
| 90937-01311 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 3G |
1 | ||
| 90937-01313 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 7G,長さ=14.4 |
1 | ||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 20G,長さ=41.4 |
1 | ||
| 90937-01132 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 10G,長さ=20.7,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01147 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 2G,厚さ=2.0 |
1 | ||
| 90937-01148 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 4G,厚さ=2.0 |
1 | ||
| 90937-01151 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 12G,長さ=24.9,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01154 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 18G,長さ=37.3 |
1 | ||
| 90937-01149 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 6G,長さ=12.4,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01140 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 30G,長さ=62.2 |
1 | ||
| 90937-01157 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 26G,長さ=53.9 |
1 | ||
| 90937-01152 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 14G,長さ=29.0,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01155 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 22G,長さ=45.6 |
1 | ||
| 90937-01312 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 5G |
1 | ||
| 90937-01158 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 28G,長さ=58.1 |
1 | ||
| 90937-01153 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 16G,長さ=33.2 |
1 | ||
| 90937-01156 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 24G,長さ=49.7 |
1 | ||
| 90937-01150 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 8G,長さ=16.6,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
1 | ||
| 90937-01314 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 9G,長さ=18.5 |
1 | ||
| 90937-01311 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 3G |
1 | ||
| 90937-01313 |
GS171,JZS171,173,179..4FC..(HTWC,TWC) 7G,長さ=14.4 |
1 | ||
| 90937-01344 |
JZS177,UZS17# 3G |
1 | ||
| 90937-01343 |
JZS177,UZS17# 2G |
1 | ||
| 90937-01345 |
JZS177,UZS17# 4G |
1 | ||
| 90937-01351 |
JZS177,UZS17# 14G |
1 | ||
| 90937-01348 |
JZS177,UZS17# 8G |
1 | ||
| 90937-01349 |
JZS177,UZS17# 10G |
1 | ||
| 90937-01346 |
JZS177,UZS17# 5G |
1 | ||
| 90937-01347 |
JZS177,UZS17# 6G |
1 | ||
| 90937-01354 |
JZS177,UZS17# 20G |
1 | ||
| 90937-01350 |
JZS177,UZS17# 12G |
1 | ||
| 90937-01352 |
JZS177,UZS17# 16G |
1 | ||
| 90937-01353 |
JZS177,UZS17# 18G |
1 | ||
| 90937-01448 |
JZS177,UZS17# 17G |
1 | ||
| 90937-01445 |
JZS177,UZS17# 11G |
1 | ||
| 90937-01446 |
JZS177,UZS17# 13G |
1 | ||
| 90937-01366 |
JZS177,UZS17# 7G |
1 | ||
| 90937-01444 |
JZS177,UZS17# 9G |
1 | ||
| 90937-01449 |
JZS177,UZS17# 19G |
1 | ||
| 90937-01447 |
JZS177,UZS17# 15G |
1 | ||
| 90937-01452 |
JZS177,UZS17# 1G |
1 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-51010 |
GS171,JZS171,173,175,179 |
1 | ||
| 37230-51010 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10902 |
GS171,JKS175,JZS171,173,175,179 長さ=33 |
2 | ||
| 90119-10902 |
GS171,JZS171,173,175,179 長さ=33 |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10033 |
GS171,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10008 |
GS171,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10017 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10034 |
GS171,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 90201-10017 |
GS171,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10008 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10033 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10034 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 37328 - NUT, PROPELLER SHAFT ADJUSTING | ||||
| 37328-50010 |
JZS177,UZS17# |
1 | ||
| 37334A - BOOT, SLIDING SHAFT | ||||
| 37334-50010 |
JZS177,UZS17# |
1 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-22010 |
JZS177,UZS17# |
1 | ||
| 37341-22010 |
JZS177,UZS17# |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-50010 |
JZS177,UZS17# |
1 | ||
| 37342-50010 |
JZS177,UZS17# |
1 | ||
| 37342A - RING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2) | ||||
| 90520-28009 |
JZS177,UZS17# |
1 | ||
| 90520-28009 |
JZS177,UZS17# |
1 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 90560-12059 |
JZS177,UZS17# |
6 | ||

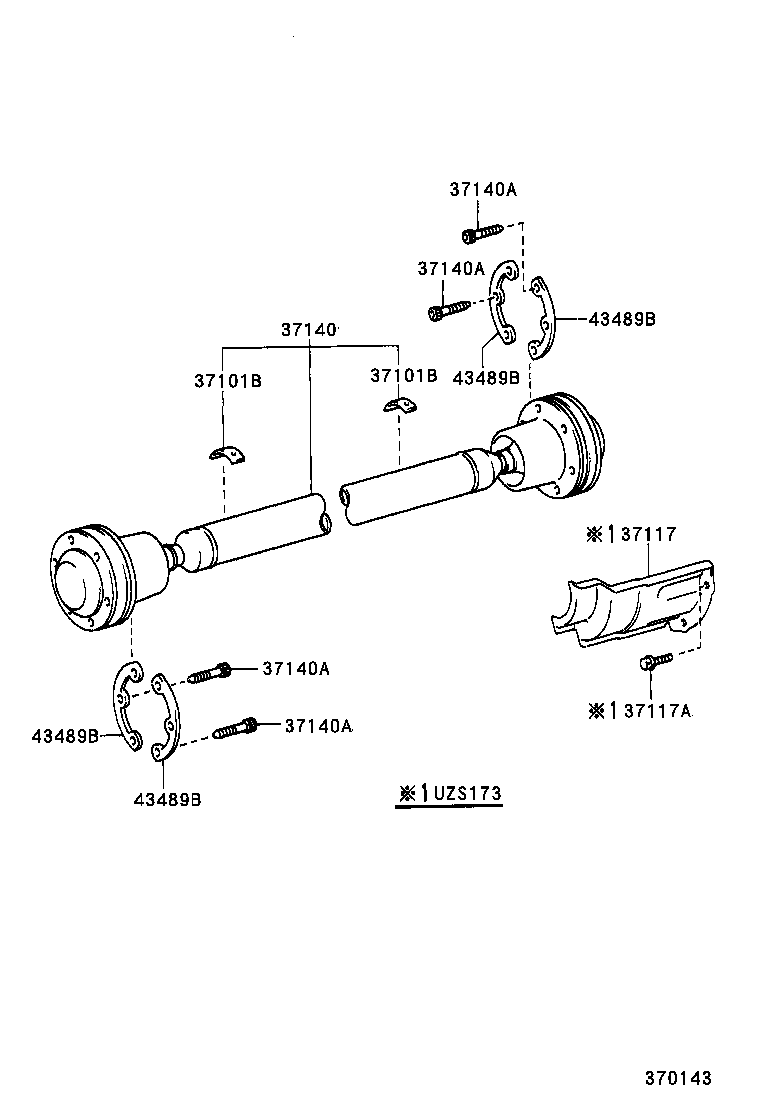

(9909-0108)JZS173,179,UZS173
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01454 |
JZS173,179,UZS173 2.1G |
1 | ||
| 90937-01458 |
JZS173,179,UZS173 6.2G |
1 | ||
| 90937-01461 |
JZS173,179,UZS173 9.3G |
1 | ||
| 90937-01455 |
JZS173,179,UZS173 3.2G |
1 | ||
| 90937-01459 |
JZS173,179,UZS173 7.3G |
1 | ||
| 90937-01460 |
JZS173,179,UZS173 8.3G |
1 | ||
| 90937-01456 |
JZS173,179,UZS173 4.2G |
1 | ||
| 90937-01464 |
JZS173,179,UZS173 12.2G |
1 | ||
| 90937-01457 |
JZS173,179,UZS173 5.3G |
1 | ||
| 90937-01463 |
JZS173,179,UZS173 11.2G |
1 | ||
| 90937-01462 |
JZS173,179,UZS173 10.2G |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01454 |
JZS173,179,UZS173 2.1G |
1 | ||
| 90937-01458 |
JZS173,179,UZS173 6.2G |
1 | ||
| 90937-01461 |
JZS173,179,UZS173 9.3G |
1 | ||
| 90937-01455 |
JZS173,179,UZS173 3.2G |
1 | ||
| 90937-01459 |
JZS173,179,UZS173 7.3G |
1 | ||
| 90937-01460 |
JZS173,179,UZS173 8.3G |
1 | ||
| 90937-01456 |
JZS173,179,UZS173 4.2G |
1 | ||
| 90937-01464 |
JZS173,179,UZS173 12.2G |
1 | ||
| 90937-01457 |
JZS173,179,UZS173 5.3G |
1 | ||
| 90937-01463 |
JZS173,179,UZS173 11.2G |
1 | ||
| 90937-01462 |
JZS173,179,UZS173 10.2G |
1 | ||
| 37117 - INSULATOR, PROPELLER SHAFT HEAT | ||||
| 37117-30010 |
UZS173 |
1 | ||
| 37117-30010 |
UZS173 |
1 | ||
| 37117A - BOLT (FOR PROPELLER SHAFT HEAT INSULATOR) | ||||
| 91531-A0610 |
UZS173 |
2 | ||
| 91531-A0610 |
UZS173 |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-30011 |
UZS173 |
1 | ||
| 37140-30011 |
UZS173 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||

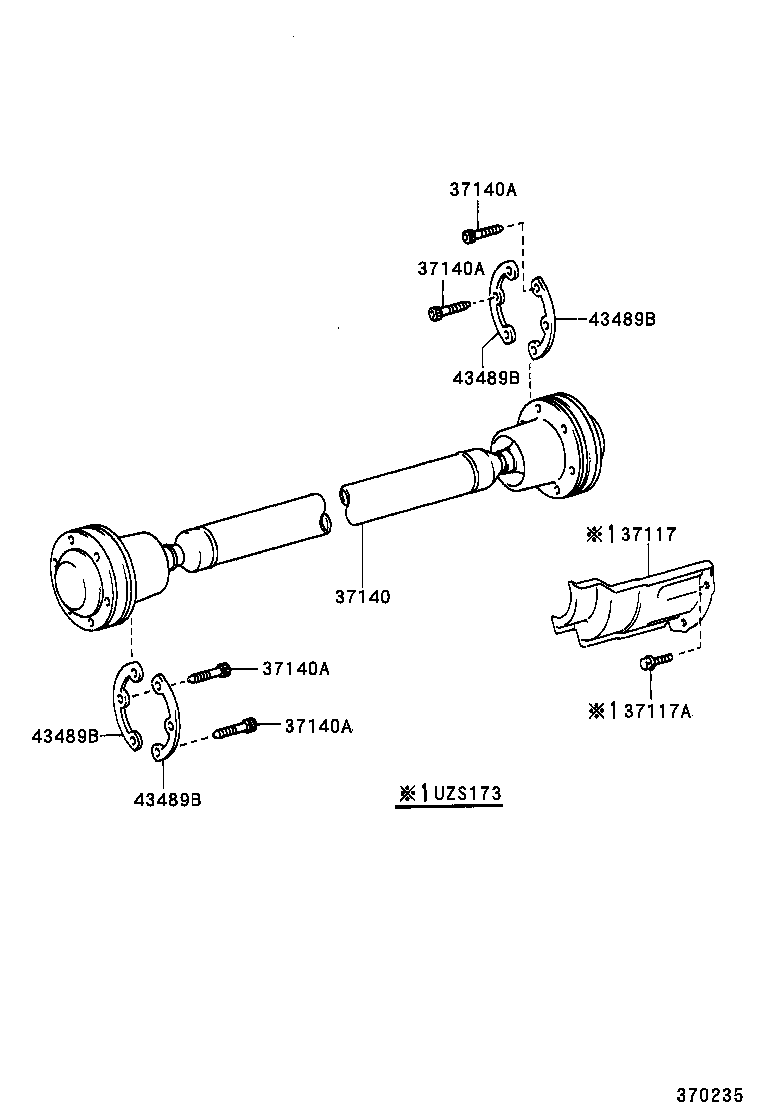

(0108- )JZS173,179,UZS173
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37117 - INSULATOR, PROPELLER SHAFT HEAT | ||||
| 37117-30010 |
UZS173 |
1 | ||
| 37117-30010 |
UZS173 |
1 | ||
| 37117A - BOLT (FOR PROPELLER SHAFT HEAT INSULATOR) | ||||
| 91531-A0610 |
UZS173 |
2 | ||
| 91531-A0610 |
UZS173 |
2 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-30011 |
UZS173 |
1 | ||
| 37140-30011 |
UZS173 |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 90110-08030 |
JZS173,179,UZS173 |
12 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489B - WASHER, CONSTANT VELOCITY UNIVERSAL JOINT | ||||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
| 43489-30010 |
JZS173,179,UZS173 |
4 | ||
(0108- )GS171,JKS175,JZS171,173,175,179
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30720 |
UZS173 |
1 | ||
| 37100-30720 |
UZS173 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10466 |
GS171,JZS171,173,175,179 |
4 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-10466 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90178-10007 |
GS171,JZS171,173,175,179 |
4 | ||
| 90178-10007 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-10102 |
GS171,JZS171,173,175,179 |
4 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-10102 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-51010 |
GS171,JZS171,173,175,179 |
1 | ||
| 37230-51010 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10902 |
GS171,JKS175,JZS171,173,175,179 長さ=33 |
2 | ||
| 90119-10902 |
GS171,JZS171,173,175,179 長さ=33 |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10033 |
GS171,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10008 |
GS171,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10017 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10034 |
GS171,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 90201-10017 |
GS171,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10008 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10033 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10034 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
(0108- )JZS177,UZS17#
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-30720 |
UZS173 |
1 | ||
| 37100-30720 |
UZS173 |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-10466 |
GS171,JZS171,173,175,179 |
4 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-10466 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90178-10007 |
GS171,JZS171,173,175,179 |
4 | ||
| 90178-10007 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-10102 |
GS171,JZS171,173,175,179 |
4 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-10102 |
GS171,JKS175,JZS171,173,175,179 |
4 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37100D - BOLT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 90105-12264 |
JZS177,UZS173 |
3 | ||
| 37100E - NUT, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 90179-12128 |
JZS177,UZS17# |
3 | ||
| 37100F - WASHER, NO.2 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 90560-12059 |
JZS177,UZS17# |
3 | ||
| 37230 - BEARING ASSY, CENTER SUPPORT, NO.1 | ||||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-30170 |
JZS177,UZS17# |
1 | ||
| 37230-51010 |
GS171,JZS171,173,175,179 |
1 | ||
| 37230-51010 |
GS171,JKS175,JZS171,173,175,179 |
1 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-10902 |
GS171,JKS175,JZS171,173,175,179 長さ=33 |
2 | ||
| 90119-10902 |
GS171,JZS171,173,175,179 長さ=33 |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 90119-10133 |
JZS177,UZS17# |
2 | ||
| 37230G - WASHER, NO.2 (FOR CENTER SUPPORT BEARING) | ||||
| 90201-10033 |
GS171,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10008 |
GS171,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10017 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10034 |
GS171,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 90201-10017 |
GS171,JZS171,175,177,UZS17# 厚さ=9.0 |
2 | ||
| 90201-10008 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=4.5 |
2 | ||
| 90201-10033 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=6.5 |
2 | ||
| 90201-10034 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=11.0 |
2 | ||
| 90201-10106 |
GS171,JKS175,JZS171,175,177,UZS17# 厚さ=2.0 |
2 | ||
| 37341 - DEFLECTOR, PROPELLER SHAFT DUST, NO.1 | ||||
| 37341-22010 |
JZS177,UZS17# |
1 | ||
| 37341-22010 |
JZS177,UZS17# |
1 | ||
| 37342 - DEFLECTOR, PROPELLER SHAFT DUST, NO.2 | ||||
| 37342-50010 |
JZS177,UZS17# |
1 | ||
| 37342-50010 |
JZS177,UZS17# |
1 | ||
| 37342A - RING, SNAP (FOR PROPELLER SHAFT DUST DEFLECTOR NO.2) | ||||
| 90520-28009 |
JZS177,UZS17# |
1 | ||
| 90520-28009 |
JZS177,UZS17# |
1 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511 - COUPLING, FLEXIBLE | ||||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511-24010 |
JZS177,UZS173 |
2 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 37511A - BOLT (FOR FLEXIBLE COUPLING) | ||||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 90105-12265 |
JZS177,UZS17# *12X1.25PX59.5−20 |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 37511B - NUT (FOR FLEXIBLE COUPLING) | ||||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 90179-12128 |
JZS177,UZS17# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 37511C - WASHER, PLATE (FOR FLEXIBLE COUPLING) | ||||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
| 90560-12059 |
JZS177,UZS17# |
6 | ||
Part Price Details
Loading price information...
Part Number:
Price:
