UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS173,179,UZS173

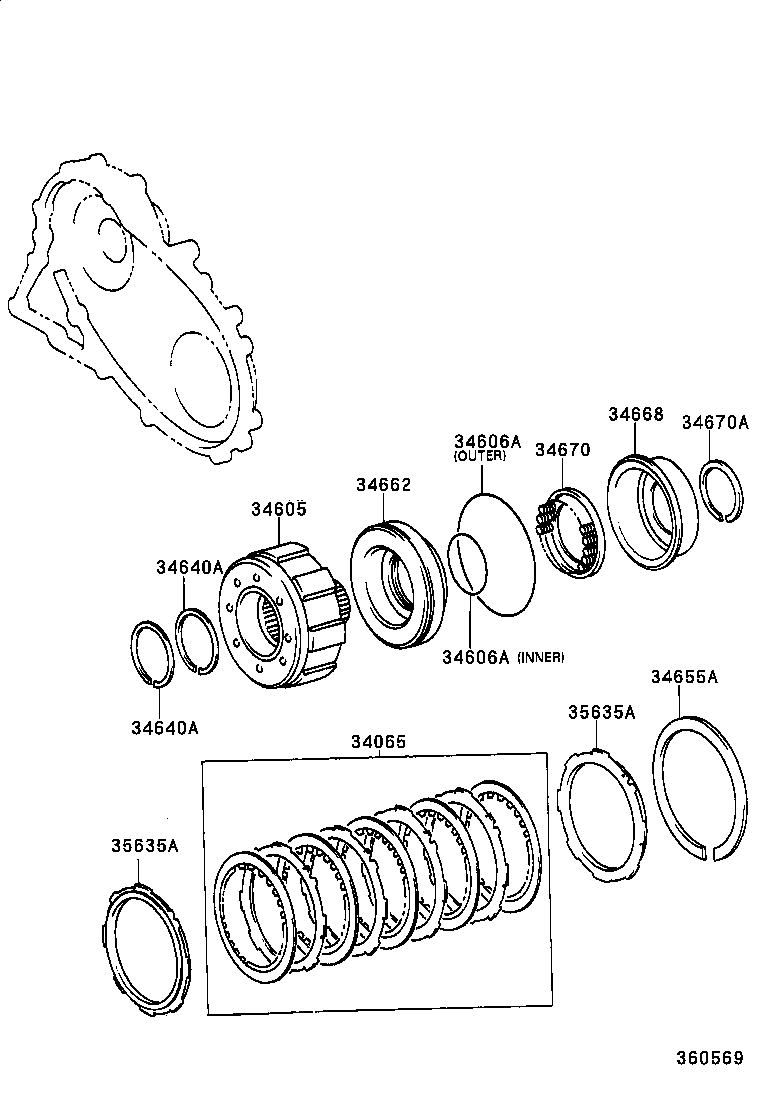

Click highlighted areas on diagram

diagram 34065 34605 34606A 34606A 34640A 34640A 34655A 34662 34668 34670 34670A 35635A 35635A
Part # Description Qty Price
34065 - DISC SET, CENTER DIFFERENTIAL CLUTCH
34065-30010

JZS173,179,UZS173

 1
34065-30010

JZS173,179,UZS173

 1
34605 - DRUM SUB-ASSY, TRANSFER DIRECT CLUTCH
34605-30010

JZS173,179,UZS173

 1
34605-30010

JZS173,179,UZS173

 1
34606A - RING, O (FOR TRANSFER DIRECT CLUTCH PISTON)
90301-56004

JZS173,179,UZS173

内側

 1
90301-99058

JZS173,179,UZS173

外側

 1
90301-99058

JZS173,179,UZS173

外側

 1
90301-56004

JZS173,179,UZS173

内側

 1
34606A - RING, O (FOR TRANSFER DIRECT CLUTCH PISTON)
90301-56004

JZS173,179,UZS173

内側

 1
90301-99058

JZS173,179,UZS173

外側

 1
90301-99058

JZS173,179,UZS173

外側

 1
90301-56004

JZS173,179,UZS173

内側

 1
34640A - RING, SEAL(FOR TRANSFER CENTER SUPPORT)
35617-30030

JZS173,179,UZS173

 2
35617-30030

JZS173,179,UZS173

 2
34640A - RING, SEAL(FOR TRANSFER CENTER SUPPORT)
35617-30030

JZS173,179,UZS173

 2
35617-30030

JZS173,179,UZS173

 2
34655A - RING, SNAP (FOR TRANSFER DIRECT CLUTCH FLANGE)
90521-99001

JZS173,179,UZS173

 1
90521-99001

JZS173,179,UZS173

 1
34662 - PISTON, CENTER DIFFERENTIAL CLUTCH
34662-30010

JZS173,179,UZS173

 1
34662-30010

JZS173,179,UZS173

 1
34668 - BALANCER, CENTER DIFFERENTIAL CLUTCH PRESSURE
34668-30010

JZS173,179,UZS173

 1
34668-30010

JZS173,179,UZS173

 1
34670 - SPRING ASSY, TRANSFER DIRECT CLUTCH RETURN
34670-30010

JZS173,179,UZS173

 1
34670-30010

JZS173,179,UZS173

 1
34670A - RING, SNAP (FOR TRANSFER DIRECT CLUTCH RETURN SPRING)
90520-53002

JZS173,179,UZS173

 1
90520-53002

JZS173,179,UZS173

 1
35635A - FLANGE, CENTER DIFFERENTIAL CLUTCH DISC
35635-30070

JZS173,179,UZS173

厚さ=3.4,ﾏｰｸ 92

 1
35635-50060

JZS173,179,UZS173

厚さ=3.00,ﾏｰｸ 61

 2
35635-30080

JZS173,179,UZS173

厚さ=3.2,ﾏｰｸ 91

 1
35635-30090

JZS173,179,UZS173

厚さ=3.0,ﾏｰｸ 90

 2
35635-30080

JZS173,179,UZS173

厚さ=3.2,ﾏｰｸ 91

 1
35635-50060

JZS173,179,UZS173

厚さ=3.00,ﾏｰｸ 61

 2
35635-30070

JZS173,179,UZS173

厚さ=3.4,ﾏｰｸ 92

 1
35635A - FLANGE, CENTER DIFFERENTIAL CLUTCH DISC
35635-30070

JZS173,179,UZS173

厚さ=3.4,ﾏｰｸ 92

 1
35635-50060

JZS173,179,UZS173

厚さ=3.00,ﾏｰｸ 61

 2
35635-30080

JZS173,179,UZS173

厚さ=3.2,ﾏｰｸ 91

 1
35635-30090

JZS173,179,UZS173

厚さ=3.0,ﾏｰｸ 90

 2
35635-30080

JZS173,179,UZS173

厚さ=3.2,ﾏｰｸ 91

 1
35635-50060

JZS173,179,UZS173

厚さ=3.00,ﾏｰｸ 61

 2
35635-30070

JZS173,179,UZS173

厚さ=3.4,ﾏｰｸ 92

 1
