UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )JZS173,179,UZS173

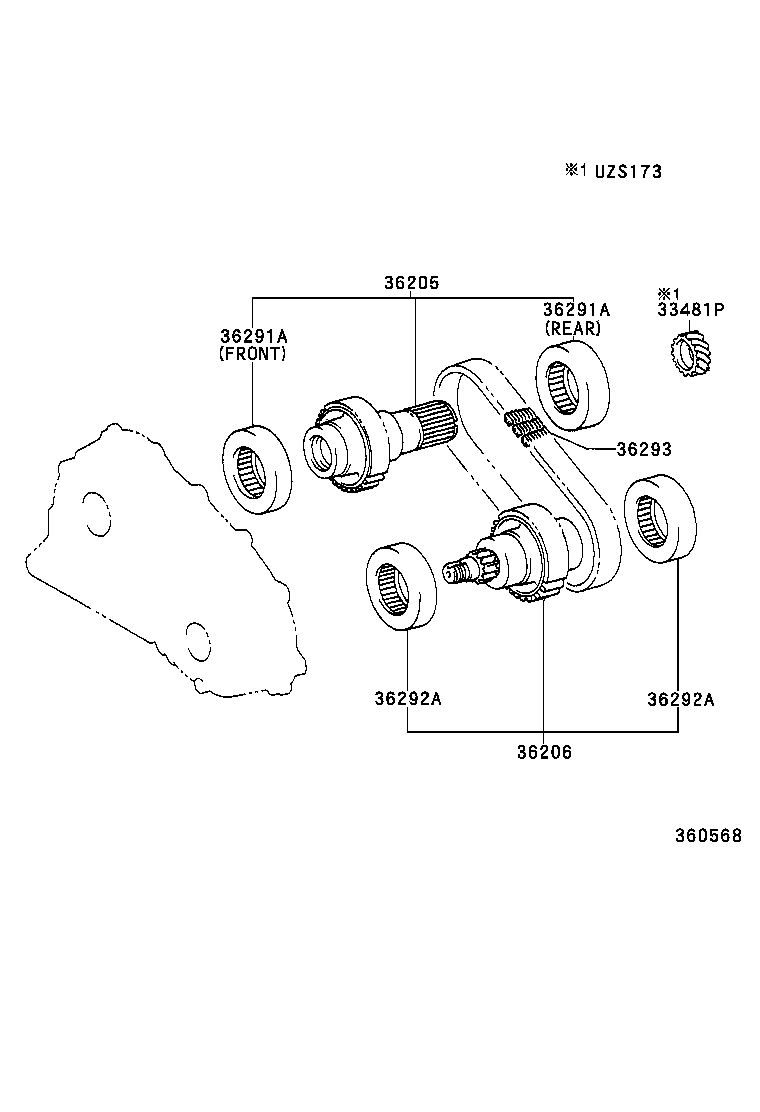

Click highlighted areas on diagram

diagram 33481P 36205 36206 36291A 36291A 36292A 36292A 36293
Part # Description Qty Price
33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER)
33481-30090

UZS173

歯数=6

 1
33481-30090

UZS173

歯数=6

 1
36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE
36205-30030

JZS173,179,UZS173

 1
36205-30030

JZS173,179,UZS173

 1
36206 - SLEEVE SUB-ASSY, TRNSFR FR DRIVE CLUTCH
36206-30030

JZS173,179,UZS173

 1
36206-30030

JZS173,179,UZS173

 1
36291A - BEARING (FOR TRANSFER DRIVE SPROCKET)
90363-55004

JZS173,179,UZS173

ﾌﾛﾝﾄ

 1
90363-55002

JZS173,179,UZS173

ﾘﾔ

 1
90363-55004

JZS173,179,UZS173

ﾌﾛﾝﾄ

 1
90363-55002

JZS173,179,UZS173

ﾘﾔ

 1
36291A - BEARING (FOR TRANSFER DRIVE SPROCKET)
90363-55004

JZS173,179,UZS173

ﾌﾛﾝﾄ

 1
90363-55002

JZS173,179,UZS173

ﾘﾔ

 1
90363-55004

JZS173,179,UZS173

ﾌﾛﾝﾄ

 1
90363-55002

JZS173,179,UZS173

ﾘﾔ

 1
36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET)
90363-55004

JZS173,179,UZS173

 2
90363-55004

JZS173,179,UZS173

 2
36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET)
90363-55004

JZS173,179,UZS173

 2
90363-55004

JZS173,179,UZS173

 2
36293 - CHAIN, TRANSFER FRONT DRIVE
36293-30020

JZS173,179,UZS173

 1
36293-30020

JZS173,179,UZS173

 1
