UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
(9909- )UZS173
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34104 - VALVE SUB-ASSY, TRANSFER BAFFLE | ||||
| 34104-30010 |
JZS173,179,UZS173 |
1 | ||
| 34104-30010 |
JZS173,179,UZS173 |
1 | ||
| 34106 - PAN SUB-ASSY, TRANSFER OIL | ||||
| 34161-30011 |
JZS173,179,UZS173 |
1 | ||
| 34161-30011 |
JZS173,179,UZS173 |
1 | ||
| 34151 - CASE, TRANSFER CHAIN, FRONT | ||||
| 34151-30011 |
JZS173,179,UZS173 |
1 | ||
| 34151-30010 |
JZS173,179,UZS173 |
1 | ||
| 34151-30010 |
JZS173,179,UZS173 |
1 | ||
| 34151A - SEAL, OIL (FOR TRANSFER CHAIN CASE) | ||||
| 90311-42029 |
JZS173,179,UZS173 |
1 | ||
| 90311-42029 |
JZS173,179,UZS173 |
1 | ||
| 34170 - CASE ASSY, TRANSFER CHAIN, REAR | ||||
| 34170-30010 |
JZS173,179,UZS173 |
1 | ||
| 34170-30010 |
JZS173,179,UZS173 |
1 | ||
| 34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE) | ||||
| 90250-10007 |
JZS173,179,UZS173 長さ=23,外径=10 |
1 | ||
| 90249-10191 |
JZS173,179,UZS173 長さ=21,外径=10 |
1 | ||
| 90249-10191 |
JZS173,179,UZS173 長さ=21,外径=10 |
1 | ||
| 90250-10007 |
JZS173,179,UZS173 長さ=23,外径=10 |
1 | ||
| 34170A - PIN, STRAIGHT (FOR TRANSFER CHAIN CASE) | ||||
| 90250-10007 |
JZS173,179,UZS173 長さ=23,外径=10 |
1 | ||
| 90249-10191 |
JZS173,179,UZS173 長さ=21,外径=10 |
1 | ||
| 90249-10191 |
JZS173,179,UZS173 長さ=21,外径=10 |
1 | ||
| 90250-10007 |
JZS173,179,UZS173 長さ=23,外径=10 |
1 | ||
| 34170C - PLUG (FOR TRANSFER CHAIN CASE) | ||||
| 90341-08001 |
JZS173,179,UZS173 |
3 | ||
| 90341-08001 |
JZS173,179,UZS173 |
3 | ||
| 34170C - PLUG (FOR TRANSFER CHAIN CASE) | ||||
| 90341-08001 |
JZS173,179,UZS173 |
3 | ||
| 90341-08001 |
JZS173,179,UZS173 |
3 | ||
| 34170C - PLUG (FOR TRANSFER CHAIN CASE) | ||||
| 90341-08001 |
JZS173,179,UZS173 |
3 | ||
| 90341-08001 |
JZS173,179,UZS173 |
3 | ||
| 34640D - SUPPORT ASSY, TRANSFER CENTER | ||||
| 34640-30010 |
JZS173,179,UZS173 |
1 | ||
| 34640-30010 |
JZS173,179,UZS173 |
1 | ||
| 34780 - YOKE ASSY, FLANGE | ||||
| 34780-30040 |
UZS173 ﾌﾛﾝﾄ |
1 | ||
| 34780-30040 |
UZS173 ﾌﾛﾝﾄ |
1 | ||
| 34780-30050 |
UZS173 ﾘﾔ |
1 | ||
| 34780-30050 |
UZS173 ﾘﾔ |
1 | ||
| 34780 - YOKE ASSY, FLANGE | ||||
| 34780-30040 |
UZS173 ﾌﾛﾝﾄ |
1 | ||
| 34780-30040 |
UZS173 ﾌﾛﾝﾄ |
1 | ||
| 34780-30050 |
UZS173 ﾘﾔ |
1 | ||
| 34780-30050 |
UZS173 ﾘﾔ |
1 | ||
| 34780A - NUT (FOR FLANGE YOKE) | ||||
| 90179-22018 |
UZS173 |
2 | ||
| 90179-22018 |
UZS173 |
2 | ||
| 34780A - NUT (FOR FLANGE YOKE) | ||||
| 90179-22018 |
UZS173 |
2 | ||
| 90179-22018 |
UZS173 |
2 | ||
| 34780B - WASHER, PLATE (FOR FLANGE YOKE) | ||||
| 90201-30005 |
UZS173 |
2 | ||
| 90201-30005 |
UZS173 |
2 | ||
| 34780B - WASHER, PLATE (FOR FLANGE YOKE) | ||||
| 90201-30005 |
UZS173 |
2 | ||
| 90201-30005 |
UZS173 |
2 | ||
| 34780C - RING, O (FOR FLANGE YOKE) | ||||
| 90301-06196 |
JZS173,179,UZS173 |
3 | ||
| 90301-06196 |
JZS173,179,UZS173 |
3 | ||
| 34780C - RING, O (FOR FLANGE YOKE) | ||||
| 90301-06196 |
JZS173,179,UZS173 |
3 | ||
| 90301-06196 |
JZS173,179,UZS173 |
3 | ||
| 34780C - RING, O (FOR FLANGE YOKE) | ||||
| 90301-06196 |
JZS173,179,UZS173 |
3 | ||
| 90301-06196 |
JZS173,179,UZS173 |
3 | ||
| 35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE) | ||||
| 35148-12010 |
JZS173,179,UZS173 |
4 | ||
| 35148-12010 |
JZS173,179,UZS173 |
4 | ||
| 35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE) | ||||
| 35148-12010 |
JZS173,179,UZS173 |
4 | ||
| 35148-12010 |
JZS173,179,UZS173 |
4 | ||
| 35148C - GASKET, GOVERNOR APPLY (FOR ATM TRANSFER CHAIN CASE) | ||||
| 35148-12010 |
JZS173,179,UZS173 |
4 | ||
| 35148-12010 |
JZS173,179,UZS173 |
4 | ||
| 35394B - MAGNET, OIL CLEANER (FOR TRANSFER) | ||||
| 35394-30011 |
JZS173,179,UZS173 |
1 | ||
| 35394-30011 |
JZS173,179,UZS173 |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-30050 |
UZS173 |
1 | ||
| 36103-30050 |
UZS173 |
1 | ||
| 36103D - BEARING (FOR TRANSFER CASE) | ||||
| 90363-30063 |
UZS173 外径=62 |
1 | ||
| 90363-60007 |
JZS173,179,UZS173 外径=85 |
1 | ||
| 90363-30063 |
UZS173 外径=62 |
1 | ||
| 90363-60007 |
JZS173,179,UZS173 外径=85 |
1 | ||
| 36103D - BEARING (FOR TRANSFER CASE) | ||||
| 90363-30063 |
UZS173 外径=62 |
1 | ||
| 90363-60007 |
JZS173,179,UZS173 外径=85 |
1 | ||
| 90363-30063 |
UZS173 外径=62 |
1 | ||
| 90363-60007 |
JZS173,179,UZS173 外径=85 |
1 | ||
| 36103E - RING, HOLE SNAP (FOR TRANSFER CASE BEARING) | ||||
| 90521-66006 |
UZS173 |
1 | ||
| 90521-66006 |
UZS173 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-42024 |
UZS173 |
1 | ||
| 90311-42024 |
UZS173 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-13003 |
JZS173,179,UZS173 長さ=18,外径=13 |
1 | ||
| 90250-10007 |
JZS173,179,UZS173 長さ=23,外径=10 |
1 | ||
| 90250-10007 |
JZS173,179,UZS173 長さ=23,外径=10 |
1 | ||
| 90250-13003 |
JZS173,179,UZS173 長さ=18,外径=13 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-13003 |
JZS173,179,UZS173 長さ=18,外径=13 |
1 | ||
| 90250-10007 |
JZS173,179,UZS173 長さ=23,外径=10 |
1 | ||
| 90250-10007 |
JZS173,179,UZS173 長さ=23,外径=10 |
1 | ||
| 90250-13003 |
JZS173,179,UZS173 長さ=18,外径=13 |
1 | ||
| Common parts | ||||
| 90105-06088 | ||||
| 90105-08301 | ||||
| 90105-10189 | ||||
| 90105-10363 | ||||
| 90105-10364 | ||||
| 90105-10365 | ||||
| 90105-10366 | ||||
| 90105-10367 | ||||
| 90105-10368 | ||||
| 90105-12245 | ||||
| 90119-06513 | ||||
| 90430-12034 | ||||
| 90523-06023 | ||||

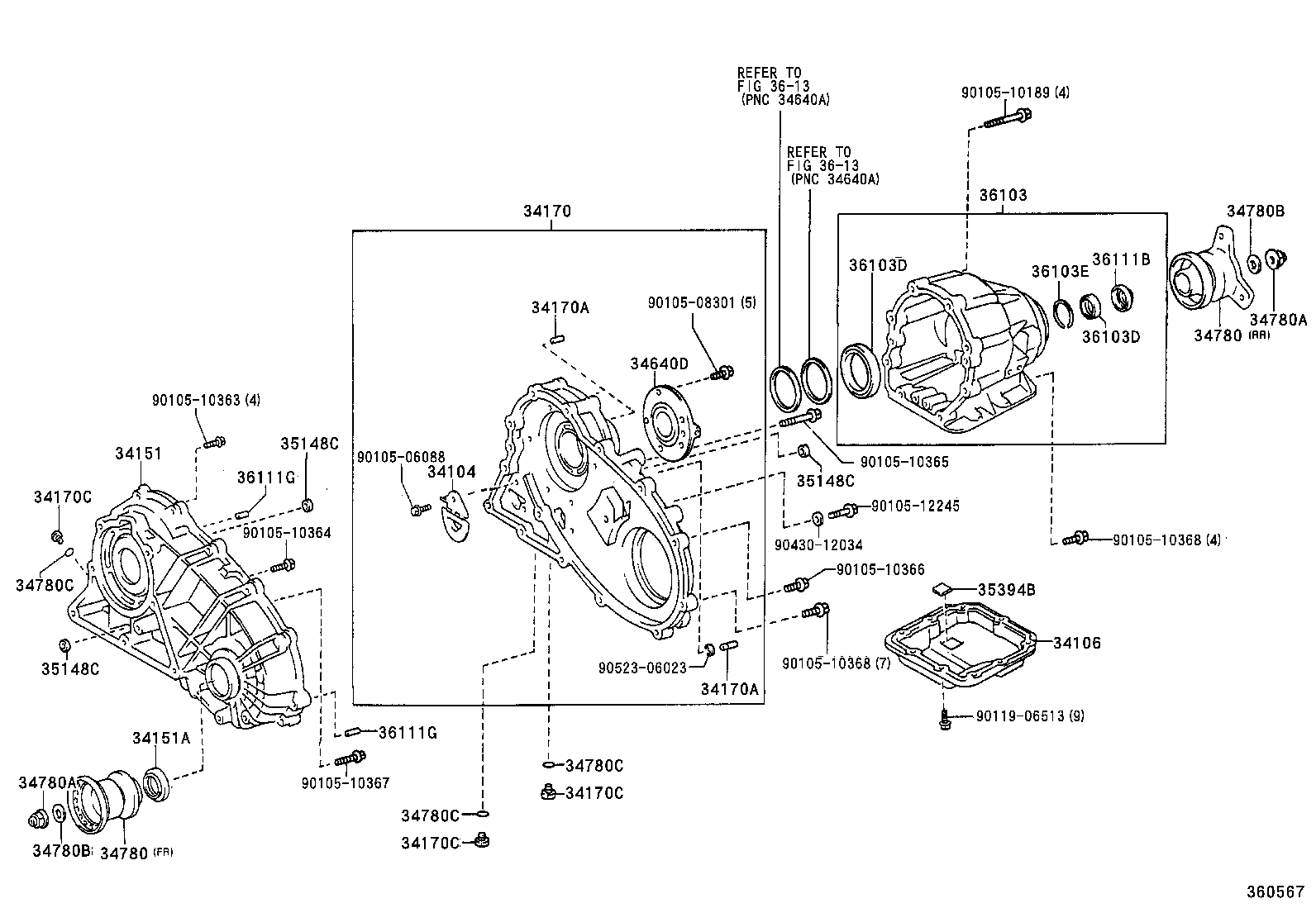

| Linked diagrams | ||||
| 3613 | ||||
