UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )UZS17#

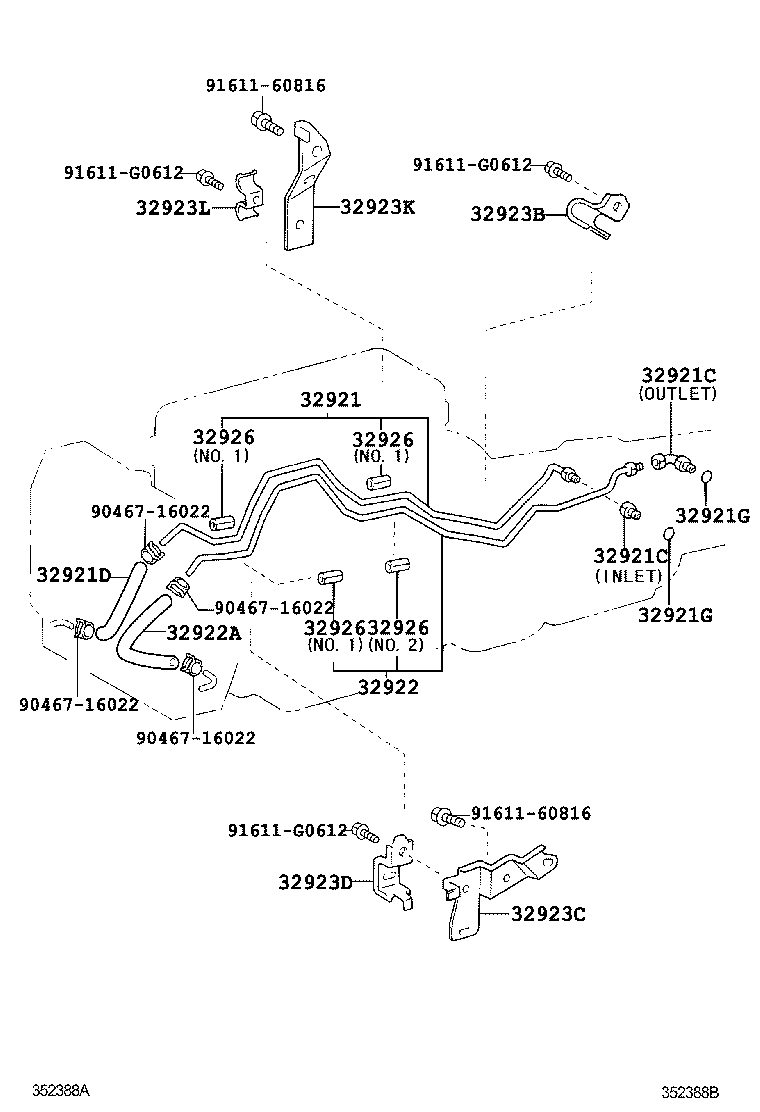

Click highlighted areas on diagram

A341H,A650E

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923B 32923C 32923D 32923K 32923L 32926 32926 32926 32926 9046716022 9046716022 9046716022 9046716022 9161160816 9161160816 91611G0612 91611G0612 91611G0612
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-30740

UZS17#

 1
32921-30740

UZS17#

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

JZS17#,UZS17#

ｱｳﾄﾚｯﾄ

 1
90404-16029

JZS171,175,177,UZS17#

ｲﾝﾚｯﾄ

 1
90407-16009

JKS175,JZS17#,UZS17#

ｱｳﾄﾚｯﾄ

 1
90404-16029

JKS175,JZS171,175,177,UZS17#

ｲﾝﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90407-16009

JZS17#,UZS17#

ｱｳﾄﾚｯﾄ

 1
90404-16029

JZS171,175,177,UZS17#

ｲﾝﾚｯﾄ

 1
90407-16009

JKS175,JZS17#,UZS17#

ｱｳﾄﾚｯﾄ

 1
90404-16029

JKS175,JZS171,175,177,UZS17#

ｲﾝﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-17115

UZS17#

 1
90445-17115

UZS17#

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

JZS17#,UZS17#

 2
90301-11006

JZS173..ATH;JKS175,JZS171,175,177,UZS17#

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-11006

JZS17#,UZS17#

 2
90301-11006

JZS173..ATH;JKS175,JZS171,175,177,UZS17#

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-30740

UZS17#

 1
32922-30740

UZS17#

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-17136

JZS177,UZS17#

 1
90445-17136

JZS177,UZS17#

 1
32923B - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1
32929-51010

JZS171,173,175,179..D4,TWC

 1
32929-51010

JKS175,JZS171,173,175,179..D4,TWC

 1
32923-50010

UZS17#

 1
32923-50010

UZS17#

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32924-51010

JZS171,173,175,179..D4,TWC

 1
32924-50020

UZS17#

 1
32924-50020

UZS17#

 1
32923D - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.5
32929-50020

JZS17#,UZS17#

 1
32929-50020

JZS17#,UZS17#

 1
32923K - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.2
32923-50030

UZS17#

 1
32923-50030

UZS17#

 1
32923L - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.3
32929-22050

JZS171,173,179..TWC,TWT

 1
90462-12074

UZS17#

 1
90462-12074

UZS17#

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

UZS17#

長さ=35,内径=10,NO.1

 3
32926-30020

UZS17#

長さ=35,内径=10

 3
32926-50010

UZS17#

長さ=35,内径=12,NO.2

 1
32926-50010

UZS17#

長さ=35,内径=12,NO.2

 1
32926-30020

JZS175,177;GS171,JZS171,173,179..HTWC,TWC,TWT

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

UZS17#

長さ=35,内径=10,NO.1

 3
32926-30020

UZS17#

長さ=35,内径=10

 3
32926-50010

UZS17#

長さ=35,内径=12,NO.2

 1
32926-50010

UZS17#

長さ=35,内径=12,NO.2

 1
32926-30020

JZS175,177;GS171,JZS171,173,179..HTWC,TWC,TWT

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

UZS17#

長さ=35,内径=10,NO.1

 3
32926-30020

UZS17#

長さ=35,内径=10

 3
32926-50010

UZS17#

長さ=35,内径=12,NO.2

 1
32926-50010

UZS17#

長さ=35,内径=12,NO.2

 1
32926-30020

JZS175,177;GS171,JZS171,173,179..HTWC,TWC,TWT

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30020

UZS17#

長さ=35,内径=10,NO.1

 3
32926-30020

UZS17#

長さ=35,内径=10

 3
32926-50010

UZS17#

長さ=35,内径=12,NO.2

 1
32926-50010

UZS17#

長さ=35,内径=12,NO.2

 1
32926-30020

JZS175,177;GS171,JZS171,173,179..HTWC,TWC,TWT

長さ=35,内径=10,NO.1

 2
Common parts
90467-16022
91611-60816
91611-G0612
