UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta

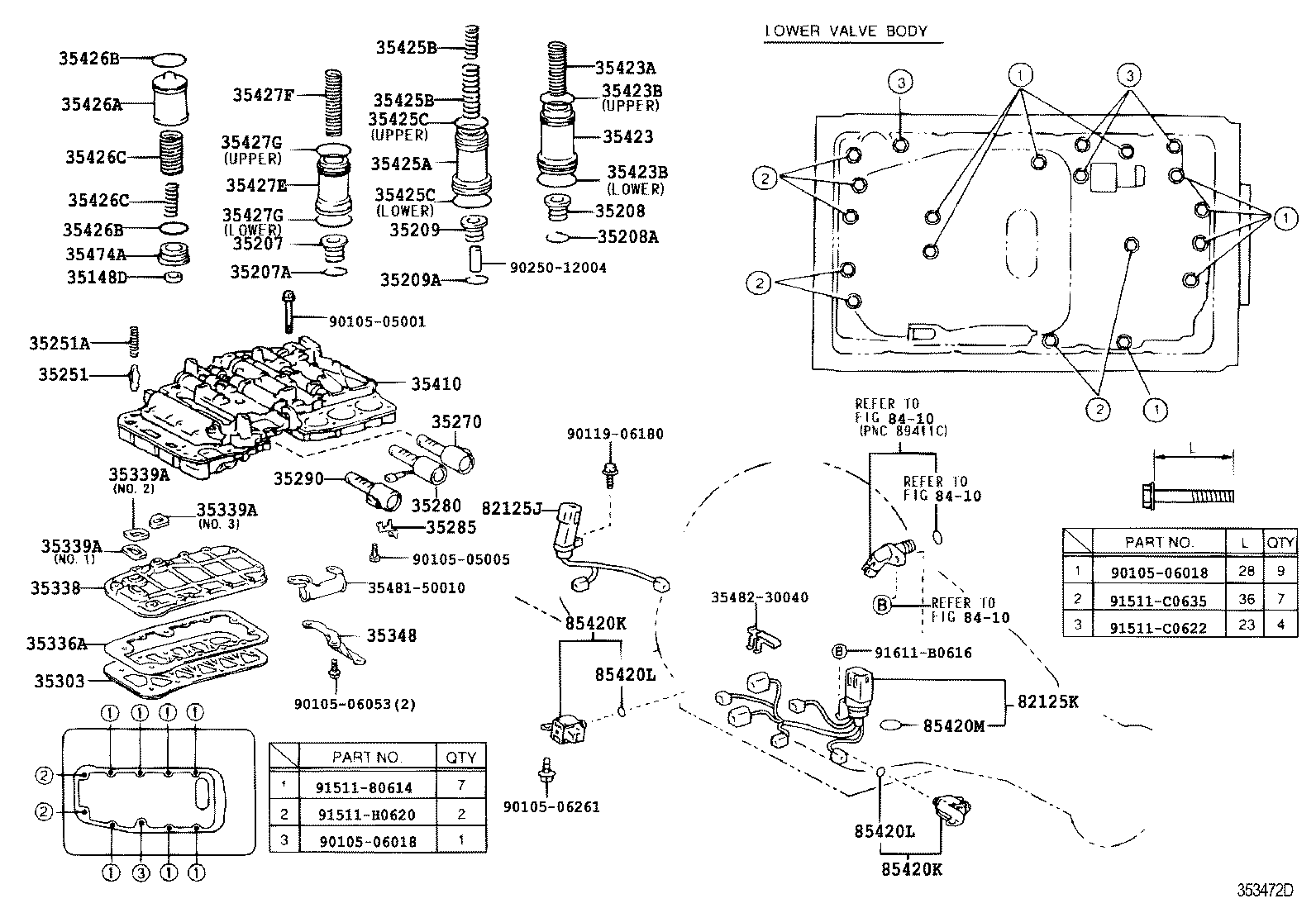

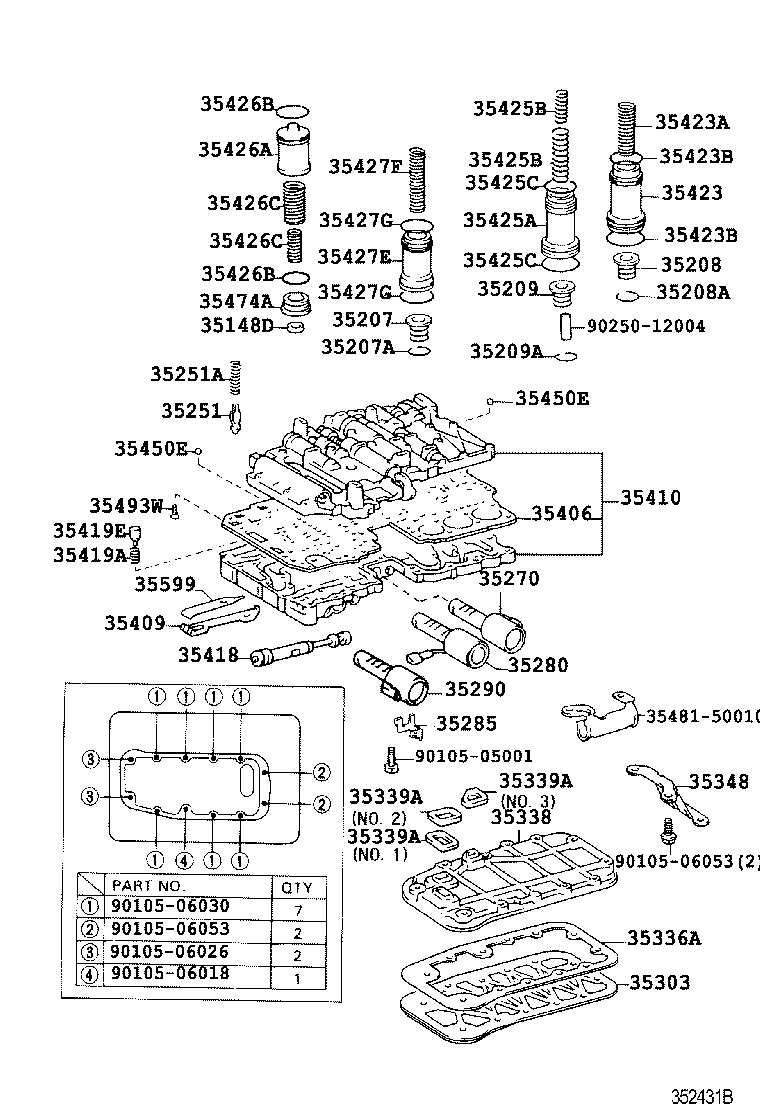

ILLUST NO. 1 OF 5(9909-0108)UZS173
A341H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35148D - GASKET (FOR C-O ACCUMULATOR PISTON) | ||||
| 35148-16010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35148-16010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-50010 |
UZS17# |
1 | ||
| 35207-22010 |
JZS171,173,175,177..D4,TWC |
1 | ||
| 35207-50010 |
UZS17# |
1 | ||
| 35207-22010 |
JKS175,JZS171,173,175,177..D4,TWC |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS17#,UZS17# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35208-30010 |
JZS171,173,179,UZS173 |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GS171,JZS17#,UZS17# |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-24010 |
JZS175,177;JZS171,173..4FC..TWC |
1 | ||
| 35209-50020 |
UZS173 |
1 | ||
| 35209-50020 |
UZS173 |
1 | ||
| 35209-24010 |
JKS175,JZS171,173,175,177..D4,TWC |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS17#,UZS17# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
JZS17#,UZS17# |
1 | ||
| 35251-30020 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
JZS17#,UZS17# |
1 | ||
| 90501-03005 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-14010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35270-14010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-30020 |
JZS171,179,UZS173..HTWC,TWC,TWT |
1 | ||
| 35280-30020 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24010 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35285-24020 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35285-24020 |
JZS171,173..4FC..(D4,TWC) NO.2 |
1 | ||
| 35285-24010 |
JZS171,173..4FC..(D4,TWC) NO.1 |
1 | ||
| 35285-30040 |
JZS179,UZS173 |
1 | ||
| 35285-30040 |
JZS171,179,UZS173..HTWC,TWC,TWT |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-60020 |
JZS171,173,179..4FC |
1 | ||
| 35290-14010 |
UZS173 |
1 | ||
| 35290-14010 |
UZS173 |
1 | ||
| 35290-60020 |
JZS171,173,179..4FC |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30080 |
JZS179,UZS173 |
1 | ||
| 35303-30080 |
UZS173 |
1 | ||
| 35336A - GASKET, OIL STRAINER SPACER | ||||
| 35336-30010 |
JZS179,UZS173 |
1 | ||
| 35336-30010 |
UZS173 |
1 | ||
| 35338 - SPACER, OIL STRAINER | ||||
| 35338-30010 |
UZS173 |
1 | ||
| 35338-30010 |
JZS179,UZS173 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35339-30090 |
JZS171,175,177,UZS17#..D4,HTWC,TWC |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35339-30090 |
JZS171,175,177,UZS17#..D4,HTWC,TWC |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35339-30090 |
JZS171,175,177,UZS17#..D4,HTWC,TWC |
1 | ||
| 35348 - BRACKET, OIL STRAINER, NO.1 | ||||
| 35348-30010 |
UZS173 |
1 | ||
| 35348-30010 |
JZS179,UZS173 |
1 | ||
| 35406 - PLATE SUB-ASSY, VALVE BODY | ||||
| 35406-30200 |
UZS173 |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-22020 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-30830 |
UZS173 |
1 | ||
| 35410-30830 |
UZS173 |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-50010 |
JZS179,UZS173 |
1 | ||
| 35418-24010 |
GS171,JZS171,173..4FC..(HTWC,TWC) |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
GS171,JZS17#,UZS17#..D4,HTWC,TWC |
1 | ||
| 35419E - VALVE, CHECK, NO.3 | ||||
| 35419-50010 |
JZS17#,UZS17# |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35423-30030 |
JZS17#,UZS17# |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-24015 |
JZS171,173..4FC..TWC |
1 | ||
| 90501-24015 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 90501-27020 |
UZS173 |
1 | ||
| 90501-27020 |
UZS173 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-23010 |
GS171,JZS17#,UZS17# 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-23010 |
GS171,JZS17#,UZS17# 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-40010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35425-40010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35425-30020 |
JZS171,173..4FC..TWC |
1 | ||
| 35425-30020 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
JZS171,173..4FC..TWC 外側 |
1 | ||
| 90501-23093 |
UZS173 外側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-23093 |
UZS173 外側 |
1 | ||
| 90501-22016 |
JZS171,173..4FC..(D4,TWC) 外側 |
1 | ||
| 90501-28027 |
UZS173 内側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-28027 |
UZS173 内側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
JZS171,173..4FC..TWC 外側 |
1 | ||
| 90501-23093 |
UZS173 外側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-23093 |
UZS173 外側 |
1 | ||
| 90501-22016 |
JZS171,173..4FC..(D4,TWC) 外側 |
1 | ||
| 90501-28027 |
UZS173 内側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-28027 |
UZS173 内側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25010 |
JZS171,173..4FC..TWC 上側 |
1 | ||
| 90903-01001 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 上側 |
1 | ||
| 90301-31010 |
JZS171,173..4FC..TWC 下側 |
1 | ||
| 90903-01003 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25010 |
JZS171,173..4FC..TWC 上側 |
1 | ||
| 90903-01001 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 上側 |
1 | ||
| 90301-31010 |
JZS171,173..4FC..TWC 下側 |
1 | ||
| 90903-01003 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 下側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-50010 |
JZS175;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35426-40010 |
JZS171,173..4FC..TWC |
1 | ||
| 35426-50010 |
JZS171,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35426-40010 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 90301-24010 |
JZS179;JZS171,UZS173..HTWC,TWT |
2 | ||
| 90301-24010 |
JZS177,UZS171,175;JZS171,173..4FC..(D4,TWC) |
1 | ||
| 90301-24010 |
JZS171..ATH,ATHV;JKS175,JZS175,179,UZS173 |
2 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 90301-24010 |
JZS179;JZS171,UZS173..HTWC,TWT |
2 | ||
| 90301-24010 |
JZS177,UZS171,175;JZS171,173..4FC..(D4,TWC) |
1 | ||
| 90301-24010 |
JZS171..ATH,ATHV;JKS175,JZS175,179,UZS173 |
2 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-21021 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-21021 |
UZS173;JKS175,JZS171,175,UZS171,175..5FC |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-21021 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-21021 |
UZS173;JKS175,JZS171,175,UZS171,175..5FC |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
JZS171,173,175,177,UZS17# |
1 | ||
| 35427-30040 |
JKS175,JZS171,173,175,177,UZS17# |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90905-01025 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 90905-01025 |
UZS173;JKS175,JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
JKS175,JZS17#,UZS17# 上側 |
1 | ||
| 90301-20008 |
JZS17#,UZS17# 上側 |
1 | ||
| 90301-26011 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-26011 |
JKS175,JZS171,173,175,177,UZS17# 下側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
JKS175,JZS17#,UZS17# 上側 |
1 | ||
| 90301-20008 |
JZS17#,UZS17# 上側 |
1 | ||
| 90301-26011 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-26011 |
JKS175,JZS171,173,175,177,UZS17# 下側 |
1 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
UZS173 外径=5.535,ﾗﾊﾞｰ |
13 | ||
| 35495-22020 |
JZS171,173..4FC 外径=5.535,ﾗﾊﾞｰ |
10 | ||
| 35496-22030 |
JZS171,173,179,UZS173..4FC 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35450E - BALL (FOR UPPER VALVE BODY) | ||||
| 35495-22020 |
UZS173 外径=5.535,ﾗﾊﾞｰ |
13 | ||
| 35495-22020 |
JZS171,173..4FC 外径=5.535,ﾗﾊﾞｰ |
10 | ||
| 35496-22030 |
JZS171,173,179,UZS173..4FC 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-30010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35474-30010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35493W - SEAT, VALVE BODY | ||||
| 35493-50040 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
2 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22020 |
JZS17#,UZS17# |
1 | ||

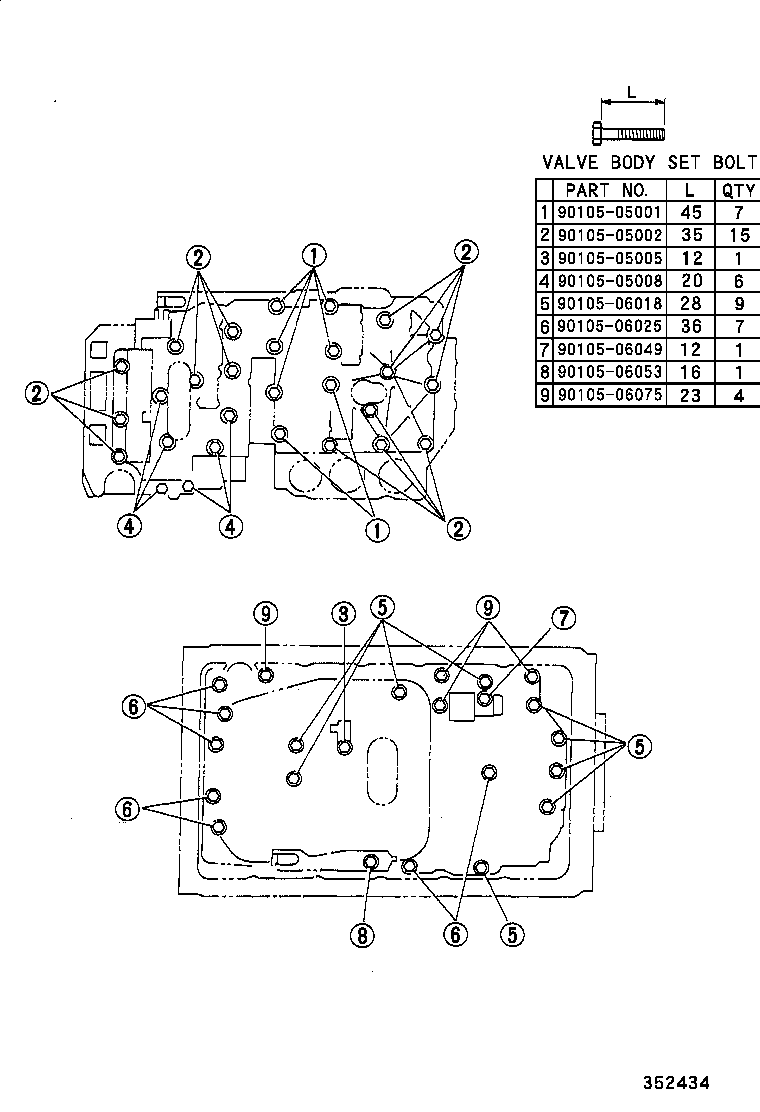

| Common parts | ||||
| 35481-50010 | ||||
| 90105-05001 | ||||
| 90105-06018 | ||||
| 90105-06026 | ||||
| 90105-06030 | ||||
| 90105-06053 | ||||
| 90250-12004 | ||||

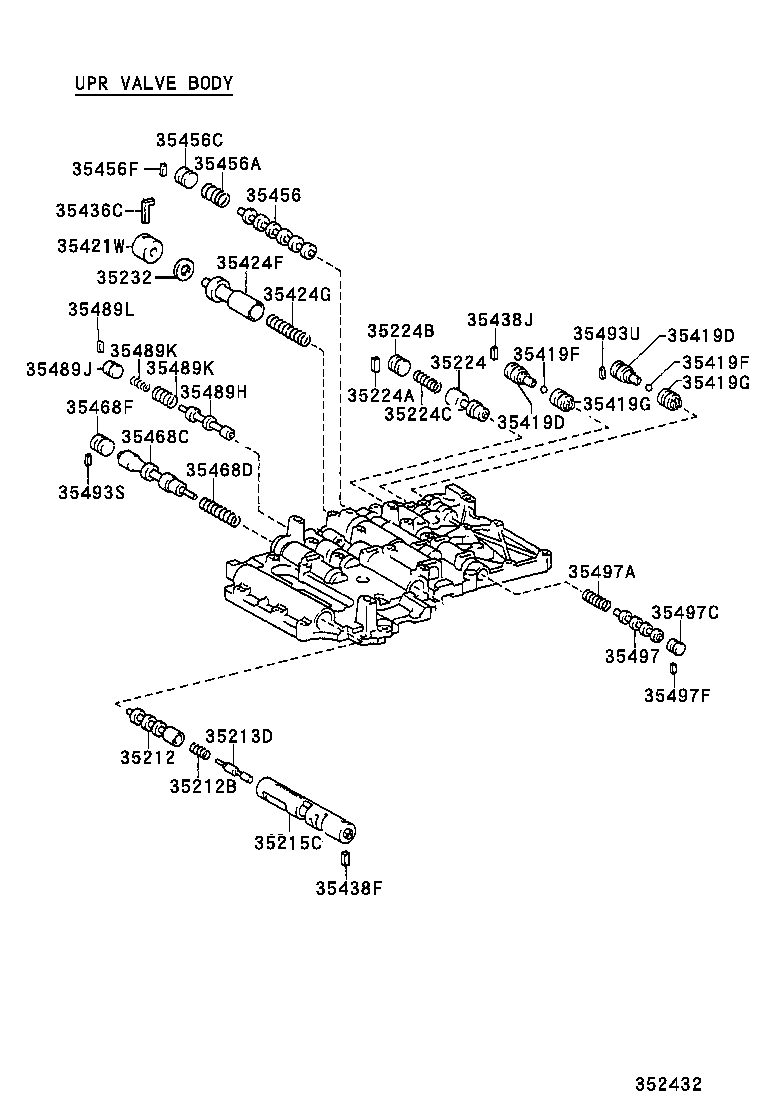

ILLUST NO. 2 OF 5(9909-0108)UZS173
A341H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-30050 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 35212-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-06057 |
GS171,JZS17#,UZS17# |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35213-50010 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35215-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-30010 |
GS171,JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35224-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 90282-03010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
GS171,JZS17#,UZS17# |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
GS171,JZS171,173,179,UZS173..4FC |
1 | ||
| 35232 - RING, C-1 ACCUMULATOR SEAL | ||||
| 35232-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419D - VALVE, CHECK, NO.2 | ||||
| 35419-50020 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419F - BALL, CHECK VALVE | ||||
| 90360-06004 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35419G - VALVE, CHECK, NO.4 | ||||
| 35419-50030 |
JZS171,173,179,UZS173..4FC |
2 | ||
| 35421W - PLUG, C-1 ACCUMULATOR VALVE | ||||
| 35421-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35424F - VALVE, C-1 ACCUMULATOR | ||||
| 35424-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35424G - SPRING, COMPRESSION (FOR C-1 ACCUMULATOR VALVE) | ||||
| 90501-15016 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35436C - RETAINER, C-1 ACCUMULATOR VALVE | ||||
| 35436-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35438F - SEAT, DETENT SPRING | ||||
| 35438-22020 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35438J - SEAT, THROTTLE VALVE SPRING | ||||
| 35493-50050 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30060 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09053 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35456F - KEY, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90282-03016 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35493-22020 |
JZS171,173..4FC..TWC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-30020 |
JZS179,UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35468-24010 |
GS171,JZS171,173..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12170 |
GS171,JZS171,173..4FC |
1 | ||
| 90501-12150 |
JZS179,UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
GS171,JZS17#,UZS17# |
1 | ||
| 35489H - VALVE, C-1 ORIFICE CONTROL | ||||
| 35489-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35489J - PLUG (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90339-05025 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08121 |
JZS171..ATH,ATHV;GS171,JZS175,177,179,UZS17# 外側 |
1 | ||
| 90501-08123 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 内側 |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-08121 |
JZS171..ATH,ATHV;GS171,JZS175,177,179,UZS17# 外側 |
1 | ||
| 90501-08123 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 内側 |
1 | ||
| 35489L - KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90282-03016 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-30030 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 35493-30030 |
JZS171,173..4FC..TWC |
2 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30040 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09053 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35497F - KEY, STRAIGHT (FOR 3-4 SHIFT VALVE) | ||||
| 90282-03002 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||

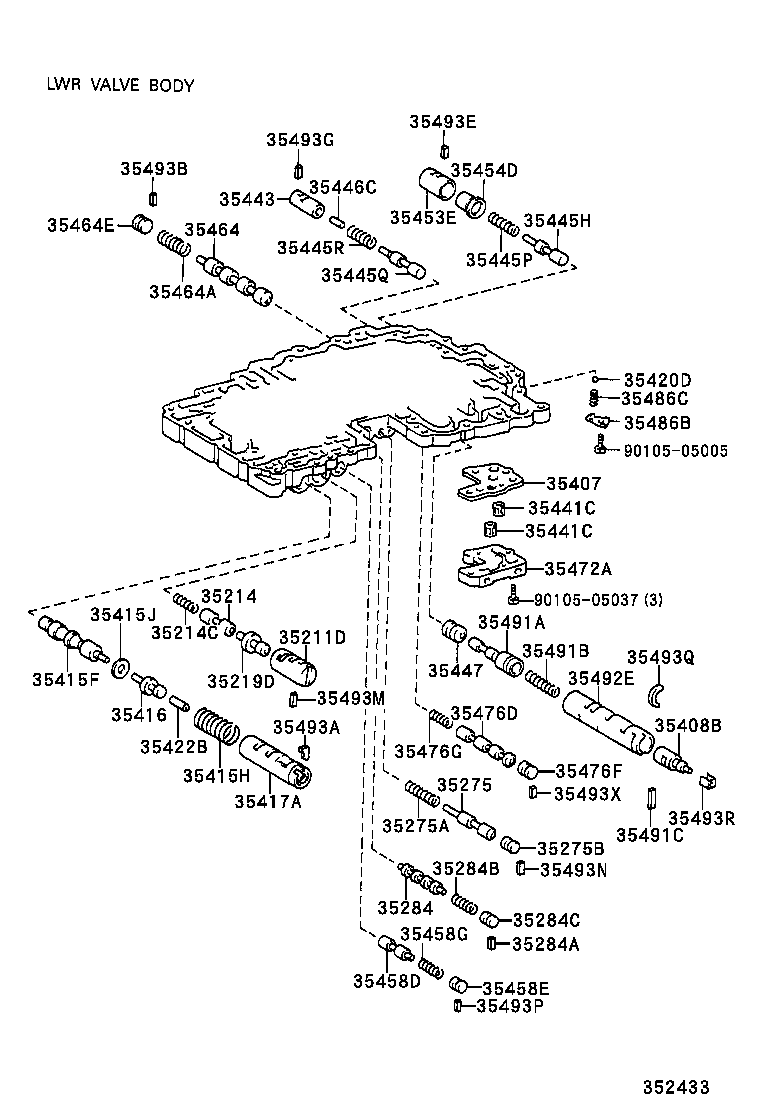

ILLUST NO. 3 OF 5(9909-0108)UZS173
A341H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211D - SLEEVE, LOCK UP CONTROL VALVE | ||||
| 35211-50010 |
JZS17#,UZS17# |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-50010 |
GS171,JZS17#,UZS17# |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-07111 |
GS171,JZS17#,UZS17# |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-50010 |
GS171,JZS17#,UZS17# |
1 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-30010 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12143 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04030 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 35284 - VALVE, SOLENOID RELAY | ||||
| 35284-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35284A - KEY, STRAIGHT (FOR SOLENOID RELAY VALVE) | ||||
| 90282-03016 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35284B - SPRING, COMPRESSION (FOR SOLENOID RELAY VALVE) | ||||
| 90501-06055 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35284C - PLUG (FOR SOLENOID RELAY VALVE) | ||||
| 90339-04030 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35407 - PLATE SUB-ASSY, VALVE BODY COVER | ||||
| 35407-50010 |
JZS179,UZS173 |
1 | ||
| 35408B - PLUG SUB-ASSY, ACCUMULATOR CONTROL VALVE | ||||
| 35408-50010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-30050 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-14117 |
JZS179,UZS173 |
1 | ||
| 90501-14153 |
JZS171,173..4FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90201-08067 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-50010 |
JZS179,UZS173 |
1 | ||
| 35416-24020 |
JZS171,173..4FC |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-24020 |
JZS171,173..4FC |
1 | ||
| 35417-50011 |
JZS179,UZS173 |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 90360-08003 |
JZS17#,UZS17#..D4,HTWC,TWC 外径=8.00,ｽﾁｰﾙ |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-50011 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24010 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35441-50030 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35441-50030 |
GS171,JZS179,UZS173 |
2 | ||
| 35441-24020 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC NO.3 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-24010 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35441-50030 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35441-50030 |
GS171,JZS179,UZS173 |
2 | ||
| 35441-24020 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC NO.3 |
1 | ||
| 35443 - SLEEVE, LOW COAST SHIFT CONTROL VALVE | ||||
| 35443-50020 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
JZS171,173..4FC..TWC |
2 | ||
| 35445-50010 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10167 |
JZS179,UZS173 ｵﾚﾝｼﾞ |
1 | ||
| 90501-10166 |
JZS179,UZS173 ﾗｲﾄ ｸﾞﾘｰﾝ |
1 | ||
| 90501-10081 |
JZS171,173..4FC..TWC |
1 | ||
| 90501-11058 |
JZS179,UZS173 ﾍﾟｲﾝﾄ無し |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-50010 |
GS171,JZS171,173,179,UZS173..4FC..(HTWC,TWC) |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-07100 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 90501-08066 |
JZS171,173..4FC..TWC |
1 | ||
| 35446C - PLUNGER, LOW COAST MODULATOR VALVE | ||||
| 35446-50020 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35447 - PLUNGER, ACCUMULATOR CONTROL VALVE | ||||
| 35447-50010 |
JZS179,UZS173 |
1 | ||
| 35453E - SLEEVE, 2ND COAST MODULATOR VALVE | ||||
| 35453-14010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35454D - PLUNGER, 2ND COAST MODULATOR VALVE | ||||
| 35454-14010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-50010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35458-24010 |
JZS171,173..4FC..TWC |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 90339-04030 |
JZS179,UZS173 |
1 | ||
| 90339-04056 |
JZS171,173..4FC..TWC |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06055 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 90501-07113 |
JZS171,173..4FC..TWC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-12030 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09053 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05014 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35472A - COVER, LOWER VALVE BODY | ||||
| 35472-50010 |
JZS179,UZS173 |
1 | ||
| 35476D - VALVE, CUT OFF | ||||
| 35476-50010 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35476F - PLUG (FOR CUT OFF VALVE) | ||||
| 90339-05021 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35476G - SPRING, COMPRESSION (FOR CUT OFF VALVE) | ||||
| 90501-06062 |
JZS179,UZS173 |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-30020 |
JZS171,173..4FC..TWC |
1 | ||
| 35486-50010 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-11061 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| 90501-12142 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-50010 |
UZS173 |
1 | ||
| 35491-60050 |
JZS171,173..4FC..TWC |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-11049 |
JZS179,UZS173 |
1 | ||
| 90501-08197 |
JZS171,173..4FC..TWC |
1 | ||
| 35491C - KEY, STRAIGHT (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90282-03016 |
JZS171,173..4FC..TWC |
1 | ||
| 90282-03015 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35492E - SLEEVE, ACCUMULATOR CONTROL VALVE | ||||
| 35492-50010 |
JZS179,UZS173 |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
GS171,JZS17#,UZS17# |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35493-30090 |
JZS171,173..4FC..TWC |
1 | ||
| 35493-22020 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-22020 |
JZS179,UZS173 |
1 | ||
| 35493-30090 |
JZS171,173..4FC..TWC |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-24010 |
JZS171,173..4FC..TWC |
1 | ||
| 35493-22020 |
JZS179,UZS173 |
1 | ||
| 35493M - SEAT, LOCK UP CONTROL VALVE PLUG | ||||
| 35493-30080 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35493N - SEAT, SOLENOID MODULATOR VALVE PLUG | ||||
| 35493-30080 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35493P - SEAT, CUT BACK VALVE PLUG | ||||
| 35493-30100 |
JZS171,173..4FC..TWC |
1 | ||
| 35493-30040 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 35493-50020 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 90339-05028 |
JZS171,173..4FC..TWC |
1 | ||
| 35493R - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.2 | ||||
| 35493-50030 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35493X - SEAT, CUT OFF VALAE | ||||
| 35493-50050 |
JZS179;GS171,JZS171,UZS173..HTWC,TWT |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05037 | ||||
ILLUST NO. 4 OF 5(9909-0108)UZS173
A341H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05005 | ||||
| 90105-05008 | ||||
| 90105-06018 | ||||
| 90105-06025 | ||||
| 90105-06049 | ||||
| 90105-06053 | ||||
| 90105-06075 | ||||

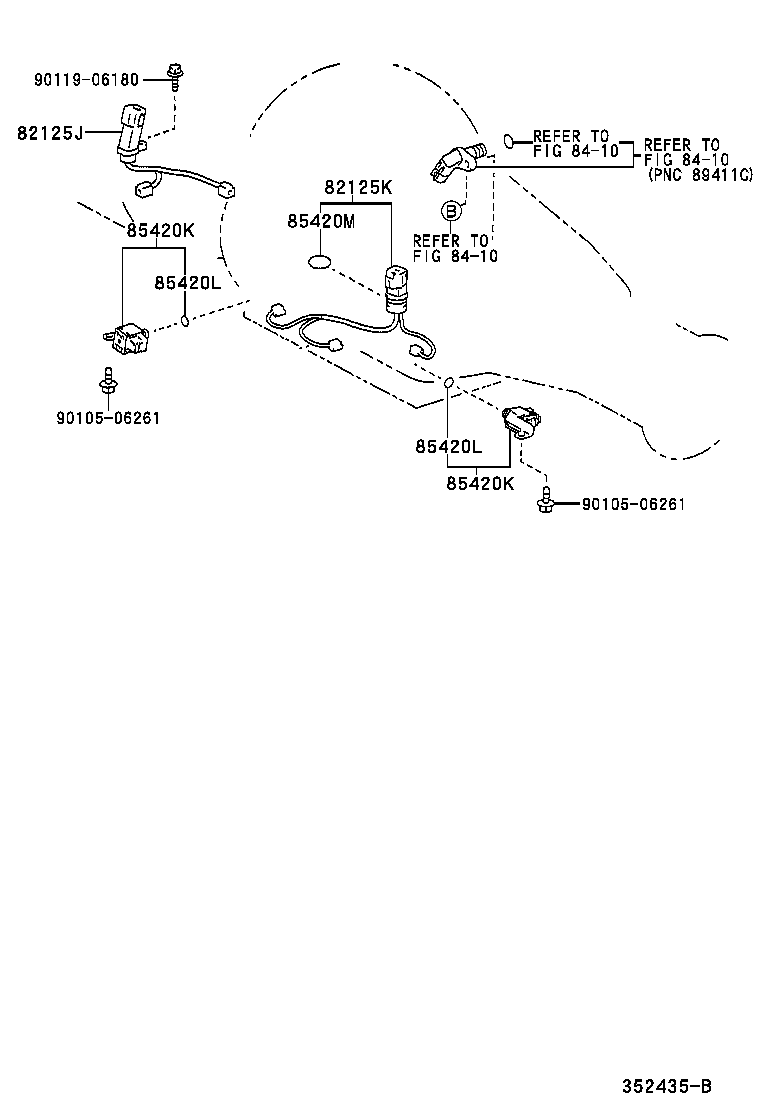

ILLUST NO. 5 OF 5(9909-0108)UZS173
A341H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-30440 |
JZS173,179,UZS173 |
1 | ||
| 82125K - WIRE, TRANSMISSION | ||||
| 82125-31010 |
JZS179,UZS173 |
1 | ||
| 82125-40050 |
JZS179,UZS173 |
1 | ||
| 82125-31010 |
JZS179,UZS173 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-22170 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 85420-50020 |
JZS179,UZS173 |
2 | ||
| 85420-50020 |
JZS179,UZS173 |
2 | ||
| 85420-22150 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35250-30050 |
JZS171,173..4FC..(D4,TWC) AISIN SEIKI,NO.1 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-22170 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 85420-50020 |
JZS179,UZS173 |
2 | ||
| 85420-50020 |
JZS179,UZS173 |
2 | ||
| 85420-22150 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35250-30050 |
JZS171,173..4FC..(D4,TWC) AISIN SEIKI,NO.1 |
1 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS173..SED;GS171,JZS171,175,177,179,UZS17#..D4,HTWC,TWC |
2 | ||
| 90301-06004 |
JZS175;JZS171..SED..ROY;JZS171..ATH,ROYEX;JZS173,177,179,UZS17#..SED |
2 | ||
| 90301-06004 |
UZS173 NO.1 |
2 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS173..SED;GS171,JZS171,175,177,179,UZS17#..D4,HTWC,TWC |
2 | ||
| 90301-06004 |
JZS175;JZS171..SED..ROY;JZS171..ATH,ROYEX;JZS173,177,179,UZS17#..SED |
2 | ||
| 90301-06004 |
UZS173 NO.1 |
2 | ||
| 85420M - RING, O(FOR SPEED SENSOR) | ||||
| 96721-24018 |
GS171,JZS17#,UZS17# |
1 | ||
| 96721-24018 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 90105-06261 | ||||
| 90119-06180 | ||||
| Linked diagrams | ||||
| 8410 | ||||
(0108- )UZS173
A341H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35148D - GASKET (FOR C-O ACCUMULATOR PISTON) | ||||
| 35148-16010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35148-16010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35207 - SPRING SUB-ASSY, B-0 ACCUMULATOR | ||||
| 35207-50010 |
UZS17# |
1 | ||
| 35207-22010 |
JZS171,173,175,177..D4,TWC |
1 | ||
| 35207-50010 |
UZS17# |
1 | ||
| 35207-22010 |
JKS175,JZS171,173,175,177..D4,TWC |
1 | ||
| 35207A - RING, HOLE SNAP (FOR B-0 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS17#,UZS17# |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-30010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35208-30010 |
JZS171,173,179,UZS173 |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GS171,JZS17#,UZS17# |
1 | ||
| 35209 - SPRING SUB-ASSY, C-2 ACCUMULATOR | ||||
| 35209-24010 |
JZS175,177;JZS171,173..4FC..TWC |
1 | ||
| 35209-50020 |
UZS173 |
1 | ||
| 35209-50020 |
UZS173 |
1 | ||
| 35209-24010 |
JKS175,JZS171,173,175,177..D4,TWC |
1 | ||
| 35209A - RING, HOLE SNAP (FOR C-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
JZS17#,UZS17# |
1 | ||
| 35251 - BODY, CHECK BALL | ||||
| 35251-30020 |
JZS17#,UZS17# |
1 | ||
| 35251-30020 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35251A - SPRING, COMPRESSION (FOR CHECK BALL BODY) | ||||
| 90501-03005 |
JZS17#,UZS17# |
1 | ||
| 90501-03005 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35270 - SOLENOID ASSY, SHIFT CONTROL | ||||
| 35270-14010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35270-14010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-30020 |
JZS171,179,UZS173..HTWC,TWC,TWT |
1 | ||
| 35280-30020 |
JZS179;JZS171,UZS173..HTWC,TWT |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-24010 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35285-24020 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 35285-24020 |
JZS171,173..4FC..(D4,TWC) NO.2 |
1 | ||
| 35285-24010 |
JZS171,173..4FC..(D4,TWC) NO.1 |
1 | ||
| 35285-30040 |
JZS179,UZS173 |
1 | ||
| 35285-30040 |
JZS171,179,UZS173..HTWC,TWC,TWT |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-60020 |
JZS171,173,179..4FC |
1 | ||
| 35290-14010 |
UZS173 |
1 | ||
| 35290-14010 |
UZS173 |
1 | ||
| 35290-60020 |
JZS171,173,179..4FC |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30080 |
JZS179,UZS173 |
1 | ||
| 35303-30080 |
UZS173 |
1 | ||
| 35336A - GASKET, OIL STRAINER SPACER | ||||
| 35336-30010 |
JZS179,UZS173 |
1 | ||
| 35336-30010 |
UZS173 |
1 | ||
| 35338 - SPACER, OIL STRAINER | ||||
| 35338-30010 |
UZS173 |
1 | ||
| 35338-30010 |
JZS179,UZS173 |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35339-30090 |
JZS171,175,177,UZS17#..D4,HTWC,TWC |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35339-30090 |
JZS171,175,177,UZS17#..D4,HTWC,TWC |
1 | ||
| 35339A - GASKET, OIL STRAINER, NO.1 | ||||
| 35339-30090 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35339-30090 |
JZS171,175,177,UZS17#..D4,HTWC,TWC |
1 | ||
| 35348 - BRACKET, OIL STRAINER, NO.1 | ||||
| 35348-30010 |
UZS173 |
1 | ||
| 35348-30010 |
JZS179,UZS173 |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-30830 |
UZS173 |
1 | ||
| 35410-30830 |
UZS173 |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35423-30030 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35423-30030 |
JZS17#,UZS17# |
1 | ||
| 35423A - SPRING, COMPRESSION (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90501-24015 |
JZS171,173..4FC..TWC |
1 | ||
| 90501-24015 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 90501-27020 |
UZS173 |
1 | ||
| 90501-27020 |
UZS173 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-23010 |
GS171,JZS17#,UZS17# 上側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-31010 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-23010 |
GS171,JZS17#,UZS17# 上側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35425-40010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35425-40010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35425-30020 |
JZS171,173..4FC..TWC |
1 | ||
| 35425-30020 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
JZS171,173..4FC..TWC 外側 |
1 | ||
| 90501-23093 |
UZS173 外側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-23093 |
UZS173 外側 |
1 | ||
| 90501-22016 |
JZS171,173..4FC..(D4,TWC) 外側 |
1 | ||
| 90501-28027 |
UZS173 内側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-28027 |
UZS173 内側 |
1 | ||
| 35425B - SPRING, COMPRESSION (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90501-22016 |
JZS171,173..4FC..TWC 外側 |
1 | ||
| 90501-23093 |
UZS173 外側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-23093 |
UZS173 外側 |
1 | ||
| 90501-22016 |
JZS171,173..4FC..(D4,TWC) 外側 |
1 | ||
| 90501-28027 |
UZS173 内側 |
1 | ||
| 90501-25027 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-28027 |
UZS173 内側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25010 |
JZS171,173..4FC..TWC 上側 |
1 | ||
| 90903-01001 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 上側 |
1 | ||
| 90301-31010 |
JZS171,173..4FC..TWC 下側 |
1 | ||
| 90903-01003 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 下側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-25010 |
JZS171,173..4FC..TWC 上側 |
1 | ||
| 90903-01001 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 上側 |
1 | ||
| 90301-31010 |
JZS171,173..4FC..TWC 下側 |
1 | ||
| 90903-01003 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C 下側 |
1 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-50010 |
JZS175;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35426-40010 |
JZS171,173..4FC..TWC |
1 | ||
| 35426-50010 |
JZS171,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35426-40010 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 90301-24010 |
JZS179;JZS171,UZS173..HTWC,TWT |
2 | ||
| 90301-24010 |
JZS177,UZS171,175;JZS171,173..4FC..(D4,TWC) |
1 | ||
| 90301-24010 |
JZS171..ATH,ATHV;JKS175,JZS175,179,UZS173 |
2 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90301-24010 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC |
1 | ||
| 90301-24010 |
JZS179;JZS171,UZS173..HTWC,TWT |
2 | ||
| 90301-24010 |
JZS177,UZS171,175;JZS171,173..4FC..(D4,TWC) |
1 | ||
| 90301-24010 |
JZS171..ATH,ATHV;JKS175,JZS175,179,UZS173 |
2 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-21021 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-21021 |
UZS173;JKS175,JZS171,175,UZS171,175..5FC |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-21021 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 90501-22008 |
JZS171,173..4FC 内側 |
1 | ||
| 90501-21021 |
UZS173;JKS175,JZS171,175,UZS171,175..5FC |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 90501-23073 |
JZS171,173..4FC 外側 |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-30040 |
JZS171,173,175,177,UZS17# |
1 | ||
| 35427-30040 |
JKS175,JZS171,173,175,177,UZS17# |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90905-01025 |
UZS173;JZS171,175,177,UZS171,175..5FC |
1 | ||
| 90905-01025 |
UZS173;JKS175,JZS171,175,177,UZS171,175..5FC |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
JKS175,JZS17#,UZS17# 上側 |
1 | ||
| 90301-20008 |
JZS17#,UZS17# 上側 |
1 | ||
| 90301-26011 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-26011 |
JKS175,JZS171,173,175,177,UZS17# 下側 |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90301-20008 |
JKS175,JZS17#,UZS17# 上側 |
1 | ||
| 90301-20008 |
JZS17#,UZS17# 上側 |
1 | ||
| 90301-26011 |
JZS17#,UZS17# 下側 |
1 | ||
| 90301-26011 |
JKS175,JZS171,173,175,177,UZS17# 下側 |
1 | ||
| 35474A - COVER, ACCUMULATOR | ||||
| 35474-30010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35474-30010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 82125J - WIRE, TRANSMISSION | ||||
| 82125-30440 |
JZS173,179,UZS173 |
1 | ||
| 82125K - WIRE, TRANSMISSION | ||||
| 82125-31010 |
JZS179,UZS173 |
1 | ||
| 82125-40050 |
JZS179,UZS173 |
1 | ||
| 82125-31010 |
JZS179,UZS173 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-22170 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 85420-50020 |
JZS179,UZS173 |
2 | ||
| 85420-50020 |
JZS179,UZS173 |
2 | ||
| 85420-22150 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35250-30050 |
JZS171,173..4FC..(D4,TWC) AISIN SEIKI,NO.1 |
1 | ||
| 85420K - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-22170 |
JZS171,173..4FC..TWC NO.2 |
1 | ||
| 85420-50020 |
JZS179,UZS173 |
2 | ||
| 85420-50020 |
JZS179,UZS173 |
2 | ||
| 85420-22150 |
JZS171,173..4FC..TWC NO.1 |
1 | ||
| 35250-30050 |
JZS171,173..4FC..(D4,TWC) AISIN SEIKI,NO.1 |
1 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS173..SED;GS171,JZS171,175,177,179,UZS17#..D4,HTWC,TWC |
2 | ||
| 90301-06004 |
JZS175;JZS171..SED..ROY;JZS171..ATH,ROYEX;JZS173,177,179,UZS17#..SED |
2 | ||
| 90301-06004 |
UZS173 NO.1 |
2 | ||
| 85420L - RING, O(FOR TRANSMISSION SOLENOID) | ||||
| 90301-06004 |
JZS173..SED;GS171,JZS171,175,177,179,UZS17#..D4,HTWC,TWC |
2 | ||
| 90301-06004 |
JZS175;JZS171..SED..ROY;JZS171..ATH,ROYEX;JZS173,177,179,UZS17#..SED |
2 | ||
| 90301-06004 |
UZS173 NO.1 |
2 | ||
| 85420M - RING, O(FOR SPEED SENSOR) | ||||
| 96721-24018 |
GS171,JZS17#,UZS17# |
1 | ||
| 96721-24018 |
GS171,JKS175,JZS17#,UZS17# |
1 | ||
| Common parts | ||||
| 35481-50010 | ||||
| 35482-30040 | ||||
| 90105-05001 | ||||
| 90105-05005 | ||||
| 90105-06018 | ||||
| 90105-06053 | ||||
| 90105-06261 | ||||
| 90119-06180 | ||||
| 90250-12004 | ||||
| 91511-80614 | ||||
| 91511-C0622 | ||||
| 91511-C0635 | ||||
| 91511-H0620 | ||||
| 91611-B0616 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
