UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
(9909- )JZS179 ; (9909- )JZS171,UZS173..HTWC,TWT
A340E,A340H,A341H

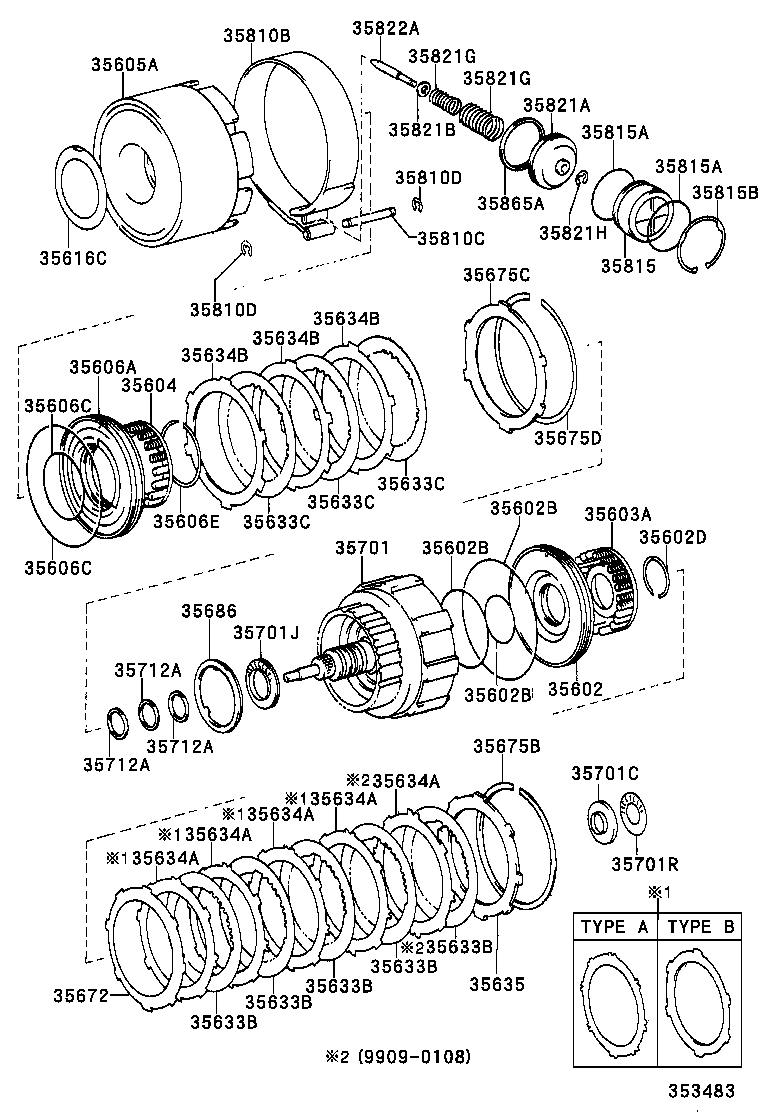

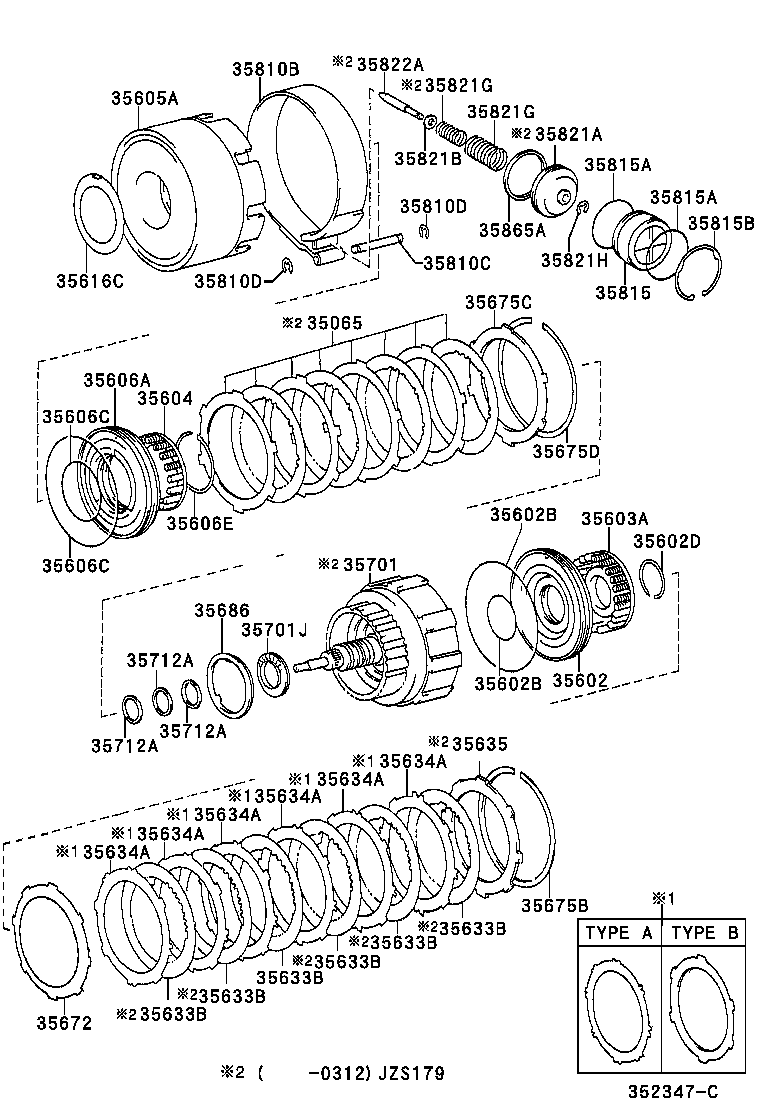

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35065 - DRUM SUB-ASSY, REAR CLUTCH & FRONT SUN GEAR | ||||
| 35065-30060 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35065-30060 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30062 |
JZS171,173..4FC..TWC |
1 | ||
| 35602-30062 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35602-22020 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35602-22020 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS171..WG;JZS171..SED..4FC;JZS173,175,177,179,UZS17# 内側 |
1 | ||
| 90301-39005 |
JZS17#,UZS17# 内側 |
1 | ||
| 90301-99058 |
JZS17#,UZS17# 外側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS171..WG;JZS171..SED..4FC;JZS173,175,177,179,UZS17# 内側 |
1 | ||
| 90301-39005 |
JZS17#,UZS17# 内側 |
1 | ||
| 90301-99058 |
JZS17#,UZS17# 外側 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
JZS17#,UZS17# |
1 | ||
| 90520-35001 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35603-30011 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35603-50010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35603-30011 |
JZS171,173..4FC..TWC |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35604-35010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-30060 |
JZS173..SED;JZS171,UZS173..4FC |
1 | ||
| 35605-30060 |
JZS171,173,UZS173..4FC |
1 | ||
| 35605-22040 |
JZS171,173,179..4FC..TWC |
1 | ||
| 35605-30060 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35605-30060 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35605-22040 |
JZS171,173,179..4FC..(D4,TWC) |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-35010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35606-35010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99058 |
JZS171,173,179,UZS173..4FC 外側 |
1 | ||
| 90301-65006 |
JZS17#,UZS17# 内側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99058 |
JZS171,173,179,UZS173..4FC 外側 |
1 | ||
| 90301-65006 |
JZS17#,UZS17# 内側 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
JZS17#,UZS17# |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-30050 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35616-30050 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-30030 |
JZS171,173..4FC..TWC 厚さ=4.40,ﾏｰｸ 64 |
1 | ||
| 35635-30050 |
JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 94 |
1 | ||
| 35635-30030 |
JZS171,173..4FC..(D4,TWC) 厚さ=4.40,ﾏｰｸ 64 |
1 | ||
| 35635-30060 |
JZS17#,UZS17# 厚さ=3.6,ﾏｰｸ 93 |
1 | ||
| 35635-30020 |
JZS171,173..4FC..TWC 厚さ=4.20,ﾏｰｸ 63 |
1 | ||
| 35635-50060 |
JZS17#,UZS17# 厚さ=3.00,ﾏｰｸ 61 |
1 | ||
| 35635-30040 |
JZS175,177,UZS171,175;JZS171,173,179,UZS173..4FC 厚さ=4.0,ﾏｰｸ 95 |
1 | ||
| 35635-30070 |
JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 92 |
1 | ||
| 35635-30070 |
JKS175,JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 92 |
1 | ||
| 35635-30080 |
JZS17#,UZS17# 厚さ=3.2,ﾏｰｸ 91 |
1 | ||
| 35635-30020 |
JZS171,173..4FC..(D4,TWC) 厚さ=4.20,ﾏｰｸ 63 |
1 | ||
| 35635-30090 |
JKS175,JZS17#,UZS17# 厚さ=3.0,ﾏｰｸ 90 |
1 | ||
| 35635-30060 |
JKS175,JZS17#,UZS17# 厚さ=3.6,ﾏｰｸ 93 |
1 | ||
| 35635-30040 |
JZS173;JKS175,JZS171,175,177,179,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG 厚さ=4.0,ﾏｰｸ 95 |
1 | ||
| 35635-30050 |
JKS175,JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 94 |
1 | ||
| 35635-30100 |
JZS171,173..4FC..(D4,TWC) 厚さ=4.2,ﾏｰｸ 96 |
1 | ||
| 35635-30080 |
JKS175,JZS17#,UZS17# 厚さ=3.2,ﾏｰｸ 91 |
1 | ||
| 35635-50060 |
JKS175,JZS17#,UZS17# 厚さ=3.00,ﾏｰｸ 61 |
1 | ||
| 35635-30110 |
JZS171,173..4FC..(D4,TWC) 厚さ=4.4,ﾏｰｸ 97 |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-30010 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35672-30010 |
JZS171,173..4FC..TWC |
1 | ||
| 35672-22010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35672-22010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
JZS17#,UZS17# |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30210 |
JZS173..SED;JZS171,175,177,179,UZS17# 厚さ=3.5,ﾏｰｸ 55 |
1 | ||
| 35675-30230 |
JZS173..SED;JZS171,175,177,179,UZS17# 厚さ=3.7,ﾏｰｸ 57 |
1 | ||
| 35675-30180 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC 厚さ=4.1 |
1 | ||
| 35675-22040 |
JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 34 |
1 | ||
| 35675-30220 |
JZS173..SED;JZS171,175,177,179,UZS17# 厚さ=3.6,ﾏｰｸ 56 |
1 | ||
| 35675-22080 |
JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 38 |
1 | ||
| 35675-30230 |
JZS17#,UZS17# 厚さ=3.7,ﾏｰｸ 57 |
1 | ||
| 35675-22100 |
JZS17#,UZS17# 厚さ=4.0,ﾏｰｸ 40 |
1 | ||
| 35675-22100 |
JKS175,JZS17#,UZS17# 厚さ=4.0,ﾏｰｸ 40 |
1 | ||
| 35675-30210 |
JZS17#,UZS17# 厚さ=3.5,ﾏｰｸ 55 |
1 | ||
| 35675-30220 |
JZS17#,UZS17# 厚さ=3.6,ﾏｰｸ 56 |
1 | ||
| 35675-22090 |
JZS17#,UZS17# 厚さ=3.9,ﾏｰｸ 39 |
1 | ||
| 35675-30180 |
JKS175,JZS171,173,175,177,UZS171,175..D4,HTWC,TWC 厚さ=4.1 |
1 | ||
| 35675-22090 |
JKS175,JZS17#,UZS17# 厚さ=3.9,ﾏｰｸ 39 |
1 | ||
| 35675-30220 |
JKS175,JZS17#,UZS17# 厚さ=3.6,ﾏｰｸ 56 |
1 | ||
| 35675-22030 |
JZS17#,UZS17# 厚さ=3.3,ﾏｰｸ 33 |
1 | ||
| 35675-30240 |
JZS17#,UZS17# 厚さ=3.3,ﾏｰｸ 53 |
1 | ||
| 35675-30250 |
JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 54 |
1 | ||
| 35675-30240 |
JKS175,JZS17#,UZS17# 厚さ=3.3,ﾏｰｸ 53 |
1 | ||
| 35675-30210 |
JKS175,JZS17#,UZS17# 厚さ=3.5,ﾏｰｸ 55 |
1 | ||
| 35675-30230 |
JKS175,JZS17#,UZS17# 厚さ=3.7,ﾏｰｸ 57 |
1 | ||
| 35675-30260 |
JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 58 |
1 | ||
| 35675-30270 |
JKS175,JZS17#,UZS17# 厚さ=4.0,ﾏｰｸ 60 |
1 | ||
| 35675-30250 |
JKS175,JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 54 |
1 | ||
| 35675-30260 |
JKS175,JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 58 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90520-99018 |
JZS173..SED;JZS171,175,177,179,UZS17# |
1 | ||
| 90520-99018 |
JZS17#,UZS17# |
1 | ||
| 90520-99018 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35686-30010 |
JZS17#,UZS17# |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-40020 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35701-40020 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 90374-33001 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JKS175,JZS17#,UZS17# |
3 | ||
| 35712-30020 |
JZS17#,UZS17# |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JKS175,JZS17#,UZS17# |
3 | ||
| 35712-30020 |
JZS17#,UZS17# |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JKS175,JZS17#,UZS17# |
3 | ||
| 35712-30020 |
JZS17#,UZS17# |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-50020 |
JZS171,173,UZS173..4FC..(D4,HTWC,TWC) |
1 | ||
| 35810-50020 |
JZS171,173,UZS173..4FC..(HTWC,TWC) |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
JZS17#,UZS17# |
1 | ||
| 90249-07011 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS17#,UZS17# |
2 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS17#,UZS17# |
2 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-30010 |
UZS173 |
1 | ||
| 35815-30010 |
UZS173 |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JKS175,JZS17#,UZS17# |
2 | ||
| 90301-48001 |
JZS17#,UZS17# |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JKS175,JZS17#,UZS17# |
2 | ||
| 90301-48001 |
JZS17#,UZS17# |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60003 |
JKS175,JZS17#,UZS17# |
1 | ||
| 90521-60003 |
JZS17#,UZS17# |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-30020 |
UZS173 |
1 | ||
| 35821-30020 |
UZS173 |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
JZS17#,UZS17# |
1 | ||
| 90201-06557 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-27009 |
UZS173 内側 |
1 | ||
| 90501-26024 |
JZS17#,UZS17# 外側 |
1 | ||
| 90501-27009 |
UZS173 内側 |
1 | ||
| 90501-26024 |
JKS175,JZS17#,UZS17# 外側 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-27009 |
UZS173 内側 |
1 | ||
| 90501-26024 |
JZS17#,UZS17# 外側 |
1 | ||
| 90501-27009 |
UZS173 内側 |
1 | ||
| 90501-26024 |
JKS175,JZS17#,UZS17# 外側 |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
JKS175,JZS17#,UZS17# |
1 | ||
| 96160-00500 |
JZS17#,UZS17# |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32020 |
UZS173 長さ=72.4 |
1 | ||
| 35822-50010 |
UZS173 長さ=72.15 |
1 | ||
| 35822-32010 |
UZS173 長さ=70.9 |
1 | ||
| 35822-32020 |
UZS173 長さ=72.4 |
1 | ||
| 35822-50010 |
UZS173 長さ=72.15 |
1 | ||
| 35822-32010 |
UZS173 長さ=70.9 |
1 | ||
| 35822-50020 |
UZS173 長さ=70.65 |
1 | ||
| 35822-50020 |
UZS173 長さ=70.65 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
JZS17#,UZS17# |
1 | ||
| 35865-30010 |
JKS175,JZS17#,UZS17# |
1 | ||
(9909- )JZS171,173..4FC..D4,TWC
A340E,A340H
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35602 - PISTON SUB-ASSY, FRONT CLUTCH | ||||
| 35602-30062 |
JZS171,173..4FC..TWC |
1 | ||
| 35602-30062 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35602-22020 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35602-22020 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS171..WG;JZS171..SED..4FC;JZS173,175,177,179,UZS17# 内側 |
1 | ||
| 90301-39005 |
JZS17#,UZS17# 内側 |
1 | ||
| 90301-99058 |
JZS17#,UZS17# 外側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS171..WG;JZS171..SED..4FC;JZS173,175,177,179,UZS17# 内側 |
1 | ||
| 90301-39005 |
JZS17#,UZS17# 内側 |
1 | ||
| 90301-99058 |
JZS17#,UZS17# 外側 |
1 | ||
| 35602B - RING, O (FOR FORWARD CLUTCH PISTON) | ||||
| 90301-39005 |
JZS171..WG;JZS171..SED..4FC;JZS173,175,177,179,UZS17# 内側 |
1 | ||
| 90301-39005 |
JZS17#,UZS17# 内側 |
1 | ||
| 90301-99058 |
JZS17#,UZS17# 外側 |
1 | ||
| 35602D - RING, SHAFT SNAP(FOR FORWARD CLUTCH PISTON RETURN SPRIN | ||||
| 90520-35001 |
JZS17#,UZS17# |
1 | ||
| 90520-35001 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35603A - SPRING SUB-ASSY, FORWARD CLUTCH RETURN | ||||
| 35603-50010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35603-30011 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35603-50010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35603-30011 |
JZS171,173..4FC..TWC |
1 | ||
| 35604 - SPRING SUB-ASSY, DIRECT CLUTCH RETURN | ||||
| 35604-35010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35604-35010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35605A - DRUM SUB-ASSY, DIRECT CLUTCH | ||||
| 35605-30060 |
JZS173..SED;JZS171,UZS173..4FC |
1 | ||
| 35605-30060 |
JZS171,173,UZS173..4FC |
1 | ||
| 35605-22040 |
JZS171,173,179..4FC..TWC |
1 | ||
| 35605-30060 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35605-30060 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35605-22040 |
JZS171,173,179..4FC..(D4,TWC) |
1 | ||
| 35606A - PISTON SUB-ASSY, DIRECT CLUTCH | ||||
| 35606-35010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35606-35010 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99058 |
JZS171,173,179,UZS173..4FC 外側 |
1 | ||
| 90301-65006 |
JZS17#,UZS17# 内側 |
1 | ||
| 35606C - RING, O (FOR DIRECT CLUTCH PISTON) | ||||
| 90301-99058 |
JZS171,173,179,UZS173..4FC 外側 |
1 | ||
| 90301-65006 |
JZS17#,UZS17# 内側 |
1 | ||
| 35606E - RING, SHAFT SNAP (FOR DIRECT CLUTCH PISTON RETURN SPRIN | ||||
| 90520-58001 |
JZS17#,UZS17# |
1 | ||
| 35616C - WASHER, CLUTCH DRUM THRUST (FOR DIRECT CLUTCH DRUM) | ||||
| 35616-30050 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35616-30050 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633B - DISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35677-30170 |
JZS171,173..4FC..TWC |
5 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35677-30170 |
JZS171,173..4FC..(D4,TWC) |
4 | ||
| 35677-30190 |
JZS171,UZS173..HTWC,TWT |
6 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-30070 |
JZS171,173..4FC..TWC |
3 | ||
| 35667-30070 |
JZS171,173..4FC..(D4,TWC) |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-30070 |
JZS171,173..4FC..TWC |
3 | ||
| 35667-30070 |
JZS171,173..4FC..(D4,TWC) |
3 | ||
| 35633C - DISC, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35667-30070 |
JZS171,173..4FC..TWC |
3 | ||
| 35667-30070 |
JZS171,173..4FC..(D4,TWC) |
3 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634A - PLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH) | ||||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30160 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-30160 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8,TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-32010 |
UZS173 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
5 | ||
| 35634-30110 |
JZS171,173,179..4FC..TWC 厚さ=2.3 |
5 | ||
| 35634-32010 |
JZS171,173..4FC..(D4,TWC) 厚さ=1.8,TYPE B:ｲﾗｽﾄｻﾝｼﾖｳ |
4 | ||
| 35634-32010 |
JZS171,UZS173..HTWC,TWT 厚さ=1.8 |
5 | ||
| 35634-33020 |
JZS171,UZS17#..HTWC,TWT 厚さ=1.4 |
1 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-22030 |
JZS171,173..4FC..TWC 厚さ=2.3 |
3 | ||
| 35647-22030 |
JZS171,173..4FC..(D4,TWC) 厚さ=2.3 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-22030 |
JZS171,173..4FC..TWC 厚さ=2.3 |
3 | ||
| 35647-22030 |
JZS171,173..4FC..(D4,TWC) 厚さ=2.3 |
3 | ||
| 35634B - PLATE, CLUTCH (FOR DIRECT MULTIPLE DISC CLUTCH) | ||||
| 35647-22030 |
JZS171,173..4FC..TWC 厚さ=2.3 |
3 | ||
| 35647-22030 |
JZS171,173..4FC..(D4,TWC) 厚さ=2.3 |
3 | ||
| 35635 - FLANGE, FORWARD CLUTCH | ||||
| 35635-30030 |
JZS171,173..4FC..TWC 厚さ=4.40,ﾏｰｸ 64 |
1 | ||
| 35635-30050 |
JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 94 |
1 | ||
| 35635-30030 |
JZS171,173..4FC..(D4,TWC) 厚さ=4.40,ﾏｰｸ 64 |
1 | ||
| 35635-30060 |
JZS17#,UZS17# 厚さ=3.6,ﾏｰｸ 93 |
1 | ||
| 35635-30020 |
JZS171,173..4FC..TWC 厚さ=4.20,ﾏｰｸ 63 |
1 | ||
| 35635-50060 |
JZS17#,UZS17# 厚さ=3.00,ﾏｰｸ 61 |
1 | ||
| 35635-30040 |
JZS175,177,UZS171,175;JZS171,173,179,UZS173..4FC 厚さ=4.0,ﾏｰｸ 95 |
1 | ||
| 35635-30070 |
JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 92 |
1 | ||
| 35635-30070 |
JKS175,JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 92 |
1 | ||
| 35635-30080 |
JZS17#,UZS17# 厚さ=3.2,ﾏｰｸ 91 |
1 | ||
| 35635-30020 |
JZS171,173..4FC..(D4,TWC) 厚さ=4.20,ﾏｰｸ 63 |
1 | ||
| 35635-30090 |
JKS175,JZS17#,UZS17# 厚さ=3.0,ﾏｰｸ 90 |
1 | ||
| 35635-30060 |
JKS175,JZS17#,UZS17# 厚さ=3.6,ﾏｰｸ 93 |
1 | ||
| 35635-30040 |
JZS173;JKS175,JZS171,175,177,179,UZS17#..A,ATHG,ATHV,C,ROY,ROYEX,ROYG 厚さ=4.0,ﾏｰｸ 95 |
1 | ||
| 35635-30050 |
JKS175,JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 94 |
1 | ||
| 35635-30100 |
JZS171,173..4FC..(D4,TWC) 厚さ=4.2,ﾏｰｸ 96 |
1 | ||
| 35635-30080 |
JKS175,JZS17#,UZS17# 厚さ=3.2,ﾏｰｸ 91 |
1 | ||
| 35635-50060 |
JKS175,JZS17#,UZS17# 厚さ=3.00,ﾏｰｸ 61 |
1 | ||
| 35635-30110 |
JZS171,173..4FC..(D4,TWC) 厚さ=4.4,ﾏｰｸ 97 |
1 | ||
| 35672 - PLATE, CLUTCH CUSHION | ||||
| 35672-30010 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35672-30010 |
JZS171,173..4FC..TWC |
1 | ||
| 35672-22010 |
JZS175,179;JZS171,177,UZS17#..A,ATH,ATHV,C |
1 | ||
| 35672-22010 |
JZS171..ATH,ATHV;JKS175,JZS175,177,179,UZS17# |
1 | ||
| 35675B - RING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE) | ||||
| 90521-99001 |
JZS17#,UZS17# |
1 | ||
| 35675C - FLANGE, DIRECT CLUTCH | ||||
| 35675-30210 |
JZS173..SED;JZS171,175,177,179,UZS17# 厚さ=3.5,ﾏｰｸ 55 |
1 | ||
| 35675-30230 |
JZS173..SED;JZS171,175,177,179,UZS17# 厚さ=3.7,ﾏｰｸ 57 |
1 | ||
| 35675-22040 |
JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 34 |
1 | ||
| 35675-30180 |
JZS171,173,175,177,UZS171,175..D4,HTWC,TWC 厚さ=4.1 |
1 | ||
| 35675-30220 |
JZS173..SED;JZS171,175,177,179,UZS17# 厚さ=3.6,ﾏｰｸ 56 |
1 | ||
| 35675-22080 |
JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 38 |
1 | ||
| 35675-30230 |
JZS17#,UZS17# 厚さ=3.7,ﾏｰｸ 57 |
1 | ||
| 35675-22100 |
JZS17#,UZS17# 厚さ=4.0,ﾏｰｸ 40 |
1 | ||
| 35675-22100 |
JKS175,JZS17#,UZS17# 厚さ=4.0,ﾏｰｸ 40 |
1 | ||
| 35675-30210 |
JZS17#,UZS17# 厚さ=3.5,ﾏｰｸ 55 |
1 | ||
| 35675-30220 |
JZS17#,UZS17# 厚さ=3.6,ﾏｰｸ 56 |
1 | ||
| 35675-22090 |
JZS17#,UZS17# 厚さ=3.9,ﾏｰｸ 39 |
1 | ||
| 35675-30180 |
JKS175,JZS171,173,175,177,UZS171,175..D4,HTWC,TWC 厚さ=4.1 |
1 | ||
| 35675-22090 |
JKS175,JZS17#,UZS17# 厚さ=3.9,ﾏｰｸ 39 |
1 | ||
| 35675-30220 |
JKS175,JZS17#,UZS17# 厚さ=3.6,ﾏｰｸ 56 |
1 | ||
| 35675-22030 |
JZS17#,UZS17# 厚さ=3.3,ﾏｰｸ 33 |
1 | ||
| 35675-30240 |
JZS17#,UZS17# 厚さ=3.3,ﾏｰｸ 53 |
1 | ||
| 35675-30250 |
JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 54 |
1 | ||
| 35675-30240 |
JKS175,JZS17#,UZS17# 厚さ=3.3,ﾏｰｸ 53 |
1 | ||
| 35675-30210 |
JKS175,JZS17#,UZS17# 厚さ=3.5,ﾏｰｸ 55 |
1 | ||
| 35675-30230 |
JKS175,JZS17#,UZS17# 厚さ=3.7,ﾏｰｸ 57 |
1 | ||
| 35675-30260 |
JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 58 |
1 | ||
| 35675-30270 |
JKS175,JZS17#,UZS17# 厚さ=4.0,ﾏｰｸ 60 |
1 | ||
| 35675-30250 |
JKS175,JZS17#,UZS17# 厚さ=3.4,ﾏｰｸ 54 |
1 | ||
| 35675-30260 |
JKS175,JZS17#,UZS17# 厚さ=3.8,ﾏｰｸ 58 |
1 | ||
| 35675D - RING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE) | ||||
| 90520-99018 |
JZS173..SED;JZS171,175,177,179,UZS17# |
1 | ||
| 90520-99018 |
JZS17#,UZS17# |
1 | ||
| 90520-99018 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35686 - WASHER, CLUTCH DRUM THRUST (FOR INPUT SHAFT) | ||||
| 35686-30010 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35686-30010 |
JZS17#,UZS17# |
1 | ||
| 35701 - SHAFT SUB-ASSY, INPUT | ||||
| 35701-40020 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35701-40020 |
JZS171,UZS173..HTWC,TWT |
1 | ||
| 35701C - RACE, THRUST BEARING (FOR INPUT SHAFT REAR) | ||||
| 35789-30110 |
JZS171,173..4FC..TWC |
1 | ||
| 35701J - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SHAFT FRONT) | ||||
| 90374-33001 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 90374-33001 |
JZS171,173,179,UZS173..4FC |
1 | ||
| 35701R - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-25005 |
JZS171,173..4FC..TWC |
1 | ||
| 90374-25005 |
JZS171,173..4FC..(D4,TWC) |
1 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JKS175,JZS17#,UZS17# |
3 | ||
| 35712-30020 |
JZS17#,UZS17# |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JKS175,JZS17#,UZS17# |
3 | ||
| 35712-30020 |
JZS17#,UZS17# |
3 | ||
| 35712A - RING, INPUT SHAFT OIL SEAL | ||||
| 35712-30020 |
JKS175,JZS17#,UZS17# |
3 | ||
| 35712-30020 |
JZS17#,UZS17# |
3 | ||
| 35810B - BAND ASSY, 2ND COAST BRAKE | ||||
| 35810-50020 |
JZS171,173,UZS173..4FC..(D4,HTWC,TWC) |
1 | ||
| 35810-50020 |
JZS171,173,UZS173..4FC..(HTWC,TWC) |
1 | ||
| 35810C - PIN (FOR 2ND COAST BRAKE BAND) | ||||
| 90249-07011 |
JZS17#,UZS17# |
1 | ||
| 90249-07011 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS17#,UZS17# |
2 | ||
| 35810D - RING, E (FOR 2ND COAST BRAKE BAND PIN) | ||||
| 96160-00500 |
JZS17#,UZS17# |
2 | ||
| 35815 - COVER, 2ND COAST BRAKE | ||||
| 35815-30010 |
UZS173 |
1 | ||
| 35815-30010 |
UZS173 |
1 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JKS175,JZS17#,UZS17# |
2 | ||
| 90301-48001 |
JZS17#,UZS17# |
2 | ||
| 35815A - RING, O (FOR 2ND COAST BRAKE COVER) | ||||
| 90301-48001 |
JKS175,JZS17#,UZS17# |
2 | ||
| 90301-48001 |
JZS17#,UZS17# |
2 | ||
| 35815B - RING, HOLE SNAP (FOR 2ND COAST BRAKE COVER) | ||||
| 90521-60003 |
JKS175,JZS17#,UZS17# |
1 | ||
| 90521-60003 |
JZS17#,UZS17# |
1 | ||
| 35821A - PISTON, 2ND COAST BRAKE | ||||
| 35821-30020 |
UZS173 |
1 | ||
| 35821-30020 |
UZS173 |
1 | ||
| 35821B - WASHER, PLATE (FOR 2ND COAST BRAKE PISTON) | ||||
| 90201-06557 |
JZS17#,UZS17# |
1 | ||
| 90201-06557 |
JKS175,JZS17#,UZS17# |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-27009 |
UZS173 内側 |
1 | ||
| 90501-26024 |
JZS17#,UZS17# 外側 |
1 | ||
| 90501-27009 |
UZS173 内側 |
1 | ||
| 90501-26024 |
JKS175,JZS17#,UZS17# 外側 |
1 | ||
| 35821G - SPRING, COMPRESSION (FOR 2ND COAST BRAKE PISTON) | ||||
| 90501-27009 |
UZS173 内側 |
1 | ||
| 90501-26024 |
JZS17#,UZS17# 外側 |
1 | ||
| 90501-27009 |
UZS173 内側 |
1 | ||
| 90501-26024 |
JKS175,JZS17#,UZS17# 外側 |
1 | ||
| 35821H - RING, E (FOR 2ND COAST BRAKE PISTON) | ||||
| 96160-00500 |
JKS175,JZS17#,UZS17# |
1 | ||
| 96160-00500 |
JZS17#,UZS17# |
1 | ||
| 35822A - ROD, 2ND COAST BRAKE PISTON | ||||
| 35822-32020 |
UZS173 長さ=72.4 |
1 | ||
| 35822-50010 |
UZS173 長さ=72.15 |
1 | ||
| 35822-32010 |
UZS173 長さ=70.9 |
1 | ||
| 35822-32020 |
UZS173 長さ=72.4 |
1 | ||
| 35822-50010 |
UZS173 長さ=72.15 |
1 | ||
| 35822-32010 |
UZS173 長さ=70.9 |
1 | ||
| 35822-50020 |
UZS173 長さ=70.65 |
1 | ||
| 35822-50020 |
UZS173 長さ=70.65 |
1 | ||
| 35865A - RING, 2ND COAST BRAKE PISTON OIL SEAL | ||||
| 35865-30010 |
JZS17#,UZS17# |
1 | ||
| 35865-30010 |
JKS175,JZS17#,UZS17# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
