UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta

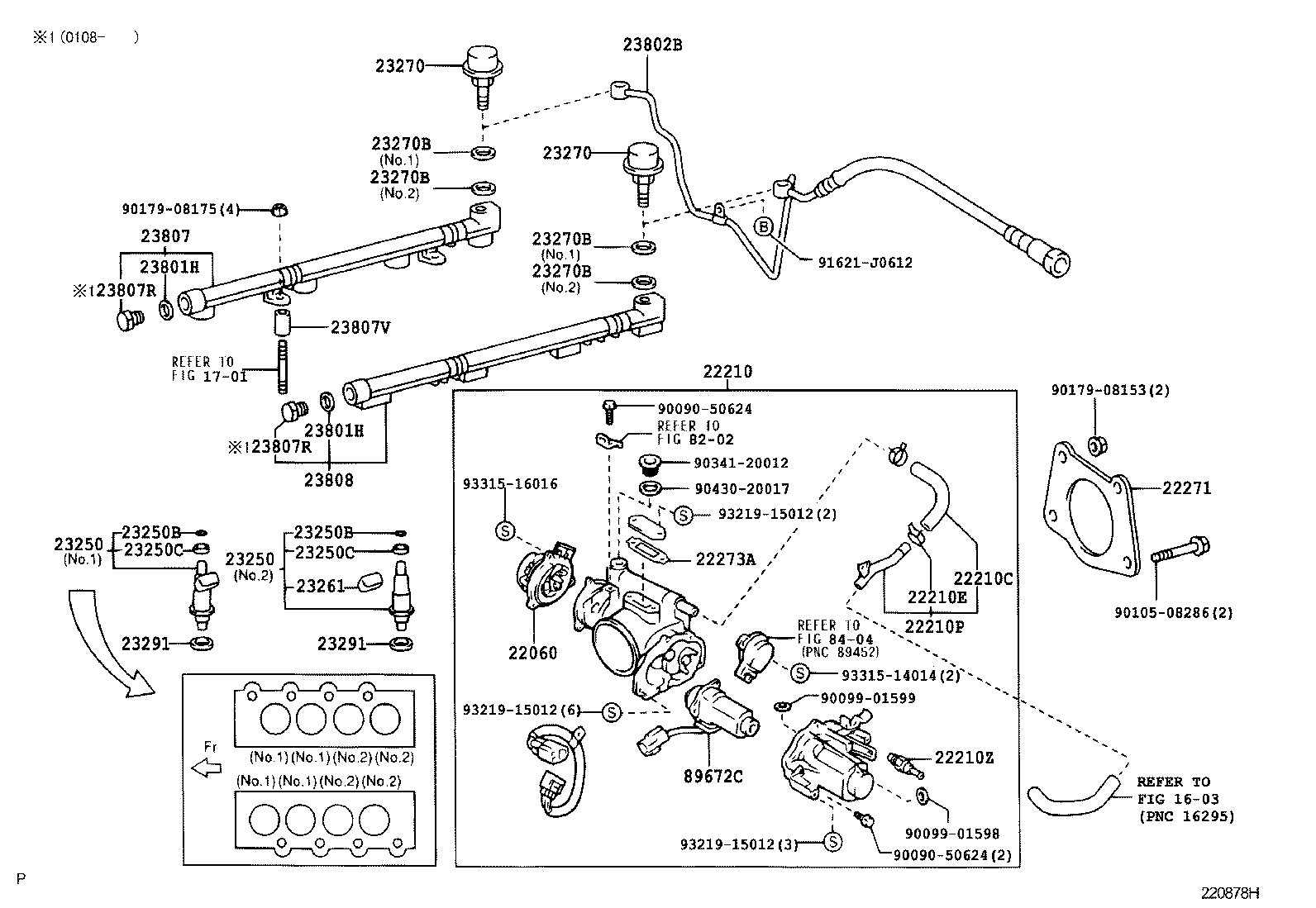

ILLUST NO. 1 OF 2(9909-0406)1UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22060 - LEVER ASSY, THROTTLE W/SENSOR | ||||
| 22060-50040 |
1UZFE..UZS17# |
1 | ||
| 22060-50040 |
1UZFE..UZS17# |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-50150 |
1UZFE..UZS17# |
1 | ||
| 22030-50150 |
1UZFE..UZS17# |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16282-50030 |
1UZFE..UZS17# |
1 | ||
| 16282-50030 |
1UZFE..UZS17# |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-20011 |
1UZFE..UZS17# |
2 | ||
| 90467-20011 |
1UZFE..UZS17# |
2 | ||
| 22210P - PIPE, WATER BY-PASS | ||||
| 16025-50020 |
1UZFE..UZS17# |
1 | ||
| 16025-50020 |
1UZFE..UZS17# |
1 | ||
| 22210Z - THERMOSTAT, MANIFOLD | ||||
| 90916-03104 |
1UZFE..UZS17# |
1 | ||
| 90916-03104 |
1UZFE..UZS17# |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-50042 |
1UZFE..UZS17# |
1 | ||
| 22271-50041 |
1UZFE..UZS17# |
1 | ||
| 22271-50042 |
1UZFE..UZS17# |
1 | ||
| 22273A - GASKET, THROTTLE BODY, NO.2 | ||||
| 22273-50010 |
1UZFE..UZS17# |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-50030 |
1UZFE..UZS17# NO.1 |
4 | ||
| 23209-50050 |
1UZFE..UZS17# NO.2 |
4 | ||
| 23209-50050 |
1UZFE..UZS17# NO.2 |
4 | ||
| 23209-50030 |
1UZFE..UZS17# NO.1 |
4 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-50030 |
1UZFE..UZS17# NO.1 |
4 | ||
| 23209-50050 |
1UZFE..UZS17# NO.2 |
4 | ||
| 23209-50050 |
1UZFE..UZS17# NO.2 |
4 | ||
| 23209-50030 |
1UZFE..UZS17# NO.1 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1UZFE..UZS17# |
16 | ||
| 90301-07024 |
1UZFE..UZS17# |
16 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07024 |
1UZFE..UZS17# |
16 | ||
| 90301-07024 |
1UZFE..UZS17# |
16 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1UZFE..UZS17# |
8 | ||
| 90480-13005 |
1UZFE..UZS17# |
8 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
1UZFE..UZS17# |
8 | ||
| 90480-13005 |
1UZFE..UZS17# |
8 | ||
| 23261 - COVER, INJECTOR | ||||
| 23261-50011 |
1UZFE..UZS17# |
4 | ||
| 23261-50011 |
1UZFE..UZS17# |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-50010 |
1UZFE..UZS17# |
2 | ||
| 23270-50010 |
1UZFE..UZS17# |
2 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-50010 |
1UZFE..UZS17# |
2 | ||
| 23270-50010 |
1UZFE..UZS17# |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
1UZFE..UZS17# NO.2 |
2 | ||
| 23232-41081 |
1UZFE..UZS17# NO.1 |
2 | ||
| 90430-12026 |
1UZFE..UZS17# NO.2 |
2 | ||
| 23232-41081 |
1UZFE..UZS17# NO.1 |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
1UZFE..UZS17# NO.2 |
2 | ||
| 23232-41081 |
1UZFE..UZS17# NO.1 |
2 | ||
| 90430-12026 |
1UZFE..UZS17# NO.2 |
2 | ||
| 23232-41081 |
1UZFE..UZS17# NO.1 |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
1UZFE..UZS17# NO.2 |
2 | ||
| 23232-41081 |
1UZFE..UZS17# NO.1 |
2 | ||
| 90430-12026 |
1UZFE..UZS17# NO.2 |
2 | ||
| 23232-41081 |
1UZFE..UZS17# NO.1 |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 90430-12026 |
1UZFE..UZS17# NO.2 |
2 | ||
| 23232-41081 |
1UZFE..UZS17# NO.1 |
2 | ||
| 90430-12026 |
1UZFE..UZS17# NO.2 |
2 | ||
| 23232-41081 |
1UZFE..UZS17# NO.1 |
2 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-20010 |
1UZFE..UZS17# |
8 | ||
| 23291-20010 |
1UZFE..UZS17# |
8 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-20010 |
1UZFE..UZS17# |
8 | ||
| 23291-20010 |
1UZFE..UZS17# |
8 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-14008 |
1UZFE..UZS17# |
2 | ||
| 90430-14008 |
1UZFE..UZS17# |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-14008 |
1UZFE..UZS17# |
2 | ||
| 90430-14008 |
1UZFE..UZS17# |
2 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-50060 |
1UZFE..UZS17# |
1 | ||
| 23802-50060 |
1UZFE..UZS17# |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-50030 |
1UZFE..UZS17# |
1 | ||
| 23807-50030 |
1UZFE..UZS17# |
1 | ||
| 23807-50031 |
1UZFE..UZS17# |
1 | ||
| 23807R - PLUG, FUEL DELIVARY PIPE | ||||
| 90341-14032 |
1UZFE..UZS17# |
2 | ||
| 23807R - PLUG, FUEL DELIVARY PIPE | ||||
| 90341-14032 |
1UZFE..UZS17# |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90561-08029 |
1UZFE..UZS17# |
4 | ||
| 90561-08029 |
1UZFE..UZS17# |
4 | ||
| 23808 - PIPE SUB-ASSY, FUEL DELIVERY, NO.2 | ||||
| 23808-50020 |
1UZFE..UZS17# |
1 | ||
| 23808-50021 |
1UZFE..UZS17# |
1 | ||
| 23808-50020 |
1UZFE..UZS17# |
1 | ||
| 89672C - MOTOR, THROTTLE CONTROL | ||||
| 89672-30010 |
UZS17# |
1 | ||
| 89672-30010 |
UZS17# |
1 | ||
| 89672-30010 |
JZS171,173 |
1 | ||
| Common parts | ||||
| 90090-50624 | ||||
| 90099-01598 | ||||
| 90099-01599 | ||||
| 90105-08286 | ||||
| 90179-08153 | ||||
| 90179-08175 | ||||
| 90341-20012 | ||||
| 90430-20017 | ||||
| 91621-J0612 | ||||
| 93219-15012 | ||||
| 93315-14014 | ||||
| 93315-16016 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 1701 | ||||
| 8202 | ||||
| 8404 | ||||

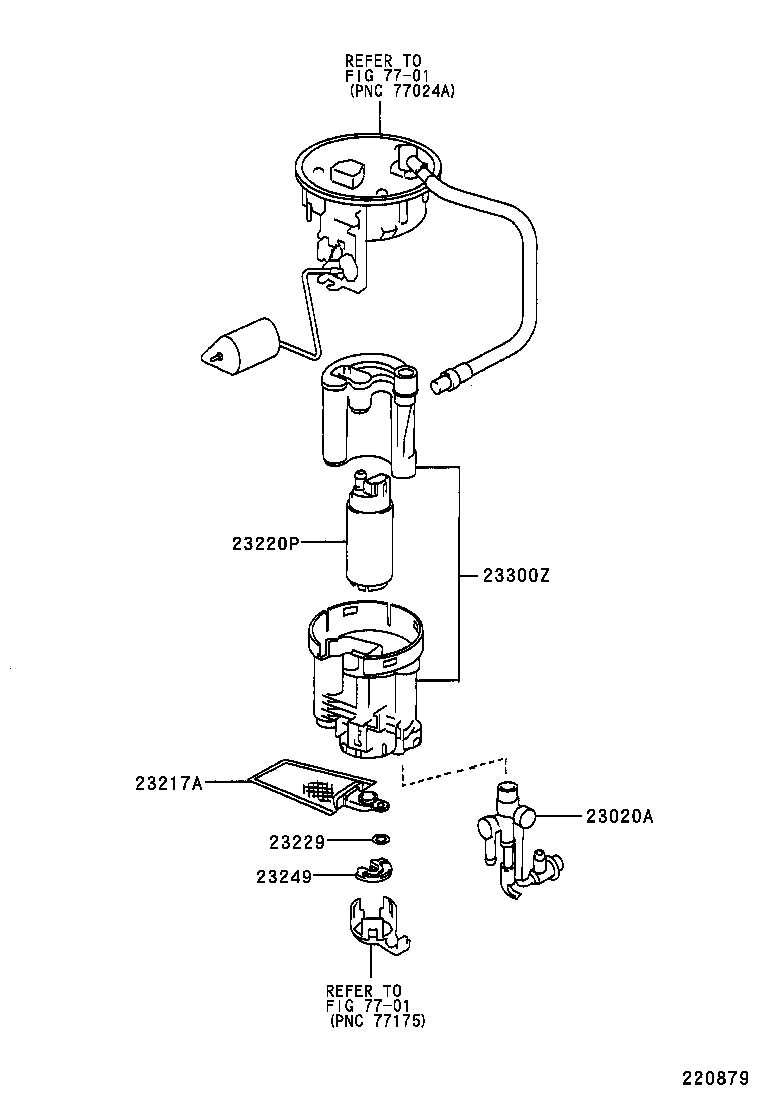

ILLUST NO. 2 OF 2(9909-0406)1UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23020A - REGULATOR ASSY, FUEL PRESSURE W/JET PUMP | ||||
| 23020-46030 |
1UZFE..UZS17# |
1 | ||
| 23020-46030 |
1UZFE..UZS17# |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46090 |
1UZFE..UZS17# |
1 | ||
| 23217-46090 |
1UZFE..UZS17# |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46120 |
1UZFE..UZS17# |
1 | ||
| 23221-46120 |
1UZFE..UZS17# |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1UZFE..UZS17# |
1 | ||
| 23229-16010 |
1UZFE..UZS17# |
1 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-46180 |
1UZFE..UZS17# |
1 | ||
| 23249-46180 |
1UZFE..UZS17# |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-21010 |
1UZFE..UZS17# |
1 | ||
| 23300-21010 |
1UZFE..UZS17# |
1 | ||
| Linked diagrams | ||||
| 7701 | ||||
