UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1UZFE

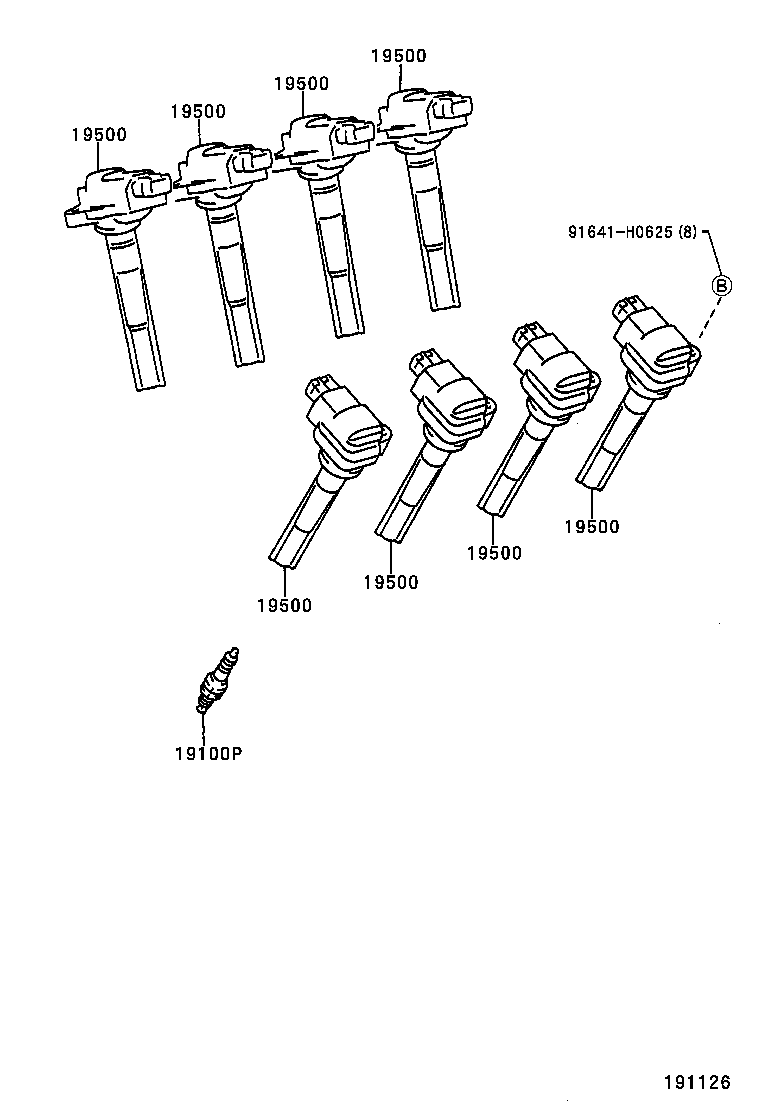

Click highlighted areas on diagram

diagram 19100P 19500 19500 19500 19500 19500 19500 19500 19500 91641H0625
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01211

1UZFE..UZS17#

IFR6A11

 8
90919-01210

1UZFE..UZS17#

SK20R11

 8
90919-01211

1UZFE..UZS17#

IFR6A11

 8
90919-01210

1UZFE..UZS17#

SK20R11

 8
19500 - COIL ASSY, IGNITION
90919-02249

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
19500 - COIL ASSY, IGNITION
90919-02249

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
19500 - COIL ASSY, IGNITION
90919-02249

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
19500 - COIL ASSY, IGNITION
90919-02249

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
19500 - COIL ASSY, IGNITION
90919-02249

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
19500 - COIL ASSY, IGNITION
90919-02249

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
19500 - COIL ASSY, IGNITION
90919-02249

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
19500 - COIL ASSY, IGNITION
90919-02249

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
90919-02230

1UZFE..UZS17#

 8
Common parts
91641-H0625
