UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
Production
Sep 1999
-
Jun 2004
Engine
1UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9909-0406)1UZFE

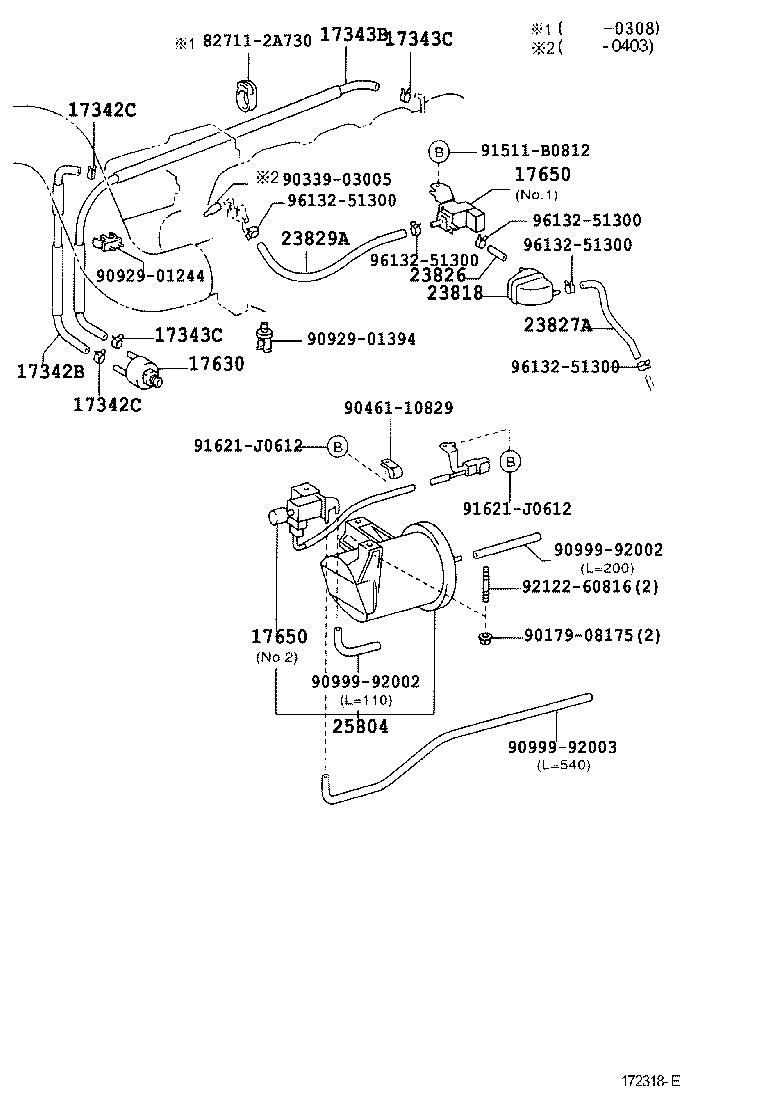

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-50090 |
1UZFE..UZS17# |
1 | ||
| 17342-50090 |
1UZFE..UZS17# |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-10099 |
1UZFE..UZS17# |
2 | ||
| 96132-51000 |
1UZFE..UZS17# |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 90467-10099 |
1UZFE..UZS17# |
2 | ||
| 96132-51000 |
1UZFE..UZS17# |
2 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-50070 |
1UZFE..UZS17# |
1 | ||
| 17343-50070 |
1UZFE..UZS17# |
1 | ||
| 17343-50071 |
1UZFE..UZS17# |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
1UZFE..UZS17# |
2 | ||
| 90467-10099 |
1UZFE..UZS17# |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
1UZFE..UZS17# |
2 | ||
| 90467-10099 |
1UZFE..UZS17# |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-16040 |
1UZFE..UZS17# |
1 | ||
| 17630-16040 |
1UZFE..UZS17# |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-50121 |
1UZFE..UZS17# NO.2 |
1 | ||
| 25860-50100 |
1UZFE..UZS17# NO.1 |
1 | ||
| 25860-50100 |
1UZFE..UZS17# NO.1 |
1 | ||
| 25860-50121 |
1UZFE..UZS17# NO.2 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-50121 |
1UZFE..UZS17# NO.2 |
1 | ||
| 25860-50100 |
1UZFE..UZS17# NO.1 |
1 | ||
| 25860-50100 |
1UZFE..UZS17# NO.1 |
1 | ||
| 25860-50121 |
1UZFE..UZS17# NO.2 |
1 | ||
| 23818 - PIPE, FUEL VAPOR FEED | ||||
| 23818-46110 |
1UZFE..UZS17# |
1 | ||
| 23818-46110 |
1UZFE..UZS17# |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-50030 |
1UZFE..UZS17# |
1 | ||
| 23826-50030 |
1UZFE..UZS17# |
1 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-50120 |
1UZFE..UZS173 |
1 | ||
| 23827-50120 |
1UZFE..UZS173 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-50070 |
1UZFE..UZS17# |
1 | ||
| 23829-50070 |
1UZFE..UZS17# |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-50011 |
1UZFE..UZS17# |
1 | ||
| 25804-50011 |
1UZFE..UZS17# |
1 | ||
| Common parts | ||||
| 82711-2A730 | ||||
| 90179-08175 | ||||
| 90339-03005 | ||||
| 90461-10829 | ||||
| 90929-01244 | ||||
| 90929-01394 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91511-B0812 | ||||
| 91621-J0612 | ||||
| 92122-60816 | ||||
| 96132-51300 | ||||
