UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta

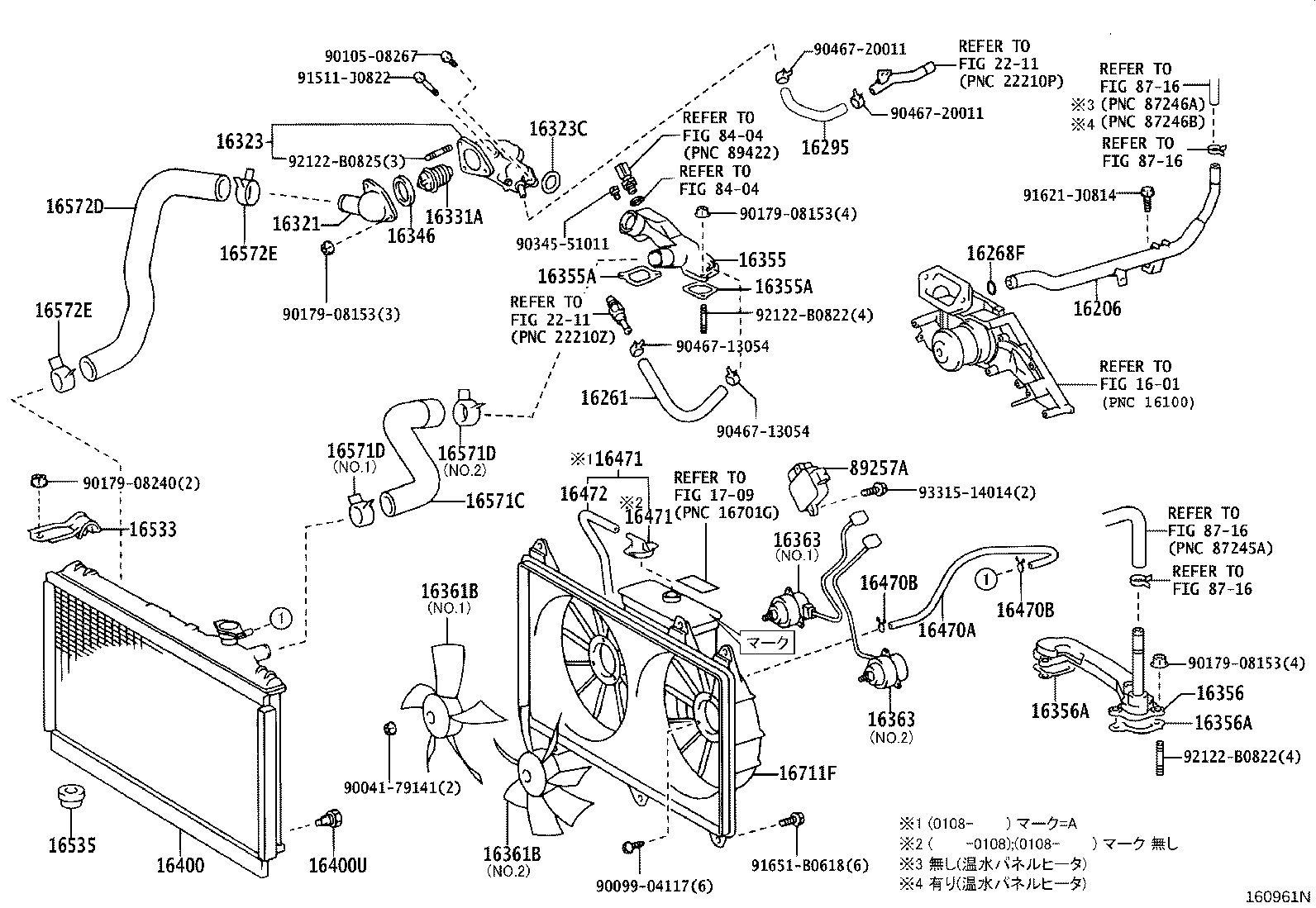

ILLUST NO. 1 OF 2(9909-0406)1UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-50120 |
1UZFE..UZS17# |
1 | ||
| 16206-50120 |
1UZFE..UZS17# |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-50090 |
1UZFE..UZS17# |
1 | ||
| 16261-50090 |
1UZFE..UZS17# |
1 | ||
| 16268F - RING, O(FOR WATER BY-PASS PIPE) | ||||
| 96761-24019 |
1UZFE..UZS17# |
1 | ||
| 96761-24019 |
1UZFE..UZS17# |
1 | ||
| 16295 - HOSE, WATER BY-PASS, NO.7 | ||||
| 16295-50040 |
1UZFE..UZS17# |
1 | ||
| 16295-50040 |
1UZFE..UZS17# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-50020 |
1UZFE..UZS17# |
1 | ||
| 16321-50020 |
1UZFE..UZS17# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16032-50070 |
1UZFE..UZS17# |
1 | ||
| 16032-50110 |
1UZFE..UZS17# |
1 | ||
| 16032-50110 |
1UZFE..UZS17# |
1 | ||
| 16323C - RING, O(FOR WATER INLET HOUSING) | ||||
| 96761-35035 |
1UZFE..UZS17# |
1 | ||
| 96761-35035 |
1UZFE..UZS17# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03100 |
1UZFE..UZS17# *WAX 82−95 |
1 | ||
| 90916-03100 |
1UZFE..UZS17# *WAX 82−95 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-50010 |
1UZFE..UZS17# |
1 | ||
| 16346-50010 |
1UZFE..UZS17# |
1 | ||
| 16355 - JOINT, WATER BY-PASS, FRONT | ||||
| 16355-50070 |
1UZFE..UZS17# |
1 | ||
| 16355-50070 |
1UZFE..UZS17# |
1 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
1UZFE..UZS17# |
2 | ||
| 16341-50020 |
1UZFE..UZS17# |
2 | ||
| 16355A - GASKET(FOR WATER BY-PASS JOINT FRONT) | ||||
| 16341-50020 |
1UZFE..UZS17# |
2 | ||
| 16341-50020 |
1UZFE..UZS17# |
2 | ||
| 16356 - JOINT, WATER BY-PASS, REAR | ||||
| 16356-50090 |
1UZFE..UZS17# |
1 | ||
| 16356-50090 |
1UZFE..UZS17# |
1 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
1UZFE..UZS17# |
2 | ||
| 16341-50020 |
1UZFE..UZS17# |
2 | ||
| 16356A - GASKET(WATER BY-PASS JOINT, REAR) | ||||
| 16341-50020 |
1UZFE..UZS17# |
2 | ||
| 16341-50020 |
1UZFE..UZS17# |
2 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-50060 |
1UZFE..UZS17# NO.1 |
1 | ||
| 16361-50070 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16361-50070 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16361-50060 |
1UZFE..UZS17# NO.1 |
1 | ||
| 16361B - FAN, NO.2 | ||||
| 16361-50060 |
1UZFE..UZS17# NO.1 |
1 | ||
| 16361-50070 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16361-50070 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16361-50060 |
1UZFE..UZS17# NO.1 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-50040 |
1UZFE..UZS17# NO.1 |
1 | ||
| 16363-50030 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16363-50030 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16363-50040 |
1UZFE..UZS17# NO.1 |
1 | ||
| 16363 - MOTOR, COOLING FAN | ||||
| 16363-50040 |
1UZFE..UZS17# NO.1 |
1 | ||
| 16363-50030 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16363-50030 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16363-50040 |
1UZFE..UZS17# NO.1 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-50220 |
1UZFE..UZS17# |
1 | ||
| 16400-50220 |
1UZFE..UZS17# |
1 | ||
| 16400U - PLUG, STRAIGHT SCREW W/HEAD(FOR RADIATOR) | ||||
| 90341-16016 |
1UZFE..UZS17# |
1 | ||
| 90341-16016 |
1UZFE..UZS17# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 16377-50030 |
1UZFE..UZS17# |
1 | ||
| 16377-50030 |
1UZFE..UZS17# |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1UZFE..UZS17# |
2 | ||
| 90467-11085 |
1UZFE..UZS17# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1UZFE..UZS17# |
2 | ||
| 90467-11085 |
1UZFE..UZS17# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16376-50030 |
1UZFE..UZS17# |
1 | ||
| 16405-46200 |
1UZFE..UZS17# ﾏ-ｸ ﾅｼ:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 16405-50030 |
1UZFE..UZS17# ﾏｰｸ A:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16376-50030 |
1UZFE..UZS17# |
1 | ||
| 16405-46200 |
1UZFE..UZS17# ﾏ-ｸ ﾅｼ:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 16405-50030 |
1UZFE..UZS17# ﾏｰｸ A:ｲﾗｽﾄ ｻﾝｼﾖｳ |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 16378-50030 |
1UZFE..UZS17# |
1 | ||
| 16378-50030 |
1UZFE..UZS17# |
1 | ||
| 16533 - SUPPORT, RADIATOR, UPPER | ||||
| 16505-46090 |
1UZFE..UZS17# |
2 | ||
| 16505-46090 |
1UZFE..UZS17# |
2 | ||
| 16535 - SUPPORT, RADIATOR, LOWER | ||||
| 90480-40016 |
1UZFE..UZS17# |
2 | ||
| 90480-40016 |
1UZFE..UZS17# |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-50170 |
1UZFE..UZS173 |
1 | ||
| 16571-50170 |
1UZFE..UZS173 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37006 |
1UZFE..UZS17# NO.1 |
1 | ||
| 90466-41003 |
1UZFE..UZS17# NO.2 |
1 | ||
| 90466-41008 |
1UZFE..UZS17# NO.2 |
1 | ||
| 90467-37005 |
1UZFE..UZS17# NO.1 |
1 | ||
| 90467-41007 |
1UZFE..UZS17# NO.2 |
1 | ||
| 90466-41003 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 90467-37006 |
1UZFE..UZS17# NO.1 |
1 | ||
| 90466-41003 |
1UZFE..UZS17# NO.2 |
1 | ||
| 90466-41008 |
1UZFE..UZS17# NO.2 |
1 | ||
| 90467-37005 |
1UZFE..UZS17# NO.1 |
1 | ||
| 90467-41007 |
1UZFE..UZS17# NO.2 |
1 | ||
| 90466-41003 |
1UZFE..UZS17# NO.2 |
1 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-50170 |
1UZFE..UZS173 |
1 | ||
| 16572-50170 |
1UZFE..UZS173 |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41008 |
1UZFE..UZS17# |
2 | ||
| 90466-41003 |
1UZFE..UZS17# |
2 | ||
| 90467-41007 |
1UZFE..UZS17# |
2 | ||
| 90467-41007 |
1UZFE..UZS17# |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 90466-41008 |
1UZFE..UZS17# |
2 | ||
| 90466-41003 |
1UZFE..UZS17# |
2 | ||
| 90467-41007 |
1UZFE..UZS17# |
2 | ||
| 90467-41007 |
1UZFE..UZS17# |
2 | ||
| 16711F - SHROUD, FAN(W/RADIATOR RESERVE TANK) | ||||
| 16711-50100 |
1UZFE..UZS17# |
1 | ||
| 16711-50100 |
1UZFE..UZS17# |
1 | ||
| 89257A - COMPUTER, COOLING FAN | ||||
| 89257-30040 |
UZS17# |
1 | ||
| 89257-30040 |
UZS17# |
1 | ||
| Common parts | ||||
| 90041-79141 | ||||
| 90099-04117 | ||||
| 90105-08267 | ||||
| 90179-08153 | ||||
| 90179-08240 | ||||
| 90345-51011 | ||||
| 90467-13054 | ||||
| 90467-20011 | ||||
| 91511-J0822 | ||||
| 91621-J0814 | ||||
| 91651-B0618 | ||||
| 92122-B0822 | ||||
| 92122-B0825 | ||||
| 93315-14014 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1709 | ||||
| 2211 | ||||
| 8404 | ||||
| 8716 | ||||

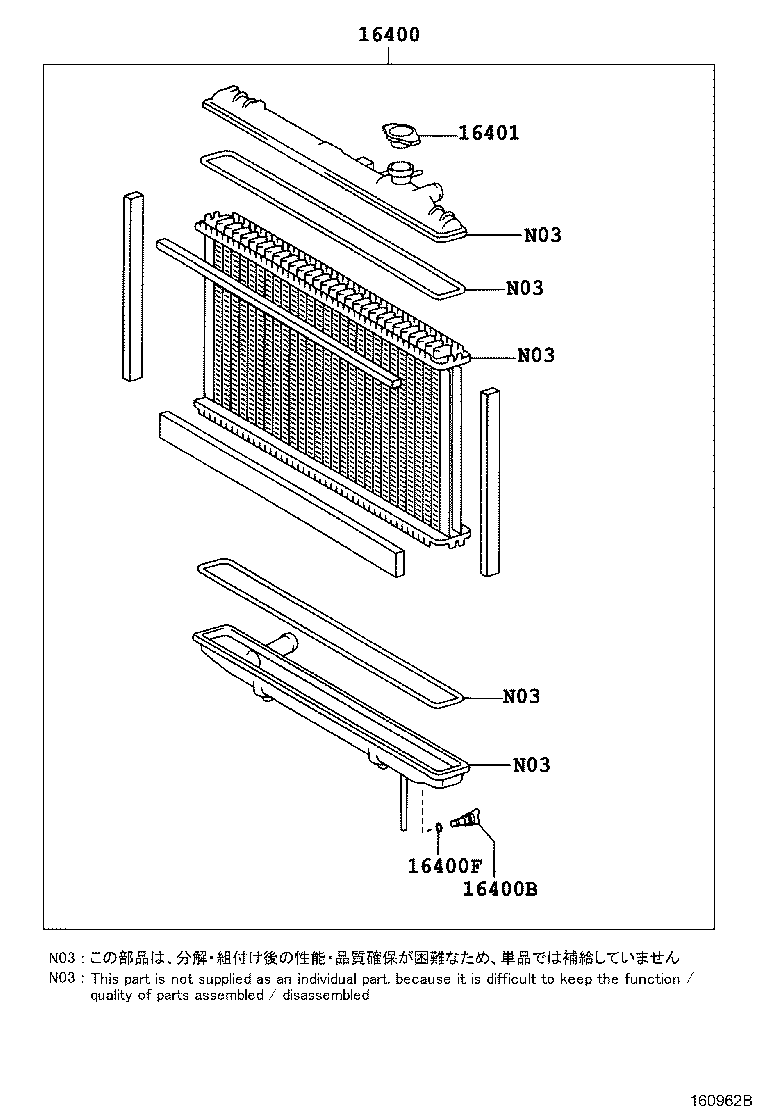

ILLUST NO. 2 OF 2(9909-0406)1UZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16400 - RADIATOR ASSY | ||||
| 16400-50220 |
1UZFE..UZS17# |
1 | ||
| 16400-50220 |
1UZFE..UZS17# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
1UZFE..UZS17# |
1 | ||
| 23322-54010 |
1UZFE..UZS17# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16492-21050 |
1UZFE..UZS17# |
1 | ||
| 16492-21050 |
1UZFE..UZS17# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-62100 |
1UZFE..UZS17# |
1 | ||
| 16401-62100 |
1UZFE..UZS17# |
1 | ||
