UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1UZFE..UZS173

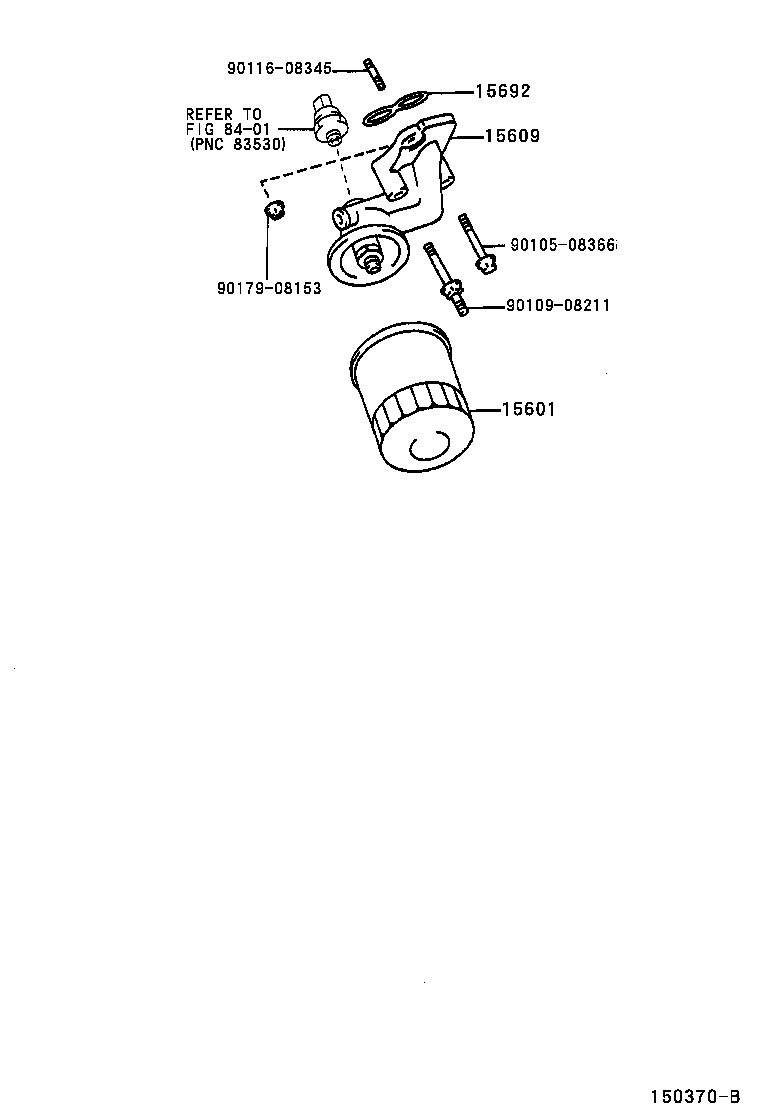

Click highlighted areas on diagram

diagram 15601 15609 15692 8401 9010508366 9010908211 9011608345 9017908153
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20004

1UZFE..UZS17#

 1
90915-20004

1UZFE..UZS17#

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-50040

1UZFE..UZS173

 1
15609-50040

1UZFE..UZS173

 1
15692 - GASKET, OIL FILTER BRACKET
15692-50020

1UZFE..UZS17#

 1
15692-50020

1UZFE..UZS17#

 1
Common parts
90105-08366
90109-08211
90116-08345
90179-08153
Linked diagrams
8401
