UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909- )1UZFE

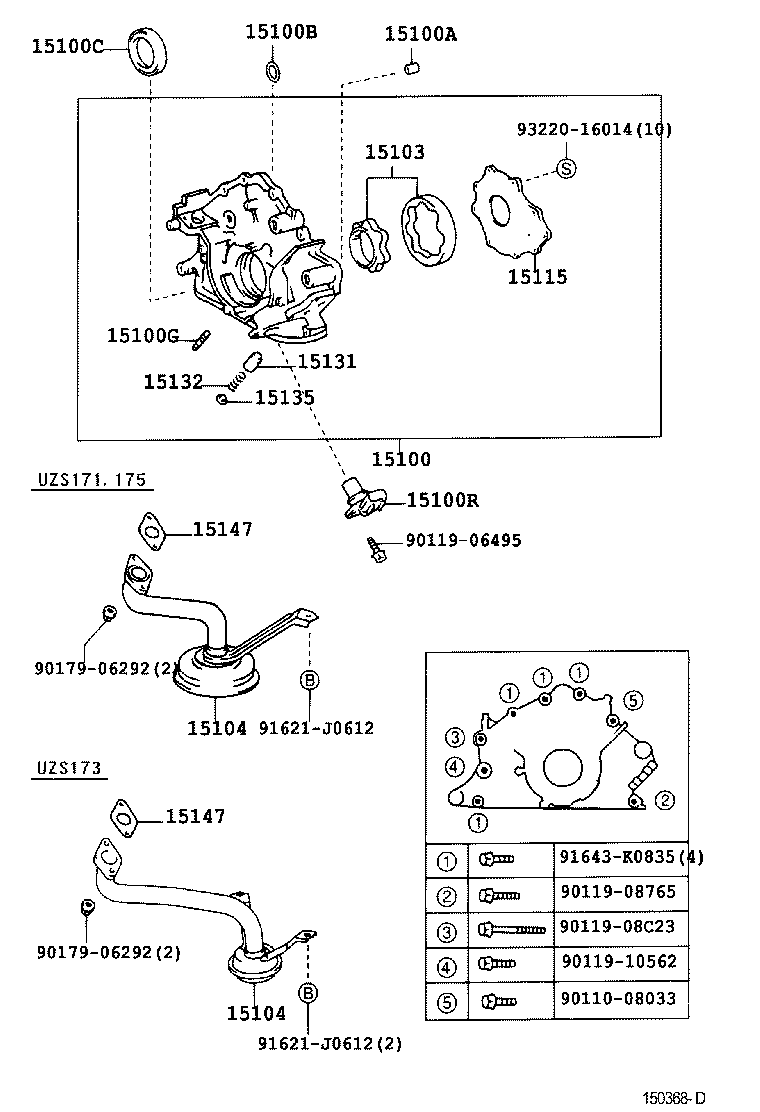

Click highlighted areas on diagram

diagram 15100 15100A 15100B 15100C 15100G 15100R 15103 15104 15104 15115 15131 15132 15135 15147 15147 9011008033 9011906495 9011908765 9011908C23 9011910562 9017906292 9017906292 91621J0612 91621J0612 91643K0835 9322016014
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-50040

1UZFE..UZS17#

 1
15100-50040

1UZFE..UZS17#

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-13017

1UZFE..UZS17#

 2
90253-13017

1UZFE..UZS17#

 2
15100B - RING, O(FOR OIL PUMP)
96721-24025

1UZFE..UZS17#

 1
96721-24025

1UZFE..UZS17#

 1
15100C - SEAL(FOR OIL PUMP)
90311-43006

1UZFE..UZS17#

 1
90311-43006

1UZFE..UZS17#

 1
15100G - BOLT,STUD(FOR OIL PUMP)
16193-15010

1UZFE..UZS17#

 2
16193-15010

1UZFE..UZS17#

 2
15100R - SENSOR, CRANK POSITION
90919-05035

1UZFE..UZS17#

 1
90919-05035

1UZFE..UZS17#

 1
15103 - GEAR SET, OIL PUMP
15103-50040

1UZFE..UZS17#

 1
15103-50041

1UZFE..UZS17#

 1
15103-50041

1UZFE..UZS17#

 1
15104 - STRAINER SUB-ASSY, OIL
15104-50110

1UZFE..UZS173

 1
15104-50110

1UZFE..UZS173

 1
15104 - STRAINER SUB-ASSY, OIL
15104-50110

1UZFE..UZS173

 1
15104-50110

1UZFE..UZS173

 1
15115 - COVER, OIL PUMP
15115-50040

1UZFE..UZS17#

 1
15115-50040

1UZFE..UZS17#

 1
15131 - VALVE, OIL PUMP RELIEF
15131-46060

1UZFE..UZS17#

 1
15131-46040

1UZFE..UZS17#

 1
15132 - SPRING, OIL PUMP RELIEF VALVE
15132-46020

1UZFE..UZS17#

 1
15132-46020

1UZFE..UZS17#

 1
15135 - RETAINER, OIL PUMP RELIEF VALVE
15133-17010

1UZFE..UZS17#

 1
15133-17010

1UZFE..UZS17#

 1
15147 - GASKET, OIL STRAINER
15147-50011

1UZFE..UZS17#

 1
15147-50011

1UZFE..UZS17#

 1
15147 - GASKET, OIL STRAINER
15147-50011

1UZFE..UZS17#

 1
15147-50011

1UZFE..UZS17#

 1
Common parts
90110-08033
90119-06495
90119-08765
90119-08C23
90119-10562
90179-06292
91621-J0612
91643-K0835
93220-16014
