UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
(9909- )1UZFE

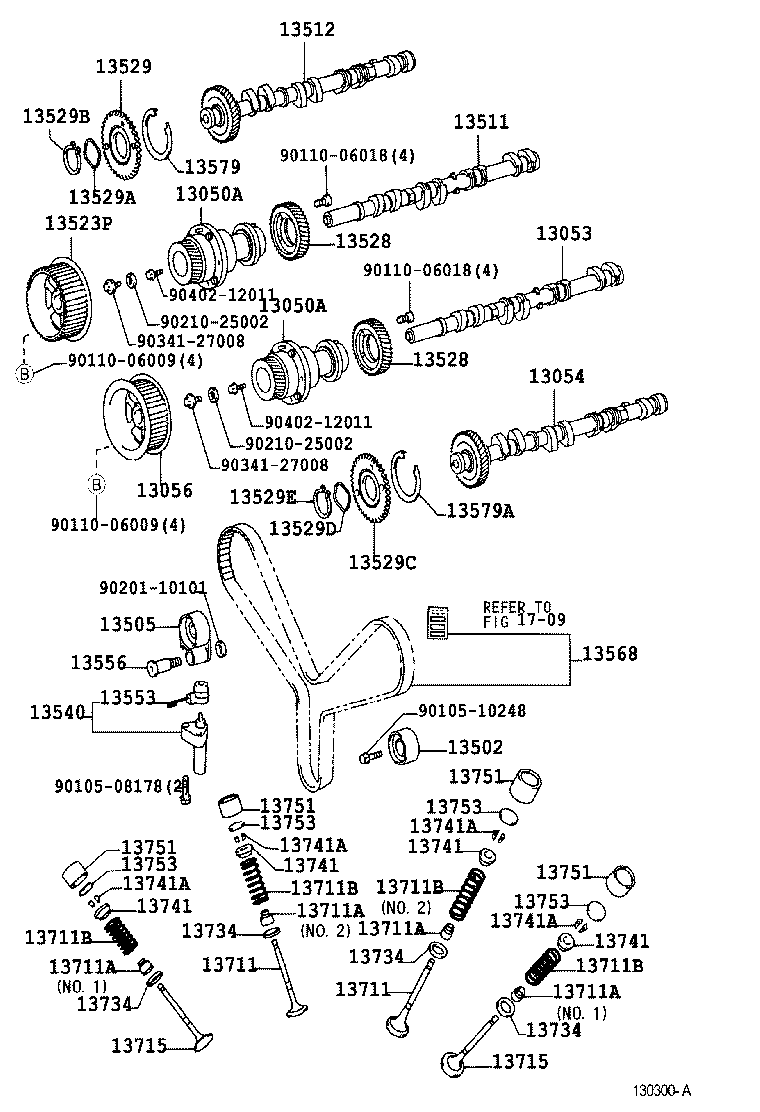

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 13050A - TUBE ASSY, CAMSHAFT TIMING | ||||
| 13050-50010A0 |
1UZFE..UZS17# GREEN |
2 | ||
| 13050-50011 |
1UZFE..UZS17# |
2 | ||
| 13050-50010B0 |
1UZFE..UZS17# RED |
2 | ||
| 13050-50011 |
1UZFE..UZS17# |
2 | ||
| 13050A - TUBE ASSY, CAMSHAFT TIMING | ||||
| 13050-50010A0 |
1UZFE..UZS17# GREEN |
2 | ||
| 13050-50011 |
1UZFE..UZS17# |
2 | ||
| 13050-50010B0 |
1UZFE..UZS17# RED |
2 | ||
| 13050-50011 |
1UZFE..UZS17# |
2 | ||
| 13053 - CAMSHAFT SUB-ASSY, NO.3 | ||||
| 13053-50040 |
1UZFE..UZS17# |
1 | ||
| 13053-50040 |
1UZFE..UZS17# |
1 | ||
| 13054 - CAMSHAFT SUB-ASSY, NO.4 | ||||
| 13054-50020 |
1UZFE..UZS17# |
1 | ||
| 13054-50020 |
1UZFE..UZS17# |
1 | ||
| 13056 - PULLEY SUB-ASSY, CAMSHAFT TIMING, LH | ||||
| 13056-50040 |
1UZFE..UZS17# |
1 | ||
| 13056-50020 |
1UZFE..UZS17# |
1 | ||
| 13502 - IDLER SUB-ASSY, TIMING BELT, NO.2 | ||||
| 13503-50011 |
1UZFE..UZS17# |
1 | ||
| 13503-50011 |
1UZFE..UZS17# |
1 | ||
| 13505 - IDLER SUB-ASSY, TIMING BELT, NO.1 | ||||
| 13505-50030 |
1UZFE..UZS17# |
1 | ||
| 13505-50030 |
1UZFE..UZS17# |
1 | ||
| 13511 - CAMSHAFT | ||||
| 13501-50040 |
1UZFE..UZS17# |
1 | ||
| 13501-50040 |
1UZFE..UZS17# |
1 | ||
| 13512 - CAMSHAFT, NO.2 | ||||
| 13502-50020 |
1UZFE..UZS17# |
1 | ||
| 13502-50020 |
1UZFE..UZS17# |
1 | ||
| 13523P - PULLEY, CAMSHAFT TIMING | ||||
| 13051-50020 |
1UZFE..UZS17# |
1 | ||
| 13051-50020 |
1UZFE..UZS17# |
1 | ||
| 13523-50050 |
1UZFE..UZS17# |
1 | ||
| 13528 - GEAR, CAMSHAFT DRIVE | ||||
| 13528-50030 |
1UZFE..UZS17# |
2 | ||
| 13528-50030 |
1UZFE..UZS17# |
1 | ||
| 13528 - GEAR, CAMSHAFT DRIVE | ||||
| 13528-50030 |
1UZFE..UZS17# |
2 | ||
| 13528-50030 |
1UZFE..UZS17# |
1 | ||
| 13529 - GEAR, CAMSHAFT SUB | ||||
| 13529-50900 |
1UZFE..UZS17# |
1 | ||
| 13529-50900 |
1UZFE..UZS17# |
1 | ||
| 13529A - WASHER, WAVE(FOR CAMSHAFT SUB GEAR) | ||||
| 90206-42001 |
1UZFE..UZS17# |
1 | ||
| 90206-42001 |
1UZFE..UZS17# |
1 | ||
| 13529B - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR) | ||||
| 90520-41004 |
1UZFE..UZS17# |
1 | ||
| 90520-41004 |
1UZFE..UZS17# |
1 | ||
| 13529C - GEAR, CAMSHAFT SUB, NO.3 | ||||
| 13529-50900 |
1UZFE..UZS17# |
1 | ||
| 13529-50900 |
1UZFE..UZS17# |
1 | ||
| 13529D - WASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3) | ||||
| 90206-42001 |
1UZFE..UZS17# |
1 | ||
| 90206-42001 |
1UZFE..UZS17# |
1 | ||
| 13529E - RING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3) | ||||
| 90520-41004 |
1UZFE..UZS17# |
1 | ||
| 90520-41004 |
1UZFE..UZS17# |
1 | ||
| 13540 - TENSIONER ASSY, CHAIN, NO.1 | ||||
| 13540-50030 |
1UZFE..UZS17# |
1 | ||
| 13540-50011 |
1UZFE..UZS17# |
1 | ||
| 13540-50030 |
1UZFE..UZS17# |
1 | ||
| 13553 - COVER, CHAIN TENSIONER DUST | ||||
| 13553-50010 |
1UZFE..UZS17# |
1 | ||
| 13553-50020 |
1UZFE..UZS17# |
1 | ||
| 13553-50020 |
1UZFE..UZS17# |
1 | ||
| 13556 - SHAFT, TIMING BELT IDLER | ||||
| 13556-50010 |
1UZFE..UZS17# |
1 | ||
| 13556-50010 |
1UZFE..UZS17# |
1 | ||
| 13568 - BELT, TIMING | ||||
| 13568-59095 |
1UZFE..UZS17# |
1 | ||
| 13568-59095 |
1UZFE..UZS17# |
1 | ||
| 13579 - WASHER, CAMSHAFT TIMING GEAR BOLT | ||||
| 13579-50020 |
1UZFE..UZS17# |
1 | ||
| 13579-50020 |
1UZFE..UZS17# |
1 | ||
| 13579A - WASHER, CAMSHAFT TIMING GEAR BOLT, NO.3 | ||||
| 13579-50020 |
1UZFE..UZS17# |
1 | ||
| 13579-50020 |
1UZFE..UZS17# |
1 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-50060 |
1UZFE..UZS17# |
16 | ||
| 13711-50060 |
1UZFE..UZS17# |
16 | ||
| 13711 - VALVE, INTAKE | ||||
| 13711-50060 |
1UZFE..UZS17# |
16 | ||
| 13711-50060 |
1UZFE..UZS17# |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02113 |
1UZFE..UZS17# NO.2 |
16 | ||
| 90913-02112 |
1UZFE..UZS17# NO.1 |
16 | ||
| 90913-02112 |
1UZFE..UZS17# NO.1 |
16 | ||
| 90913-02113 |
1UZFE..UZS17# NO.2 |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02113 |
1UZFE..UZS17# NO.2 |
16 | ||
| 90913-02112 |
1UZFE..UZS17# NO.1 |
16 | ||
| 90913-02112 |
1UZFE..UZS17# NO.1 |
16 | ||
| 90913-02113 |
1UZFE..UZS17# NO.2 |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02113 |
1UZFE..UZS17# NO.2 |
16 | ||
| 90913-02112 |
1UZFE..UZS17# NO.1 |
16 | ||
| 90913-02112 |
1UZFE..UZS17# NO.1 |
16 | ||
| 90913-02113 |
1UZFE..UZS17# NO.2 |
16 | ||
| 13711A - SEAL OR RING, O(FOR VALVE STEM OIL) | ||||
| 90913-02113 |
1UZFE..UZS17# NO.2 |
16 | ||
| 90913-02112 |
1UZFE..UZS17# NO.1 |
16 | ||
| 90913-02112 |
1UZFE..UZS17# NO.1 |
16 | ||
| 90913-02113 |
1UZFE..UZS17# NO.2 |
16 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29043 |
1UZFE..UZS17# |
32 | ||
| 90501-29043 |
1UZFE..UZS17# |
32 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29043 |
1UZFE..UZS17# |
32 | ||
| 90501-29043 |
1UZFE..UZS17# |
32 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29043 |
1UZFE..UZS17# |
32 | ||
| 90501-29043 |
1UZFE..UZS17# |
32 | ||
| 13711B - SPRING, COMPRESSION(FOR INNER) | ||||
| 90501-29043 |
1UZFE..UZS17# |
32 | ||
| 90501-29043 |
1UZFE..UZS17# |
32 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-50060 |
1UZFE..UZS17# |
16 | ||
| 13715-50060 |
1UZFE..UZS17# |
16 | ||
| 13715 - VALVE, EXHAUST | ||||
| 13715-50060 |
1UZFE..UZS17# |
16 | ||
| 13715-50060 |
1UZFE..UZS17# |
16 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1UZFE..UZS17# |
32 | ||
| 13734-62020 |
1UZFE..UZS17# |
32 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1UZFE..UZS17# |
32 | ||
| 13734-62020 |
1UZFE..UZS17# |
32 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1UZFE..UZS17# |
32 | ||
| 13734-62020 |
1UZFE..UZS17# |
32 | ||
| 13734 - SEAT, VALVE SPRING | ||||
| 13734-62020 |
1UZFE..UZS17# |
32 | ||
| 13734-62020 |
1UZFE..UZS17# |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50030 |
1UZFE..UZS17# |
32 | ||
| 13741-50030 |
1UZFE..UZS17# |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50030 |
1UZFE..UZS17# |
32 | ||
| 13741-50030 |
1UZFE..UZS17# |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50030 |
1UZFE..UZS17# |
32 | ||
| 13741-50030 |
1UZFE..UZS17# |
32 | ||
| 13741 - RETAINER, VALVE SPRING | ||||
| 13741-50030 |
1UZFE..UZS17# |
32 | ||
| 13741-50030 |
1UZFE..UZS17# |
32 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1UZFE..UZS17# |
64 | ||
| 90913-03028 |
1UZFE..UZS17# |
64 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1UZFE..UZS17# |
64 | ||
| 90913-03028 |
1UZFE..UZS17# |
64 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1UZFE..UZS17# |
64 | ||
| 90913-03028 |
1UZFE..UZS17# |
64 | ||
| 13741A - LOCK, VALVE SPRING RETAINER | ||||
| 90913-03028 |
1UZFE..UZS17# |
64 | ||
| 90913-03028 |
1UZFE..UZS17# |
64 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-50031 |
1UZFE..UZS17# |
32 | ||
| 13751-50031 |
1UZFE..UZS17# |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-50031 |
1UZFE..UZS17# |
32 | ||
| 13751-50031 |
1UZFE..UZS17# |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-50031 |
1UZFE..UZS17# |
32 | ||
| 13751-50031 |
1UZFE..UZS17# |
32 | ||
| 13751 - LIFTER, VALVE | ||||
| 13751-50031 |
1UZFE..UZS17# |
32 | ||
| 13751-50031 |
1UZFE..UZS17# |
32 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-22110 |
1UZFE..UZS17# 厚さ=2.180,ﾏｰｸ 18 |
32 | ||
| 13753-22070 |
1UZFE..UZS17# 厚さ=2.100,ﾏｰｸ 10 |
32 | ||
| 13753-22080 |
1UZFE..UZS17# 厚さ=2.120,ﾏｰｸ 12 |
32 | ||
| 13753-22050 |
1UZFE..UZS17# 厚さ=2.060,ﾏｰｸ 06 |
32 | ||
| 13753-22130 |
1UZFE..UZS17# 厚さ=2.220,ﾏｰｸ 22 |
32 | ||
| 13753-22030 |
1UZFE..UZS17# 厚さ=2.020,ﾏｰｸ 02 |
32 | ||
| 13753-22020 |
1UZFE..UZS17# 厚さ=2.000,ﾏｰｸ 00 |
32 | ||
| 13753-22040 |
1UZFE..UZS17# 厚さ=2.040,ﾏｰｸ 04 |
32 | ||
| 13753-22100 |
1UZFE..UZS17# 厚さ=2.160,ﾏｰｸ 16 |
32 | ||
| 13753-22120 |
1UZFE..UZS17# 厚さ=2.200,ﾏｰｸ 20 |
32 | ||
| 13753-22090 |
1UZFE..UZS17# 厚さ=2.140,ﾏｰｸ 14 |
32 | ||
| 13753-22140 |
1UZFE..UZS17# 厚さ=2.240,ﾏｰｸ 24 |
32 | ||
| 13753-22060 |
1UZFE..UZS17# 厚さ=2.080,ﾏｰｸ 08 |
32 | ||
| 13753-22150 |
1UZFE..UZS17# 厚さ=2.260,ﾏｰｸ 26 |
32 | ||
| 13753-22200 |
1UZFE..UZS17# 厚さ=2.360,ﾏｰｸ 36 |
32 | ||
| 13753-22170 |
1UZFE..UZS17# 厚さ=2.300,ﾏｰｸ 30 |
32 | ||
| 13753-22210 |
1UZFE..UZS17# 厚さ=2.380,ﾏｰｸ 38 |
32 | ||
| 13753-22220 |
1UZFE..UZS17# 厚さ=2.400,ﾏｰｸ 40 |
32 | ||
| 13753-22180 |
1UZFE..UZS17# 厚さ=2.320,ﾏｰｸ 32 |
32 | ||
| 13753-22190 |
1UZFE..UZS17# 厚さ=2.340,ﾏｰｸ 34 |
32 | ||
| 13753-22160 |
1UZFE..UZS17# 厚さ=2.280,ﾏｰｸ 28 |
32 | ||
| 13753-22230 |
1UZFE..UZS17# 厚さ=2.420,ﾏｰｸ 42 |
32 | ||
| 13753-22310 |
1UZFE..UZS17# 厚さ=2.580,ﾏｰｸ 58 |
32 | ||
| 13753-22320 |
1UZFE..UZS17# 厚さ=2.600,ﾏｰｸ 60 |
32 | ||
| 13753-22370 |
1UZFE..UZS17# 厚さ=2.700,ﾏｰｸ 70 |
32 | ||
| 13753-22360 |
1UZFE..UZS17# 厚さ=2.680,ﾏｰｸ 68 |
32 | ||
| 13753-22290 |
1UZFE..UZS17# 厚さ=2.540,ﾏｰｸ 54 |
32 | ||
| 13753-22340 |
1UZFE..UZS17# 厚さ=2.640,ﾏｰｸ 64 |
32 | ||
| 13753-22270 |
1UZFE..UZS17# 厚さ=2.500,ﾏｰｸ 50 |
32 | ||
| 13753-22280 |
1UZFE..UZS17# 厚さ=2.520,ﾏｰｸ 52 |
32 | ||
| 13753-22300 |
1UZFE..UZS17# 厚さ=2.560,ﾏｰｸ 56 |
32 | ||
| 13753-22330 |
1UZFE..UZS17# 厚さ=2.620,ﾏｰｸ 62 |
32 | ||
| 13753-22250 |
1UZFE..UZS17# 厚さ=2.460,ﾏｰｸ 46 |
32 | ||
| 13753-22260 |
1UZFE..UZS17# 厚さ=2.480,ﾏｰｸ 48 |
32 | ||
| 13753-22350 |
1UZFE..UZS17# 厚さ=2.660,ﾏｰｸ 66 |
32 | ||
| 13753-22400 |
1UZFE..UZS17# 厚さ=2.760,ﾏｰｸ 76 |
32 | ||
| 13753-22380 |
1UZFE..UZS17# 厚さ=2.720,ﾏｰｸ 72 |
32 | ||
| 13753-22390 |
1UZFE..UZS17# 厚さ=2.740,ﾏｰｸ 74 |
32 | ||
| 13753-22410 |
1UZFE..UZS17# 厚さ=2.780,ﾏｰｸ 78 |
32 | ||
| 13753-22240 |
1UZFE..UZS17# 厚さ=2.440,ﾏｰｸ 44 |
32 | ||
| 13753-22420 |
1UZFE..UZS17# 厚さ=2.800,ﾏｰｸ 80 |
32 | ||
| 13753-22020 |
1UZFE..UZS17# 厚さ=2.000,ﾏｰｸ 00 |
1 | ||
| 13753-22090 |
1UZFE..UZS17# 厚さ=2.140,ﾏｰｸ 14 |
1 | ||
| 13753-22140 |
1UZFE..UZS17# 厚さ=2.240,ﾏｰｸ 24 |
1 | ||
| 13753-22070 |
1UZFE..UZS17# 厚さ=2.100,ﾏｰｸ 10 |
1 | ||
| 13753-22110 |
1UZFE..UZS17# 厚さ=2.180,ﾏｰｸ 18 |
1 | ||
| 13753-22170 |
1UZFE..UZS17# 厚さ=2.300,ﾏｰｸ 30 |
1 | ||
| 13753-22050 |
1UZFE..UZS17# 厚さ=2.060,ﾏｰｸ 06 |
1 | ||
| 13753-22080 |
1UZFE..UZS17# 厚さ=2.120,ﾏｰｸ 12 |
1 | ||
| 13753-22150 |
1UZFE..UZS17# 厚さ=2.260,ﾏｰｸ 26 |
1 | ||
| 13753-22200 |
1UZFE..UZS17# 厚さ=2.360,ﾏｰｸ 36 |
1 | ||
| 13753-22180 |
1UZFE..UZS17# 厚さ=2.320,ﾏｰｸ 32 |
1 | ||
| 13753-22120 |
1UZFE..UZS17# 厚さ=2.200,ﾏｰｸ 20 |
1 | ||
| 13753-22210 |
1UZFE..UZS17# 厚さ=2.380,ﾏｰｸ 38 |
1 | ||
| 13753-22040 |
1UZFE..UZS17# 厚さ=2.040,ﾏｰｸ 04 |
1 | ||
| 13753-22060 |
1UZFE..UZS17# 厚さ=2.080,ﾏｰｸ 08 |
1 | ||
| 13753-22230 |
1UZFE..UZS17# 厚さ=2.420,ﾏｰｸ 42 |
1 | ||
| 13753-22220 |
1UZFE..UZS17# 厚さ=2.400,ﾏｰｸ 40 |
1 | ||
| 13753-22100 |
1UZFE..UZS17# 厚さ=2.160,ﾏｰｸ 16 |
1 | ||
| 13753-22250 |
1UZFE..UZS17# 厚さ=2.460,ﾏｰｸ 46 |
1 | ||
| 13753-22030 |
1UZFE..UZS17# 厚さ=2.020,ﾏｰｸ 02 |
1 | ||
| 13753-22130 |
1UZFE..UZS17# 厚さ=2.220,ﾏｰｸ 22 |
1 | ||
| 13753-22160 |
1UZFE..UZS17# 厚さ=2.280,ﾏｰｸ 28 |
1 | ||
| 13753-22320 |
1UZFE..UZS17# 厚さ=2.600,ﾏｰｸ 60 |
1 | ||
| 13753-22190 |
1UZFE..UZS17# 厚さ=2.340,ﾏｰｸ 34 |
1 | ||
| 13753-22270 |
1UZFE..UZS17# 厚さ=2.500,ﾏｰｸ 50 |
1 | ||
| 13753-22240 |
1UZFE..UZS17# 厚さ=2.440,ﾏｰｸ 44 |
1 | ||
| 13753-22350 |
1UZFE..UZS17# 厚さ=2.660,ﾏｰｸ 66 |
1 | ||
| 13753-22300 |
1UZFE..UZS17# 厚さ=2.560,ﾏｰｸ 56 |
1 | ||
| 13753-22290 |
1UZFE..UZS17# 厚さ=2.540,ﾏｰｸ 54 |
1 | ||
| 13753-22280 |
1UZFE..UZS17# 厚さ=2.520,ﾏｰｸ 52 |
1 | ||
| 13753-22360 |
1UZFE..UZS17# 厚さ=2.680,ﾏｰｸ 68 |
1 | ||
| 13753-22260 |
1UZFE..UZS17# 厚さ=2.480,ﾏｰｸ 48 |
1 | ||
| 13753-22340 |
1UZFE..UZS17# 厚さ=2.640,ﾏｰｸ 64 |
1 | ||
| 13753-22380 |
1UZFE..UZS17# 厚さ=2.720,ﾏｰｸ 72 |
1 | ||
| 13753-22400 |
1UZFE..UZS17# 厚さ=2.760,ﾏｰｸ 76 |
1 | ||
| 13753-22390 |
1UZFE..UZS17# 厚さ=2.740,ﾏｰｸ 74 |
1 | ||
| 13753-22370 |
1UZFE..UZS17# 厚さ=2.700,ﾏｰｸ 70 |
1 | ||
| 13753-22310 |
1UZFE..UZS17# 厚さ=2.580,ﾏｰｸ 58 |
1 | ||
| 13753-22410 |
1UZFE..UZS17# 厚さ=2.780,ﾏｰｸ 78 |
1 | ||
| 13753-22420 |
1UZFE..UZS17# 厚さ=2.800,ﾏｰｸ 80 |
1 | ||
| 13753-22330 |
1UZFE..UZS17# 厚さ=2.620,ﾏｰｸ 62 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-22110 |
1UZFE..UZS17# 厚さ=2.180,ﾏｰｸ 18 |
32 | ||
| 13753-22070 |
1UZFE..UZS17# 厚さ=2.100,ﾏｰｸ 10 |
32 | ||
| 13753-22080 |
1UZFE..UZS17# 厚さ=2.120,ﾏｰｸ 12 |
32 | ||
| 13753-22050 |
1UZFE..UZS17# 厚さ=2.060,ﾏｰｸ 06 |
32 | ||
| 13753-22130 |
1UZFE..UZS17# 厚さ=2.220,ﾏｰｸ 22 |
32 | ||
| 13753-22030 |
1UZFE..UZS17# 厚さ=2.020,ﾏｰｸ 02 |
32 | ||
| 13753-22020 |
1UZFE..UZS17# 厚さ=2.000,ﾏｰｸ 00 |
32 | ||
| 13753-22040 |
1UZFE..UZS17# 厚さ=2.040,ﾏｰｸ 04 |
32 | ||
| 13753-22100 |
1UZFE..UZS17# 厚さ=2.160,ﾏｰｸ 16 |
32 | ||
| 13753-22120 |
1UZFE..UZS17# 厚さ=2.200,ﾏｰｸ 20 |
32 | ||
| 13753-22090 |
1UZFE..UZS17# 厚さ=2.140,ﾏｰｸ 14 |
32 | ||
| 13753-22140 |
1UZFE..UZS17# 厚さ=2.240,ﾏｰｸ 24 |
32 | ||
| 13753-22060 |
1UZFE..UZS17# 厚さ=2.080,ﾏｰｸ 08 |
32 | ||
| 13753-22150 |
1UZFE..UZS17# 厚さ=2.260,ﾏｰｸ 26 |
32 | ||
| 13753-22200 |
1UZFE..UZS17# 厚さ=2.360,ﾏｰｸ 36 |
32 | ||
| 13753-22170 |
1UZFE..UZS17# 厚さ=2.300,ﾏｰｸ 30 |
32 | ||
| 13753-22210 |
1UZFE..UZS17# 厚さ=2.380,ﾏｰｸ 38 |
32 | ||
| 13753-22220 |
1UZFE..UZS17# 厚さ=2.400,ﾏｰｸ 40 |
32 | ||
| 13753-22180 |
1UZFE..UZS17# 厚さ=2.320,ﾏｰｸ 32 |
32 | ||
| 13753-22190 |
1UZFE..UZS17# 厚さ=2.340,ﾏｰｸ 34 |
32 | ||
| 13753-22160 |
1UZFE..UZS17# 厚さ=2.280,ﾏｰｸ 28 |
32 | ||
| 13753-22230 |
1UZFE..UZS17# 厚さ=2.420,ﾏｰｸ 42 |
32 | ||
| 13753-22310 |
1UZFE..UZS17# 厚さ=2.580,ﾏｰｸ 58 |
32 | ||
| 13753-22320 |
1UZFE..UZS17# 厚さ=2.600,ﾏｰｸ 60 |
32 | ||
| 13753-22370 |
1UZFE..UZS17# 厚さ=2.700,ﾏｰｸ 70 |
32 | ||
| 13753-22360 |
1UZFE..UZS17# 厚さ=2.680,ﾏｰｸ 68 |
32 | ||
| 13753-22290 |
1UZFE..UZS17# 厚さ=2.540,ﾏｰｸ 54 |
32 | ||
| 13753-22340 |
1UZFE..UZS17# 厚さ=2.640,ﾏｰｸ 64 |
32 | ||
| 13753-22270 |
1UZFE..UZS17# 厚さ=2.500,ﾏｰｸ 50 |
32 | ||
| 13753-22280 |
1UZFE..UZS17# 厚さ=2.520,ﾏｰｸ 52 |
32 | ||
| 13753-22300 |
1UZFE..UZS17# 厚さ=2.560,ﾏｰｸ 56 |
32 | ||
| 13753-22330 |
1UZFE..UZS17# 厚さ=2.620,ﾏｰｸ 62 |
32 | ||
| 13753-22250 |
1UZFE..UZS17# 厚さ=2.460,ﾏｰｸ 46 |
32 | ||
| 13753-22260 |
1UZFE..UZS17# 厚さ=2.480,ﾏｰｸ 48 |
32 | ||
| 13753-22350 |
1UZFE..UZS17# 厚さ=2.660,ﾏｰｸ 66 |
32 | ||
| 13753-22400 |
1UZFE..UZS17# 厚さ=2.760,ﾏｰｸ 76 |
32 | ||
| 13753-22380 |
1UZFE..UZS17# 厚さ=2.720,ﾏｰｸ 72 |
32 | ||
| 13753-22390 |
1UZFE..UZS17# 厚さ=2.740,ﾏｰｸ 74 |
32 | ||
| 13753-22410 |
1UZFE..UZS17# 厚さ=2.780,ﾏｰｸ 78 |
32 | ||
| 13753-22240 |
1UZFE..UZS17# 厚さ=2.440,ﾏｰｸ 44 |
32 | ||
| 13753-22420 |
1UZFE..UZS17# 厚さ=2.800,ﾏｰｸ 80 |
32 | ||
| 13753-22020 |
1UZFE..UZS17# 厚さ=2.000,ﾏｰｸ 00 |
1 | ||
| 13753-22090 |
1UZFE..UZS17# 厚さ=2.140,ﾏｰｸ 14 |
1 | ||
| 13753-22140 |
1UZFE..UZS17# 厚さ=2.240,ﾏｰｸ 24 |
1 | ||
| 13753-22070 |
1UZFE..UZS17# 厚さ=2.100,ﾏｰｸ 10 |
1 | ||
| 13753-22110 |
1UZFE..UZS17# 厚さ=2.180,ﾏｰｸ 18 |
1 | ||
| 13753-22170 |
1UZFE..UZS17# 厚さ=2.300,ﾏｰｸ 30 |
1 | ||
| 13753-22050 |
1UZFE..UZS17# 厚さ=2.060,ﾏｰｸ 06 |
1 | ||
| 13753-22080 |
1UZFE..UZS17# 厚さ=2.120,ﾏｰｸ 12 |
1 | ||
| 13753-22150 |
1UZFE..UZS17# 厚さ=2.260,ﾏｰｸ 26 |
1 | ||
| 13753-22200 |
1UZFE..UZS17# 厚さ=2.360,ﾏｰｸ 36 |
1 | ||
| 13753-22180 |
1UZFE..UZS17# 厚さ=2.320,ﾏｰｸ 32 |
1 | ||
| 13753-22120 |
1UZFE..UZS17# 厚さ=2.200,ﾏｰｸ 20 |
1 | ||
| 13753-22210 |
1UZFE..UZS17# 厚さ=2.380,ﾏｰｸ 38 |
1 | ||
| 13753-22040 |
1UZFE..UZS17# 厚さ=2.040,ﾏｰｸ 04 |
1 | ||
| 13753-22060 |
1UZFE..UZS17# 厚さ=2.080,ﾏｰｸ 08 |
1 | ||
| 13753-22230 |
1UZFE..UZS17# 厚さ=2.420,ﾏｰｸ 42 |
1 | ||
| 13753-22220 |
1UZFE..UZS17# 厚さ=2.400,ﾏｰｸ 40 |
1 | ||
| 13753-22100 |
1UZFE..UZS17# 厚さ=2.160,ﾏｰｸ 16 |
1 | ||
| 13753-22250 |
1UZFE..UZS17# 厚さ=2.460,ﾏｰｸ 46 |
1 | ||
| 13753-22030 |
1UZFE..UZS17# 厚さ=2.020,ﾏｰｸ 02 |
1 | ||
| 13753-22130 |
1UZFE..UZS17# 厚さ=2.220,ﾏｰｸ 22 |
1 | ||
| 13753-22160 |
1UZFE..UZS17# 厚さ=2.280,ﾏｰｸ 28 |
1 | ||
| 13753-22320 |
1UZFE..UZS17# 厚さ=2.600,ﾏｰｸ 60 |
1 | ||
| 13753-22190 |
1UZFE..UZS17# 厚さ=2.340,ﾏｰｸ 34 |
1 | ||
| 13753-22270 |
1UZFE..UZS17# 厚さ=2.500,ﾏｰｸ 50 |
1 | ||
| 13753-22240 |
1UZFE..UZS17# 厚さ=2.440,ﾏｰｸ 44 |
1 | ||
| 13753-22350 |
1UZFE..UZS17# 厚さ=2.660,ﾏｰｸ 66 |
1 | ||
| 13753-22300 |
1UZFE..UZS17# 厚さ=2.560,ﾏｰｸ 56 |
1 | ||
| 13753-22290 |
1UZFE..UZS17# 厚さ=2.540,ﾏｰｸ 54 |
1 | ||
| 13753-22280 |
1UZFE..UZS17# 厚さ=2.520,ﾏｰｸ 52 |
1 | ||
| 13753-22360 |
1UZFE..UZS17# 厚さ=2.680,ﾏｰｸ 68 |
1 | ||
| 13753-22260 |
1UZFE..UZS17# 厚さ=2.480,ﾏｰｸ 48 |
1 | ||
| 13753-22340 |
1UZFE..UZS17# 厚さ=2.640,ﾏｰｸ 64 |
1 | ||
| 13753-22380 |
1UZFE..UZS17# 厚さ=2.720,ﾏｰｸ 72 |
1 | ||
| 13753-22400 |
1UZFE..UZS17# 厚さ=2.760,ﾏｰｸ 76 |
1 | ||
| 13753-22390 |
1UZFE..UZS17# 厚さ=2.740,ﾏｰｸ 74 |
1 | ||
| 13753-22370 |
1UZFE..UZS17# 厚さ=2.700,ﾏｰｸ 70 |
1 | ||
| 13753-22310 |
1UZFE..UZS17# 厚さ=2.580,ﾏｰｸ 58 |
1 | ||
| 13753-22410 |
1UZFE..UZS17# 厚さ=2.780,ﾏｰｸ 78 |
1 | ||
| 13753-22420 |
1UZFE..UZS17# 厚さ=2.800,ﾏｰｸ 80 |
1 | ||
| 13753-22330 |
1UZFE..UZS17# 厚さ=2.620,ﾏｰｸ 62 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-22110 |
1UZFE..UZS17# 厚さ=2.180,ﾏｰｸ 18 |
32 | ||
| 13753-22070 |
1UZFE..UZS17# 厚さ=2.100,ﾏｰｸ 10 |
32 | ||
| 13753-22080 |
1UZFE..UZS17# 厚さ=2.120,ﾏｰｸ 12 |
32 | ||
| 13753-22050 |
1UZFE..UZS17# 厚さ=2.060,ﾏｰｸ 06 |
32 | ||
| 13753-22130 |
1UZFE..UZS17# 厚さ=2.220,ﾏｰｸ 22 |
32 | ||
| 13753-22030 |
1UZFE..UZS17# 厚さ=2.020,ﾏｰｸ 02 |
32 | ||
| 13753-22020 |
1UZFE..UZS17# 厚さ=2.000,ﾏｰｸ 00 |
32 | ||
| 13753-22040 |
1UZFE..UZS17# 厚さ=2.040,ﾏｰｸ 04 |
32 | ||
| 13753-22100 |
1UZFE..UZS17# 厚さ=2.160,ﾏｰｸ 16 |
32 | ||
| 13753-22120 |
1UZFE..UZS17# 厚さ=2.200,ﾏｰｸ 20 |
32 | ||
| 13753-22090 |
1UZFE..UZS17# 厚さ=2.140,ﾏｰｸ 14 |
32 | ||
| 13753-22140 |
1UZFE..UZS17# 厚さ=2.240,ﾏｰｸ 24 |
32 | ||
| 13753-22060 |
1UZFE..UZS17# 厚さ=2.080,ﾏｰｸ 08 |
32 | ||
| 13753-22150 |
1UZFE..UZS17# 厚さ=2.260,ﾏｰｸ 26 |
32 | ||
| 13753-22200 |
1UZFE..UZS17# 厚さ=2.360,ﾏｰｸ 36 |
32 | ||
| 13753-22170 |
1UZFE..UZS17# 厚さ=2.300,ﾏｰｸ 30 |
32 | ||
| 13753-22210 |
1UZFE..UZS17# 厚さ=2.380,ﾏｰｸ 38 |
32 | ||
| 13753-22220 |
1UZFE..UZS17# 厚さ=2.400,ﾏｰｸ 40 |
32 | ||
| 13753-22180 |
1UZFE..UZS17# 厚さ=2.320,ﾏｰｸ 32 |
32 | ||
| 13753-22190 |
1UZFE..UZS17# 厚さ=2.340,ﾏｰｸ 34 |
32 | ||
| 13753-22160 |
1UZFE..UZS17# 厚さ=2.280,ﾏｰｸ 28 |
32 | ||
| 13753-22230 |
1UZFE..UZS17# 厚さ=2.420,ﾏｰｸ 42 |
32 | ||
| 13753-22310 |
1UZFE..UZS17# 厚さ=2.580,ﾏｰｸ 58 |
32 | ||
| 13753-22320 |
1UZFE..UZS17# 厚さ=2.600,ﾏｰｸ 60 |
32 | ||
| 13753-22370 |
1UZFE..UZS17# 厚さ=2.700,ﾏｰｸ 70 |
32 | ||
| 13753-22360 |
1UZFE..UZS17# 厚さ=2.680,ﾏｰｸ 68 |
32 | ||
| 13753-22290 |
1UZFE..UZS17# 厚さ=2.540,ﾏｰｸ 54 |
32 | ||
| 13753-22340 |
1UZFE..UZS17# 厚さ=2.640,ﾏｰｸ 64 |
32 | ||
| 13753-22270 |
1UZFE..UZS17# 厚さ=2.500,ﾏｰｸ 50 |
32 | ||
| 13753-22280 |
1UZFE..UZS17# 厚さ=2.520,ﾏｰｸ 52 |
32 | ||
| 13753-22300 |
1UZFE..UZS17# 厚さ=2.560,ﾏｰｸ 56 |
32 | ||
| 13753-22330 |
1UZFE..UZS17# 厚さ=2.620,ﾏｰｸ 62 |
32 | ||
| 13753-22250 |
1UZFE..UZS17# 厚さ=2.460,ﾏｰｸ 46 |
32 | ||
| 13753-22260 |
1UZFE..UZS17# 厚さ=2.480,ﾏｰｸ 48 |
32 | ||
| 13753-22350 |
1UZFE..UZS17# 厚さ=2.660,ﾏｰｸ 66 |
32 | ||
| 13753-22400 |
1UZFE..UZS17# 厚さ=2.760,ﾏｰｸ 76 |
32 | ||
| 13753-22380 |
1UZFE..UZS17# 厚さ=2.720,ﾏｰｸ 72 |
32 | ||
| 13753-22390 |
1UZFE..UZS17# 厚さ=2.740,ﾏｰｸ 74 |
32 | ||
| 13753-22410 |
1UZFE..UZS17# 厚さ=2.780,ﾏｰｸ 78 |
32 | ||
| 13753-22240 |
1UZFE..UZS17# 厚さ=2.440,ﾏｰｸ 44 |
32 | ||
| 13753-22420 |
1UZFE..UZS17# 厚さ=2.800,ﾏｰｸ 80 |
32 | ||
| 13753-22020 |
1UZFE..UZS17# 厚さ=2.000,ﾏｰｸ 00 |
1 | ||
| 13753-22090 |
1UZFE..UZS17# 厚さ=2.140,ﾏｰｸ 14 |
1 | ||
| 13753-22140 |
1UZFE..UZS17# 厚さ=2.240,ﾏｰｸ 24 |
1 | ||
| 13753-22070 |
1UZFE..UZS17# 厚さ=2.100,ﾏｰｸ 10 |
1 | ||
| 13753-22110 |
1UZFE..UZS17# 厚さ=2.180,ﾏｰｸ 18 |
1 | ||
| 13753-22170 |
1UZFE..UZS17# 厚さ=2.300,ﾏｰｸ 30 |
1 | ||
| 13753-22050 |
1UZFE..UZS17# 厚さ=2.060,ﾏｰｸ 06 |
1 | ||
| 13753-22080 |
1UZFE..UZS17# 厚さ=2.120,ﾏｰｸ 12 |
1 | ||
| 13753-22150 |
1UZFE..UZS17# 厚さ=2.260,ﾏｰｸ 26 |
1 | ||
| 13753-22200 |
1UZFE..UZS17# 厚さ=2.360,ﾏｰｸ 36 |
1 | ||
| 13753-22180 |
1UZFE..UZS17# 厚さ=2.320,ﾏｰｸ 32 |
1 | ||
| 13753-22120 |
1UZFE..UZS17# 厚さ=2.200,ﾏｰｸ 20 |
1 | ||
| 13753-22210 |
1UZFE..UZS17# 厚さ=2.380,ﾏｰｸ 38 |
1 | ||
| 13753-22040 |
1UZFE..UZS17# 厚さ=2.040,ﾏｰｸ 04 |
1 | ||
| 13753-22060 |
1UZFE..UZS17# 厚さ=2.080,ﾏｰｸ 08 |
1 | ||
| 13753-22230 |
1UZFE..UZS17# 厚さ=2.420,ﾏｰｸ 42 |
1 | ||
| 13753-22220 |
1UZFE..UZS17# 厚さ=2.400,ﾏｰｸ 40 |
1 | ||
| 13753-22100 |
1UZFE..UZS17# 厚さ=2.160,ﾏｰｸ 16 |
1 | ||
| 13753-22250 |
1UZFE..UZS17# 厚さ=2.460,ﾏｰｸ 46 |
1 | ||
| 13753-22030 |
1UZFE..UZS17# 厚さ=2.020,ﾏｰｸ 02 |
1 | ||
| 13753-22130 |
1UZFE..UZS17# 厚さ=2.220,ﾏｰｸ 22 |
1 | ||
| 13753-22160 |
1UZFE..UZS17# 厚さ=2.280,ﾏｰｸ 28 |
1 | ||
| 13753-22320 |
1UZFE..UZS17# 厚さ=2.600,ﾏｰｸ 60 |
1 | ||
| 13753-22190 |
1UZFE..UZS17# 厚さ=2.340,ﾏｰｸ 34 |
1 | ||
| 13753-22270 |
1UZFE..UZS17# 厚さ=2.500,ﾏｰｸ 50 |
1 | ||
| 13753-22240 |
1UZFE..UZS17# 厚さ=2.440,ﾏｰｸ 44 |
1 | ||
| 13753-22350 |
1UZFE..UZS17# 厚さ=2.660,ﾏｰｸ 66 |
1 | ||
| 13753-22300 |
1UZFE..UZS17# 厚さ=2.560,ﾏｰｸ 56 |
1 | ||
| 13753-22290 |
1UZFE..UZS17# 厚さ=2.540,ﾏｰｸ 54 |
1 | ||
| 13753-22280 |
1UZFE..UZS17# 厚さ=2.520,ﾏｰｸ 52 |
1 | ||
| 13753-22360 |
1UZFE..UZS17# 厚さ=2.680,ﾏｰｸ 68 |
1 | ||
| 13753-22260 |
1UZFE..UZS17# 厚さ=2.480,ﾏｰｸ 48 |
1 | ||
| 13753-22340 |
1UZFE..UZS17# 厚さ=2.640,ﾏｰｸ 64 |
1 | ||
| 13753-22380 |
1UZFE..UZS17# 厚さ=2.720,ﾏｰｸ 72 |
1 | ||
| 13753-22400 |
1UZFE..UZS17# 厚さ=2.760,ﾏｰｸ 76 |
1 | ||
| 13753-22390 |
1UZFE..UZS17# 厚さ=2.740,ﾏｰｸ 74 |
1 | ||
| 13753-22370 |
1UZFE..UZS17# 厚さ=2.700,ﾏｰｸ 70 |
1 | ||
| 13753-22310 |
1UZFE..UZS17# 厚さ=2.580,ﾏｰｸ 58 |
1 | ||
| 13753-22410 |
1UZFE..UZS17# 厚さ=2.780,ﾏｰｸ 78 |
1 | ||
| 13753-22420 |
1UZFE..UZS17# 厚さ=2.800,ﾏｰｸ 80 |
1 | ||
| 13753-22330 |
1UZFE..UZS17# 厚さ=2.620,ﾏｰｸ 62 |
1 | ||
| 13753 - SHIM, VALVE ADJUSTING | ||||
| 13753-22110 |
1UZFE..UZS17# 厚さ=2.180,ﾏｰｸ 18 |
32 | ||
| 13753-22070 |
1UZFE..UZS17# 厚さ=2.100,ﾏｰｸ 10 |
32 | ||
| 13753-22080 |
1UZFE..UZS17# 厚さ=2.120,ﾏｰｸ 12 |
32 | ||
| 13753-22050 |
1UZFE..UZS17# 厚さ=2.060,ﾏｰｸ 06 |
32 | ||
| 13753-22130 |
1UZFE..UZS17# 厚さ=2.220,ﾏｰｸ 22 |
32 | ||
| 13753-22030 |
1UZFE..UZS17# 厚さ=2.020,ﾏｰｸ 02 |
32 | ||
| 13753-22020 |
1UZFE..UZS17# 厚さ=2.000,ﾏｰｸ 00 |
32 | ||
| 13753-22040 |
1UZFE..UZS17# 厚さ=2.040,ﾏｰｸ 04 |
32 | ||
| 13753-22100 |
1UZFE..UZS17# 厚さ=2.160,ﾏｰｸ 16 |
32 | ||
| 13753-22120 |
1UZFE..UZS17# 厚さ=2.200,ﾏｰｸ 20 |
32 | ||
| 13753-22090 |
1UZFE..UZS17# 厚さ=2.140,ﾏｰｸ 14 |
32 | ||
| 13753-22140 |
1UZFE..UZS17# 厚さ=2.240,ﾏｰｸ 24 |
32 | ||
| 13753-22060 |
1UZFE..UZS17# 厚さ=2.080,ﾏｰｸ 08 |
32 | ||
| 13753-22150 |
1UZFE..UZS17# 厚さ=2.260,ﾏｰｸ 26 |
32 | ||
| 13753-22200 |
1UZFE..UZS17# 厚さ=2.360,ﾏｰｸ 36 |
32 | ||
| 13753-22170 |
1UZFE..UZS17# 厚さ=2.300,ﾏｰｸ 30 |
32 | ||
| 13753-22210 |
1UZFE..UZS17# 厚さ=2.380,ﾏｰｸ 38 |
32 | ||
| 13753-22220 |
1UZFE..UZS17# 厚さ=2.400,ﾏｰｸ 40 |
32 | ||
| 13753-22180 |
1UZFE..UZS17# 厚さ=2.320,ﾏｰｸ 32 |
32 | ||
| 13753-22190 |
1UZFE..UZS17# 厚さ=2.340,ﾏｰｸ 34 |
32 | ||
| 13753-22160 |
1UZFE..UZS17# 厚さ=2.280,ﾏｰｸ 28 |
32 | ||
| 13753-22230 |
1UZFE..UZS17# 厚さ=2.420,ﾏｰｸ 42 |
32 | ||
| 13753-22310 |
1UZFE..UZS17# 厚さ=2.580,ﾏｰｸ 58 |
32 | ||
| 13753-22320 |
1UZFE..UZS17# 厚さ=2.600,ﾏｰｸ 60 |
32 | ||
| 13753-22370 |
1UZFE..UZS17# 厚さ=2.700,ﾏｰｸ 70 |
32 | ||
| 13753-22360 |
1UZFE..UZS17# 厚さ=2.680,ﾏｰｸ 68 |
32 | ||
| 13753-22290 |
1UZFE..UZS17# 厚さ=2.540,ﾏｰｸ 54 |
32 | ||
| 13753-22340 |
1UZFE..UZS17# 厚さ=2.640,ﾏｰｸ 64 |
32 | ||
| 13753-22270 |
1UZFE..UZS17# 厚さ=2.500,ﾏｰｸ 50 |
32 | ||
| 13753-22280 |
1UZFE..UZS17# 厚さ=2.520,ﾏｰｸ 52 |
32 | ||
| 13753-22300 |
1UZFE..UZS17# 厚さ=2.560,ﾏｰｸ 56 |
32 | ||
| 13753-22330 |
1UZFE..UZS17# 厚さ=2.620,ﾏｰｸ 62 |
32 | ||
| 13753-22250 |
1UZFE..UZS17# 厚さ=2.460,ﾏｰｸ 46 |
32 | ||
| 13753-22260 |
1UZFE..UZS17# 厚さ=2.480,ﾏｰｸ 48 |
32 | ||
| 13753-22350 |
1UZFE..UZS17# 厚さ=2.660,ﾏｰｸ 66 |
32 | ||
| 13753-22400 |
1UZFE..UZS17# 厚さ=2.760,ﾏｰｸ 76 |
32 | ||
| 13753-22380 |
1UZFE..UZS17# 厚さ=2.720,ﾏｰｸ 72 |
32 | ||
| 13753-22390 |
1UZFE..UZS17# 厚さ=2.740,ﾏｰｸ 74 |
32 | ||
| 13753-22410 |
1UZFE..UZS17# 厚さ=2.780,ﾏｰｸ 78 |
32 | ||
| 13753-22240 |
1UZFE..UZS17# 厚さ=2.440,ﾏｰｸ 44 |
32 | ||
| 13753-22420 |
1UZFE..UZS17# 厚さ=2.800,ﾏｰｸ 80 |
32 | ||
| 13753-22020 |
1UZFE..UZS17# 厚さ=2.000,ﾏｰｸ 00 |
1 | ||
| 13753-22090 |
1UZFE..UZS17# 厚さ=2.140,ﾏｰｸ 14 |
1 | ||
| 13753-22140 |
1UZFE..UZS17# 厚さ=2.240,ﾏｰｸ 24 |
1 | ||
| 13753-22070 |
1UZFE..UZS17# 厚さ=2.100,ﾏｰｸ 10 |
1 | ||
| 13753-22110 |
1UZFE..UZS17# 厚さ=2.180,ﾏｰｸ 18 |
1 | ||
| 13753-22170 |
1UZFE..UZS17# 厚さ=2.300,ﾏｰｸ 30 |
1 | ||
| 13753-22050 |
1UZFE..UZS17# 厚さ=2.060,ﾏｰｸ 06 |
1 | ||
| 13753-22080 |
1UZFE..UZS17# 厚さ=2.120,ﾏｰｸ 12 |
1 | ||
| 13753-22150 |
1UZFE..UZS17# 厚さ=2.260,ﾏｰｸ 26 |
1 | ||
| 13753-22200 |
1UZFE..UZS17# 厚さ=2.360,ﾏｰｸ 36 |
1 | ||
| 13753-22180 |
1UZFE..UZS17# 厚さ=2.320,ﾏｰｸ 32 |
1 | ||
| 13753-22120 |
1UZFE..UZS17# 厚さ=2.200,ﾏｰｸ 20 |
1 | ||
| 13753-22210 |
1UZFE..UZS17# 厚さ=2.380,ﾏｰｸ 38 |
1 | ||
| 13753-22040 |
1UZFE..UZS17# 厚さ=2.040,ﾏｰｸ 04 |
1 | ||
| 13753-22060 |
1UZFE..UZS17# 厚さ=2.080,ﾏｰｸ 08 |
1 | ||
| 13753-22230 |
1UZFE..UZS17# 厚さ=2.420,ﾏｰｸ 42 |
1 | ||
| 13753-22220 |
1UZFE..UZS17# 厚さ=2.400,ﾏｰｸ 40 |
1 | ||
| 13753-22100 |
1UZFE..UZS17# 厚さ=2.160,ﾏｰｸ 16 |
1 | ||
| 13753-22250 |
1UZFE..UZS17# 厚さ=2.460,ﾏｰｸ 46 |
1 | ||
| 13753-22030 |
1UZFE..UZS17# 厚さ=2.020,ﾏｰｸ 02 |
1 | ||
| 13753-22130 |
1UZFE..UZS17# 厚さ=2.220,ﾏｰｸ 22 |
1 | ||
| 13753-22160 |
1UZFE..UZS17# 厚さ=2.280,ﾏｰｸ 28 |
1 | ||
| 13753-22320 |
1UZFE..UZS17# 厚さ=2.600,ﾏｰｸ 60 |
1 | ||
| 13753-22190 |
1UZFE..UZS17# 厚さ=2.340,ﾏｰｸ 34 |
1 | ||
| 13753-22270 |
1UZFE..UZS17# 厚さ=2.500,ﾏｰｸ 50 |
1 | ||
| 13753-22240 |
1UZFE..UZS17# 厚さ=2.440,ﾏｰｸ 44 |
1 | ||
| 13753-22350 |
1UZFE..UZS17# 厚さ=2.660,ﾏｰｸ 66 |
1 | ||
| 13753-22300 |
1UZFE..UZS17# 厚さ=2.560,ﾏｰｸ 56 |
1 | ||
| 13753-22290 |
1UZFE..UZS17# 厚さ=2.540,ﾏｰｸ 54 |
1 | ||
| 13753-22280 |
1UZFE..UZS17# 厚さ=2.520,ﾏｰｸ 52 |
1 | ||
| 13753-22360 |
1UZFE..UZS17# 厚さ=2.680,ﾏｰｸ 68 |
1 | ||
| 13753-22260 |
1UZFE..UZS17# 厚さ=2.480,ﾏｰｸ 48 |
1 | ||
| 13753-22340 |
1UZFE..UZS17# 厚さ=2.640,ﾏｰｸ 64 |
1 | ||
| 13753-22380 |
1UZFE..UZS17# 厚さ=2.720,ﾏｰｸ 72 |
1 | ||
| 13753-22400 |
1UZFE..UZS17# 厚さ=2.760,ﾏｰｸ 76 |
1 | ||
| 13753-22390 |
1UZFE..UZS17# 厚さ=2.740,ﾏｰｸ 74 |
1 | ||
| 13753-22370 |
1UZFE..UZS17# 厚さ=2.700,ﾏｰｸ 70 |
1 | ||
| 13753-22310 |
1UZFE..UZS17# 厚さ=2.580,ﾏｰｸ 58 |
1 | ||
| 13753-22410 |
1UZFE..UZS17# 厚さ=2.780,ﾏｰｸ 78 |
1 | ||
| 13753-22420 |
1UZFE..UZS17# 厚さ=2.800,ﾏｰｸ 80 |
1 | ||
| 13753-22330 |
1UZFE..UZS17# 厚さ=2.620,ﾏｰｸ 62 |
1 | ||
| Common parts | ||||
| 90105-08178 | ||||
| 90105-10248 | ||||
| 90110-06009 | ||||
| 90110-06018 | ||||
| 90201-10101 | ||||
| 90210-25002 | ||||
| 90341-27008 | ||||
| 90402-12011 | ||||
| Linked diagrams | ||||
| 1709 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
