UZS173-CEPZK (1999)

Toyota Crown/Crown Majesta

Production Sep 1999 - Jun 2004
Engine 1UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9909-0406)1UZFE

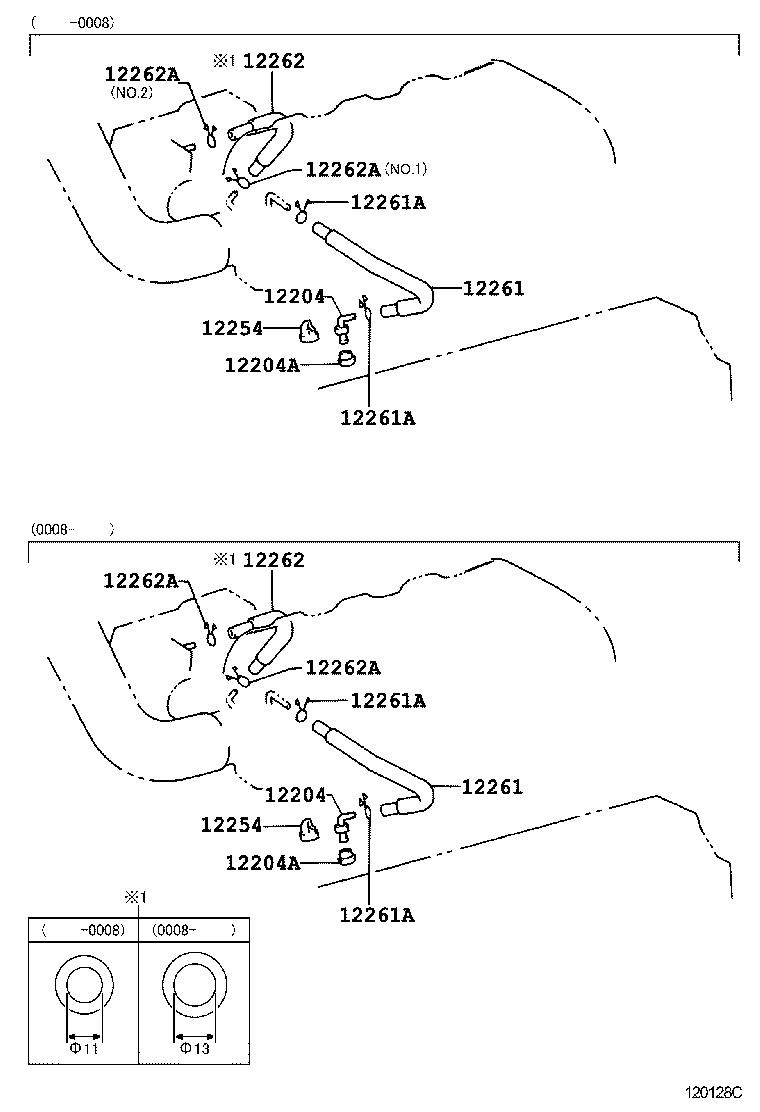

Click highlighted areas on diagram

diagram 12204 12204 12204A 12204A 12254 12254 12261 12261 12261A 12261A 12261A 12261A 12262 12262 12262A 12262A 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-50020

1UZFE..UZS17#

 1
12204-50020

1UZFE..UZS17#

 1
12204 - VALVE SUB-ASSY, VENTILATION
12204-50020

1UZFE..UZS17#

 1
12204-50020

1UZFE..UZS17#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1UZFE..UZS17#

 1
90480-18001

1UZFE..UZS17#

 1
12204A - GROMMET(FOR VENTILATION SYSTEM)
90480-18001

1UZFE..UZS17#

 1
90480-18001

1UZFE..UZS17#

 1
12254 - COVER, VENTILATION VALVE
12236-50010

1UZFE..UZS17#

 1
12236-50010

1UZFE..UZS17#

 1
12254 - COVER, VENTILATION VALVE
12236-50010

1UZFE..UZS17#

 1
12236-50010

1UZFE..UZS17#

 1
12261 - HOSE, VENTILATION
12261-50040

1UZFE..UZS17#

 1
12261-50040

1UZFE..UZS17#

 1
12261 - HOSE, VENTILATION
12261-50040

1UZFE..UZS17#

 1
12261-50040

1UZFE..UZS17#

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

1UZFE..UZS17#

 2
90467-15021

1UZFE..UZS17#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

1UZFE..UZS17#

 2
90467-15021

1UZFE..UZS17#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

1UZFE..UZS17#

 2
90467-15021

1UZFE..UZS17#

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-15021

1UZFE..UZS17#

 2
90467-15021

1UZFE..UZS17#

 2
12262 - HOSE, VENTILATION, NO.2
12262-50020

1UZFE..UZS17#

 1
12262-50060

1UZFE..UZS17#

 1
12262-50060

1UZFE..UZS17#

 1
12262 - HOSE, VENTILATION, NO.2
12262-50020

1UZFE..UZS17#

 1
12262-50060

1UZFE..UZS17#

 1
12262-50060

1UZFE..UZS17#

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

1UZFE..UZS17#

NO.2

 1
90467-20010

1UZFE..UZS17#

 2
90467-20010

1UZFE..UZS17#

 2
90467-15021

1UZFE..UZS17#

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

1UZFE..UZS17#

NO.2

 1
90467-20010

1UZFE..UZS17#

 2
90467-20010

1UZFE..UZS17#

 2
90467-15021

1UZFE..UZS17#

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

1UZFE..UZS17#

NO.2

 1
90467-20010

1UZFE..UZS17#

 2
90467-20010

1UZFE..UZS17#

 2
90467-15021

1UZFE..UZS17#

NO.1

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-17011

1UZFE..UZS17#

NO.2

 1
90467-20010

1UZFE..UZS17#

 2
90467-20010

1UZFE..UZS17#

 2
90467-15021

1UZFE..UZS17#

NO.1

 1
