UZS173-CEPZK (1999)
Toyota Crown/Crown Majesta
Production
Sep 1999
-
Jun 2004
Engine
1UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9909-0406)1UZFE..UZS173

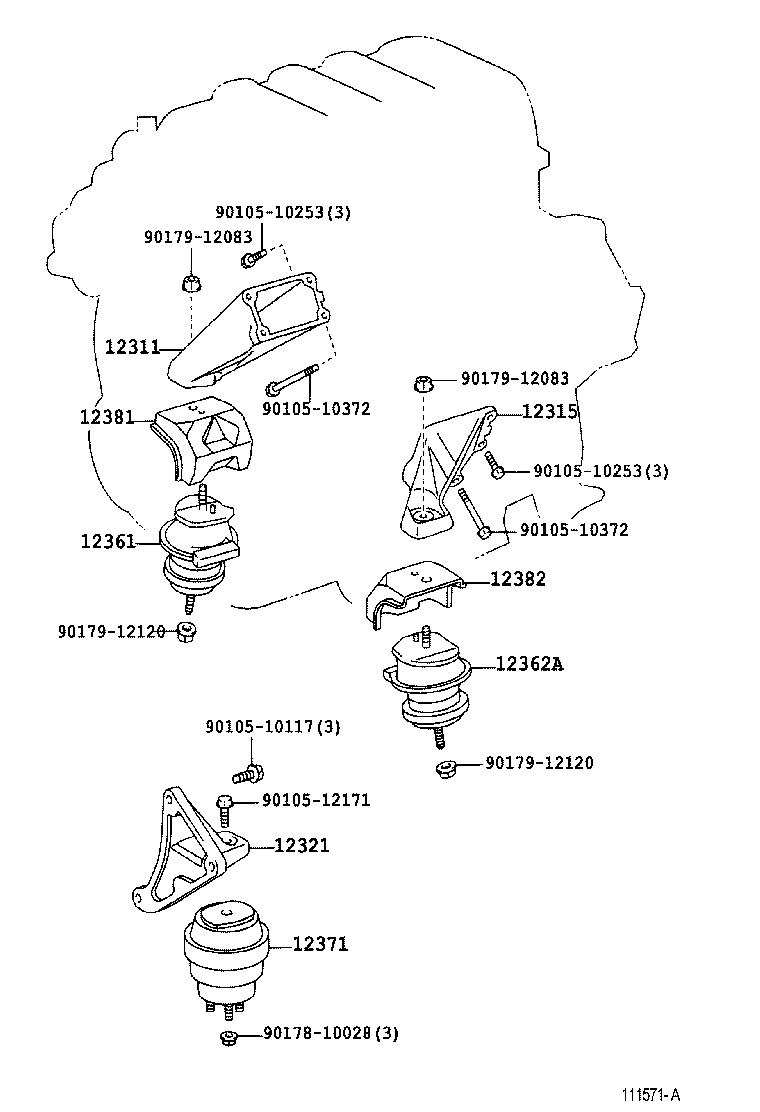

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-50050 |
1UZFE..UZS173 |
1 | ||
| 12311-50050 |
1UZFE..UZS173 |
1 | ||
| 12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH | ||||
| 12315-50040 |
1UZFE..UZS173 |
1 | ||
| 12315-50040 |
1UZFE..UZS173 |
1 | ||
| 12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1 | ||||
| 12321-50010 |
1UZFE..UZS173 |
1 | ||
| 12321-50010 |
1UZFE..UZS173 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-50092 |
1UZFE..UZS173 |
1 | ||
| 12361-50091 |
1UZFE..UZS173 |
1 | ||
| 12361-50091 |
1UZFE..UZS173 |
1 | ||
| 12362A - INSULATOR, ENGINE MOUNTING, FRONT LH | ||||
| 12361-50091 |
1UZFE..UZS173 |
1 | ||
| 12361-50092 |
1UZFE..UZS173 |
1 | ||
| 12361-50091 |
1UZFE..UZS173 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-50051 |
1UZFE..UZS173 |
1 | ||
| 12371-50051 |
1UZFE..UZS173 |
1 | ||
| 12381 - STABILIZER, ENGINE MOUNTING | ||||
| 12381-50071 |
1UZFE..UZS173 |
1 | ||
| 12381-50070 |
1UZFE..UZS173 |
1 | ||
| 12381-50070 |
1UZFE..UZS173 |
1 | ||
| 12382 - STABILIZER, ENGINE MOUNTING, LH | ||||
| 12381-50070 |
1UZFE..UZS173 |
1 | ||
| 12381-50070 |
1UZFE..UZS173 |
1 | ||
| 12381-50071 |
1UZFE..UZS173 |
1 | ||
| Common parts | ||||
| 90105-10117 | ||||
| 90105-10253 | ||||
| 90105-10372 | ||||
| 90105-12171 | ||||
| 90178-10028 | ||||
| 90179-12083 | ||||
| 90179-12120 | ||||
