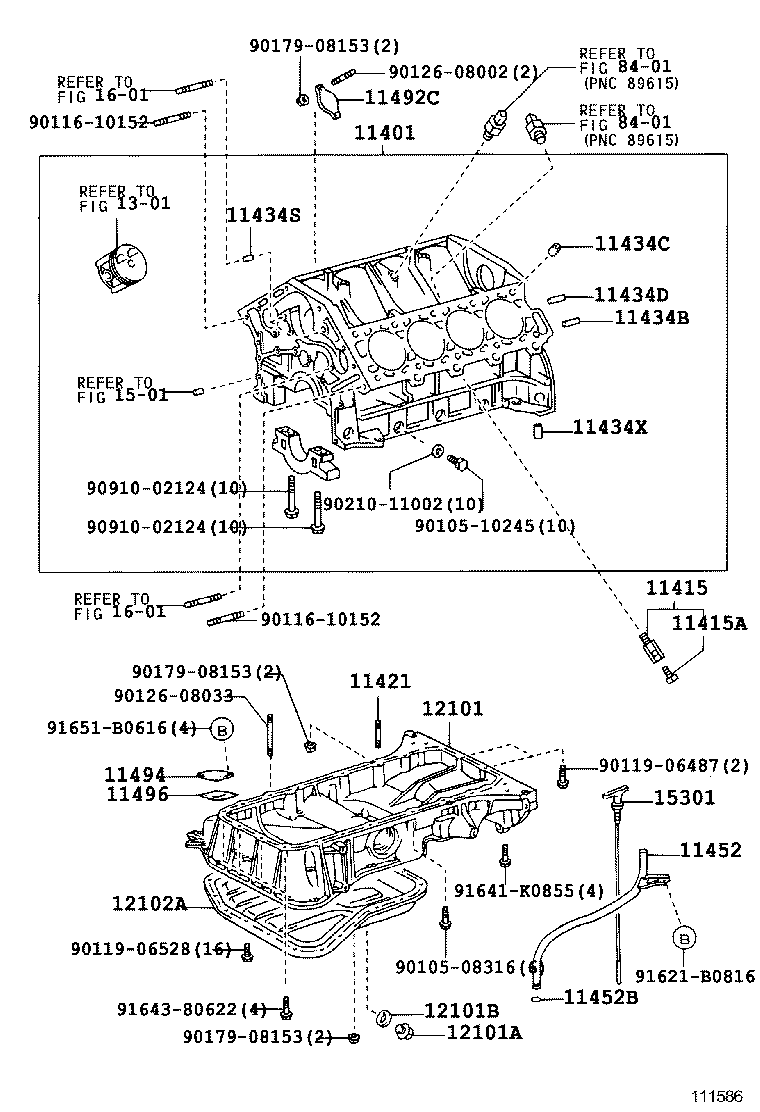

Toyota Crown/crown majesta UZS173 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-59665	1UZFE..UZS173	09/1999 - 08/2001	1
11401-59665	1UZFE..UZS173	08/2001 - 06/2004	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09095	1UZFE..UZS17#	09/1999 - 08/2001	2
90910-09095	1UZFE..UZS17#	08/2001 - 06/2004	2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	1UZFE..UZS17#	08/2001 - 06/2004	2
90910-09087	1UZFE..UZS17#	09/1999 - 08/2001	2
11421 - BOLT, STUD(FOR OIL PAN)
90126-08031	1UZFE..UZS17# NO.1	09/1999 - 08/2001	2
90126-08031	1UZFE..UZS17# NO.1	08/2001 - 06/2004	2
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113	1UZFE..UZS17# 長さ=22,外径=10	09/1999 - 08/2001	2
90250-10113	1UZFE..UZS17# 長さ=22,外径=10	08/2001 - 06/2004	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-16001	1UZFE..UZS17# 長さ=20,外径=16	09/1999 - 08/2001	4
90253-16001	1UZFE..UZS17# 長さ=20,外径=16	08/2001 - 06/2004	4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003	1UZFE..UZS17# 長さ=14,外径=6	09/1999 - 08/2001	2
90250-06003	1UZFE..UZS17# 長さ=14,外径=6	08/2001 - 06/2004	2
11434S - PIN, RING(FOR WATER PUMP SET)
90253-11021	1UZFE..UZS17#	08/2001 - 06/2004	2
11434X - PIN, RING(FOR CHAIN CACE)
90253-11021	1UZFE..UZS17#	09/1999 - 08/2001	2
90253-11021	1UZFE..UZS17#	08/2001 - 06/2004	2
11452 - GUIDE, OIL LEVEL GAGE
11452-50100	1UZFE..UZS173	09/1999 - 08/2001	1
11452-50100	1UZFE..UZS173	08/2001 - 01/2004	1
11452-50101	1UZFE..UZS173	01/2004 - 06/2004	1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010	1UZFE..UZS17#	09/1999 - 08/2001	1
96721-19010	1UZFE..UZS17#	08/2001 - 06/2004	1
11492C - PLATE, WATER SEAL
11492-20010	1UZFE..UZS17#	03/2001 - 08/2001	1
11492-50010	1UZFE..UZS17#	09/1999 - 03/2001	1
11492-20010	1UZFE..UZS17#	08/2001 - 06/2004	1
11494 - PLATE, OIL HOLE COVER
11494-46010	1UZFE..UZS17#	09/1999 - 08/2001	1
11494-46010	1UZFE..UZS17#	08/2001 - 06/2004	1
11496 - GASKET, OIL HOLE COVER PLATE
11496-46010	1UZFE..UZS17#	09/1999 - 08/2001	1
11496-46010	1UZFE..UZS17#	08/2001 - 06/2004	1
12101 - PAN SUB-ASSY, OIL
12101-50021	1UZFE..UZS173	08/2001 - 06/2004	1
12101-50021	1UZFE..UZS173	09/1999 - 08/2001	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12023	1UZFE..UZS17#	09/1999 - 08/2001	1
90341-12023	1UZFE..UZS17#	08/2001 - 06/2004	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031	1UZFE..UZS17#	09/1999 - 08/2001	1
90430-12031	1UZFE..UZS17#	08/2001 - 06/2004	1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-50060	1UZFE..UZS173	09/1999 - 08/2001	1
12102-50060	1UZFE..UZS173	08/2001 - 06/2004	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-50090	1UZFE..UZS173	08/2001 - 06/2004	1
15301-50090	1UZFE..UZS173	09/1999 - 08/2001	1
Common parts
90105-08316
90105-10245
90116-10152
90119-06487
90119-06528
90126-08002
90126-08033
90179-08153
90210-11002
90910-02124
91621-B0816
91641-K0855
91643-80622
91651-B0616
Linked diagrams
1301
1501
1601
8401

UZS173-CEPZK (1999)

(9909- )1UZFE..UZS173
